Battery Energy Storage System Components: Engineering Guide

Quick answer: The primary battery energy storage system components comprise the DC battery strings (cells, modules, and racks), the bidirectional Power Conversion System (PCS), the three-tier Battery Management System (BMS), the high-level Energy Management System (EMS), and environmental Balance of Plant (BOP) safety infrastructure. Together, these subsystems convert, control, protect, and dispatch stored electrical energy to the utility grid.

Industrial and utility-scale installations rely on tightly integrated electrical, thermal, and mechanical subsystems working in synchronisation. A failure or sub-optimal specification in any single layer—from an uncalibrated cell-monitoring lead up to the medium-voltage step-up transformer—undermines round-trip efficiency (RTE), elevates degradation rates, and introduces critical safety hazards. Understanding how these utility-scale energy storage systems interface at the engineering level is fundamental to designing reliable, bankable projects.

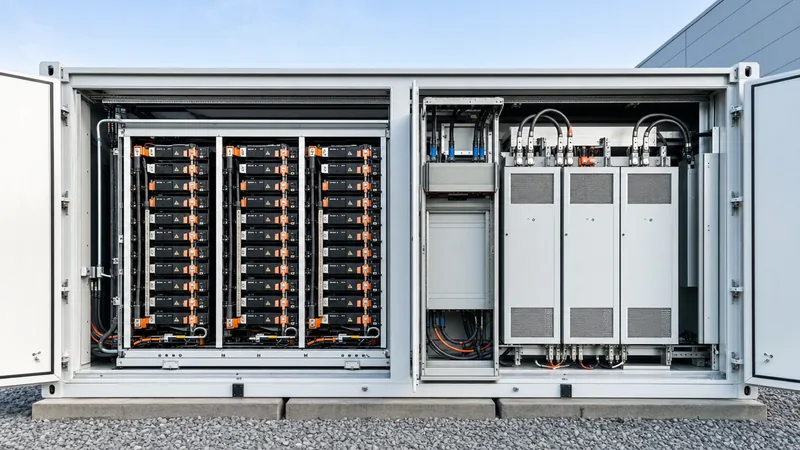

Core DC Battery Energy Storage System Components

The DC electrochemical block represents between 50% and 65% of total capital expenditure and forms the physical foundation of any installation. At the lowest level, individual prismatic or pouch cells are grouped into modules, which are then connected in series to form high-voltage DC racks. Most modern grid-scale designs utilise Lithium Iron Phosphate (LFP) chemistry due to its structural stability and cycle endurance, as outlined in our technical review of LFP vs NMC battery performance.

To illustrate string sizing in a modern 1500 V DC architecture, consider a 3.2 V nominal, 280 Ah LFP prismatic cell. Under standard string design according to IEC 62619:

• Individual cell nominal voltage: 3.2 V (operating range: 2.5 V to 3.65 V)
• Module configuration: 1P16S (16 cells in series) = 51.2 V nominal, 14.336 kWh
• Rack configuration: 26 modules connected in series (1P416S)
• Nominal rack voltage: 416 cells × 3.2 V = 1331.2 V DC
• Maximum charging cut-off voltage: 416 cells × 3.65 V = 1518.4 V DC (aligning with 1500 V DC switchgear ratings)
• Minimum discharge cut-off voltage: 416 cells × 2.5 V = 1040.0 V DC
• Total rack energy capacity: 1331.2 V × 280 Ah = 372.73 kWh

Each rack incorporates a dedicated Rack High Voltage Box (RHVB) or Rack Control Module (RCM). The RHVB contains DC disconnect contactors, pyro-fuses for short-circuit interruption up to 100 kA breaking capacity, a shunt resistor or Hall-effect sensor for current measurement, and isolation monitoring hardware compliant with IEC 61557-8.

Battery Management System (BMS) Architecture

The Battery Management System protects cells from operating outside their Safe Operating Area (SOA) and manages state estimation across three distinct architectural tiers. Without precise state evaluation, uneven degradation rapidly forces premature capacity loss across the entire DC string.

1. Tier 1: Cell Monitoring Units (CMUs / Slave BMS): Circuit boards attached directly to battery modules. They sample individual cell voltages (accuracy within ±2 mV) via high-precision analog front ends (AFEs) and monitor temperatures using negative temperature coefficient (NTC) thermistors placed across busbars and cell casings. CMUs perform passive balancing by shunting excess charge through balance resistors at 50 mA to 200 mA.
2. Tier 2: Rack Management Unit (RMU / Master BMS): Installed within the RHVB, the RMU aggregates data from all Tier 1 modules via daisy-chained CANbus or industrial serial connections. It calculates string-level State of Charge (SOC) and State of Health (SOH) using extended Kalman filter algorithms, operates the DC main contactors, and monitors insulation resistance between the DC poles and chassis ground. Detailed specifications for these communication loops are examined in our battery monitoring system guide.
3. Tier 3: Battery Array Management System (BAMS / System BMS): The central orchestrator that oversees multiple parallel racks inside an enclosure or container. The BAMS coordinates rack-level balancing, manages parallel rack circulating currents, and acts as the communications gateway to the PCS and site controller via Modbus TCP/IP or Ethernet/IP.

Power Conversion System (PCS) Topologies and Functions

The Power Conversion System serves as the bidirectional interface between the DC battery racks and the alternating current (AC) grid. During charging, the PCS operates as an active rectifier converting three-phase medium or low AC voltage into DC; during discharge, it functions as a grid-tied inverter supplying regulated real and reactive power. Detailed electrical requirements and sizing practices are analysed in our power conversion system guide.

Modern utility installations employ two main PCS topologies:

• Central Inverter Topology: Multiple DC strings are coupled via a common DC busbar to a single high-capacity PCS (typically 1 MW to 3.45 MW). While this delivers lower initial equipment cost per megawatt, differences in rack impedances can lead to inter-rack circulating currents and capacity mismatches.
• String Inverter Topology: Each battery rack or small cluster pairs with an independent, smaller PCS channel (typically 100 kW to 250 kW). This eliminates circulating currents, enables rack-level Maximum Power Point Tracking (MPPT) or dynamic SOC management, and simplifies field replacement at the cost of increased AC cabling.

Under IEEE 1547-2018 and IEC 62477-1, the PCS must execute four-quadrant operation, support active power curtailment, deliver reactive power compensation (statcom mode), and provide dynamic Low Voltage Ride-Through (LVRT) down to 0% residual voltage for up to 150 ms without tripping off-line.

Thermal Management: Liquid Cooling vs Air Cooling

Thermal management directly determines cell lifetime, round-trip efficiency, and system safety. Operating LFP cells continuously above 35 °C doubles the rate of solid electrolyte interphase (SEI) growth and capacity fade, whereas temperatures below 10 °C significantly elevate internal impedance and promote lithium plating during charge cycles. Comprehensive thermal design factors are covered in our battery cooling engineering guide.

Traditional forced-air systems use dual redundant HVAC units blowing conditioned air through floor plenums or ductwork. However, for continuous C-rates equal to or greater than 0.5C, high thermal loads create unacceptable temperature gradients (often exceeding 5 °C to 8 °C between the front and rear of the rack), causing unequal aging across cells. As a result, industry standards have shifted toward liquid-cooled energy storage containers.

Liquid cooling circulates an inhibited water-glycol mixture (typically 50/50 ethylene or propylene glycol and deionised water) through aluminium cold plates integrated directly below or between the cell casings. The fluid exhibits a specific heat capacity roughly four times higher than air, maintaining cell temperature variance within ±2 °C across the entire rack. The coolant is processed by an external chiller and pumping skid equipped with variable-frequency drive (VFD) pumps, plate heat exchangers, and proportional three-way blending valves to regulate inlet temperatures precisely.

Balance of Plant (BOP) and Safety Systems

Balance of Plant covers the mechanical, structural, and fire protection infrastructure that houses and protects the electrical components. The battery enclosure must meet rigorous structural standards, as detailed in our guide to battery enclosure engineering. For outdoor applications, enclosures are fabricated to IP55 or NEMA 3R/4 ingress ratings with C4 or high-durability marine-grade anti-corrosion coatings.

Fire protection and life-safety systems must strictly adhere to NFPA 855, UL 9540, and UL 9540A large-scale fire testing criteria. The BOP safety hierarchy includes:

• Off-Gas Detection: Continuous sampling using multi-gas sniffers to detect hydrogen (H2), carbon monoxide (CO), and volatile organic compounds (VOCs). Off-gas detection provides early warning minutes before thermal runaway initiates, allowing the system to isolate the DC contactors and trigger ventilation.
• Deflagration Mitigation: Engineered explosion relief panels installed on the container roof, sized according to NFPA 68 / NFPA 69. Panels open at low overpressures (typically 20 kPa to 50 kPa) to direct blast energy upward and prevent structural container rupture.
• Fire Suppression: Total flooding clean agent systems (such as FK-5-1-12) or aerosol suppression designed to extinguish open flames during early-stage electrical fires. For thermal runaway propagation involving secondary cell venting, automated dry-pipe water deluge or sprinkler systems provide the heat absorption necessary to arrest cascading cell failure.

Critical BESS Components Specification Matrix

The following engineering matrix outlines key technical requirements, applicable international standards, and verification criteria for major bess components during equipment specification and Factory Acceptance Testing (FAT).

Energy Management System (EMS) and Grid Substation Integration

The Energy Management System sits at the apex of the digital control architecture, translating high-level market signals, dispatch orders, or renewable generation profiles into real-time active and reactive power setpoints. Operating over IEC 60870-5-104 or DNP3 communications, the EMS interfaces with the transmission or distribution system operator (TSO/DSO) to execute applications such as peak shaving, frequency response, and black start.

Below the EMS, the Power Plant Controller (PPC) coordinates the individual PCS units and monitors the Point of Interconnection (POI). To deliver power to the grid, the low AC output voltage of the PCS (typically 600 V to 690 V) must be stepped up to medium distribution voltages (such as 11 kV, 22 kV, or 33 kV). This is accomplished via skid-mounted or containerised prefabricated compact substations, which bundle the step-up transformer, low-voltage protection circuit breakers, and medium-voltage switchgear into a single factory-tested platform.
