Key takeaways
- An ac battery backup connects directly to the low-voltage distribution board via a bidirectional power conversion system, facilitating retrofits without reconfiguring existing solar strings.
- Industrial 110 battery backup systems deliver isolated secondary control power to protective switchgear trip coils, supervisory control systems, and automated transfer switches.
- Sizing calculations must account for the inverter conversion efficiency, maximum depth of discharge, battery degradation margins, and inductive inrush multipliers.
- Seamless islanding transitions require high-speed static transfer switches capable of transfer times under 10 milliseconds in compliance with IEC 62040-3 Class 1 standards.
- Comprehensive system protection requires coordinated AC circuit breakers, DC fast-acting fuses, and grounding compliant with IEEE 1547-2018 and NFPA 855.
Quick answer: An ac battery backup is an energy storage system that connects directly to an alternating current distribution bus through a dedicated bidirectional power conversion system. It isolates and energises essential equipment during utility outages, delivers continuous power conditioning, and enables peak shaving without modifying upstream medium-voltage or downstream branch circuits.
In industrial distribution systems, selecting the correct backup architecture determines whether critical operational infrastructure survives sudden brownouts, voltage sags, or full blackout events. Unlike direct-current configurations tied directly to photovoltaic strings, alternating-current coupled energy storage interfaces smoothly with common switchboards at typical operating voltages such as 400 V, 480 V, or 110 V single-phase control circuits. Designing a reliable installation requires detailed load profiling, transient analysis, thermal risk management, and rigorous compliance with international safety codes.

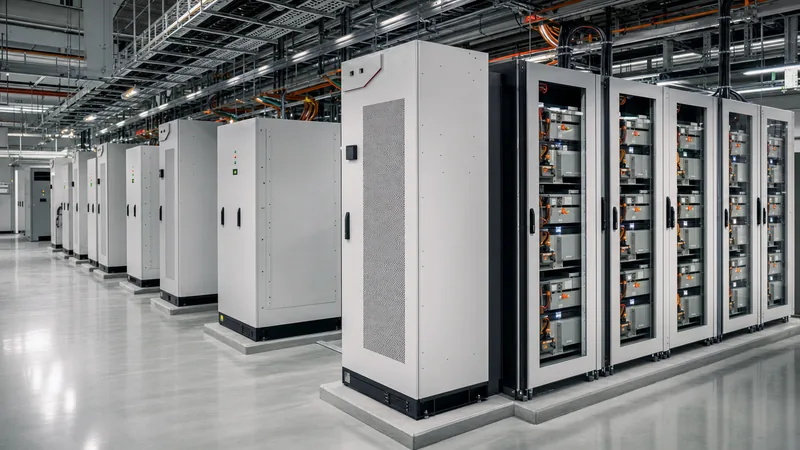

AC Battery Backup Architecture vs DC-Coupled Topologies
An AC-coupled storage architecture separates the battery subsystem and power electronics from primary generation sources, connecting every component in parallel across the facility low-voltage alternating-current bus.
In this arrangement, battery cells supply direct current to an integrated or external bidirectional power conversion system (PCS). This inverter converts direct current into phase-synchronised alternating current at 50 Hz or 60 Hz. Because the coupling occurs entirely at the AC switchboard, engineers can retrofit storage onto existing infrastructure without recalculating string voltages or replacing established grid-tied solar inverters. For facilities requiring distributed resilience, an energy storage system built on an AC topology allows independent scaling of active power (inverters in kilowatts) and energy capacity (battery modules in kilowatt-hours).
Conversely, direct-current coupling connects storage modules directly to a shared DC bus behind a single multi-port inverter. While DC systems demonstrate marginally higher round-trip electrical efficiency for co-located solar generation by omitting double conversion stages, AC-coupled topologies offer greater fault tolerance. If an AC-coupled inverter faults, the rest of the site generation remains functional. Furthermore, locating battery units across distinct fire compartments or electrical substations is straightforward because transmission between nodes takes place via standard cable trays and switchgear panels rather than high-voltage DC conduit.
Sizing an AC Battery Backup: Step-by-Step Calculation
Sizing an electrical energy storage system requires calculating total sustained load, transient inrush peaks, system losses, and the target autonomy runtime.
To illustrate the engineering methodology, consider an industrial control room and automated production cell with a continuous load profile of 75 kW at a power factor (PF) of 0.85 lagging, requiring 3 hours of autonomous runtime. The system uses lithium iron phosphate (LFP) chemistry integrated with a centralised low-voltage power conversion unit. The step-by-step sizing calculation proceeds as follows:
- Determine apparent and real power demands: Compute the apparent power requirement using the formula S = P / PF. With a 75 kW active load, S = 75 kW / 0.85 = 88.24 kVA. The inverter must sustain a continuous rating of at least 90 kVA.
- Calculate gross continuous energy: Multiply active power by the autonomy requirement: E_net = 75 kW × 3 h = 225 kWh.
- Account for power conversion efficiency: Assuming an overall bidirectional inverter and transformer efficiency (η_pcs) of 95.5% (0.955), calculate the energy required from the direct current bank: E_dc = 225 kWh / 0.955 = 235.6 kWh.
- Factor depth of discharge and thermal limits: Limiting cycle depth to 80% Depth of Discharge (DoD) preserves cell life according to manufacturer warranties: E_usable = 235.6 kWh / 0.80 = 294.5 kWh.
- Incorporate end-of-life degradation margin: Over a typical 10-year service life, cell capacity degrades. Factoring in an 80% State of Health (SoH) retention factor at end-of-life: E_nameplate = 294.5 kWh / 0.80 = 368.1 kWh.
Consequently, the design requires a 100 kVA / 370 kWh storage system. When choosing between modular enclosures or centralized systems, consulting technical guidance on lithium battery backup engineering sizing ensures that physical footprint and thermal management criteria are fully met.
Specifying 110 Battery Backup for Industrial Control Circuits
A dedicated 110 battery backup supplies uninterruptible power to switchgear protection relays, breaker trip coils, emergency solenoids, and supervisory instrumentation.
In standard substation engineering, losing primary alternating current power must never disable protective trip mechanisms. Distribution substations utilize a 110 V (or 120 V) single-phase or direct-current auxiliary supply bus. When an ac battery backup is deployed at this voltage level, it typically incorporates a high-grade static inverter fed from a secondary 110 V DC battery bank or a compact, dedicated AC-UPS cabinet that sustains supervisory control and data acquisition (SCADA) processors and motor-operated disconnect mechanisms.
Key engineering requirements for 110 V backup auxiliary systems include:
- High peak discharge capability: Circuit breaker trip coils impose brief inductive pulse loads ranging from 10 A to 35 A for 50 to 100 milliseconds; the supply must deliver this without voltage collapsing below 85% of nominal (IEC 60255-1).
- Galvanic isolation: An isolation transformer on the AC output prevents common-mode noise and floating earth faults from propagating into sensitive digital microprocessor relays.
- Autonomous runtime: Control backup typically specifies a minimum autonomy of 4 to 8 hours under quiescent supervisory loads to maintain operational visibility throughout extended substation outages.
For industrial operators evaluating centralized plant solutions alongside dedicated control racks, reviewing battery backup selection and sizing guidelines assists in matching critical secondary voltage supplies to primary distribution switches.
Transfer Switching, Grid Interconnection, and Islanding Schemes
Islanding schemes isolate the local electrical network from the utility grid during outages, allowing an AC battery installation to power local loads safely without backfeeding the distribution network.
Unintentional islanding presents severe hazards to utility line workers and distribution apparatus. Interconnection standards such as IEEE 1547-2018 (clause 8.1) and IEC 62116 stipulate that upon loss of utility voltage or frequency divergence, anti-islanding relays must decouple the facility within 2.0 seconds. For critical continuous processes, an automated static transfer switch (STS) combined with an intelligent microgrid controller transitions the facility to an intentional island in under 10 milliseconds, preventing process disruptions.
During grid-connected operation, the battery inverter runs in grid-following mode, synchronising its sinusoidal voltage output to the grid frequency and voltage vector. When the main motorized breaker or contactor opens, the inverter transfers to grid-forming mode, establishing a steady voltage and frequency reference via internal droop control algorithms. Coordination with high-reliability HV/LV switchgear ensures interlocking mechanisms prevent asynchronous reconnection when the main grid recovers, protecting equipment from severe mechanical and electromagnetic torques.
Technical Specification and Selection Criteria
Evaluating commercial-grade battery backup hardware requires comparing critical operational parameters across power conversion, battery chemistries, and environmental specifications.
The following decision matrix outlines the primary engineering parameters that specifiers must mandate during the equipment procurement phase for industrial AC backup systems:
| Specification Parameter | Standard Industrial Range | Critical Engineering Consideration | Governing Standard |
|---|---|---|---|
| AC Nominal Voltage | 400 V / 480 V (3-Phase) or 110 V / 230 V (1-Phase) | Must match site switchboard bus ratings without interposing transformers where possible | IEC 60038 |
| Switching Time (Transfer) | 2 ms to 16 ms (Static Switch) / <100 ms (Contactor) | Data centres and process drives require IEC 62040-3 Class 1 (<4 ms interruption) | IEC 62040-3 |
| PCS Inrush Capability | 150% for 60 s; 200% for 500 ms | Required to start induction motors and energise downstream distribution transformers | IEEE 519 / IEC 62477-1 |
| Total Harmonic Distortion (THDi) | < 3% at rated power | Mitigates parasitic heating in neutral conductors and upstream winding assemblies | IEEE 519-2022 Table 2 |
| Battery Chemistry | Lithium Iron Phosphate (LFP) | Provides high cycle life (>6,000 cycles at 80% DoD) and high thermal runaway thresholds | UL 1973 / UL 9540A |
| Enclosure Protection | IP54 / NEMA 3R to NEMA 4X | Mandatory for dust filtration, humidity tolerance, and outdoor container deployments | IEC 60529 |
For installations demanding high-capacity outdoor infrastructure, deploying a factory-assembled liquid-cooled ESS container reduces commissioning schedules while maintaining uniform thermal gradients across thousands of individual cells.
Commissioning, Maintenance, and Safety Standards
Commissioning an AC energy storage system requires rigorous verification of safety circuits, protection coordination, and thermal management systems.
Field commissioning must adhere to NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and IEC 62619 for industrial lithium installations. Initial factory acceptance tests (FAT) and site acceptance tests (SAT) require engineers to verify fault protection systems before energisation. The test sequence involves verifying insulation resistance (>100 MΩ at 1,000 V DC), calibrating grounding fault detectors, and validating that thermal runaway exhaust ducting, gas detection sensors, and deflagration venting remain unobstructed.
Emergency shutdown circuits must be physically hardwired to external emergency power off (EPO) buttons and integrated with local building management systems. As outlined in engineering analyses of emergency energy storage protocols, routine preventative maintenance mandates annual thermographic surveys of all busbar bolting torque marks, PCS filter capacitor ESR (equivalent series resistance) checks, and battery string internal impedance testing to identify deteriorating cells before operational availability is compromised.
Next steps: specifying and sourcing
When preparing an RFQ for an industrial or commercial backup installation, compile a clear project brief containing single-line distribution diagrams, peak load profiles, fault current capacities, and autonomy requirements. Specifying environmental constraints such as altitude, ambient temperature extremes, and seismic criteria early prevents costly modifications during production. For tailored technical engineering support, project sizing reviews, and pricing on compliant low-voltage switchboards or integrated containerised systems, contact our engineering sales group through the contact page or submit full technical requirements via the quote request form.
Frequently asked questions
What is the difference between an AC battery backup and a DC battery backup?
An AC battery backup connects directly to the facility alternating-current busbar via an integrated bidirectional inverter, allowing flexible retrofitting to existing switchboards. A DC backup connects behind a central or solar inverter on a direct-current bus, requiring specialized multi-port inverters and matching DC string operating voltages.
Can an AC battery backup system work without solar power?
Yes, an AC battery backup can operate entirely without solar power by charging directly from the utility grid during off-peak tariff periods. The stored energy discharges automatically during power outages to support critical circuits or during peak demand windows to reduce facility demand charges.
Why is a 110 battery backup used in electrical substations?
A 110 battery backup supplies dedicated auxiliary control power to protective relays, motorized switch mechanisms, and circuit breaker trip coils. This independent supply ensures that primary protective switchgear operates reliably to clear network faults even if main station alternating-current service fails completely.
What is the typical transfer time for an AC battery backup?
Transfer times range from under 4 milliseconds to 100 milliseconds depending on whether the system uses a solid-state static transfer switch or mechanical contactors. High-speed static transfer switches comply with IEC 62040-3 Class 1 standards, preventing server reboots and sensitive industrial automation resets.
How long do commercial AC battery backup systems last?
Commercial AC battery backups using lithium iron phosphate (LFP) chemistry typically last 10 to 15 years, or between 6,000 and 8,000 equivalent full cycles at 80% depth of discharge. Power conversion system components like cooling fans and DC-link capacitors generally require refurbishment around year ten.
