Power Conversion System (PCS): Engineering Design & Sizing Guide

Quick answer: A power conversion system (PCS) is a bidirectional power inverter that regulates the flow of electricity between direct-current (DC) energy storage batteries and the three-phase alternating-current (AC) electrical grid. It converts AC power to DC to charge the energy storage medium and converts DC to AC to feed clean, synchronised electricity back into transmission or distribution networks.

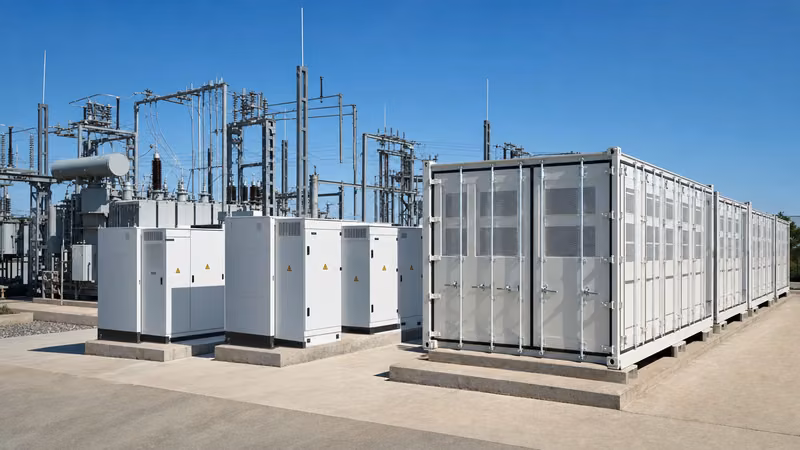

In utility-scale and commercial energy storage, the power conversion system serves as the functional brain and muscle between the electrochemical storage medium and the utility interconnection point. Whether paired with lithium iron phosphate chemistry or alternative flow technologies, this specialised electrical apparatus directly dictates round-trip efficiency, transient response, power quality, and operational reliability. Modern systems must meet demanding interconnect criteria, including rapid four-quadrant power delivery, zero-voltage ride-through, and grid-forming capabilities under weak-grid conditions.

What Is a Power Conversion System in Battery Energy Storage?

A power conversion system is a specialised bidirectional electrical inverter designed to manage high-power rectification and inversion cycles between a DC battery array and an AC power network. While conventional solar photovoltaic inverters are unidirectional converters that only export power from DC strings to the AC grid, a power converter system must operate bidirectionally with continuous sub-cycle transitions between charging (rectifier mode) and discharging (inverter mode).

At its physical core, this assembly comprises high-power semiconductor switching bridges—typically insulated-gate bipolar transistors (IGBTs) or silicon carbide (SiC) metal-oxide-semiconductor field-effect transistors (MOSFETs)—accompanied by LC/LCL output filters, DC link capacitors, contactors, protection devices, and digital signal processors (DSPs). In modern system engineering, selecting and integrating a proper containerised battery energy storage system requires evaluating how the inverter topology matches the voltage window and thermal thresholds of the battery chemistry.

The unit acts as the primary power actuator under the direction of an overarching energy management system (EMS) and local battery management system (BMS). It continuously tracks grid voltage, angle, and frequency using high-speed phase-locked loops (PLL) or virtual synchronous machine algorithms to deliver active and reactive power per dispatch commands.

Core Operating Modes and Four-Quadrant Active and Reactive Control

A bidirectional power conversion system operates across all four quadrants of the active-reactive (P-Q) power plane to deliver dynamic power quality support alongside bulk energy transfer. The operating mode is dictated by the relative phase angle and magnitude of the inverter's internal voltage vector compared to the grid voltage vector at the point of common coupling (PCC).

The four distinct operating quadrants include:

• Quadrant I (+P, +Q): The inverter discharges the pcs battery, delivering real active power to the grid while simultaneously supplying capacitive (leading) reactive power for voltage boost.
• Quadrant II (-P, +Q): The system imports active power from the AC grid to charge the battery cells while providing leading reactive power support to counteract inductive line drops.
• Quadrant III (-P, -Q): The unit charges the battery array from the grid while absorbing inductive (lagging) reactive power to depress overvoltage conditions caused by light loading or distributed generation.
• Quadrant IV (+P, -Q): The inverter discharges active power into the network while absorbing reactive power from the grid to regulate high AC voltages.

Under standards such as IEEE 1547-2018 Clause 5 and IEC 62909-1, power conversion equipment must transition across these four quadrants in less than 20 milliseconds without tripping DC overcurrent or AC phase protection thresholds. This four-quadrant agility allows operators to participate in lucrative frequency response, capacity firming, and local voltage regulation markets.

Inverter Topologies: Centralised vs String Power Conversion Equipment

Industrial battery installations utilise either centralised or decentralised (string) power converter system architectures based on system capacity, physical layout, and project budget. Centralised architectures use large inverters rated between 500 kW and 3.45 MW connected to multiple parallel battery racks, whereas string architectures deploy distributed conversion blocks rated between 50 kW and 250 kW paired with individual battery strings.

Central inverters simplify medium-voltage substation design by grouping multiple MW-class converters alongside a single three-winding step-up transformer. However, grouping multiple battery racks onto a shared DC bus can cause cross-string circulating currents if individual battery strings experience unequal state-of-health degradation or internal resistance shifts. Evaluating these lifecycle factors is critical when calculating commercial battery storage costs and sizing.

Conversely, string architectures decouple each battery string electrochemically, preventing circulating currents and allowing independent maximum capacity extraction per string. If one string inverter faults, the rest of the facility continues operating with minor derating. The engineering trade-off lies in higher component counts, increased AC cabling, and elevated upfront balance-of-system capital costs.

Topologies and Specifications Compared

Specifying a power conversion system requires comparing electrical, thermal, and mechanical parameters against site requirements. The table below presents typical design parameters for standard commercial and utility-scale platforms compliant with IEC 62477-1 and IEEE 1547 standards.

Thermal management fundamentally dictates continuous performance. Deploying liquid-cooled vs air-cooled energy storage systems enables the PCS power conversion system to maintain full non-derated operation up to 50 degrees Celsius ambient, compared to forced-air topologies that begin thermal derating above 40 degrees Celsius.

Grid-Following vs Grid-Forming Power Converter System Architectures

A grid-following power converter system treats the AC transmission grid as an unyielding, stiff voltage source, whereas a grid-forming PCS actively generates its own voltage and frequency reference. Grid-following units rely on a phase-locked loop (PLL) circuit to measure the grid voltage angle and synchronise current injection, making them vulnerable to instabilities in weak networks characterized by low short-circuit ratios (SCR < 2.0).

Grid-forming equipment implements virtual synchronous machine (VSM) or droop control algorithms. Instead of measuring grid phase to inject current, the internal DSP drives the semiconductor bridge to act as an AC voltage source behind a virtual impedance. The inverter automatically responds to sudden load shifts by releasing or absorbing instantaneous active power from the DC link capacitors and battery bank, imitating the mechanical inertia of traditional turbogenerator rotors.

Key grid-forming capabilities governed by IEEE 2800-2022 and national transmission codes include:

• Virtual Inertia Emulation: Resisting rate-of-change-of-frequency (RoCoF) events within 5 milliseconds of a grid disturbance.
• Black-Start Sequencing: Energising dead medium-voltage busbars, distribution transformers, and auxiliary loads without external grid references.
• Fault Current Contribution: Delivering up to 200% to 300% rated current for sub-transient periods to trigger downstream protective relays.
• Damping Power Oscillations: Mitigating sub-synchronous resonance (SSR) in grids with high non-synchronous renewable penetration, as detailed in our guide on grid integration of renewable energy sources.

Worked Engineering Calculation: PCS Sizing and Battery Coupling

Sizing a pcs battery power conversion system requires calculating the interaction between continuous AC power output, minimum DC link voltage, inverter efficiency, and thermal operating margins. In this worked example, we determine the continuous DC current demand, required transformer kVA rating, and AC cable sizing for a 2.0 MW utility battery installation.

Design Inputs:

• Target continuous active power output (P): 2,000 kW (2.0 MW)
• System rated power factor (cos phi): 0.90 (demanding 2,222.2 kVA apparent power S)
• Rated AC output voltage: 690 V, three-phase (line-to-line)
• Minimum battery discharge voltage under full load (V_DC_min): 1,050 V DC
• Inverter conversion efficiency at full load (eta): 98.6% (0.986)
• Continuous ambient installation temperature: 45 °C (1.05 safety/derating factor)

Step 1: Calculate Minimum DC Current (I_DC_max)

The DC input power (P_DC) required by the inverter to output 2,000 kW AC is calculated as:

P_DC = P_AC / eta = 2,000 kW / 0.986 = 2,028.4 kW

The maximum DC current occurs at the minimum operating DC bus voltage:

I_DC_max = P_DC / V_DC_min = 2,028,400 W / 1,050 V = 1,931.8 A DC

The DC busbars, isolating switch-disconnectors, and high-speed semiconductor fuses must be rated for at least 1,931.8 A continuous, adjusted by an engineering safety factor of 1.25 per NEC Article 705 / IEC 60364, resulting in a minimum protection rating of 2,415 A DC.

Step 2: Calculate Rated AC Full-Load Current (I_AC_rated)

Using the inverter's apparent power rating (S = 2,222.2 kVA) to account for reactive power delivery:

I_AC_rated = S / (sqrt(3) * V_AC_line) = 2,222,222 VA / (1.732 * 690 V) = 1,859.5 A AC

Applying a continuous derating safety margin of 1.05 for 45 °C ambient gives an operational conductor capacity of 1,952.5 A AC per phase, requiring multiple parallel single-core XLPE copper cables per phase.

Step 3: Step-Up Transformer Apparent Power Sizing

To prevent thermal overload when the inverter operates continuously at 0.90 power factor with harmonic currents present:

S_trafo = S_PCS * 1.10 = 2,222.2 kVA * 1.10 = 2,444.4 kVA

An engineer specifies a standard 2,500 kVA step-up transformer with an electrostatic shield between windings to suppress common-mode high-frequency switching noise injected by the PCS.

Key Engineering Specifications and RFQ Inspection Checklist

Procuring a power conversion system requires precise specification of dynamic, safety, and operational boundaries to avoid premature hardware failures or interconnection rejections. Project engineers can paste the following inspection and procurement checklist directly into equipment tender documents.

1. Semiconductor Architecture: Specify three-level neutral-point clamped (NPC) or active NPC (ANPC) bridge topology using insulated metal substrate or direct bonded copper (DBC) modules to ensure switching efficiency above 98.5%.
2. DC Voltage Limits: Define maximum open-circuit DC voltage (typically 1500 V DC) and lowest allowable operational DC link voltage under full load without AC modulation clipping.
3. Short-Circuit Withstand: Verify that the DC-side switchgear withstands prospective DC short-circuit currents from the battery array (often exceeding 50 kA to 100 kA with time constants of 10 ms to 30 ms) per IEC 61660-1.
4. Harmonic Performance: Require total harmonic current distortion (THDi) below 3.0% at 100% rated power, compliant with IEEE 519-2022 Table 2 limits at the inverter terminals.
5. Galvanic Isolation and Grounding: Specify whether the PCS requires an isolated or non-isolated configuration. Non-isolated 1500 V topologies require sensitive residual current monitoring (RCMU) and DC insulation monitoring devices (IMD) compliant with IEC 61557-8.
6. Communication Latency: Demand sub-10-millisecond response times over industrial protocols such as Modbus TCP, EtherCAT, or IEC 61850-7-420 for fast frequency response commands from the site controller.
7. Factory Acceptance Testing (FAT): Require full-load back-to-back testing at maximum ambient temperature, high-voltage withstand tests per IEC 62477-1 Table 7, and dynamic LVRT/HVRT simulated disturbance injections.

Common Field Failure Modes and Commissioning Pitfalls

Commissioning engineers frequently encounter operational failures resulting from thermal bottlenecks, control loop mistuning, and severe transient overvoltages. Identifying these vulnerabilities during design mitigates expensive site outages.

One frequent failure mode involves DC capacitor bank degradation caused by harmonic ripple currents. Battery inverters impose continuous high-frequency ripple currents onto the DC link capacitors. If film capacitors or electrolytic banks lack adequate current ratings or experience poor cabinet airflow, elevated internal temperatures cause dielectric breakdown, resulting in catastrophic short circuits and phase cross-conduction.

A second common issue is control loop resonance and PLL instability. In modern weak-grid environments where extensive solar and wind assets share an interconnection corridor, standard phase-locked loop tuning can induce control interactions between 5 Hz and 35 Hz. These sub-synchronous oscillations trigger false overcurrent protection trips on the inverter bridge. Implementing adaptive PLL gains or switching the PCS firmware to a virtual synchronous generator mode resolves these stability issues.

Third, inadequate pre-charge resistor sizing leads to resistor burn-out during energisation. When closing the main DC contactor, the uncharged PCS DC bus capacitors draw an instantaneous charging current akin to a direct dead short. If the pre-charge resistor circuit lacks sufficient pulse-energy absorption capacity (kJ rating) or the bypass contactor closes out of sequence, the pre-charge hardware fails immediately.

Next steps: specifying and sourcing

Integrating an industrial power conversion system requires cross-disciplinary alignment between DC battery chemistry, medium-voltage transformer impedance, and grid interconnection standards. To receive a comprehensive quotation for your project, send our engineering team your required continuous power output (kW/kVA), battery DC voltage range, target power factor, grid interconnection voltage, and ambient site extremes. Explore our engineered energy storage systems, review our liquid-cooled energy storage cabinets, and examine matching HV/LV switchgear solutions. Contact our technical team or submit your design documentation directly through our quotation inquiry portal for prompt sizing analysis and project pricing.
