Store Battery Systems: Industrial Storage & Sizing Guide

Quick answer: To safely store battery equipment in commercial and industrial settings, maintain a controlled ambient temperature of 15°C to 25°C, stabilise cell State of Charge (SoC) between 30% and 50%, and conduct refreshing charge cycles every six months. Adhering to standards such as IEC 62619 and NFPA 855 prevents permanent capacity loss, internal dendrite formation, and thermal runaway hazards.

Large-scale electrical projects frequently involve procurement lead times that require staging hardware months before site civil works and substation interconnections are complete. Storing electrochemical inventory without active management leads to irreversible internal impedance increases, electrolyte dry-out in aqueous chemistries, and parasitic solid-electrolyte interphase (SEI) growth in lithium cells. Managing an idle energy storage system requires rigorous adherence to storage engineering protocols rather than treating the assets as passive cargo.

Critical parameters to store battery assets without degradation

Cell degradation during storage is governed by ambient temperature, holding State of Charge (SoC), relative humidity, and shelf duration. Lithium-ion chemistries—specifically Lithium Iron Phosphate (LiFePO4 or LFP) and Nickel Manganese Cobalt (NMC)—experience two distinct ageing mechanisms: cycle ageing and calendar ageing. Calendar ageing proceeds continuously even when zero current flows across the terminals.

Elevated storage temperatures accelerate parasitic electrolyte oxidation at the positive electrode. Operating outside the optimum 15°C to 25°C window roughly doubles the calendar capacity fade rate for every 10°C elevation, following the Arrhenius relationship. Storing cells at 100% SoC exacerbates cathode degradation and promotes mechanical stress within the intercalation layers. Conversely, storing cells near 0% SoC exposes them to self-discharge below the critical 2.0 V per cell threshold, where the copper current collector dissolves into the electrolyte, causing permanent short circuits upon subsequent recharge. For an in-depth review of internal reactions, refer to our guide on the inside of the battery.

Chemistry comparison: warehouse holding specifications

Different electrochemical cells require specific environmental controls and float charging protocols while in warehousing or transit. The following engineering comparison outlines baseline storage criteria across primary industrial chemistries.

As detailed above, aqueous systems like VRLA mandate full charge storage to counteract high self-discharge rates (typically 3% to 4% per month at 20°C). Lithium-based energy storage racks require partial discharge states to balance structural stability against the risk of copper dissolution.

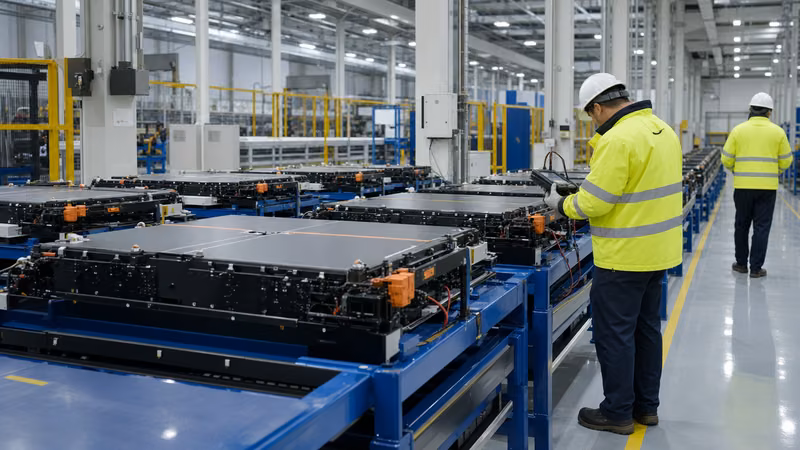

How to store battery racks and modules: a step-by-step staging procedure

Preserving battery modules prior to site commissioning requires a structured preservation workflow. Follow this step-by-step warehouse staging process to prevent cell imbalance and warranty invalidation:

1. Receiving and visual inspection: Inspect external packaging for impact damage, tilt indicator triggers, and moisture ingress. Verify that protective terminal covers remain sealed.
2. Baseline open-circuit voltage (OCV) logging: Measure module-level and sample cell-level OCV using a calibrated multi-meter (minimum 4.5-digit resolution). Reject any LFP cell reading below 2.80 V.
3. Environmental quarantine: Place units in an indoor, climate-controlled zone compliant with NFPA 855 spacing rules, keeping relative humidity below 65% non-condensing.
4. SoC verification: Confirm that the storage SoC is within 30% to 50%. If modules were factory-shipped at high SoC due to transit regulations, perform a controlled conditioning discharge.
5. Logistics record-keeping: Tag every pallet with its intake date, initial OCV, target refresh date, and internal serial batch numbers for complete traceability.
6. Scheduled maintenance recharge: Every 180 days, connect modules to an external DC commissioning charger to bring cell potentials back to the target holding baseline.

For projects integrating extensive battery rooms, consult our technical overview of stationary battery systems to align pre-storage procedures with overall plant architecture.

Engineering calculation: self-discharge rates and refresh intervals

Calculating the precise refresh interval prevents stored cells from falling below critical minimum voltage limits. Consider an industrial warehouse staging containerised racks populated with 280 Ah LFP prismatic cells.

The nominal capacity of the cell is C_nom = 280 Ah. At an average storage temperature of 25°C, the monthly self-discharge rate is approximately R_sd = 1.2% of remaining capacity per month. The target initial storage capacity is set to 40% SoC (112 Ah). The non-recoverable threshold occurs if available capacity drops below 5% SoC (14 Ah), while the recommended recharge trigger is 20% SoC (56 Ah).

The capacity retained after t months is expressed as:

C(t) = C_initial × (1 - R_sd)^t

Setting C(t) to the 20% SoC trigger (56 Ah):

56 Ah = 112 Ah × (1 - 0.012)^t

0.50 = (0.988)^t

ln(0.50) = t × ln(0.988)

-0.6931 = t × (-0.01207)

t ≈ 57.4 months (theoretical self-discharge limit)

However, parasitic drain from integrated Battery Management System (BMS) sleep circuits frequently draws an additional continuous parasitic load of 15 mA. Over 30 days, this parasitic load consumes:

I_parasitic × 24 hours × 30 days = 0.015 A × 720 h = 10.8 Ah/month

Combined monthly capacity reduction is: (112 Ah × 0.012) + 10.8 Ah = 1.344 + 10.8 = 12.14 Ah per month.

Actual operational storage time to reach the 56 Ah trigger point is:

t = (112 Ah - 56 Ah) / 12.14 Ah/month = 4.61 months

This calculation proves why disconnected physical modules retain charge for extended periods, but modules left connected to dormant BMS harnesses must be recharged within 4.5 months to avert deep cell depletion.

Warehouse safety and batter storage compliance standards

Bulk holding facilities must address electrical, toxicological, and deflagration hazards when managing industrial batter storage equipment. Standard industrial shelving is insufficient for MW-scale inventory. Storing large quantities of lithium cells introduces high energy density hazards governed by rigorous international frameworks.

Compliance with NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) Chapter 4 requires dedicated warehouse separation. Palletised battery storage arrangements must not exceed 50 kWh aggregate energy per stack unless separated by a 3-hour fire-resistance-rated barrier, or maintained with clear aisle spacing of at least 3 feet (0.91 m) between arrays. Sprinkler design densities must comply with NFPA 13 extra-hazard group classifications, delivering water densities exceeding 0.3 gpm/sq ft over the most remote 2,500 sq ft area.

Under IEC 62619 clause 8.2, pre-assembled battery packs held in intermediate storage must maintain functional terminal insulation covers rated to the maximum system voltage (often 1000 V to 1500 V DC). In high-capacity plants featuring a liquid-cooled ESS container, cooling circuits must be drained or flushed with inhibited glycol-water solutions during non-operational storage to prevent freezing and electrochemical piping corrosion.

Quality inspection checklist before deployment

Engineers must complete a formal acceptance protocol before releasing stored equipment to site contractors. Use this technical checklist during warehouse demobilisation:

• Voltage delta verification: Measure all module terminal voltages. Parallel strings must not have an inter-module voltage differential greater than 50 mV prior to DC bus connection.
• AC internal resistance (AC-IR): Verify 1 kHz AC impedance against factory acceptance test records; an increase exceeding 15% indicates excessive SEI layer development or internal structural damage.
• Mechanical envelope inspection: Check prismatics or pouch casings for thickness swelling. Any module displaying dimensional expansion exceeding 3% of nominal depth must be quarantined.
• Insulation resistance testing: Apply a 1000 V DC megohmmeter between positive/negative terminals and the grounded chassis frame; baseline resistance must exceed 100 MΩ according to IEEE C57/IEC standard guidelines.
• BMS firmware reconciliation: Update dormant slave BMS boards to match current site master controller firmware before establishing communications loops, as detailed in our guide on battery monitoring systems.

Next steps: specifying and sourcing

Executing an energy storage deployment requires integrating robust logistics preservation with durable hardware engineering. When procuring containerised utility systems, indoor BESS units, or auxiliary substations, clearly specify holding-period parameters in your request for quotation. Document required factory pre-charge SoC limits, permissible shelf durations, and integrated breaker disconnection switches to eliminate parasitic drain during transit. For technical evaluations, custom rack layouts, and factory-direct equipment specifications, submit your single-line diagrams to our engineering desk via our quotation page or reach out through our contact page.
