Key takeaways
- A stationary battery is a fixed electrochemical energy storage asset engineered to provide grid stabilising, peak shaving, or uninterruptible backup power.
- Modern stationary energy storage installations predominantly deploy lithium iron phosphate (LFP) chemistry due to superior thermal stability and 6,000+ cycle life.
- System sizing requires compounding inverter efficiency, depth of discharge (typically 90%), and end-of-life capacity retention margins (commonly 80%).
- Thermal management is critical, with closed-loop liquid cooling maintaining cell-to-cell delta below 3 degrees Celsius to prevent premature cell degradation.
- Compliance with IEC 62619, UL 9540A, and NFPA 855 establishes mandatory fire containment, gas detection, and spatial separation standards for industrial plants.
Quick answer: A stationary battery is a permanently installed electrochemical energy storage system designed to deliver electrical power on demand to utility grids, commercial facilities, or industrial networks. Unlike mobile batteries used in electric vehicles, it prioritises long-duration cyclic stability, continuous thermal conditioning, and integration with medium-voltage distribution infrastructure.
As commercial plants and grid operators encounter escalating power tariffs, grid volatility, and the intermittent nature of utility-scale renewables, the demand for high-capacity stationary storage has surged. Deploying a commercial stationary battery requires an understanding of cell degradation mechanisms, power conversion topology, system-level safety architecture, and balance-of-plant electrical balance. This engineering guide details the core operating principles, sizing calculations, safety standards, and integration methodologies required to specify modern industrial storage systems effectively.
What is a Stationary Battery and How Does It Work?
A stationary battery functions by converting electrical energy from an alternating current (AC) distribution bus into chemical potential energy via a bi-directional power conversion system, storing that power until dispatched by an energy management system (EMS). In an industrial environment, the complete assembly operates as a self-contained power plant, responding to real-time grid conditions within tens of milliseconds.
A typical stationary energy storage system comprises thousands of individual prismatic or cylindrical cells interconnected in series and parallel strings. These strings form modules, which assemble into high-voltage racks operating between 700 V DC and 1,500 V DC. When the facility requires demand mitigation or emergency supply, the DC bus feeds the central or string inverter, which converts stored chemical energy back into three-phase AC electricity synchronised to the site voltage.
Unlike traction batteries where volumetric energy density and physical weight are the dominant design parameters, stationary battery systems are engineered around levelised cost of storage (LCOS), calendar longevity exceeding 15 to 20 years, and thermal uniformity. For deeper insights into raw cell geometry and assembly, review our guide on the inside of the battery cell anatomy and chemistry.
Stationary Storage Battery Systems: Chemistries and Architecture
Lithium iron phosphate (LiFePO4 or LFP) has become the dominant chemistry for modern stationary storage battery systems, replacing nickel manganese cobalt (NMC) and legacy flooded lead-acid banks in critical facilities. LFP delivers exceptional structural stability under thermal stress, exhibiting an onset temperature for thermal runaway above 270 °C compared to roughly 210 °C for high-nickel NMC variants.
For heavy industrial cycling, the choice of chemistry dictates operational longevity. When comparing cell platforms as detailed in our guide to LFP vs NMC battery chemistry, LFP consistently achieves 6,000 to 8,000 full equivalent cycles at 0.5C discharge rates before degrading to 80% state of health (SOH). The internal architecture of a modular industrial battery relies on three discrete hierarchical tiers:
- Cell and Module Level: Prismatic 280 Ah or 314 Ah LFP cells compressed under constant spring-loaded pressure within aluminium casings to mitigate mechanical swelling during repeated lithiation and delithiation cycles.
- Rack Level: Ten to twenty modules wired in series with an integrated Rack Battery Management System (RBMS), high-speed DC contactors, and pyro-fuses rated to interrupt short-circuit currents up to 100 kA.
- Container Level: Multiple racks grouped in parallel inside an ISO-standardised walk-in enclosure or outdoor modular cabinet, incorporating liquid thermal management manifolds, aerosol fire suppression, and auxiliary controls. Detailed structural configurations can be explored in our battery bank industrial systems engineering guide.
Sizing Calculation for Stationary Battery Storage Systems
Sizing an industrial stationary battery requires calculating the net usable energy at the point of common coupling while accounting for balance-of-plant losses, depth of discharge limits, and end-of-life battery degradation. Sizing a system solely on initial nameplate energy inevitably results in capacity deficits during the latter years of the asset lifespan.
Consider an industrial manufacturing facility requiring peak demand shaving. The engineering brief mandates delivering a continuous 500 kW electrical discharge across a 2.0-hour operating window (equivalent to 1,000 kWh of delivered AC energy) over a 10-year operating horizon without falling below this delivery threshold.
To calculate the required nameplate DC capacity ($E_{nominal}$), apply the following balance-of-plant parameters:
- Delivered AC Energy ($E_{load}$): 1,000 kWh
- Inverter Conversion Efficiency ($\eta_{inv}$): 96.5% (0.965)
- Battery DC Round-Trip Efficiency ($\eta_{dc}$): 94.0% (0.940)
- Maximum Usable Depth of Discharge ($DOD$): 90.0% (0.900)
- End-of-Life SOH Retention Factor ($SOH_{eol}$): 80.0% (0.800)
The total round-trip conversion efficiency ($\eta_{sys}$) through the power electronics and DC cabling is:
$$\eta_{sys} = \eta_{inv} \times \eta_{dc} = 0.965 \times 0.940 = 0.9071$$
The required beginning-of-life (BOL) nominal DC battery capacity is derived as:
$$E_{nominal} = \frac{E_{load}}{\eta_{sys} \times DOD \times SOH_{eol}}$$
$$E_{nominal} = \frac{1000\text{ kWh}}{0.9071 \times 0.900 \times 0.800} = \frac{1000}{0.6531} = 1,531.1\text{ kWh}$$
Accounting for standard factory module increments (for instance, 215 kWh liquid-cooled outdoor packs), the engineering specification requires eight parallel outdoor battery packs, yielding a nominal installed capacity of 1,720 kWh (1.72 MWh DC). This provides a built-in safety margin of 12.3% above the absolute baseline degradation requirement.
Engineering Standards and Safety for Stationary Energy Storage
Safety certification for any stationary battery storage deployment relies on multi-layer containment strategies codified by international testing standards. Because high-density battery racks store megawatt-hours of chemical energy within confined footprints, compliance with rigorous manufacturing and construction codes is mandatory to mitigate thermal runaway propagation.
Primary compliance benchmarks include:
- IEC 62619 Clause 8.2: Specifies mandatory tests for industrial lithium batteries, including propagation testing to verify that cell-level thermal runaway caused by internal short circuits cannot cascade to adjacent cells within the module.
- UL 9540A: Standard for Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems. Data from cell, module, unit, and installation-level testing dictates enclosure-to-enclosure boundary setbacks and deflagration venting sizing under NFPA 855 Table 4.3.2.
- NFPA 855: Standard for the Installation of Stationary Energy Storage Systems. Mandates continuous combustible gas detection (monitoring off-gassed CO and hydrogen before smoke onset), automatic water mist or clean-agent fire suppression, and minimum three-foot (0.91 m) separation distances between rack groupings.
- IEC 62933-5-2: Outlines comprehensive safety requirements for grid-integrated BESS installations, addressing electrical insulation coordination, electromagnetic compatibility, and emergency shutdown interlocks.
Maintaining active cell temperature boundaries between 15 °C and 35 °C is fundamental to both fire prevention and cell longevity. Engineers should consult our comprehensive battery cooling engineering guide to evaluate the mechanical differences between forced-air HVAC and closed-loop liquid cooling loops.
Stationary Energy Storage Systems: Technical Specification Checklist
A well-prepared specification ensures that tender documentation for stationary energy storage systems clearly defines electrical, mechanical, and protection performance parameters. The table below outlines standard industrial procurement specifications for a 1,500 V DC liquid-cooled utility or industrial storage block.
| Engineering Parameter | Standard Industrial Value | Verification Standard / Clause | Design Significance |
|---|---|---|---|
| DC Operating Voltage Range | 1,100 V DC to 1,500 V DC | IEC 62477-2 Table 4 | Determines maximum DC string length and inverter input sizing |
| Rated Continuous C-Rate | 0.5C (2-hour discharge) | IEC 62620 Clause 6.3 | Defines thermal loading across conductors and cooling circuits |
| Maximum Temperature Delta ($\Delta T$) | ≤ 3.0 °C across entire rack | Factory Acceptance Criteria | Prevents uneven cell ageing and localized impedance imbalances |
| Short-Circuit Withstand Rating | Up to 100 kA for 10 ms | IEC 60947-2 | Ensures DC switchgear and fuses isolate catastrophic internal faults |
| Protection Enclosure Rating | IP55 / NEMA 3R minimum | IEC 60529 / NEMA 250 | Protects internal busbars and electronics from dust and driving rain |
| Cycle Life to 80% Retained SOH | ≥ 6,000 cycles (25 °C, 0.5C, 90% DOD) | IEC 62620 Clause 6.6 | Validates 15-year commercial operational lifetime assumptions |
Integration with Power Conversion and Grid Substation Infrastructure
Integrating a stationary battery into an industrial facility requires robust balance-of-plant electrical balance, bridging the high-voltage DC string bus with the facility's medium-voltage distribution network. The central link in this power corridor is the bi-directional power conversion system, detailed in our power conversion system engineering guide.

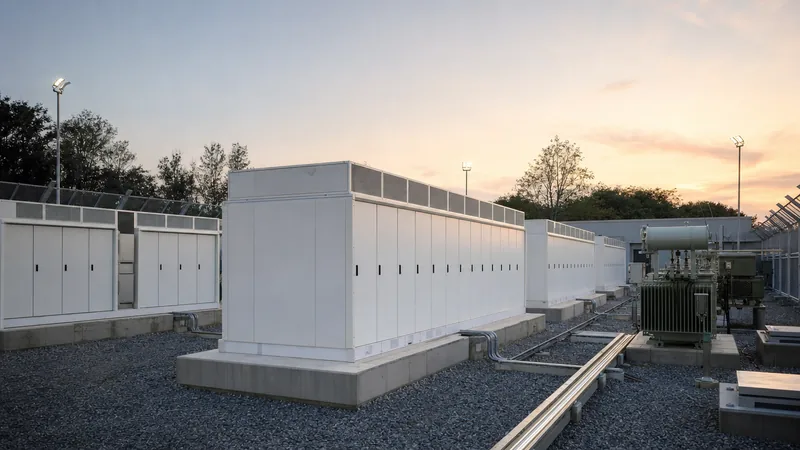

For turnkey commercial and industrial projects, modern configurations house the battery cells in dedicated liquid-cooled energy storage containers connected to a pre-assembled skid. This skid integrates:
- A central bi-directional inverter rated for 4-quadrant operation (providing both active power dispatch and reactive power voltage support).
- A step-up dry-type or oil-immersed distribution transformer converting 600 V / 690 V inverter AC output to 11 kV, 22 kV, or 33 kV site distribution levels.
- Medium-voltage vacuum switchgear equipped with micro-processor based protection relays providing overcurrent, earth fault, and anti-islanding isolation under IEEE 1547.
Explore complete turnkey integration options using our modular energy storage system solutions for site-level interconnection.
Commissioning and Testing of Stationary Battery Systems
Commissioning a utility or industrial stationary battery demands strict adherence to sequential energisation, insulation verification, and dynamic functional testing prior to full commercial dispatch. Failure to systematically verify isolation and thermal management circuits can lead to destructive DC fault currents.
- Pre-Energisation Mechanical and Torque Verification: Inspect all enclosure seals, busbar bolted joints, and liquid cooling pipe couplings. Torque every terminal connection to manufacturer specifications using calibrated torque tools, applying torque seal lacquer across bolt heads to track any post-vibration movement.
- DC Bus Insulation and Dielectric Testing: Perform 1,000 V DC megohmmeter insulation resistance testing across all positive-to-ground and negative-to-ground terminals. Verify that insulation resistance values exceed 100 megohms per rack string under IEC 62477-2 guidelines.
- Cooling Loop Purge and Pressure Hold Test: Pressurise the water-glycol coolant loop to 1.5 times the nominal working pressure (typically 3.0 to 4.5 bar gauge) for a minimum of 60 minutes. Check for pressure drops to confirm zero leakage before any electrical energisation.
- BMS Control Interlock and Safety Tripping Test: Inject simulated emergency stop signals, thermal limit triggers, and combustible gas detector alarms into the system controller. Verify that DC main breakers and contactors automatically clear and open within 20 milliseconds.
- Full-Cycle Thermal and Performance Acceptance Test: Execute three consecutive 100% depth-of-discharge cycles at the full 0.5C or 1.0C rated power. Monitor infrared thermal profiles across the cell terminals and confirm that cell temperature variance remains strictly within the specified 3 °C tolerance window throughout both charge and discharge cycles.
Next steps: specifying and sourcing
Specifying a heavy-duty industrial stationary battery requires precise technical scoping. To prepare an effective request for quotation (RFQ), project teams must compile baseline facility load profiles, required discharge duration (1C, 0.5C, or 0.25C rates), available substation connection voltage, and local environmental ambient constraints. You can review our standard industrial solutions across our commercial energy storage systems or examine factory-assembled skids featuring integrated liquid-cooled ESS containers. For detailed engineering support, single-line diagram reviews, or budget estimations, submit your technical parameters via our online quotation portal or connect with our engineering team directly through our contact page.
Frequently asked questions
What is the lifespan of an industrial stationary battery?
An industrial stationary battery typically lasts between 15 and 20 years, depending on operating temperature, daily cycling frequency, and depth of discharge. High-grade lithium iron phosphate (LFP) cells provide 6,000 to 8,000 full equivalent cycles before degrading to 80% of their initial capacity.
How does a stationary battery differ from an EV battery?
A stationary battery is engineered for fixed installation, prioritising levelised cost of storage, calendar life, and high cycle counts over weight and volume. Electric vehicle batteries emphasise volumetric energy density and high power-to-weight ratios, often operating under more restrictive physical packaging.
Why is LFP preferred over NMC for stationary energy storage?
Lithium iron phosphate (LFP) is preferred for stationary systems due to its superior thermal stability, lower risk of thermal runaway, and extended cycle life. LFP exhibits an onset thermal runaway temperature of approximately 270 °C compared to roughly 210 °C for high-nickel NMC chemistries.
What are the key safety standards for stationary battery systems?
Key safety standards include UL 9540A for thermal runaway fire propagation testing, IEC 62619 for industrial lithium cell and module safety, and NFPA 855 for installation and separation clearances. In addition, IEC 62933-5-2 defines comprehensive system-level safety for grid-integrated energy storage.
What is the difference between power rating and energy capacity in stationary batteries?
Power rating, measured in kilowatts (kW) or megawatts (MW), indicates the maximum instantaneous rate of electrical discharge the system can supply. Energy capacity, measured in kilowatt-hours (kWh) or megawatt-hours (MWh), defines the total electrical energy stored and delivered over a specific duration.
