Key takeaways
- Battery cooling maintains lithium-ion electrochemical cells within the optimal operational window of 15°C to 35°C to arrest accelerated SEI layer degradation.
- A battery liquid cooling system delivers a convective heat transfer coefficient roughly 20 to 50 times higher than forced air, limiting inter-cell thermal deltas to under 3°C.
- Thermal runaway risk escalates exponentially when cell surface temperatures exceed 55°C, triggering self-sustaining exothermic reactions governed by UL 9540A and IEC 62619 standards.
- Total thermal load calculations require summing joule heating from cell DC internal resistance (I²R) and entropic electrochemical heat generation (TΔS).
- Water-ethylene glycol solutions mixed 50/50 by volume provide freeze protection down to -37°C while optimising specific heat capacity and pumping viscosity in liquid cold plates.
Quick answer: Battery cooling is the active or passive thermal management process of extracting waste heat from electrochemical cells to maintain core operating temperatures between 15°C and 35°C, ensuring safety, longevity, and round-trip efficiency.
Lithium-ion cells deployed in utility-scale installations and transport platforms generate substantial internal heat during rapid charging and discharging. Without a properly sized battery cooling infrastructure, lithium-iron phosphate (LFP) and nickel manganese cobalt (NMC) chemistries undergo non-uniform degradation, capacity fade, and catastrophic thermal runaway. Managing internal impedance, cell-to-cell thermal gradients, and mechanical packaging constraints demands rigorous engineering across thermal, hydraulic, and electrical disciplines.
Why Battery Cooling Is Essential for Modern Energy Systems
A thermal management system regulates operating temperatures to prevent accelerated chemical ageing and mechanical cell stress. Lithium-ion batteries experience optimum electrochemical kinetics between 15°C and 35°C. For every 10°C rise above 35°C, solid electrolyte interphase (SEI) growth doubles, causing rapid permanent capacity loss according to the Arrhenius relationship.
Conversely, operating below 10°C increases internal charge-transfer resistance, triggering dangerous lithium plating on the graphite anode during high-rate charging. Uneven thermal distribution across a pack creates differential string impedances, causing electrical unbalance, premature BMS cutoff, and shortened system life. Controlling operating conditions within a narrow target window preserves cycle life, which our engineering team details extensively in our guide to battery monitoring system architecture.
Thermodynamics of Cell Heat Generation: Calculation and Sizing
Cell heat generation consists of irreversible joule heating and reversible entropic heat changes during charge-discharge cycling. To design an effective battery cooling system, engineers quantify thermal energy release using the Bernardi equation:
q = I × (V_oc - V_t) - I × [T × (dE_oc / dT)]
Where q is heat generation in watts, I is instantaneous current (positive during discharge, negative during charge), V_oc is open-circuit voltage, V_t is terminal voltage, and dE_oc / dT is the entropic temperature coefficient (typically -0.1 to -0.4 mV/K for LFP cells). The term I × (V_oc - V_t) simplifies to I² × R_dc, representing overpotential ohmic loss.
Consider a commercial battery rack delivering 250 A continuous discharge through 16 series-connected 280 Ah LFP prismatic cells, each having a DC internal resistance of 0.25 mΩ at 25°C:
- Joule heating per cell: (250 A)² × 0.00025 Ω = 15.625 W
- Entropic heat per cell at 298.15 K: 250 A × [298.15 K × (-0.0002 V/K)] = 14.91 W
- Total continuous thermal rejection per cell: 15.625 W + 14.91 W = 30.535 W
- Total rack thermal load (16 cells): 16 × 30.535 W = 488.56 W
For a 20-foot enclosure containing 12 racks (total 3.44 MWh), the thermal system must extract roughly 70 kW of steady heat during a 1C continuous discharge profile, as evaluated in our analysis of utility scale energy storage design.
Air Cooling vs Battery Liquid Cooling Architecture
Liquid cooling provides superior heat transfer capabilities compared to forced-air circulation across high-power installations. Ambient or forced air relies on convective heat transfer with air, which possesses a low volumetric heat capacity (1.2 kJ/m³·K) and low thermal conductivity (0.026 W/m·K). In contrast, a 50/50 water-ethylene glycol mixture yields a volumetric heat capacity of roughly 3,600 kJ/m³·K and thermal conductivity of 0.42 W/m·K.
Implementing battery liquid cooling enables compact pack packaging, lower auxiliary parasitic power consumption, and tighter thermal bounds across modules. For a comprehensive performance breakdown, consult our technical evaluation of liquid-cooled vs air-cooled energy storage.
| Engineering Metric | Forced Air Cooling | Indirect Liquid Cooling | Direct Immersion Cooling |
|---|---|---|---|
| Convective Heat Transfer (W/m²·K) | 25 – 100 | 500 – 2,500 | 1,500 – 5,000 |
| Inter-Cell Temperature Delta (ΔT) | 5°C – 8°C | 1.5°C – 3°C | 0.5°C – 1.5°C |
| Auxiliary Power Consumption (%) | 6% – 12% | 2% – 4% | 3% – 5% |
| Volumetric Energy Density (kWh/m³) | 60 – 90 | 130 – 190 | 110 – 160 |
| Maintenance Complexity | Low (filter cleaning) | Moderate (fluid checks) | High (fluid reclamation) |

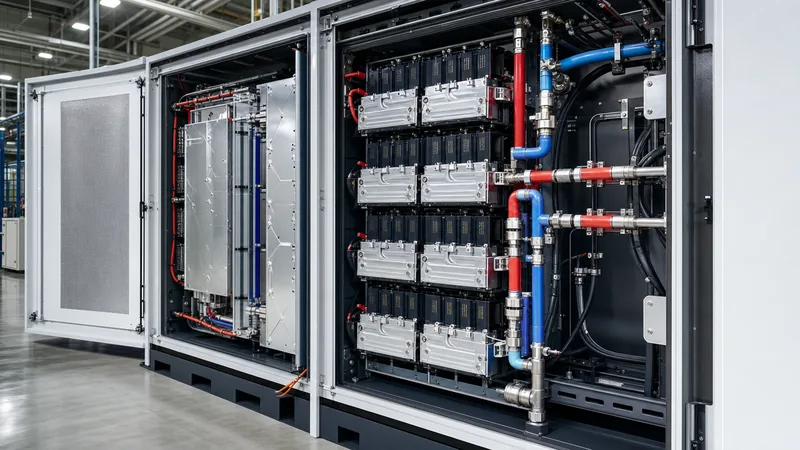

Cooling Battery Pack Mechanics: Cold Plates and Thermal Interfaces
A cold plate conducts heat from cell housings to a flowing coolant through engineered aluminium extrusion or friction-stir-welded (FSW) channels. In cooling battery pack assemblies, thermal interface materials (TIM)—such as silicone or non-silicone gap pads, polyurethanes, or liquid structural adhesives—fill microscopic surface asperities between cell casings and cold plates.
Cold plates incorporate serpentine or parallel micro-channel flow paths to eliminate stagnation zones. Micro-channel hydraulic diameters typically range between 1.5 mm and 3.5 mm, balancing fluid pressure drops across the module manifold against heat transfer coefficient enhancement. Designers must ensure structural rigidity across the assembly to endure cell swelling (breathing) over thousands of cycles without detaching the cold plate or compromising TIM bond lines.
EV Battery Cooling System vs Stationary BESS Engineering
An ev battery cooling system prioritises dynamic peak loads, weight constraints, and packaging compactness, while stationary BESS prioritises uniform long-duration cycling and lifetime auxiliary efficiency. Mobile installations face continuous road vibrations, variable ambient temperatures (-30°C to 50°C), and brief high C-rate bursts (3C to 5C) during fast-charging operations.
An electric vehicle battery cooling circuit often integrates directly with passenger cabin HVAC heat pumps, motor invertors, and DC fast-charge chilling loops. Stationary systems operate inside controlled enclosures where physical weight is secondary to long-term seal reliability, lower flow velocity to mitigate erosion corrosion, and standard maintenance access across 15-to-20-year lifespans. Both topologies must strictly conform to IEC 62619 clause 8.2 and UL 9540A anti-propagation fire criteria.
Coolant Selection, Flow Balance, and Hydraulic Design
Coolant selection dictates pumping power, corrosion mitigation, and operational freezing limits across international deployment zones. Inhibited water-ethylene glycol and water-propylene glycol (WPG) blends are industrial standards. A 50/50 water-ethylene glycol solution prevents system freeze-up to -37°C while preserving sufficient specific heat capacity.
Engineers calculate required coolant volumetric flow rate using the sensible heat equation:
V_flow = Q / (ρ × C_p × ΔT_fluid)
Where Q is total rejected heat (W), ρ is coolant density (1,068 kg/m³ for a 50/50 water-ethylene glycol mixture at 25°C), C_p is specific heat capacity (3,350 J/kg·K), and ΔT_fluid is the permissible temperature rise between supply and return manifolds (typically limited to 2°C to 3°C to maintain module temperature uniformity). Manifold balancing requires reverse-return (Tichelmann) hydraulic piping layouts so that each cold plate encounters identical equivalent loop lengths, equalising flow resistance and preventing hotspots in remote racks.
Step-by-Step Commissioning and Flushing Procedure
Commissioning an industrial liquid cooling circuit requires systematic flushing, pressure proving, evacuation, and air-free charging. Hydraulic technicians follow this five-step sequence prior to energising battery strings:
- Dry pneumatic pressure test: Pressurise the sealed piping network and cold plates with dry nitrogen to 1.5 times the maximum allowable working pressure (MAWP)—typically 6.0 bar—for 60 minutes per ASME B31.3 to confirm structural seal integrity.
- Deep vacuum decay verification: Evacuate the manifold system using a two-stage vacuum pump down to 500 microns (0.66 mbar) and hold for 30 minutes to confirm moisture elimination and zero microscopic seal ingress.
- Particulate flushing: Circulate a pre-charge flushing fluid through an inline 5-micron filter for two hours to strip manufacturing debris, swarf, and flux particles from the manifold channels.
- Deaerated fluid charging: Introduce premixed, inhibited coolant under continuous vacuum to eliminate trapped air pockets within cold plate micro-channels.
- Dynamic balancing and flow proving: Run the variable-speed pump across 25%, 50%, 75%, and 100% duty cycles, checking module balancing valves via ultrasonic flow meters to verify flow distribution within ±5% across every parallel rack circuit.
Technicians documenting these steps ensure compliance when deploying containerised solutions, as detailed in our guide on how to specify a containerised BESS.
Specification and Factory Acceptance Checklist
A comprehensive procurement specification prevents premature field leaks and undersized thermal capacity. Engineers should incorporate these parameters into their RFQ schedules:
| Component / Parameter | Standard / Requirement | Acceptance Threshold |
|---|---|---|
| Cold Plate Helium Leak Test | ASTM E499 / EN 1779 | Leak rate < 1 × 10⁻⁶ mbar·L/s at 10 bar |
| Thermal Interface Resistivity | ASTM D5470 | Thermal conductivity ≥ 2.5 W/m·K; bond thickness ≤ 0.25 mm |
| Chiller Seasonal Efficiency | AHRI 550/590 / EN 14511 | Coefficient of Performance (COP) ≥ 3.2 at 35°C ambient |
| Ingress Protection (Pumps/Manifolds) | IEC 60529 | Minimum IP67 for electrical interfaces, IP65 for pump motors |
| Coolant Conductivity & pH | ASTM D1287 / ASTM D1125 | Conductivity < 100 µS/cm; pH stabilized between 7.5 and 9.0 |
| Burst Pressure Safety Margin | ISO 19879 / GB/T 36276 | Burst pressure ≥ 3.0 × MAWP across all quick-connect fittings |
Next steps: specifying and sourcing
Specifying a battery cooling system requires defining maximum ambient operating boundaries, continuous and peak discharge C-rates, allowable inter-cell temperature deltas, and auxiliary power limits. When preparing project tenders, provide mechanical rack layout envelopes, expected battery chemistry thermal profiles, and desired chiller redundancy configurations (N+1 vs 2N). Our engineering team designs and manufactures utility-scale liquid-cooled energy storage equipment fully compliant with IEC and UL safety frameworks. Submit your project parameters through our quotation inquiry page or contact our application engineers via our contact portal to review technical specifications for our liquid-cooled energy storage containers and complete energy storage systems.
Frequently asked questions
What is the best temperature for battery cooling?
The ideal core operational range for lithium-ion batteries is 15°C to 35°C, with an inter-cell differential under 3°C. Keeping cells below 35°C limits SEI layer breakdown and capacity degradation, while staying above 15°C prevents lithium plating during high-current charging cycles.
How does battery liquid cooling work?
Battery liquid cooling circulates a chilled fluid through aluminium cold plates in direct mechanical contact with cell faces. Thermal energy conducts from the cells across a thermal interface material into the plate, convective currents transfer it to the coolant, and a pump conveys the heat out to an external radiator or chiller.
Why is liquid cooling preferred over air cooling in high-power packs?
Liquid cooling provides convective heat transfer coefficients up to 25 times greater than forced air, allowing systems to manage extreme heat flux in compact volumes. This higher thermal capacity maintains uniform temperatures across large cell arrays, preventing localised hotspots and lowering auxiliary fan power demands.
What fluid is used in an ev battery cooling system?
Most electric vehicle battery cooling circuits use a 50/50 mixture of deionised water and inhibited ethylene glycol or propylene glycol. This formulation provides freezing protection down to -37°C, prevents galvanic corrosion between dissimilar aluminium alloys, and suppresses microbiological growth over the vehicle lifetime.
Can inadequate battery cooling cause thermal runaway?
Yes, insufficient battery cooling allows localized cell temperatures to exceed critical thresholds, initiating irreversible exothermic breakdown of the solid electrolyte interphase around 80°C to 120°C. This uncontrolled self-heating releases flammable gases and can trigger propagation throughout adjacent cells if cooling systems fail to extract excess heat.
What is the parasitic power loss of a battery cooling system?
A modern liquid cooling system consumes roughly 2% to 4% of the total energy throughput of a stationary energy storage system. Forced-air cooling typically consumes between 6% and 12% under equivalent high C-rate operational profiles due to the power requirements of large air-handling blower fans.
