BESS Fires: Prevention, Suppression, and Engineering Standards

Quick answer: BESS fires are high-intensity exothermic events caused by lithium-ion thermal runaway, producing dense toxic off-gases and high risk of deflagration. Preventing and mitigating them requires multi-tier monitoring (gas, temperature, voltage), deflagration venting per NFPA 68, physical rack-to-rack fire barriers, and high-volume water deluge systems engineered to NFPA 855 standards.

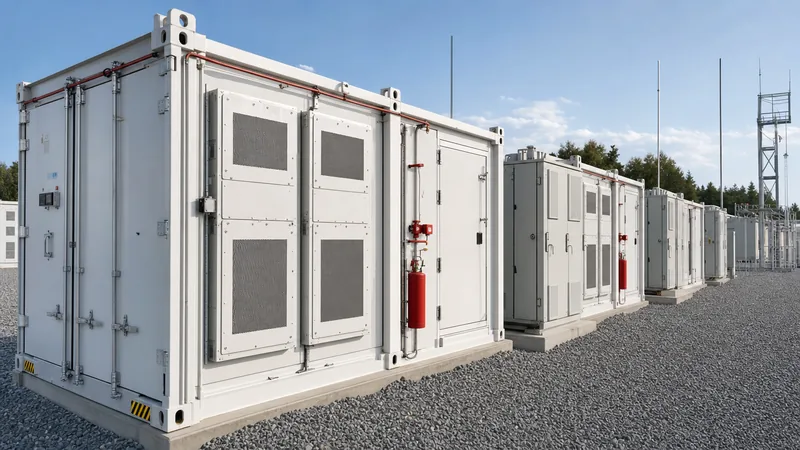

Battery energy storage systems (BESS) are central to grid modernisation, renewable integration, and peak shaving. However, high energy density packed into confined walk-in or cabinet enclosures presents severe fire safety challenges. A single cell defect can quickly escalate into runaway cell venting, releasing combustible gas mixtures that ignite and cascade into catastrophic facility losses. Understanding the physical drivers behind bess fires is essential for electrical consultants, EPC contractors, and system engineers responsible for specifying, commissioning, and operating commercial and utility-scale assets. Mitigating these risks requires integrating proper battery cooling thermal management with rigorous mechanical and electrical safeguards.

Root Causes of BESS Fires: Thermal Runaway and Defect Cascades

Thermal runaway in lithium-ion cells serves as the primary mechanism initiating BESS fires. When an internal or external trigger drives a cell past its critical decomposition temperature (typically between 120°C and 160°C for lithium iron phosphate, and 75°C to 120°C for nickel manganese cobalt), the solid electrolyte interphase (SEI) layer destabilises. This triggers continuous, self-heating exothermic reactions between the intercalated lithium, liquid electrolyte solvent, and cathode active materials.

These failure cascades generally originate from four root causes:

• Internal manufacturing defects: Metallic particulate contamination or microscopic burrs introduced during electrode slitting pierce the thin polymer separator, creating a localised high-current internal short circuit.
• Thermal stress and cooling system failure: Ineffective heat dissipation creates thermal gradients within module blocks. Elevated ambient temperatures accelerate electrolyte decomposition and lithium plating during high C-rate cycling.
• Electrical abuse: Subsystem overvoltage during aggressive charging, inverter ripple currents, or failure of contactors within the power conversion system induces separator degradation and dendritic shorts.
• Mechanical strain: External impacts, cabinet vibration during transport, or seismic displacement compromise module casing integrity and internal cell busbar welds.

Once a single cell vents, the heat generated (often exceeding 600°C within seconds) transfers via thermal conduction through module tie rods, busbars, and adjoining cell walls, driving neighboring cells into secondary thermal runaway.

Off-Gas Generation and Explosion Risk in BESS Fires

Flammable off-gas generation poses an equal or greater life-safety threat than direct thermal radiation during BESS fires. In the initial decomposition phase, preceding open flame ignition by 2 to 10 minutes, the cell safety vent ruptures. It discharges an aerosolized mixture of liquid electrolyte solvent alongside non-condensable combustible gases including hydrogen (H₂), carbon monoxide (CO), methane (CH₄), ethylene (C₂H₄), and ethane (C₂H₆).

This gas cloud exhibits a low lower flammable limit (LFL)—typically around 6% to 8% by volume in air—with high laminar burning velocities. If these gases accumulate inside a sealed battery enclosure structure without active purge ventilation, any incidental ignition source (such as an arcing high-voltage relay or an exposed battery terminal) triggers a catastrophic deflagration. NFPA 68 (Standard on Explosion Protection by Deflagration Venting) and NFPA 69 (Standard on Explosion Prevention Systems) mandate continuous LFL monitoring linked to mechanical exhaust fans. These exhaust systems must automatically exchange the total enclosure volume at rates sufficient to maintain atmospheric concentrations below 25% of the LFL, complemented by calibrated burst panels or deflagration panels sized according to enclosure volume and structural strength limits.

BESS Fire Suppression: Agent Selection and Water Demand Sizing

Effective BESS fire suppression requires arresting active flaming combustion while providing long-term cooling to prevent reignition. Gaseous clean agents (such as FK-5-1-12 or HFC-227ea) reliably extinguish active class B electrolyte flames, but they cannot penetrate sealed cell casings to remove internal latent heat. Once clean agents vent from the container, reignition frequently occurs within minutes. Consequently, NFPA 855 mandates dedicated water-based fire suppression systems as the definitive solution for utility-scale battery installations.

The following table outlines the comparative performance of primary suppression technologies deployed in battery storage enclosures:

To design a compliant pre-action sprinkler system under NFPA 855 Section 4.3, engineers must calculate the minimum required water flow rate based on the target rack footprint and adjacent enclosure surface areas. Consider a typical outdoor containerised BESS containing two rows of battery racks, where the critical failure zone comprises a single rack footprint of 1.2 m width by 6.0 m length (7.2 m²). NFPA 855 specifies a minimum design density of 12.2 (L/min)/m² (0.3 gpm/ft²) across the most electrically and thermally vulnerable rack and its immediate perimeter.

Water demand is calculated as follows:

Design Area (A) = 7.2 m² rack footprint + 1.2 m boundary perimeter buffer = 15.6 m²

Sprinkler Flow Rate (Q_design) = Area × Design Density = 15.6 m² × 12.2 (L/min)/m² = 190.32 L/min

Adding an NFPA-mandated 20% hydraulic unbalance and friction loss allowance:

Total Demand Flow = 190.32 L/min × 1.20 = 228.38 L/min (~60.3 gpm)

Under NFPA 855 Table 4.3, this flow rate must be sustained for a continuous duration of at least 120 minutes. Therefore, the minimum dedicated on-site firefighting water supply volume equals 228.38 L/min × 120 min = 27,406 litres (approx. 27.5 m³). For detailed agent engineering, consult our guide on lithium battery fire suppression systems.

UL 9540A Testing: Evaluating Propagation Limits in BESS Fires

UL 9540A defines the industry-standard test method for assessing thermal runaway fire propagation in battery energy storage systems. Rather than a pass/fail standard, UL 9540A provides empirical thermal, gas, and heat release data used by Authorities Having Jurisdiction (AHJs) and fire protection engineers to determine safe installation clearances and fire suppression requirements.

The test protocol evaluates thermal runaway across four progressive tiers:

• Cell-level testing: Induces thermal runaway via localized heating, electrical overcharge, or mechanical nail penetration. Engineers measure onset temperatures, cell surface temperatures, gas generation rates, venting pressure, and chemical composition of the off-gases.
• Module-level testing: Evaluates whether thermal runaway in a target cell cascades to adjacent cells within the same module enclosure. Key outputs include heat flux (kW/m²), maximum external module casing temperature, and flame presence.
• Unit-level testing: Tests a fully populated battery rack without active fire suppression. The test measures heat release rates (HRR), radiant heat flux to adjacent racks, total off-gas volumes, and whether passive fire barriers prevent thermal cascading across rack boundaries.
• Installation-level testing: Conducted inside an enclosed room or shipping container mock-up with active sprinkler suppression. It validates whether sprinkler systems prevent structural container breach and limit fire spread to adjoining utility-scale enclosures.

Adherence to UL 9540A data ensures that project developers can establish site separation distances without incurring prohibitive passive barrier costs, as detailed in our guide on fire battery hazards and containment.

Emergency Response and Firefighting Protocols for BESS Fires

Emergency response procedures for BESS fires require strict operational discipline to prevent electrical shock, arc flashes, and blast hazards caused by unburnt gas clouds. Standard structural firefighting tactics—such as forcing open container doors without prior gas analysis—have historically led to severe deflagrations.

Operating personnel and first responders must follow this sequential protocol:

1. Remote system isolation: Remotely trip the upstream medium-voltage vacuum circuit breaker and activate the high-voltage direct current (HVDC) master contactors to isolate the battery strings electrically from the balance of plant.
2. Hazard perimeter establishment: Secure a minimum safety perimeter of 100 metres upwind. Verify that all automated gaseous suppression systems have completed their discharge cycle and monitor exterior telemetry.
3. Atmospheric gas assessment: Interrogate fixed gas detection monitors or deploy remote sensing cameras to verify atmospheric levels of H₂, CO, and LFL percentages before approaching the enclosure exterior.
4. External boundary cooling: If the active container is intact, apply water fog streams exclusively to adjacent unaffected enclosures to arrest thermal radiation spread; avoid discharging solid water streams directly onto exposed high-voltage DC terminals.
5. Controlled interior deluge: If safe hydraulic connections exist, activate the external Fire Department Connection (FDC) to energise internal deluge sprinkler loops, maintaining continuous cooling for a minimum of 4 to 8 hours post-event.
6. Thermal imaging monitoring: Maintain perimeter observation using calibrated thermal imaging cameras. Re-entry must not occur until all internal module temperatures remain stable below 50°C for at least 24 consecutive hours.

Factory Safety Verification and Inspection Checklist

Systematic verification during Factory Acceptance Testing (FAT) and field commissioning drastically reduces the risk of field-level BESS fires. Electrical engineers and quality inspectors should use the following checklist during manufacturing audits and site handovers:

Next steps: specifying and sourcing

Mitigating fire hazards in grid-scale and commercial energy storage requires integrating multi-stage thermal runaway detection, structural fire barriers, and factory-tested water deluge piping directly into the structural enclosure design. When preparing an RFQ or tender specification, submit your project layout, required nominal capacity, grid interconnect parameters, and local fire authority mandates to our engineering team. We supply turnkey grid solutions, including certified energy storage system assemblies and robust liquid-cooled ESS container units engineered for strict compliance with NFPA 855 and UL 9540A. For technical consultations and competitive factory quotations, contact our engineering office through our request a quote page.
