Fire Battery Hazards: BESS Suppression & Prevention Guide

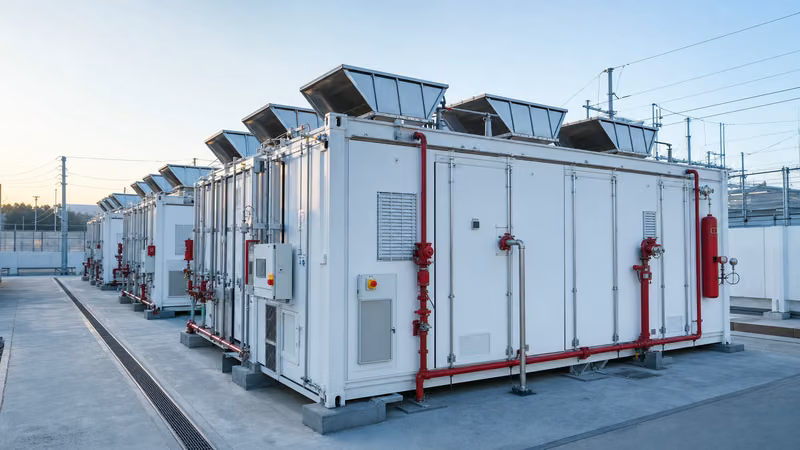

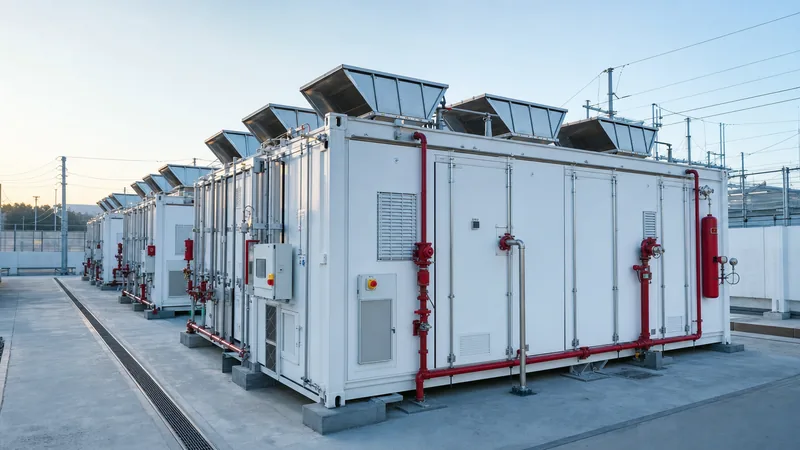

Quick answer: A fire battery event occurs when internal or external faults drive an electrochemical cell into self-sustaining thermal runaway, generating toxic off-gases, flammable hydrogen, and intense heat. Suppressing a fire battery failure requires rapid, continuous thermal cooling to absorb heat faster than the cell generates it, alongside flammable gas exhaust ventilation and blast deflagration relief engineered to NFPA 855 and UL 9540A standards.

As commercial and industrial battery energy storage systems (BESS) scale to multi-megawatt-hour capacities, mitigating battery hazards is a critical design requirement for project engineers, EPC contractors, and plant operators. Mitigating these risks demands a multi-tiered engineering approach that combines continuous electrical monitoring, precision thermal management, early-stage off-gas sampling, and targeted suppression mediums. Selecting appropriate architectures begins with understanding the physics of cell breakdown and designing robust enclosures, as detailed in our guide to battery enclosure engineering design.

Thermal Runaway Mechanics in a Fire Battery Incident

Thermal runaway in lithium-ion energy storage systems represents an uncontrollable exothermic reaction cascade triggered by mechanical, electrical, or thermal abuse. When a cell internal temperature exceeds approximately 80°C, the Solid Electrolyte Interphase (SEI) layer begins decomposing exothermically. By 120°C to 140°C, the organic separator melts, causing widespread internal short circuits between the anode and cathode. At temperatures exceeding 180°C to 220°C, cathode decomposition releases internal oxygen, creating a self-fuelling combustion environment that burns independent of atmospheric oxygen concentrations.

This decomposition vents large volumes of volatile electrolyte vapour alongside flammable gases. Chromatographic gas analysis from standard cell-level UL 9540A destructive tests reveals typical off-gas compositions of 20% to 35% hydrogen (H2), 15% to 30% carbon monoxide (CO), 10% to 20% carbon dioxide (CO2), and residual methane, ethylene, and toxic hydrogen fluoride (HF). The lower explosive limit (LEL) of this combined gas cloud is typically between 6% and 8% by volume in air. If thermal runaway is not halted in the initiating cell, the heat transfer through conductive copper busbars and radiative enclosure surfaces initiates cascading failures across neighbouring cells, resulting in a fully engaged fire battery scenario.

Critical Lessons from Battery Storage Facility Fires

Forensic investigations of global battery storage facility fires show that enclosure explosions and rapid propagation generally stem from delayed gas detection and inadequate physical separation between racks. In several documented utility-scale incidents, clean agent gaseous extinguishing systems successfully knocked down initial surface flames, but failed to extract residual heat from deep-seated core windings. Once the gas agent dispersed, uncooled cells continued off-gassing into the sealed container, resulting in secondary deflagration upon finding an ignition source.

These operational failures highlight three paramount engineering principles under IEC 62933-5-2 Clause 6.4: first, gaseous agents alone cannot prevent thermal runaway propagation across adjacent battery modules; second, mechanical ventilation systems must be linked to pre-combustion gas analysers to purge flammable atmospheres prior to opening enclosure doors; and third, modular fire barriers must isolate electrical controls from the battery core. To avoid systemic failures, design teams frequently implement specialised lithium battery fire suppression systems matched specifically to cell chemistry and energy density.

Suppression Agent Selection for Fire Battery Mitigation

Selecting the correct extinguishing medium requires balancing thermal cooling performance, electrical conductivity risks, and water run-off environmental containment. While gaseous extinguishing clean agents such as FK-5-1-12 (Novec 1230) effectively suppress local electrical fires, liquid water remains the industry benchmark for deep-core sensible heat extraction. NFPA 855 Section 9.8 mandates dedicated water supplies capable of sustaining continuous cooling over extended durations.

The following engineering decision table compares primary suppression mediums deployed across commercial and utility BESS installations:

To implement an effective wet pipe or deluge framework, refer to the detailed calculations found in our guide on water suppression systems for battery energy storage.

Off-Gas Detection and Deflagration Venting Engineering

Off-gas detection serves as the earliest actionable warning phase in avoiding a severe fire battery event, triggering automated isolation up to ten minutes before smoke or thermal detectors activate. Solid-state metal oxide semiconductor (MOS) and non-dispersive infrared (NDIR) sensors monitor off-gas indicators such as carbon monoxide rising above 25 ppm or hydrogen exceeding 50 ppm. Detecting these threshold levels triggers the battery management system (BMS) to open the master DC contactor, switch HVAC systems into continuous exhaust mode, and initiate facility shutdown.

Deflagration protection must be designed in accordance with NFPA 68 (Standard on Explosion Protection by Deflagration Venting). Vent area sizing depends directly on enclosure volume, structural yield strength, and the deflagration index (K_St) of the electrolyte off-gas mixture. The required vent area is calculated using the NFPA 68 Clause 7.2 basic venting equation:

A_v = (C · A_s) / √(P_red)

Where A_v is the vent area (m²), A_s is the internal enclosure surface area (m²), P_red is the reduced deflagration pressure limit the enclosure can withstand without structural failure (bar), and C is the venting characteristic parameter based on fuel gas reactivity (bar^1/2). Integrating dynamic blast vents ensures that sudden off-gas ignition safely expels outward and upward away from personnel access routes.

Thermal Management Integration: Preventing Thermal Cascade

Active thermal management serves as the primary operational defence preventing nominal cell degradation from evolving into an uncontrolled fire battery incident. Liquid-cooled cold plates positioned directly against cell broadsides maintain cell core operating temperatures within an optimal 15°C to 30°C window, limiting inter-cell temperature deltas to less than 3°C. In high-power charging or discharge cycling, effective convective heat transfer suppresses localized hot spots that trigger SEI degradation.

Modern containerised systems deploy integrated liquid loops capable of shifting operation dynamically. When internal module thermistors detect abnormal thermal spikes (>60°C), the cooling system switches to maximum flow capacity to extract heat directly at the module boundary. Engineering teams can assess complete thermal integration guidelines in our review of battery cooling thermal systems.

Inspection and Acceptance Checklist for BESS Fire Safety

Commissioning engineers and EPC contractors must conduct systematic validation procedures to confirm that safety barriers function seamlessly prior to container energisation. The following multi-step inspection procedure must be completed during factory acceptance testing (FAT) and site commissioning:

1. Verify UL 9540A testing documentation confirms zero cell-to-cell thermal propagation under external heating abuse at the module boundary.
2. Inspect physical fire barriers separating battery compartments from power conversion system (PCS) switchgear enclosures, validating a minimum 2-hour fire-resistance rating according to ASTM E119 or EN 1363-1.
3. Calibrate carbon monoxide and hydrogen off-gas sensors; confirm alarm setpoints trip BMS contactors at 25 ppm CO and 50 ppm H2 within 5 seconds of sample ingestion.
4. Functionally test deflagration relief panels, ensuring release bolts are torqued to specified mechanical shear ratings and perimeter discharge paths are unobstructed.
5. Measure deluge water supply availability, confirming minimum flow rates of 12.2 (L/min)/m² across the target battery footprint with a continuous 2-hour water supply reserve.
6. Validate interlocking logic between the fire alarm control panel (FACP), BMS, emergency stop (EPO), and HVAC purge fans.

Next steps: specifying and sourcing

When preparing requests for quotation (RFQs) for utility or industrial projects, specify your safety requirements thoroughly: include required chemistry constraints, UL 9540 and UL 9540A test reports, targeted local fire codes (such as NFPA 855 or IEC 62933), and preferred suppression topologies. Review our complete range of certified battery energy storage systems and modular liquid-cooled ESS containers built to international safety standards. For tailored thermal calculations, project design reviews, and equipment specifications, submit your single-line diagrams directly through our quote submission page or connect with our application engineers via the contact page.

Tags: fire battery battery storage facility fires BESS fire suppression thermal runaway NFPA 855
