Key takeaways
- Clean agents like FK-5-1-12 suppress open flames rapidly but cannot cool decomposing battery cells below the critical thermal runaway threshold.
- NFPA 855 mandates an automatic water sprinkler system designed for a minimum discharge density of 12.2 L/min/m² (0.3 gpm/ft²) over a 2-hour duration for open-rack configurations.
- Early detection systems monitoring off-gas markers (hydrogen and carbon monoxide) provide a 5 to 12-minute window for intervention before catastrophic cell venting occurs.
- True li ion battery fire suppression requires a multi-stage approach combining total flooding inerting gases with targeted liquid cooling to prevent cascading cell propagation.
- Explosion mitigation per NFPA 68 and NFPA 69 is legally required alongside suppression systems to exhaust flammable gas mixtures generated during thermal runaway.
Quick answer: Effective lithium battery fire suppression requires a multi-layered engineering strategy integrating off-gas early detection, total-flood gaseous extinguishing agents to extinguish primary flames, and sustained water cooling to halt thermal runaway propagation across adjacent cells. Clean agents alone cannot overcome cell internal chemical reactions without continuous cooling.
Large-scale energy storage facilities and commercial battery rooms present unique chemical fire risks. Unlike conventional Class A or Class B hazards, a lithium-ion battery fire is driven by thermal runaway—an exothermic chemical reaction inside the cell that generates oxygen, heat, and flammable gases independently of ambient air. Specifying an effective lithium battery fire suppression architecture requires a rigorous engineering approach that moves beyond simple flame knockdown to tackle internal cooling, explosive gas ventilation, and regulatory compliance.
Thermal Runaway Mechanics and Lithium Ion Battery Fire Prevention
Thermal runaway begins when an internal defect, mechanical crushing, electrical overcharge, or external thermal stress breaches a cell separator. Once the internal temperature exceeds approximately 80°C to 120°C, the Solid Electrolyte Interphase (SEI) layer decomposes exothermically. If heat dissipation is inadequate, the temperature accelerates past 140°C, initiating anode breakdown and cathode decomposition, which releases free oxygen into the cell casing.
Active lithium ion battery fire prevention relies on detecting this failure chain during its earliest phase. Before thermal runaway becomes irreversible, cells enter an off-gassing stage, releasing volatile organic compounds (VOCs), hydrogen (H2), carbon monoxide (CO), and carbon dioxide (CO2). Specialized multi-gas detectors tuned to detect H2 concentrations as low as 10 to 20 ppm and CO levels above 50 ppm trigger electrical trip commands to isolate the affected battery string.
Isolating the electrical contactors within milliseconds reduces joule heating and prevents further energy contribution from external sources. To ensure optimal preventive operation, fire protection systems must interface directly with the supervisory control hardware detailed in our battery monitoring system guide, coordinating cell-level temperature readings with automated emergency shutdowns before active suppression agents are discharged.
Lithium Battery Fire Suppression Systems: Clean Agents vs Water
Selecting an extinguishing agent requires balancing electrical non-conductivity against heat absorption capacity. Modern battery enclosures use clean agents, condensed aerosols, water deluge, or hybrid systems, each delivering distinctly different performance characteristics under full-scale testing.
The following table compares the operational capabilities and limitations of primary suppression media applied to stationary lithium-ion energy storage systems:
| Suppression Agent | Primary Mechanism | Design Standard | Thermal Runaway Cooling | Re-ignition Prevention | Electrical Conductivity |
|---|---|---|---|---|---|
| FK-5-1-12 (Fluoroketone) | Thermal heat absorption and chemical chain reaction termination | NFPA 2001 | Poor (gas phase, rapid dissipation) | Low without extended hold time | Non-conductive |
| Condensed Aerosol (Potassium Radicals) | Chemical scavenging of flame-propagating free radicals | NFPA 2010 | Negligible | Moderate (prolonged suspension) | Conductive residue risk |
| Water Sprinkler / Deluge | Direct evaporative latent heat absorption (cooling) | NFPA 13 / NFPA 15 | Superior (2.26 MJ/kg latent heat) | High with sustained application | Conductive (requires de-energisation) |
| Targeted Module Water Mist | Droplet evaporation, surface cooling, local inerting | NFPA 750 | High at localized cell level | High at rack level | Low to moderate |
While gaseous clean agents such as FK-5-1-12 rapidly extinguish visible flaming combustion and protect secondary electronics, they lack the specific heat capacity to drop internal cell core temperatures below 200°C. Therefore, full lithium ion battery fire protection specifications routinely deploy clean agents for initial flash fire knockdown, backed by continuous water infrastructure to suppress cell-to-cell propagation as outlined in our water suppression system guide for battery energy storage.

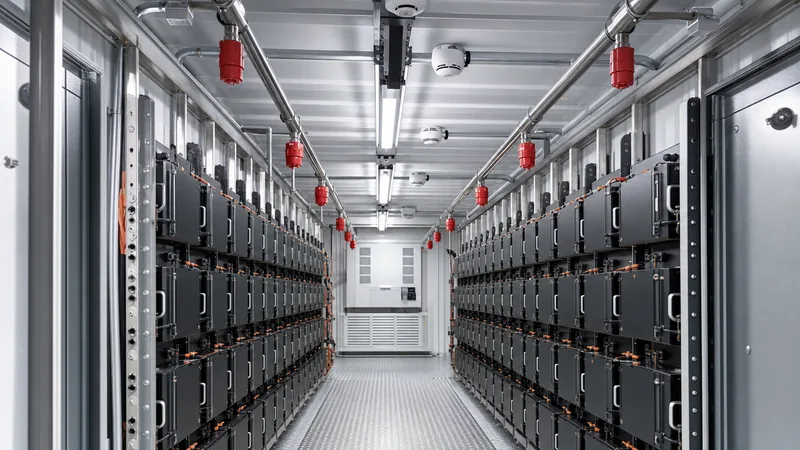

Designing Multi-Tiered Lithium Battery Fire Protection Systems
A multi-tiered protection architecture applies defense-in-depth across module, rack, and container structural boundaries to isolate thermal runaway before it engulfs the entire energy block. Relying on a single container-level total flooding system often results in total asset loss because the enclosure is flooded only after thermal propagation is already self-sustaining.
Modern engineering design structures lithium ion fire suppression into three sequential tiers:
- Tier 1 (Module-Level Inerting): Direct-injection nozzles plumbed into individual module cassettes release fluoroketone or condensed aerosol directly into the cell space immediately upon off-gas detection, neutralizing early flames before the vent cap ruptures completely.
- Tier 2 (Rack-Level Isolation): Rack-level curtain barriers and partition plates made of non-combustible ceramic or micro-porous silica prevent radiative thermal transfer between adjacent vertical racks, supplemented by targeted water mist or local pipe arrays.
- Tier 3 (Enclosure Deluge and Deflagration Management): Container-wide sprinkler networks deliver large volumes of continuous water to cool steel enclosures, adjacent battery rows, and structural elements. Simultaneously, spark-proof exhaust fans clear off-gas mixtures to keep atmospheric levels below 25% of the Lower Flammability Limit (LFL).
For exterior installations, the physical structure housing these systems must meet specific fire-resistance ratings. Engineering considerations for structural partitions, fire dampers, and environmental ingress protection are explored in our battery enclosure engineering guide.
NFPA 855 and UL 9540A Standards for Lithium Fire Suppression
Compliance with international safety standards is mandatory for securing project permitting, insurance underwriting, and interconnection approvals for commercial energy storage installations. The two primary benchmark standards governing fire protection for lithium battery storage are NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and UL 9540A (Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems).
NFPA 855 (2023 edition, Section 4.4) establishes strict baseline physical criteria: individual BESS units must not exceed 50 kWh for residential or 250 kWh to 600 kWh for non-dedicated commercial spaces without large-scale fire testing validation. Furthermore, NFPA 855 mandates minimum physical separation distances of 0.9 metres (3 feet) between individual battery groups and between units and perimeter walls, unless unit-level UL 9540A testing demonstrates that cell-to-cell thermal runaway does not propagate beyond the originating rack.
UL 9540A evaluates fire behavior across four consecutive tiers: cell level, module level, unit level, and installation level. The test reports key engineering values, including maximum heat release rate (HRR in kW), total smoke release rate, and the composition of off-gases (such as hydrogen, methane, and carbon monoxide). If a battery chemistry demonstrates a severe thermal propagation profile—such as nickel manganese cobalt (NMC) compared to lithium iron phosphate (LFP)—the mechanical suppression requirements increase substantially, a comparison covered thoroughly in our LFP vs NMC battery chemistry guide.
Worked Calculation: Suppression Agent Sizing for a 2 MWh BESS Container
A representative 2 MWh lithium-iron phosphate battery container requires precise calculation of clean agent mass for initial inerting, combined with water demand figures for long-duration boundary cooling. Consider a standard 40-foot containerized energy storage enclosure with the following technical parameters:
- Internal Dimensions: Length = 12.0 m, Width = 2.3 m, Height = 2.5 m
- Total Internal Gross Volume (V): 12.0 × 2.3 × 2.5 = 69.0 m³
- Equipment Solid Displacement: 25% of gross volume = 17.25 m³
- Net Free Enclosure Volume (V_net): 69.0 - 17.25 = 51.75 m³
- Design Temperature (T): 20°C (293.15 K)
- Clean Agent: FK-5-1-12 (NFPA 2001 minimum design concentration = 5.9% vol for Class A/B battery hazards)
Using the NFPA 2001 formula for clean agent mass calculation:
W = (V_net / S) × [C / (100 - C)]
Where S is the agent specific vapor volume at 20°C, calculated as S = 0.0664 + 0.0002741 × T = 0.0664 + (0.0002741 × 20) = 0.07188 m³/kg, and C is the design concentration (5.9%).
W = (51.75 / 0.07188) × [5.9 / (100 - 5.9)] = 719.95 × 0.062699 = 45.14 kg
Allowing for a 10% safety margin to account for enclosure leakage rates and piping residual volume, the system requires an agent charge of 49.65 kg of FK-5-1-12 delivered within 10 seconds through balanced distribution nozzles.
Next, calculate the water demand per NFPA 855 (Section 4.6), which specifies a minimum discharge density of 12.2 L/min/m² (0.3 gpm/ft²) across the entire floor footprint (12.0 m × 2.3 m = 27.6 m²) for a duration of 120 minutes:
Water Flow Rate = 27.6 m² × 12.2 L/min/m² = 336.72 L/min (88.95 gpm)
Total Dedicated Water Supply = 336.72 L/min × 120 min = 40,406.4 Litres (~10,675 US Gallons)
This worked calculation proves why clean agents and water infrastructure must work hand-in-hand: the gaseous agent suppresses initial flames within seconds using under 50 kg of chemical, while 40,000 litres of water remain on standby to prevent secondary ignition from residual cell heat.
Factory Acceptance Testing and Commissioning Checklist
Commissioning an advanced lithium battery fire suppression system demands rigorous verification prior to battery energisation. Field failures usually occur at the interface between the battery management system (BMS) and the fire detection panel, rather than in the mechanical piping itself.
Engineers and commissioning teams should follow this sequential checklist during site acceptance testing:
- Enclosure Integrity (Door Fan Test): Perform a quantitative room integrity test in accordance with NFPA 2001 Appendix C to verify an agent retention hold time of at least 10 minutes above 85% of design concentration.
- Off-Gas Sensor Calibration: Verify calibration curves for H2 and CO sensors using certified span gases (e.g., 50 ppm H2, 100 ppm CO balance air). Verify BMS trip relays trigger within 2 seconds of sensor threshold breach.
- BMS and Fire Panel Cross-Trip: Confirm that the main master breaker (ACB or DC contactor) trips open upon 1st-stage alarm to isolate electrical input from power conversion systems before suppression discharge.
- Piping Pneumatic Puff Test: Carry out a compressed nitrogen blowdown test at 10 bar (145 psi) across all distribution nozzles to ensure clean agent and water mist manifolds are free of metal chips and construction debris.
- Deflagration Damper Interlocks: Test mechanical dampers and blast relief panels to verify immediate closure upon gas discharge, switching to forced exhaust mode once clean agent holding time expires.
- Secondary Containment Runoff: Confirm that drainage sumps and runoff containment valves operate correctly to collect potentially contaminated sprinkler runoff water per local environmental discharge regulations.
Next steps: specifying and sourcing
Specifying a compliant fire protection system requires integrating detailed cell thermal run-up data, gas generation curves, and precise hydraulic flow calculations into your equipment schedules. Whether you are engineering utility-scale installations with liquid-cooled energy storage containers or configuring modular indoor racks using an integrated energy storage system, our engineering team assists with agent sizing calculations, NFPA 855 compliance packages, and BMS interface diagrams. Send your container footprints, single-line diagrams, and local fire codes directly to our specialists via our quotation inquiry page or get in touch through our contact page to receive fully engineered system specifications.
Frequently asked questions
What is the best fire suppression system for lithium batteries?
A hybrid suppression strategy is the most effective approach for lithium-ion battery installations. It pairs an early-stage clean gaseous agent (such as FK-5-1-12) for rapid flame knockdown with a high-density water deluge or direct-injection mist system to cool cell cores and prevent thermal runaway propagation.
Can clean agents extinguish a lithium battery fire?
Clean agents extinguish the open flames produced by burning off-gases, but they cannot stop the internal chemical decomposition inside a cell in thermal runaway. Without supplemental water cooling, the cells retain sufficient thermal energy to re-ignite once the agent dissipates.
Why is water effective on lithium-ion battery fires?
Water provides the highest latent heat of vaporization (2.26 MJ/kg) of any practical extinguishing medium, making it the most effective agent for absorbing internal heat. Sustained water application cools battery casings below the critical runaway threshold to arrest cell-to-cell fire propagation.
What gas is released right before a lithium battery catches fire?
During the initial venting stage, lithium-ion cells release hydrogen (H2), carbon monoxide (CO), carbon dioxide (CO2), and volatile organic solvents. Detecting hydrogen and carbon monoxide provides the earliest warning of thermal runaway, up to 10 minutes before flame emergence.
What is the water supply duration required by NFPA 855?
NFPA 855 requires an automatic water sprinkler system designed to deliver a minimum density of 12.2 L/min/m² (0.3 gpm/ft²) over the entire system footprint for a minimum duration of 2 hours, unless large-scale fire testing per UL 9540A permits an alternative approved density.
