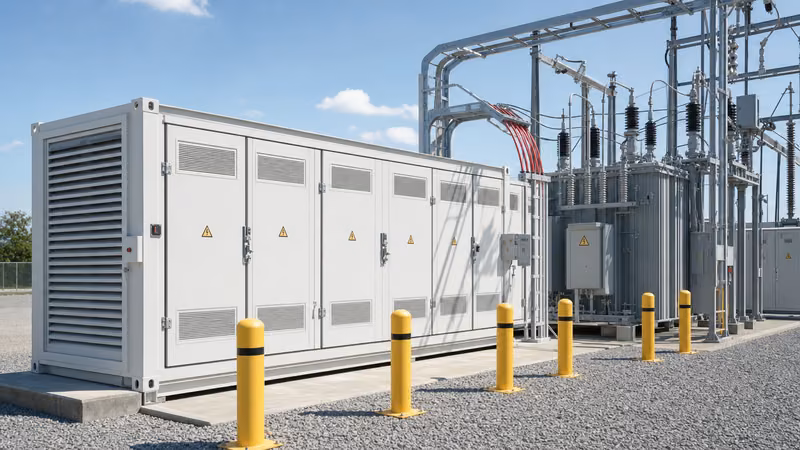

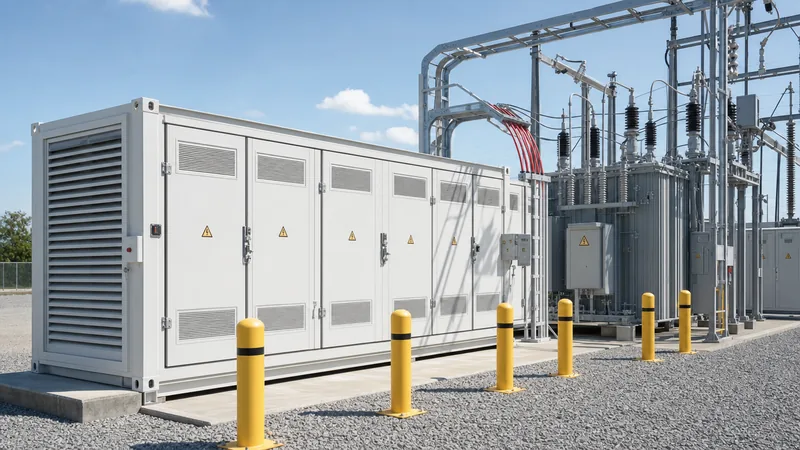

LFP vs NMC Battery: Commercial BESS Chemistry Guide

Quick answer: In stationary grid storage, the lfp vs nmc battery selection prioritises safety, cycle life, and levelised cost over footprint. Lithium iron phosphate (LFP) delivers 6,000 to 10,000 cycles, resists thermal runaway up to 270°C, and lowers project lifecycle costs, making it the dominant choice for stationary battery energy storage systems (BESS). Nickel manganese cobalt (NMC) remains superior where volumetric or weight constraints dominate.

Selecting an electrochemical cell platform for utility-scale or commercial and industrial (C&I) projects requires evaluating cell physics against operational economics. While electric mobility historically favoured NMC for its high energy density per kilogram, grid-scale applications demand high asset uptime, long operational lifetimes, and minimal fire propagation risk. Understanding the practical differences between an industrial energy storage system running LFP chemistry and legacy or specialized NMC installations prevents costly specification errors during project feasibility and procurement phases.

Fundamental Chemistry: LFP vs NMC Battery Cathode Structures

The chemical stability difference between these two lithium-ion variants originates directly in their cathode crystal structures. LFP uses lithium iron phosphate (LiFePO4), which forms an olivine crystal structure with strong covalent phosphorus-oxygen (P-O) bonds. In contrast, NMC utilizes a layered oxide crystal framework composed of lithium, nickel, manganese, and cobalt atoms (LiNixMnyCozO2), held together by transition-metal-to-oxygen bonds that release oxygen at significantly lower thermal stress levels.

When investigating a nickel manganese cobalt battery vs lithium ion alternatives like phosphate-based chemistries, the bonding energy dictates how the cell behaves under abusive conditions. In an LFP cathode, the tetrahedral phosphate polyanion [PO4]3- binds oxygen atoms tightly within the three-dimensional lattice. Consequently, even under complete internal short-circuit conditions or continuous electrical overcharge, molecular oxygen release requires temperatures above 270°C.

Conversely, layered oxide cathodes—such as NMC 622 (60% nickel, 20% manganese, 20% cobalt) and high-energy NMC 811—exhibit weaker metal-oxygen bonds. During overcharge or external heating, these layered structures experience structural destabilisation starting around 150°C to 180°C. Once the cathode structure collapses at roughly 210°C, it liberates volatile elemental oxygen directly into the organic carbonate electrolyte solvent, producing a self-fuelling exothermic reaction. In utility projects evaluated under utility scale energy storage engineering guidelines, this fundamental distinction makes passive fire containment markedly more predictable in LFP installations.

Energy Density and Volumetric Footprint Comparison

NMC cells provide higher energy density per unit volume and mass, which reduces total enclosure volume when land availability is severely restricted. Commercial prismatic NMC cells achieve gravimetric energy densities between 230 Wh/kg and 280 Wh/kg, with volumetric energy densities spanning 550 Wh/L to 700 Wh/L. In comparison, utility-grade LFP prismatic cells (commonly 280 Ah to 314 Ah formats) deliver 160 Wh/kg to 185 Wh/kg gravimetrically and 350 Wh/L to 420 Wh/L volumetrically.

For stationary applications, weight is rarely a primary engineering constraint unless installations are positioned on multi-storey rooftops, marine platforms, or inside retrofitted industrial buildings with strict slab-loading limits. However, the volumetric difference impacts container layout and balance-of-plant (BOP) density. Standard 20-foot ISO containers equipped with LFP modules routinely achieve nameplate energy ratings between 3.44 MWh and 5.0 MWh using liquid cooling loops. Achieving equivalent capacity with NMC allows either a shorter enclosure footprint or higher total energy per container, but requires stricter boundary clearances from adjacent civil structures under NFPA 855.

Thermal Runaway and Safety Standards: UL 9540A and IEC 62619

Thermal runaway risks differ substantially between chemistries, dictating system venting requirements, fire suppression sizing, and compliance with statutory fire codes. Testing performed in accordance with UL 9540A (Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems) quantifies heat release rates (HRR), off-gas volume, and gas composition at the cell, module, and unit levels.

During off-gas testing per UL 9540A Section 7, both chemistries emit flammable gases when driven past critical limits, including carbon monoxide (CO), hydrogen (H2), methane (CH4), and volatile organics. However, LFP venting is dominated by lower concentrations of flammable gases and minimal free oxygen release during early breakdown stages. A high-nickel nmc vs lfp comparison reveals that NMC cells release active oxygen alongside decomposed carbonate solvent vapours, generating self-oxidising fires that burn fiercely even in sealed, oxygen-depleted enclosures.

Under IEC 62619 clause 7.3.3 (Initiation of thermal runaway), industrial storage assemblies must demonstrate that a single cell thermal failure will not propagate across the module partition. Modern liquid cooled ESS containers engineered with LFP achieve this criterion through aluminium cold plates and mica insulation sheets between cells, limiting adjacent cell heating below 120°C. For NMC units, preventing cascade propagation often demands aerogel barriers, phase-change materials, or physical gap spacings that partially offset its volumetric density advantage.

Cycle Life, Degradation, and Depth of Discharge (DoD)

LFP exhibits significantly slower capacity fade and solid electrolyte interphase (SEI) degradation across high cycle count operations. In standard stationary storage regimes cycling at 0.5C charge and 0.5C discharge rates under 25°C ambient temperatures, utility-grade LFP cells retain 70% to 80% of original capacity after 6,000 to 10,000 full cycles at 80% to 90% DoD. NMC cells subjected to equivalent 1C/0.5C daily cycling typically reach the 70% retention threshold within 2,500 to 4,000 cycles.

Electrochemical mechanical strain is a key driver of this divergence. During charging, lithium ions deintercalate from the cathode and insert into the graphite anode. In an LFP cathode, this phase transition induces less than 7% volumetric lattice change, preserving the mechanical integrity of the active material over thousands of cycles. In contrast, layered NMC cathodes undergo anisotropic lattice contraction and expansion exceeding 10% during charge-discharge swings, particularly above 4.10 V cell potential. This causes microcracking of primary particles, continuous exposure of fresh active material to the electrolyte, accelerated transition metal dissolution, and irreversible resistance increases.

Furthermore, LFP tolerates higher continuous depth of discharge without severe cycle penalties. A plant operator can discharge LFP down to 10% state of charge (SoC) daily with negligible degradation acceleration, whereas operating NMC continuously above 90% or below 15% SoC accelerates active lithium loss, requiring strict system operational windows managed by the battery monitoring system design.

Capex vs LCOE: 10 MW / 40 MWh Worked Calculation

Evaluating battery chemistry based purely on initial equipment acquisition cost (Capex per kWh) produces misleading financial projections for assets intended to operate for 15 to 20 years. A complete levelised cost of energy storage (LCOS) evaluation incorporates initial capital outlay, round-trip efficiency (RTE) losses, auxiliary cooling parasitic loads, and mandatory capacity augmentation schedules.

Consider a 10 MW / 40 MWh 4-hour duration BESS deployed for grid energy arbitrage and frequency regulation, cycling 1.5 times daily (547.5 full cycles per year) over a 15-year concession period (8,212 total cycles):

• LFP Configuration: 40 MWh initial installation at $130/kWh DC containerised capex ($5,200,000). Degradation rate: 1.8% per year. Capacity retention at year 15: ~73% without cell augmentation. 8,212 cycles delivered. Lifetime discharged throughput: ~280,000 MWh.
• NMC Configuration: 40 MWh initial installation at $155/kWh DC containerised capex ($6,200,000). Degradation rate: 3.5% per year. Reaches 70% retention at year 7. Requires a 30% DC capacity augmentation (12 MWh at projected $110/kWh = $1,320,000) at Year 7 to maintain contract capacity. Lifetime discharged throughput: ~280,000 MWh.

Factoring in system replacement costs, auxiliary parasitic cooling consumption, and maintenance overheads, the baseline LCOS formula is applied:

LCOS ($/MWh) = [Total Capex + Sum(O&M + Augmentation + Parasitic Losses) / (1 + r)^t] / [Sum(Discharged Energy) / (1 + r)^t]

As demonstrated, despite NMC's slight 1.5% edge in cell round-trip efficiency, LFP achieves a 25.8% reduction in lifetime LCOS primarily by avoiding an expensive mid-life battery augmentation programme and leveraging cheaper raw materials (eliminating high-cost cobalt and nickel refined salts).

Thermal Management and Operating Temperature Profiles

LFP and NMC cells impose distinct thermal constraints on container cooling subsystems, affecting auxiliary balance-of-plant consumption. NMC cells perform optimally within a tight operating temperature band of 20°C to 30°C. Operating NMC cells above 35°C accelerates transition metal leaching and SEI decomposition, while temperatures above 45°C significantly accelerate degradation. LFP cells tolerate operating temperatures up to 35°C to 40°C with moderate ageing rates, though they exhibit sluggish charge acceptance and internal resistance spikes below 0°C.

For thermal management design, detailed in our engineering review of liquid-cooled vs air-cooled energy storage, LFP's slightly lower round-trip efficiency (higher internal AC/DC resistance) generates roughly 8% to 12% more heat per equivalent cycle compared to an identical NMC pack under high C-rate duty cycles. However, because LFP packs tolerate an elevated operating temperature baseline, cooling chillers can run with higher fluid setpoints (e.g., 28°C supply coolant vs 20°C for NMC).

Running warmer coolant setpoints allows the liquid chiller to operate with lower compressor compression ratios or use free-cooling economisers for more hours each year. This reduces annual auxiliary parasitic load by 15% to 25%, directly improving net project revenue in hot climatic conditions.

Siting, Permitting, and Fire Protection: NFPA 855 Compliance

Permitting authority approvals (AHJ - Authorities Having Jurisdiction) depend heavily on compliance with NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems). NFPA 855 Section 4.6 sets default maximum stored energy limits per unit (typically 250 kWh indoors, 600 kWh outdoors in close proximity) and prescribes a minimum 3-foot (0.914 m) clearance between units and from lot lines, unless large-scale fire testing per UL 9540A proves that lower separation distances prevent external thermal runaway propagation.

Because NMC releases significant quantities of active oxygen alongside heavy volatile gases during cell rupture, blast deflagration vents must be sized per NFPA 68 with higher venting discharge capacities to prevent container over-pressurisation. LFP installations generate lower peak heat release rates (HRR) in module-to-module propagation tests, enabling fire safety engineers to satisfy AHJ setback requirements with reduced separation from perimeter fences, transformers, or buildings.

When planning site layouts per our BESS location engineering and siting guide, deploying LFP often allows reduced unit-to-unit spacing down to 1.0 metre without requiring exterior fire barriers. Conversely, dense NMC installations frequently necessitate reinforced concrete fire blast blast walls between adjacent enclosure blocks to satisfy municipal fire codes.

Sourcing Checklist: Technical Evaluation Matrix for BESS RFQs

When preparing technical specifications and requests for quotation (RFQs) for grid-scale or industrial storage assets, engineers must establish clear technical gates rather than relying on high-level chemistry claims. Use the following structured checklist during tender evaluation:

1. Cathode Purity and Sourcing: Demand supplier certificates proving lithium carbonate or hydroxide purity (>99.5%) and verification that iron phosphate or transition metal precursors undergo automated magnetic impurity separation to eliminate internal micro-short circuit risks.
2. UL 9540A Unit-Level Reports: Request full, unredacted test reports conducted by an accredited third-party laboratory. Evaluate maximum surface temperatures on adjacent inactive units during thermal runaway initiation on target cells.
3. Degradation Warranty Terms: Confirm whether degradation guarantees specify throughput-based or time-based models. Ensure testing metrics specify round-trip efficiency conditions (ambient 25°C, 0.5C charge / 0.5C discharge, 100% to 10% DoD).
4. BMS Interlock Architecture: Ensure cell voltage sensing accuracy is within ±2 mV. For LFP, verify the BMS incorporates adaptive OCV-SOC (Open Circuit Voltage vs State of Charge) recalibration algorithms, compensating for LFP's flat discharge voltage plateau between 20% and 80% SoC.
5. Auxiliary HVAC Parasitic Inclusion: Mandate that supplier RTE performance guarantees explicitly include the auxiliary electrical consumption of liquid chillers, pumps, BMS logic, and enclosure ventilation fans.

Next steps: specifying and sourcing

Selecting between LFP and NMC chemistries establishes the operational boundary conditions, safety envelopes, and economic returns of an energy storage facility for decades. For utility grid support, commercial peak shaving, and renewable integration projects, modern LFP chemistries provide an optimal balance of safety, multi-thousand-cycle durability, and low lifecycle cost.
