Lithium Iron Phosphate Batteries: BESS Engineering Guide

Quick answer: Lithium iron phosphate batteries (LiFePO4 or LFP) are rechargeable lithium-ion cells featuring an iron phosphate cathode and a graphitic carbon anode. Operating at a nominal 3.2 V per cell, they are the global benchmark for stationary energy storage due to their long cycle life (4,000 to 8,000 cycles), superior thermal runaway resistance, and non-toxic, cobalt-free chemistry.

For utility-scale, commercial, and industrial battery energy storage systems (BESS), battery selection dictates lifetime levelised cost, footprint, and fire risk profile. While early mobile applications prioritised energy density above all else, stationary power infrastructure demands round-trip efficiency, operational safety under extreme ambient conditions, and low capacity fade across a 15- to 20-year asset life. This technical guide examines the electrochemical principles, mechanical and electrical parameters, sizing methodologies, and commissioning requirements of lithium iron phosphate batteries in modern power systems.

LFP Battery Chemistry and Operating Principles

The chemical stability of a lithium ferro phosphate battery originates from the strong covalent bonding within the polyanion phospho-olivine structure of the cathode. The chemical shorthand LiFePO4 defines an ordered orthorhombic crystal lattice where tetrahedral phosphate units (PO4)3- form strong covalent phosphorus-oxygen bonds. These bonds require significantly more thermal energy to break than the metal-oxygen bonds found in nickel-manganese-cobalt (NMC) or nickel-cobalt-aluminium (NCA) layered oxides.

During discharge, lithium ions deintercalate from the graphitic anode (LiC6), migrate through a non-aqueous liquid electrolyte containing lithium hexafluorophosphate (LiPF6), pass through a porous polymer separator, and intercalate into the vacant lattice sites of the iron phosphate cathode, converting heterosite FePO4 into LiFePO4 according to the reversible reaction:

FePO4 + Li+ + e- ⇄ LiFePO4

The standard redox potential of the Fe3+/Fe2+ couple yields an exceptionally flat open-circuit voltage profile of approximately 3.20 V to 3.25 V across 10% to 90% state of charge (SoC). While this stability ensures predictable DC-bus voltage delivery to power conversion equipment, it poses unique challenges for state-of-charge tracking, requiring high-precision current integration (Coulomb counting) and open-circuit relaxation calibration via advanced battery monitoring systems. The flat plateau also means that cell overcharge or over-discharge presents sharp voltage inflection points outside the 2.50 V to 3.65 V window, necessitating strict multi-tier battery management system (BMS) trip settings compliant with IEC 62619 clause 8.

Key Technical Specifications of Lithium Iron Phosphate Batteries

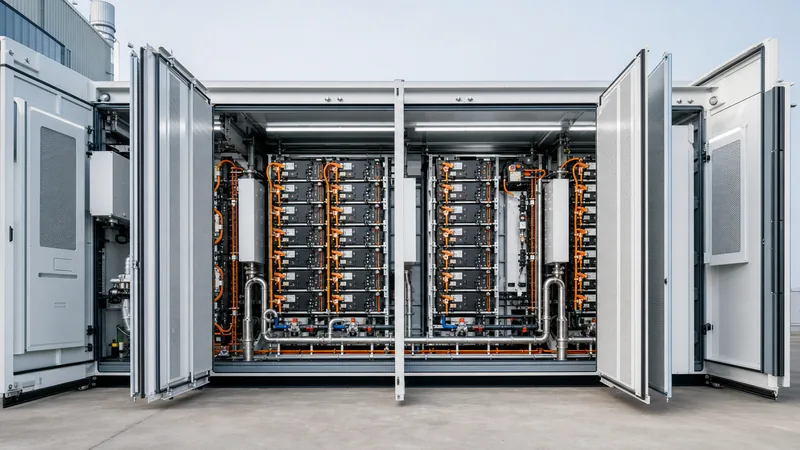

Prismatic lithium iron phosphate batteries configured in welded aluminium cell enclosures are the industry standard for commercial and utility racks. The table below outlines standard electrical, thermal, and mechanical parameters for industrial-grade LFP cells and factory-assembled high-voltage racks deployed in grid-tied containers.

As shown in the data, volumetric energy density at the rack level accounts for cell spacing, high-voltage busbars, balance-of-plant cabling, and thermal management channels. Detailed structural design considerations are addressed in our analysis of LFP vs NMC battery systems.

Thermal Stability, Gas Generation, and Safety Standards

A lithium ion iron phosphate battery displays a significantly higher threshold for thermal runaway than conventional cobalt-based chemistries. In an LFP cell, the internal breakdown of the solid electrolyte interphase (SEI) begins around 120 °C to 140 °C, but self-sustaining exothermic cathode decomposition does not occur until internal temperatures surpass 270 °C. Even when driven to thermal runaway via mechanical puncture or severe overcharge, the cathode does not release elemental oxygen, preventing the high-velocity, self-fuelling combustion characteristic of NMC cells.

However, thermal runaway in a sealed lithium phosphate ion battery still produces flammable off-gases due to the thermal pyrolysis of organic carbonate solvents (such as ethylene carbonate and dimethyl carbonate). Under standard UL 9540A testing, the off-gas composition generated during cell venting consists primarily of:

• Carbon monoxide (CO): 30% to 45% by volume
• Hydrogen (H2): 20% to 35% by volume
• Carbon dioxide (CO2): 10% to 20% by volume
• Hydrocarbons (methane CH4, ethylene C2H4): 5% to 12% by volume

To eliminate explosive atmospheres within enclosed containers, engineers must design active deflagration mitigation systems complying with NFPA 855 and IEC 62933-5-2. Modern designs utilise continuous carbon monoxide and hydrogen sniffers wired to high-rate mechanical exhaust dampers, combined with liquid cooling plates to extract heat directly from cell terminals. Review our engineering guide on battery cooling for fluid circulation metrics and pressure drop optimisation.

Sizing Calculation for an Industrial Lithium Iron Battery Pack

Sizing an industrial lithium iron battery pack requires derating cell capacity for degradation, temperature, round-trip efficiency, and inverter operating voltage limits. The following calculation demonstrates the sizing of a grid-tied peak shaving BESS rated for 1,000 kW continuous output for 2 hours (2,000 kWh net usable AC energy) over a 10-year project life.

Step 1: Determine total DC energy required at End of Life (EOL)

Assuming a power conversion system (PCS) inverter efficiency of 97.5% and step-up transformer efficiency of 98.5%, the total required net DC energy delivered to the PCS DC bus is:

E_DC_net = 2,000 kWh / (0.975 × 0.985) = 2,082.5 kWh

Step 2: Apply operational depth of discharge and EOL retention derating

To guarantee a 10-year service life at 1 cycle per day, the system operates between 5% and 95% SoC (usable DoD = 90%). The engineering contract specifies cell replacement when State of Health (SoH) degrades to 80% of nameplate rating. Therefore, the required nameplate DC capacity at Day 1 (Begin of Life, BOL) is calculated as:

E_DC_nameplate = E_DC_net / (DoD × SoH_EOL) = 2,082.5 kWh / (0.90 × 0.80) = 2,892.4 kWh

Step 3: Determine rack electrical architecture

Using commercial 3.2 V 280 Ah prismatic cells (nominal energy: 896 Wh per cell) and matching a 1,500 V DC central inverter operating within an optimal DC window of 1,100 V to 1,400 V:

• Number of series cells per rack (S): 416 cells × 3.2 V = 1,331.2 V nominal (Maximum charge: 416 × 3.65 V = 1,518.4 V; Minimum discharge: 416 × 2.60 V = 1,081.6 V).
• Energy per rack: 416 cells × 0.896 kWh = 372.7 kWh nominal.
• Number of parallel racks (P): 2,892.4 kWh / 372.7 kWh = 7.76 racks → 8 racks in parallel.

Total installed Day 1 energy equals 8 racks × 372.7 kWh = 2,981.6 kWh (gross nominal), delivering exactly 2,146 kWh usable DC energy at 80% SoH, safely fulfilling the 2,000 kWh AC contractual guarantee.

Degradation Dynamics and Lithium Iron Phosphate Battery Price Analysis

A critical commercial advantage of lfp batteries is their minimal capacity degradation profile over thousands of full discharge cycles. Capacity loss in a battery lithium iron system follows a two-stage mechanism: an initial non-linear drop driven by continuous solid electrolyte interphase (SEI) growth on the anode during the first 200 cycles, followed by an extended, highly linear degradation regime dominated by slow lithium inventory loss.

Unlike cobalt-based cells, the olivine lattice suffers virtually zero mechanical crack propagation or transition metal dissolution under standard operating temperatures (20 °C to 30 °C). However, operating continuously above 45 °C accelerates electrolyte oxidation and doubles the rate of capacity fade. Conversely, charging below 0 °C without pre-heating causes metallic lithium deposition (plating) on the graphite anode, inducing severe internal micro-shorts and permanent capacity loss.

From a capital expenditure standpoint, the lithium iron phosphate battery price has remained consistently lower than nickel-based alternatives due to the abundance of raw materials (iron, phosphorus, and lithium carbonate versus constrained nickel and cobalt refining). On an installed project level, factoring in containerisation, thermal management, liquid chillers, and fire suppression, the turnkey capital cost ranges between 130 USD/kWh and 180 USD/kWh. Over an operational envelope of 6,000 cycles at 80% DoD, the levelised cost of storage (LCOS) for LFP installations routinely falls below 0.05 USD/kWh per cycle, making it the most cost-effective chemistry for grid arbitrage and industrial peak shaving. For comparative capital models, consult our review of commercial battery storage costs.

Factory Acceptance Testing and Commissioning Checklist

Executing rigorous Factory Acceptance Testing (FAT) and site commissioning prevents premature cell divergence, internal high-resistance connections, and communication faults in high-voltage racks. Engineers should apply the following sequential verification procedure:

1. Insulation resistance and dielectric testing: Measure insulation resistance between high-voltage busbars (+/- terminals) and ground using a calibrated 2,500 V DC megohmmeter. Minimum acceptable resistance is >100 MΩ per rack. Perform AC dielectric withstand testing according to IEC 62477-1.
2. Torque and micro-ohm resistance audit: Verify torque on all flexible cell interconnect busbars using a calibrated digital torque wrench (typically 6 Nm to 8 Nm for M6 terminals). Measure contact resistance across every busbar connection using a micro-ohmmeter; joint resistance must not exceed 15 μΩ.
3. BMS sensor calibration and communication check: Verify that voltage sensors on all cell channels display less than ±2 mV deviation across the entire string at open circuit. Confirm temperature thermistor calibration (minimum 1 sensor per 2 cells or 1 per module) and validate MODBUS TCP / CAN bus reporting to the central controller.
4. Capacity and cell balancing verification: Complete a full charge-discharge cycle at 0.5C rate within the design temperature envelope (25 °C ± 3 °C). Verify active or passive balancing function when cell voltages reach the top plateau (3.45 V to 3.60 V per cell). Maximum permissible voltage delta between the highest and lowest cell at end of charge is 30 mV.
5. Emergency shut-off and thermal runaway detection trip: Simulate smoke, combustible gas (hydrogen and carbon monoxide), and high-temperature alarms. Verify that the master rack contactors open under load within <100 ms, isolating the DC bus and triggering the enclosure ventilation fans.

Next steps: specifying and sourcing

When preparing an RFQ for utility or industrial stationary storage, clearly specify your project's DC bus operating limits, required C-rate profile (e.g., 0.5C continuous for 2-hour duration), target cycle life, and site ambient temperature extremes. Incomplete thermal specifications or ambiguous EOL degradation thresholds are the most common causes of project delays and underperformance.

Our factory manufactures high-voltage, containerised energy storage systems using premium prismatic LFP cells. Explore our factory-assembled energy storage systems and advanced liquid-cooled ESS containers engineered to IEC, UL, and CE requirements. To submit single-line diagrams, load profiles, or system specifications for technical review and budgetary proposals, contact our engineering sales team via our quotation page or reach out directly through our contact page.
