Remote Solar Power System Design: Sizing, BESS & Specs

Quick answer: A remote solar power system is an autonomous, off-grid electrical generation and storage installation engineered to deliver continuous power to sites disconnected from the public utility grid. It integrates a photovoltaic (PV) array, a charge controller or bidirectional power conversion system (PCS), and an industrial battery bank sized to sustain critical loads across multiple days of minimal solar irradiance.

Deploying electrical infrastructure in isolated environments presents engineering challenges that grid-connected installations never encounter. Sites such as telecommunication repeaters, remote mining camps, border monitoring outposts, agricultural pumping stations, and off-grid industrial microgrids require an uninterrupted power supply without the safety net of an infinite utility bus. In these critical applications, system failure is not an operational inconvenience; it results in complete communication blackouts, telemetry loss, or process shutdowns that require logistically complex and costly maintenance interventions.

Designing solar power for remote locations demands conservative engineering margins, uncompromising component reliability, and rigorous attention to local meteorological data. This technical guide outlines the system architecture, mathematical sizing procedures, battery chemistry trade-offs, and environmental enclosure specifications necessary to engineer an industrial-grade stand-alone generation plant according to international electrical standards.

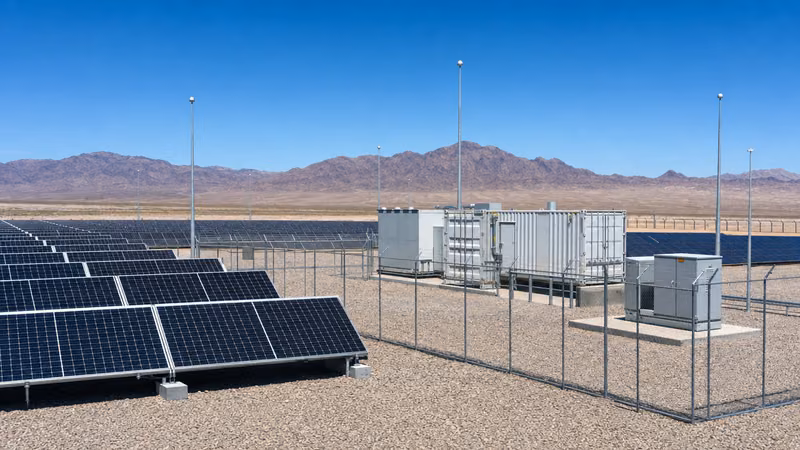

Core Architecture of a Remote Solar Power System

A remote solar power system relies on four interdependent functional subsystems configured in either a direct-current (DC) bus, alternating-current (AC) bus, or hybrid-coupled architecture. The optimal topology depends on the nature of the electrical load, physical distance between equipment, and the presence of supplementary generation assets.

The primary subsystems include:

• Photovoltaic Generation Array: Monocrystalline silicon PV modules configured in series-parallel strings to achieve the required operating voltage and current window under expected temperature extremes.
• Power Conversion and Charge Regulation: Maximum Power Point Tracking (MPPT) regulators or bidirectional inverters engineered to maintain high conversion efficiency (>96%) while converting erratic solar generation into regulated DC bus voltage or three-phase AC power compliant with IEC 62109-1 and IEC 62109-2 standards.
• Energy Storage System (BESS): An industrial battery bank designed to buffer diurnal generation cycles and provide uninterrupted supply during non-solar hours, detailed thoroughly in our Battery Storage Engineering Guide.
• Balance of System (BOS) and Control: Switchgear, surge protective devices (SPDs), direct-current isolation breakers, intelligent energy management systems (EMS), and telemetry gateways providing automated supervisory control and remote data monitoring.

For low-power applications (under 5 kW) operating dedicated DC instrumentation, a DC-coupled architecture offers high efficiency by eliminating superfluous inversion stages. Conversely, industrial installations exceeding 20 kW that power standard commercial loads or integrate secondary AC generators universally adopt an AC-coupled microgrid approach. In this topology, solar inverters and bidirectional battery inverters sync to a common AC bus, simplifying power distribution over extended physical runs according to NFPA 70 Article 710 requirements.

Engineering Solar Power for Remote Locations: Autonomy and Sizing Calculation

Designing solar power for remote locations requires sizing the generation and storage assets against the worst-month solar irradiance rather than annual averages. Under-sizing during seasonal irradiance troughs leads to severe battery depth-of-discharge (DoD) stress and premature system blackout.

The engineering workflow requires calculating total daily energy consumption, factoring in conversion losses, selecting the requisite days of autonomy (DoA), and matching the PV generation to the site's local Peak Sun Hours (PSH).

Consider an isolated environmental monitoring and telemetry station operating under the following continuous load profile:

• Continuous baseline power draw: 1,200 W (24 hours per day)
• Daily energy consumption ($E_{\text{load}}$): $1.2\text{ kW} \times 24\text{ h} = 28.8\text{ kWh/day}$
• Worst-month solar resource (horizontal or latitude tilt): 3.2 PSH
• Target autonomy ($N_{\text{autonomy}}$): 3 days (72 hours without solar gain)
• Battery chemistry: Lithium Iron Phosphate (LiFePO4) operating at a maximum nominal DoD of 80%
• Bidirectional inverter / conversion round-trip efficiency ($η_{\text{inv}}$): 92%
• Battery round-trip columbic and thermal efficiency ($η_{\text{bat}}$): 95%
• PV derating factor (soiling, thermal losses, mismatch, cable $I^2R$ drops): 0.82

Step 1: Calculate Minimum Usable and Nominal Battery Storage Capacity

The usable energy capacity must fully sustain the load across the three-day autonomy window:

$$E_{\text{usable}} = \frac{E_{\text{load}} \times N_{\text{autonomy}}}{η_{\text{inv}}} = \frac{28.8\text{ kWh} \times 3}{0.92} = 93.91\text{ kWh}$$

To protect cell longevity and avoid destructive low-voltage cut-offs, this usable capacity is derated by the maximum allowable DoD and internal battery efficiency:

$$E_{\text{nominal}} = \frac{E_{\text{usable}}}{\text{DoD} \times η_{\text{bat}}} = \frac{93.91\text{ kWh}}{0.80 \times 0.95} = 123.57\text{ kWh}$$

A nominal storage bank of at least 125 kWh is specified, such as a factory-assembled energy storage system rack configuration with dedicated cell-level monitoring.

Step 2: Calculate Required PV Array Output

The solar array must generate enough energy during the worst-month 3.2 PSH window to meet daily consumption while accounting for full-system conversion inefficiencies:

$$E_{\text{pv\_daily}} = \frac{E_{\text{load}}}{η_{\text{inv}} \times η_{\text{bat}}} = \frac{28.8\text{ kWh}}{0.92 \times 0.95} = 32.95\text{ kWh/day}$$

Applying site-specific derating factors across the worst-month solar resource dictates the peak array capacity ($P_{\text{array}}$):

$$P_{\text{array}} = \frac{E_{\text{pv\_daily}}}{\text{PSH} \times \text{Derating}} = \frac{32.95\text{ kWh}}{3.2\text{ h} \times 0.82} = 12.56\text{ kWp}$$

Selecting 550 Wp Tier-1 monocrystalline panels results in a minimum array size of 24 modules ($24 \times 550\text{ Wp} = 13.20\text{ kWp}$), providing an engineering safety margin above the 12.56 kWp absolute baseline to guarantee battery replenishment even during sub-optimal weather days.

Battery Chemistry Comparison: LFP vs Lead-Carbon for Isolated Sites

Energy storage selection directly determines the maintenance interval, footprint, and life-cycle cost of a remote solar power system. While conventional deep-cycle flooded or gel lead-acid systems were standard in past decades, modern off-grid installations rely almost exclusively on Lithium Iron Phosphate (LiFePO4/LFP) or advanced lead-carbon technology.

The operational conditions of an unstaffed site impose distinct performance boundaries on cycle life, thermal tolerance, and partial state of charge (PSoC) durability. Extended operation in PSoC degrades standard lead-acid batteries within 12 to 18 months due to irreversible plate sulphation, whereas LFP exhibits zero negative memory or degradation when operated continuously between 20% and 80% state of charge.

For systems operating in high-demand environments or requiring compact deployment, an LFP architecture like those detailed in our 48V Solar Battery Guide provides a life-cycle cost per kWh cycled that is nearly 60% lower than lead-acid alternatives despite the higher initial capital expenditure. For containerised multi-megawatt-hour installations, engineered systems such as a liquid-cooled ESS container ensure precise cell-to-cell thermal equilibrium, preventing hot spots and prolonging battery calendar life beyond 15 years.

Thermal and Environmental Protection Standards for Harsh Climates

Environmental degradation from wind-blown dust, sand ingress, salt-fog corrosion, and thermal extremes represents the most frequent cause of premature off-grid power failure. All outdoor-rated enclosures housing power electronics and batteries must be certified according to IEC 60529 or NEMA 250 standards.

To maintain operational continuity across arduous conditions, systems must comply with specific structural and protection benchmarks:

• Ingress Protection: Outdoor balance-of-system enclosures must achieve a minimum rating of IP55 for terrestrial desert environments or IP66 for coastal applications exposed to driving marine rain and salt spray.
• Corrosion Protection: Enclosure sheet steel must feature hot-dip galvanised or marine-grade high-durability coating systems certified under ISO 12944 to resist corrosive chemical atmospheres and industrial pollutants.
• Surge and Lightning Suppression: Remote towers and open-field PV structures attract direct and induced lightning transients. Coordinated Type 1+2 surge protective devices (SPDs) compliant with IEC 61643-11 must be installed on all incoming PV array strings, AC output buses, and telemetry communication loops.
• Thermal Management: Electronic inverters experience derating above 45°C, while lithium batteries cannot accept charge below 0°C without risk of irreversible lithium plating. Factory-integrated active thermal management—using industrial-grade HVAC systems or closed-loop liquid cooling—maintains cell temperatures between the optimal range of 20°C and 28°C regardless of external ambient fluctuations ranging from -30°C to +50°C.

System architects must strictly observe the safety clearance and fire-suppression criteria specified in NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and IEC 62619, incorporating aerosol or dry-chemical fire suppression coupled with automatic ventilation dampers.

Hybrid Integration: Coupling Solar Power for Remote Locations with Diesel Generators

Coupling a remote solar power system with an auxiliary fossil-fuel generator creates a hybrid microgrid that dramatically reduces solar array oversizing requirements while providing insurance against multi-week weather anomalies. Sizing a pure stand-alone solar installation for ten consecutive days of rain results in a prohibitively massive, underutilised PV and battery infrastructure during clear months.

Integrating an automated backup generator involves specific engineering considerations to ensure fuel efficiency and prevent wet-stacking:

1. Automated Genset Control (AGC): The battery system's energy management controller monitors battery state of charge (SoC). When the battery drops to a programmed threshold (typically 20% to 30% SoC), the controller sends a dry-contact closure signal to initiate the generator auto-start sequence.
2. Optimal Genset Loading: Internal combustion engines run inefficiently and suffer from carbon build-up (wet-stacking) when loaded below 40% of their continuous rating. The bidirectional PCS must be configured to command maximum battery charge absorption when the generator runs, keeping the engine loaded between 70% and 85% of prime rating until the battery achieves an 80% bulk charge state.
3. Fuel Displacement Calculations: In a properly engineered hybrid layout, solar and storage supply 80% to 95% of the annual energy requirement. The generator operates selectively for battery recovery or peak-load assistance, cutting site fuel delivery logistics and engine maintenance runs by up to 90%, as examined in our guide on hybrid generator solar systems.

Factory Acceptance Testing and Commissioning Checklist

Field repairs at isolated installations incur massive logistics expenses, making rigorous Factory Acceptance Testing (FAT) before shipment essential for off-grid hardware. Every integrated power skid or containerised energy block must undergo end-to-end operational verification at the manufacturing facility prior to dispatch.

Commissioning engineers should utilise the following inspection checklist across the project lifecycle:

1. Dielectric and Insulation Testing: Conduct insulation resistance testing on all DC and AC cabling at 1,000 VDC per IEC 60364-6, confirming resistance values exceed 100 MΩ between active conductors and earth.
2. Grounding and Equipotential Bonding: Measure ground rod network resistance to verify earth resistance remains below 5 Ω, ensuring solid bonding of panel frames, enclosure bodies, and lightning protection systems per IEEE 142.
3. Full-Load Thermal Profiling: Operate the integrated inverter, MPPT, and battery system at 100% rated capacity for a minimum continuous four-hour burn-in period. Conduct infrared thermography per ASTM E1934 to verify no internal terminations or busbar connections exceed normal temperature rise limits.
4. Simulated Black-Start and Drop-Load Validation: Verify that the system seamlessly transitions from charging to discharging mode when the PV input or backup generator is suddenly isolated, maintaining output voltage and frequency regulation within ±2% under 100% step-load conditions.
5. Protective Device Interlocking: Validate emergency stop circuits, ground-fault detection breakers (GFCI), DC contactor break times, and battery management system (BMS) over-voltage/over-temperature tripping thresholds per IEC 62933-5-2.

Next steps: specifying and sourcing

Specifying a commercial or industrial remote solar power system requires a clear compilation of your project's technical parameters: geographic coordinates, single-line diagrams, continuous and peak load profiles (kW and kVA), worst-month daily consumption (kWh), and expected environmental ranges. Supplying our engineering team with these baseline metrics allows us to generate accurate string configurations, thermal HVAC load calculations, and precise battery energy storage sizing. To begin your project design, submit your load schedules and technical specifications through our RFQ portal or reach out directly via our contact page.
