Key takeaways
- A 48V solar battery system operates within the Safety Extra-Low Voltage (SELV) limit of 60V DC, minimising electric shock hazards under IEC 60364-4-41.
- A nominal 48V LiFePO4 pack consists of 16 series-connected cells (16S) providing 51.2V nominal and an operating window between 44.8V and 58.4V.
- Transitioning from 12V or 24V to a 48V battery bank reduces conductor cross-sectional area requirements by up to 75% for identical power throughput.
- System integration requires proper DC overcurrent protection conforming to UL 1973 and battery management system (BMS) communications via CAN or RS485 protocols.
- Daily cycle sizing must integrate a standard depth of discharge (DoD) of 80% and account for total system round-trip efficiency of approximately 92%.
Quick answer: A 48V solar battery is an electrical energy storage bank operating at a nominal 48V to 51.2V DC, typically using lithium iron phosphate (LiFePO4) chemistry to balance safety, low I²R cable losses, and high inverter efficiency. It remains the global industry standard for commercial and off-grid sub-20 kW renewable installations because it stays within Extra-Low Voltage safety thresholds while carrying manageable currents.
In electrical engineering practice, system voltage selection defines equipment sizing, switchgear interrupting capacity, cable cross-sections, and thermal performance. Selecting a 48v solar battery architecture enables project engineers and commercial installers to minimise resistive losses without triggering the stringent insulation and arc-flash containment protocols mandated for high-voltage DC systems above 60V DC under IEC 60364-4-41. This technical guide examines 48V architecture, sizing methodologies, electrical protection, and chemistry performance.
Engineering Fundamentals of the 48V Battery Bank
A 48v battery bank represents the highest standard operating voltage classified under Safety Extra-Low Voltage (SELV) regimes. By keeping the maximum charging voltage below 60V DC, electrical designers prevent lethal contact voltages during installation and routine maintenance, eliminating the requirement for specialised high-voltage isolation gear while remaining fully compliant with NEC Article 706 and IEC 62477-1.
Compared to 12V and 24V topologies, raising the nominal DC bus to 48V reduces conductor current proportionally for a given power demand (P = V × I). For a 5 kW continuous load, a 12V circuit draws approximately 416.7A, demanding twin 120 mm² copper conductors per rail to prevent overheating. In contrast, a 48V nominal system draws only 104.2A, which requires standard 35 mm² or 50 mm² conductors depending on installation method and thermal derating. According to Joule's law (P_loss = I²R), cutting current to one-quarter slashes resistive heat dissipation across conductors and busbars by 93.75% for identical wire resistance. For larger multi-cabinet systems requiring megawatt-scale management, engineers often scale these fundamentals to modular energy storage systems.
LiFePO4 Solar 48V Chemistry and Cell Configurations
Modern low-voltage storage relies predominantly on lithium iron phosphate cells due to their thermal runaway threshold of approximately 270°C, compared to 150°C for nickel manganese cobalt chemistries, as detailed in our analysis of LFP vs NMC battery characteristics. A standard lifepo4 solar 48v pack uses either a 15S (15 cells in series) or 16S (16 cells in series) arrangement of prismatic cells.
The 16S architecture is the dominant engineering choice, delivering a nominal 51.2V (16 × 3.2V) and aligning with standard telecom and off-grid inverter operating windows. The individual cell operating window spans from 2.8V (discharge cut-off) to 3.65V (maximum charge ceiling). Consequently, the overall 16S battery pack operates across a DC voltage range of 44.8V to 58.4V. Below is a specification comparison between standard lead-carbon and lithium chemistries deployed in 48V formats, tested in accordance with IEC 62619 clause 7.2.
| Technical Parameter | 16S LiFePO4 (LFP) | Valve-Regulated Lead-Acid (AGM) | Lead-Carbon |
|---|---|---|---|
| Nominal System Voltage (V) | 51.2 | 48.0 (4 × 12V) | 48.0 (4 × 12V) |
| Recommended DoD (%) | 80 – 90 | 50 | 70 |
| Cycle Life @ 80% DoD | 4,000 – 6,000 | 500 – 800 | 2,000 – 3,000 |
| Round-Trip Efficiency (%) | 95 – 98 | 75 – 82 | 84 – 88 |
| Max Continuous C-Rate | 0.5C – 1.0C | 0.2C | 0.3C |
| Thermal Runaway Temperature (°C) | > 270 | N/A (Sulphation/Venting) | N/A (Thermal Dry-out) |
| Weight per 10 kWh Usable (kg) | ~85 – 105 | ~320 – 380 | ~240 – 290 |
Sizing a 48 Volt Solar Battery: Engineering Worked Calculation
Accurate sizing of a 48 volt solar battery requires calculating actual energy throughput, inverter conversion losses, temperature derating, and operational depth of discharge (DoD) to ensure continuous autonomy. Relying on nominal ratings alone leads to premature low-voltage disconnects under peak inductive loads.
Consider a commercial remote communications relay station requiring continuous 230V AC supply with the following project parameters:
- Daily load profile: 18 kWh/day
- Target operational autonomy: 2 days (48 hours with zero solar generation)
- Design maximum Depth of Discharge (DoD): 80% (0.80)
- Inverter conversion efficiency: 93% (0.93)
- LiFePO4 battery round-trip coulombic efficiency: 96% (0.96)
- Low-temperature derating factor (ambient 5°C minimum): 0.90
Step 1: Calculate the total required delivered AC energy over autonomy duration:
E_req = 18 kWh/day × 2 days = 36 kWh
Step 2: Calculate DC energy demand at battery terminals, accounting for inverter efficiency:
E_dc = E_req / η_inv = 36 kWh / 0.93 = 38.71 kWh
Step 3: Calculate gross nameplate storage required, accounting for DoD and temperature degradation:
E_gross = E_dc / (DoD × k_temp) = 38.71 kWh / (0.80 × 0.90) = 53.76 kWh
Step 4: Convert gross energy to ampere-hours (Ah) at 51.2V nominal:
C_nominal = (53.76 kWh × 1000) / 51.2V = 1,050 Ah

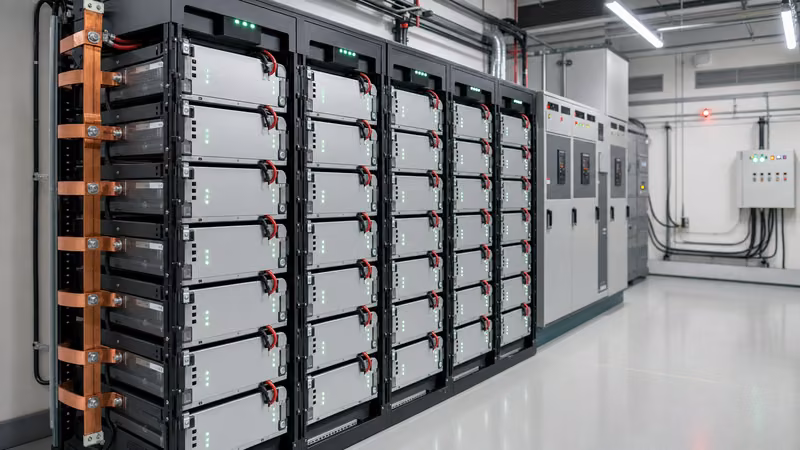

To build this bank using modular rack units, specifying eleven 51.2V 100Ah (5.12 kWh) modules connected in parallel provides 56.32 kWh nominal capacity (1,100 Ah), ensuring compliance with the autonomy target while maintaining cell longevity. For facilities with even larger energy demands, engineers can consult our battery storage engineering guide to explore MW-scale topologies.
Electrical Integration, BMS, and Protection Architecture
Safe integration of low-voltage battery banks requires coordinated protective devices, dedicated Battery Management Systems (BMS), and properly rated DC switchgear. In a modular parallel arrangement, fault currents can reach several kiloamperes during an external bolted short circuit due to the low internal impedance of LFP cells (typically < 0.5 mΩ per cell).
Protection schemes must incorporate Class T fuses or high-interrupting moulded-case circuit breakers (MCCB) rated for DC service according to IEC 60947-2. Standard AC circuit breakers must never be deployed on a DC bus; DC arcs do not cross a natural zero-voltage point, risking catastrophic fire if an AC breaker fails to quench the arc. Each parallel battery branch must include an isolated shunt and a dedicated overcurrent device before landing on a common DC busbar.
The BMS oversees voltage balance across the 16 series elements. Operating via Controller Area Network (CAN bus) or RS485 communication lines, the internal BMS communicates dynamic Charge Current Limits (CCL) and Discharge Current Limits (DCL) directly to the power conversion equipment. For further integration principles regarding bidirectional power control, review our guide on power conversion system design. System designers can also integrate upstream protection panels using engineered HV/LV switchgear assemblies.
Installation and Commissioning Procedure
Commissioning a multi-module low-voltage battery bank demands methodical execution to prevent circulating cross-currents between parallel strings. Severe potential differences between banks can melt bus connectors and trip BMS overcurrent locks immediately upon closure.
- Physical placement and seismic securing: Mount 19-inch rack enclosures or wall-mounted brackets on non-combustible substrates, maintaining minimum clearances of 150 mm on all sides for thermal dissipation according to NFPA 855 guidelines.
- Voltage differential verification: Measure the open-circuit voltage (OCV) of every independent battery module using a calibrated digital multimeter before closing any parallel links. Ensure all module voltages match within a tolerance of ±0.5V DC. If variances exceed this threshold, charge or discharge individual modules separately until voltages equalise.
- Torque-certified terminal connections: Secure flexible copper cables between modules and central busbars using insulated torque wrenches calibrated to the manufacturer's specified value (typically 8.0 to 10.5 N·m for M8 terminals). Apply anti-oxidation paste on bare copper lugs where environmental moisture exceeds 60% relative humidity.
- BMS communication chain configuration: Set the DIP switches on each pack to designate unique binary hardware addresses (e.g., Pack 0 as Master, Packs 1–7 as Slaves). Terminate the communication loop with a 120 Ω matching resistor across CAN_H and CAN_L lines to eliminate signal reflections.
- Polarity and insulation resistance testing: Perform an insulation resistance test at 500V DC between the floating DC conductors and protective earth (PE) in accordance with IEC 60364-6. Verify an insulation resistance greater than 1.0 MΩ before closing DC isolators.
- Pre-charge and inverter handshake: Close the main DC MCCB with pre-charge resistors active to limit the inrush current demanded by inverter DC-bus capacitive banks, preventing contact welding. Confirm the inverter recognises total battery capacity and battery status through the communications interface.
For specialized layouts involving constrained domestic or auxiliary premises, consult our practical instructions for solar battery installation to adapt mechanical mounting frameworks.
RFQ Specification Checklist for Project Engineers
To prevent procurement disputes and ensure compliance with site electrical codes, engineering, procurement, and construction (EPC) professionals should use a detailed specification checklist when issuing Requests for Quotation (RFQs) for 48V battery systems.
| System Parameter | Required Engineering Specification | Applicable Compliance Standard |
|---|---|---|
| Nominal Chemistry | Lithium Iron Phosphate (LiFePO4, 16S configuration) | IEC 62619 / UL 1973 |
| Nominal / Usable Capacity | Specify Ah and kWh per module (e.g., 100Ah / 5.12 kWh) | IEC 61427-1 |
| Operating DC Voltage Range | 44.8V (cut-off) to 58.4V (bulk absorption) | Manufacturer Data Sheet |
| Continuous / Peak C-Rate | 0.5C Continuous (50A) / 1.0C Peak for 10 sec (100A) | IEC 60947-2 |
| Short-Circuit Withstand (Icu) | Minimum 10 kA breaking capacity on pack MCCB/Fuse | IEC 60947-2 Annex H |
| Communication Protocols | Dual-port CAN 2.0B and RS485; MODBUS RTU register map | IEEE 802.3 / IEC 61850 |
| Ingress Protection / Enclosure | IP20 (Indoor Rack) or a standard unit (Outdoor Cabinet) | IEC 60529 |
| Thermal Management | Passive aluminium heat-sinking or forced-air convective | NFPA 855 / UL 9540A |
| Expected Cycle Durability | ≥ 6,000 cycles at 80% DoD, 25°C, 0.5C charge/discharge | IEC 62619 clause 7.3 |
Where industrial plants require large-scale, climate-controlled enclosures housing hundreds of kilowatt-hours, specifying integrated liquid-cooled ESS containers provides superior cell temperature consistency compared to standard rack-based natural convection.
Next steps: specifying and sourcing
When specifying a high-performance battery installation, your procurement pack should contain full site load profiles, peak surge currents, environmental conditions, and desired communication protocols. Our engineering team designs and manufactures utility-grade storage and power distribution apparatus certified to IEC, UL, and IEEE standards. Review our complete portfolio of energy storage systems to select pre-engineered or custom-built solutions. Submit your complete project single-line diagrams (SLD) and load requirements directly through our online quote portal or reach out via our contact page for detailed application engineering support.
Frequently asked questions
What is the actual voltage of a 48v solar battery?
A nominal 48V lithium solar battery built with 16 LiFePO4 cells in series has a nominal resting voltage of 51.2V. During operation, its working voltage spans from 44.8V when fully depleted up to 58.4V at maximum charge.
Why is a 48V battery bank preferred over 12V or 24V for solar systems?
A 48V bank reduces operating current by 75% compared to a 12V bank of equal power output. This reduction allows for significantly thinner copper cables, decreases heat-related power losses across the installation, and improves inverter operating efficiency.
How many solar panels are needed to charge a 48V solar battery?
The number of panels depends on panel wattage and MPPT charge controller specifications rather than battery voltage directly. Typically, two to three 400W modern panels wired in series produce 80V to 120V Vmp, which allows a standard MPPT controller to step down and charge a 48V bank efficiently.
Can you mix different amp-hour ratings in a 48V battery bank?
Parallel strings should use identical capacities, cell chemistries, and ages to prevent cross-charging and circulating currents. Mixing different Ah capacities or chemistries causes unequal internal resistances, leading to uneven cell degradation and premature BMS fault shutdowns.
What size fuse is needed for a 48V solar battery system?
Fuse sizing depends on the continuous rating of the connected inverter plus a 25% safety margin. For example, a 5 kW continuous inverter at 48V nominal draws roughly 104A, requiring a 125A or 150A fast-acting Class T or DC-rated MCCB fuse with a high interrupting rating.
