Quick answer: A professional solar battery installation connects an electrochemical storage unit to a photovoltaic array and distribution board via a dedicated power conversion system, automatic transfer switch, and protective switchgear. Proper installation requires precise DC fault current calculation, compliance with clearance standards such as NFPA 855 and IEC 62477-1, and rigorous pre-commissioning loop impedance and insulation testing.
Integrating electrochemical storage with photovoltaic generation transforms intermittent solar power into dispatchable energy. Whether planning a residential solar battery installation or a commercial behind-the-meter project, the installation demands careful engineering. The installer must evaluate the existing electrical service capacity, short-circuit withstand ratings, earthing arrangements, and thermal management. This technical guide outlines the systematic procedure for executing a solar battery installation, detailing electrical coupling topologies, protection calculations, physical siting parameters, and formal commissioning protocols.
System Architecture: AC vs DC Coupling in Solar Battery System Installation
Selecting between AC-coupled and DC-coupled architectures determines the electrical efficiency, equipment layout, and installation complexity of a solar battery system installation. In a DC-coupled system, the solar array and the battery connect to a common DC bus through a multi-port hybrid inverter or charge controller, converting power to AC only once prior to domestic or industrial consumption. In contrast, an AC-coupled configuration connects a discrete storage inverter directly to the main AC distribution board, running in parallel with existing grid-tied photovoltaic inverters.
For projects focused on adding a battery to a solar system that already has operational inverters, AC coupling is generally the most straightforward option. It preserves existing solar feed-in hardware and avoids disturbing manufacturer warranties on existing string inverters. DC coupling is preferred for ground-up installations due to reduced conversion losses. For further detail on inverter interfaces, see our technical breakdown of power conversion system design.
| Evaluation Metric | DC-Coupled Architecture | AC-Coupled Architecture |
|---|---|---|
| Round-Trip Efficiency (PV to Battery) | 92% – 96% | 86% – 90% |
| Suitability for Retrofit Projects | Requires hybrid inverter replacement | Direct connection to AC distribution board |
| Wiring & Conduit Requirements | High-voltage DC rated cabling | Standard AC multi-core armoured cabling |
| Black-Start & Backup Capabilities | Standard on hybrid platforms | Requires dedicated microgrid/transfer switch |
| DC Arc-Fault Protection | Mandatory string-level AFCI (UL 1699B) | Confined strictly to battery enclosure |
| Scalability of Inverter Capacities | Constrained by hybrid inverter rating | Independently scalable battery and PV ratings |

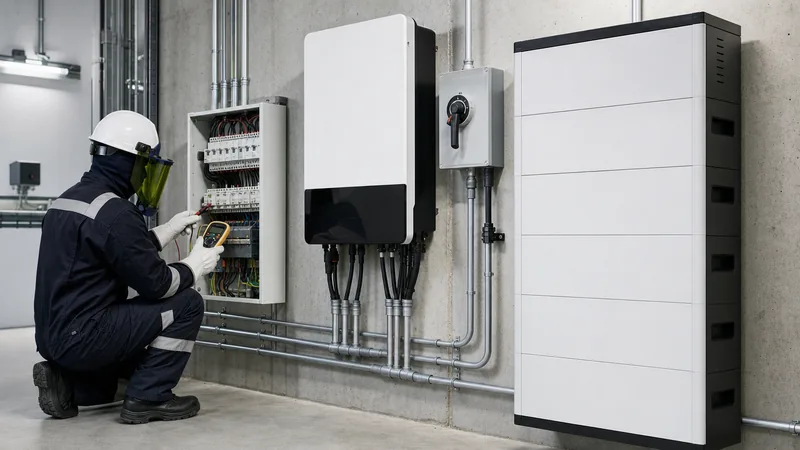

How to Install a Home Battery System: Step-by-Step Procedure
Understanding how to install a home battery system requires a disciplined mechanical and electrical procedure that strictly adheres to IEC 60364-7-712 and local distribution network operator rules. System integrators should follow this sequential execution plan:
- Siting and Structural Assessment: Inspect the mounting surface to confirm load-bearing capacity (typical units weigh 100 kg to 250 kg) and verify working clearances compliant with manufacturer guidelines and fire separation codes.
- Isolation and Lockout/Tagout (LOTO): Disconnect incoming grid power via the main service isolator and isolate all photovoltaic strings at the DC switch-disconnector. Verify the absence of voltage with a calibrated two-pole tester.
- Enclosure and Inverter Mounting: Fasten the mounting bracket to masonry, metal strut channel frame, or concrete pad using minimum M8 structural anchors, then secure the battery chassis and power conversion enclosure.
- Auxiliary Backup and Critical Loads Rewiring: Intercept the sub-circuits destined for emergency supply and route them through a dedicated sub-board fed from the inverter's backup terminals, incorporating a dual-pole manual bypass switch.
- DC and AC Cabling: Terminate double-insulated, fine-stranded DC conductors between battery terminals and inverter DC input through an external DC isolator with shunt-trip capability, ensuring polarity alignment. Connect AC output to a dedicated residual current breaker with overcurrent protection (RCBO).
- Earthing and Bonding: Run a continuous minimum 10 mm² copper protective bonding conductor between the battery chassis, inverter frame, AC earth bar, and the main installation earthing terminal (MET).
- Communication Integration: Install shielded twisted-pair cabling (such as standard industrial communication cable) for CAN bus or serial Modbus communication between the battery management system (BMS) and the system controller, terminating with appropriate 120 Ω bus resistors.
Electrical Sizing and Fault Current Calculations
A critical step in every solar panel battery installation is calculating prospective fault currents and voltage drops under maximum discharge rates. Lithium iron phosphate (LFP) cells feature exceptionally low internal resistance, which means a short circuit at the battery terminals yields instantaneous fault currents that can destroy standard miniature circuit breakers (MCBs).
Consider a 51.2 V nominal, 200 Ah (10.24 kWh) lithium battery bank composed of 16 series-connected 3.2 V prismatic cells. Each cell has an internal DC resistance ($R_{cell}$) of 0.35 mΩ. Total battery internal resistance ($R_{batt}$) is:
Rbatt = 16 × 0.00035 Ω = 0.0056 Ω (5.6 mΩ)
Assuming total loop resistance including 5 metres of 50 mm² flexible copper cable (0.386 mΩ/m × 2 = 3.86 mΩ) and fuse resistance (0.8 mΩ):
Rtotal = 5.6 mΩ + 3.86 mΩ + 0.8 mΩ = 10.26 mΩ (0.01026 Ω)
The prospective short-circuit current ($I_{sc}$) at battery open-circuit voltage ($V_{oc} = 54.4\text{ V}$) is:
Isc = 54.4 V / 0.01026 Ω = 5,302 A (5.3 kA)
Standard residential MCBs are often rated for only 6 kA breaking capacity ($I_{cn}$). In this scenario, fault currents approach that envelope, leaving virtually zero safety margin. Consequently, the installation must incorporate Class gS/aR semiconductor fuses or a dedicated moulded case circuit breaker (MCCB) rated for at least 10 kA to 25 kA DC breaking capacity. For deeper insights into cell performance metrics, consult our guide on lithium solar batteries engineering.
Adding Batteries to Existing Solar System: Retrofit Engineering
Adding batteries to existing solar system arrays requires careful compatibility assessments of the current distribution switchboard and array dynamics. In older photovoltaic installations, consumers and contractors often encounter obsolete inverter units lacking external battery control interfaces, meaning that adding a battery to a solar system is rarely just a plug-and-play task.
When planning to add battery to solar system topologies, the engineer must verify the incoming main service fuse rating (commonly 60 A, 80 A, or 100 A in single-phase residential supplies). Under peak generation and full grid feed-in conditions, combined battery export and solar generation must not exceed the busbar continuous current rating of the distribution panel. This constraint is governed by the 120% rule found in NEC 705.12(B) or IEC 61439 busbar thermal checks. If the total supply breaker ratings exceed busbar capacity, an export limitation controller or busbar derating must be engineered into the circuit.
Furthermore, adding battery backup to solar system circuits requires reviewing neutral-earth bonding regimes. During grid-connected operation, earthing arrangements depend on the network operator supply (such as TN-C-S or TT). In islanded backup mode, an automatic changeover switch must establish a local neutral-earth reference if the utility neutral conductor is isolated, preventing floating neutral potentials that damage consumer electronics.
Clearance Rules, Fire Safety, and Siting Compliance
Every residential solar battery installation and industrial energy storage rollout must comply with strict physical boundary rules to prevent fire propagation and maintain accessibility. National Fire Protection Association (NFPA) Standard 855 and international equivalent standard IEC 62933-5-2 outline precise siting criteria for stationary energy storage installations.
Under NFPA 855 Table 15.3 and standard residential building codes, lithium-based residential systems have an individual unit threshold limit of 20 kWh, with a maximum aggregate installation limit of 80 kWh per structure. Installations must observe the following siting parameters:
- Clearance from Openings: Maintain a minimum 914 mm (36 inches) separation distance from windows, doors, and building air intakes.
- Inter-Unit Separation: Provide at least 914 mm of space between separate battery enclosures unless the system is specifically tested and certified to UL 9540A to demonstrate no fire spread at closer spacing.
- Vehicle Impact Protection: If situated in a garage or vehicle access zone, the unit must be protected by concrete-filled heavy-gauge steel bollards (minimum 100 mm diameter) set into reinforced footings.
- Thermal Environment: Ambient operating temperatures must stay within 0°C to 45°C. Sub-zero temperatures inhibit cell charge acceptance, forcing BMS shutdown to prevent lithium plating, while temperatures above 50°C accelerate degradation.
For large-scale, enterprise-level siting protocols and industrial considerations, refer to our comprehensive BESS location engineering guide.
Inspection and Commissioning Checklist
Prior to closing disconnect switches and energising a solar power battery installation, the field engineer must complete a rigorous quality assurance and testing sequence. Handover to the asset owner should occur only once each inspection metric meets its required acceptance limit.
| Inspection Phase | Verification Step | Acceptance Standard |
|---|---|---|
| Mechanical Structure | Anchor torque verification on all frame bolts | Manufacturer specified torque ±5% |
| Thermal Controls | Intake/exhaust vents clear, HVAC/fan operational | Unobstructed airflow; delta-T within limits |
| Insulation Resistance | Megohmmeter test (DC positive/negative to earth) | > 1.0 MΩ at 500 V DC test voltage |
| Loop Impedance | Earth fault loop impedance ($Z_s$) at inverter AC terminals | Compliant with disconnection time (IEC 60364-4-41) |
| Protection Tripping | RCD / RCBO trip time verification | < 300 ms at $1\times I_{\Delta n}$; < 40 ms at $5\times I_{\Delta n}$ |
| Firmware and BMS | BMS software configuration and battery cell balance | Cell delta < 20 mV; CAN communication clear |
| Island Disconnection | Loss of mains test (open grid breaker under load) | Inverter anti-islanding trip < 2.0 s (IEEE 1547) |
| Polarity Check | DC string and battery input polarity test | Confirmed zero reverse-polarity across terminals |
Next steps: specifying and sourcing
A high-performing solar battery storage installation demands robust, factory-engineered hardware designed to withstand continuous cycling and high electrical stress. To discuss technical specifications or request equipment sizing for your next project, prepare your single-line diagram (SLD), peak load profiles, and target autonomy hours. Explore our high-efficiency energy storage systems, check our pre-packaged liquid-cooled energy storage cabinets, or inspect our utility-grade HV and LV switchgear. Contact our engineering team directly via our quote page to obtain detailed drawings, equipment specifications, and competitive wholesale pricing.
Frequently asked questions
how to install a home battery system
Installing a home battery system involves securing the unit to a load-bearing wall, connecting DC or AC power lines through an isolator and protective switchgear, wiring an automatic transfer switch for backup, running earth-bonding conductors, and configuring communication between the battery management system and the inverter. Testing must be completed before energisation.
Can I add a battery to an existing solar system without replacing my inverter?
Yes, you can add an AC-coupled battery system to an existing solar array without altering your solar inverter. An AC-coupled battery has its own dedicated battery inverter that connects directly into your main switchboard, allowing it to charge from surplus solar power routed through your home AC bus.
What is the typical clearance needed around a solar battery?
Most regulatory standards, including NFPA 855 and local building codes, mandate at least 914 mm (36 inches) of clearance from windows, doors, and other battery units. In addition, manufacturers typically specify between 100 mm and 300 mm of unhindered space on sides and tops for thermal ventilation.
How does a solar battery backup installation handle grid outages?
During a grid outage, an automatic transfer switch or internal contactor disconnects your critical loads panel from the electrical utility within 20 to 100 milliseconds. The battery inverter then black-starts in islanded mode, creating a local microgrid reference to continuously supply your backed-up circuits.
What breaker rating is required for a solar battery installation?
Breaker ratings depend on continuous output current and prospective fault levels, but typically require a dedicated 32 A to 63 A double-pole breaker for AC inverters, paired with a high-interrupting-capacity DC fuse or MCCB (rated at least 10 kA to 25 kA breaking capacity) on the DC battery lines to handle rapid discharge faults.
