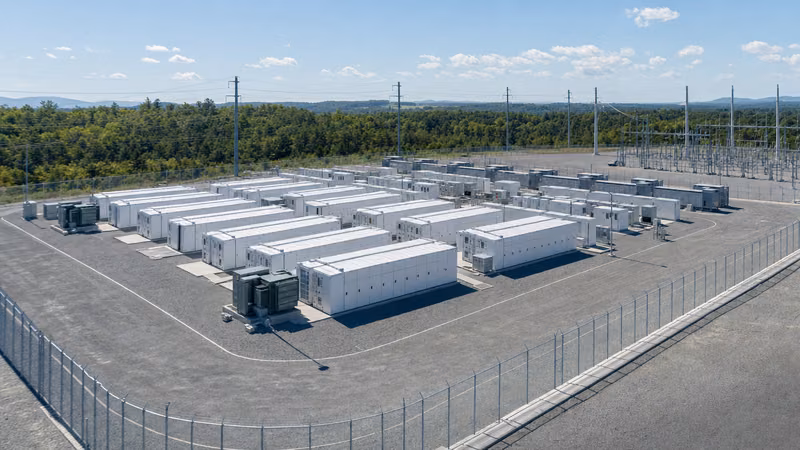

BESS Location Engineering Guide: Siting & Design Rules

Quick answer: An optimal BESS location is determined by grid interconnection feasibility, compliance with NFPA 855 and IEC 62933-5-2 safety setback distances, geotechnical ground-bearing capacity, acoustic zoning thresholds, and emergency vehicular access. Siting decisions dictate up to 30% of balance-of-plant (BOP) capital expenditure and direct long-term operational availability.

Siting battery energy storage systems requires cross-disciplinary engineering coordination. Developers and EPC contractors frequently prioritise land acquisition costs or lease availability over electrical and structural constraints. However, selecting an unsuitable plot introduces grid curtailment, expensive earthworks, extended permitting timelines, or unmanageable civil defence requirements. Whether planning standalone grid-support installations or co-located renewables, evaluating prospective battery storage projects requires a rigorous assessment of spatial, environmental, and thermal risks from pre-feasibility through to execution.

Grid Interconnection and Electrical Proximity at the BESS Location

Grid proximity directly governs project viability because high-voltage cabling and substation line extensions rapidly escalate balance-of-system capital costs. When evaluating a prospective BESS location, electrical engineers must examine the Point of Interconnection (POI), the available Short Circuit Ratio (SCR), hosting capacity, and existing thermal line constraints.

Connecting to a weak grid area with an SCR below 2.0 poses serious control stability issues for grid-following inverters. In such situations, installing synchronous condensers or specifying advanced grid-forming Power Conversion Systems (PCS) becomes necessary, adding substantial equipment footprint and civil costs. Siting the facility as close as possible to the primary substation minimizes medium-voltage (MV) cable runs, typically standardized at 33 kV or 34.5 kV. For utility-scale energy storage projects, long cable routes do not merely represent higher cable procurement costs; they introduce parasitic line impedance, leading to excessive voltage drop and increased system losses during high-rate charging and discharging cycles.

Key electrical factors to verify during pre-feasibility site assessment include:

• Available Substation Bay Space: Confirm whether the utility substation can physically accommodate an additional incoming circuit breaker bay and disconnect switches without expanding the fence line.
• Substation Transformer Capacity: Verify that the local power transformer ratings (MVA) and thermal headrooms permit bidirectional power transfer without triggering an upstream network upgrade.
• Fault Level Contribution: Calculate whether the combined short-circuit current from the BESS inverters exceeds the breaking capacity of existing network switchgear (e.g., 25 kA or 31.5 kA symmetrical).
• Phase Angle and Voltage Stability: Assess existing tap-changer responsiveness and dynamic reactive power (VAR) requirements at the designated busbar.

Safety Clearances and Setback Distances Under NFPA 855 and IEC 62933

Safety clearance rules dictate the spatial layout and minimum site boundary dimensions for energy storage installations. Standard NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and IEC 62933-5-2 establish strict physical spacing mandates to arrest cascading thermal runaway between unit enclosures and adjacent exposures.

Under NFPA 855 Section 4.4, individual containerised battery systems must maintain a minimum clear separation distance of 3.05 metres (10 feet) from one another, from lot lines, and from any public ways or occupied structures. This clearance can only be reduced if the equipment manufacturer has executed full-scale fire testing in accordance with UL 9540A. When successful UL 9540A test results demonstrate that surface temperatures and radiant heat fluxes remain below critical ignition thresholds on adjacent walls, the Authority Having Jurisdiction (AHJ) may permit unit-to-unit spacing down to 1.5 metres (5 feet), or even closer for specialised blast-rated enclosures.

The orientation of pressure-relief panels and deflagration venting systems designed under NFPA 68 also influences the site footprint. Deflagration panels must exhaust into designated clear zones, completely free from personnel access routes, cable trench runs, and neighbouring transformers. Where physical space is heavily constrained, constructing two-hour or three-hour fire-resistance-rated blast barrier walls between container rows offers an engineered alternative, although this complicates mobile crane access for maintenance and thermal dissipation around outdoor chillers.

Geotechnical, Seismic, and Environmental Criteria for Battery Storage Projects

Geotechnical suitability is critical because a standard 40-foot containerised lithium iron phosphate (LFP) system can weigh between 32 and 45 tonnes fully populated. Placing high-density mechanical loads on unstable ground leads to differential settlement, which compromises internal busbar connections, cooling fluid pipe integrity, and weatherproofing seals on doors.

Geotechnical boreholes must confirm an allowable soil-bearing capacity of at least 150 to 200 kPa for standard shallow strip footings or reinforced concrete slab foundations. If the site features loose granular soils, expansive clays, or a high water table, deep foundation designs incorporating driven precast piles or continuous flight auger (CFA) piles become necessary, driving up civil engineering costs. Review our technical analysis on battery enclosure engineering design to understand structural mass distribution and point loads.

Environmental hazards demand comprehensive site screening:

• Flood Risk and Elevation: Avoid sites within designated 100-year and 500-year flood zones. If unavoidable, the bottom of all electrical enclosures, inverter skids, and transformer pads must sit at least 0.6 metres (2 feet) above the Base Flood Elevation (BFE), requiring elevated structural piers or retaining dikes.
• Seismic Acceleration (PGA): In active seismic regions (IBC Seismic Design Categories D, E, or F), structural anchoring to the concrete foundation must withstand calculated horizontal and vertical g-forces without shearing hold-down bolts or warping enclosure framework.
• Corrosivity and Ambient Salinity: Coastal sites within 5 kilometres of marine environments expose cooling fins and enclosures to airborne chlorides. Enclosure coatings must conform to ISO 12944 classification C4 or very high marine corrosivity categories, and outdoor radiators require epoxy or polyurethane anti-corrosion coil treatments.

Acoustic Emissions and Boundary Noise Limits at the BESS Location

Noise limits set by local planning authorities frequently restrict battery enclosure placement near residential zones or commercial properties. A utility-scale BESS generates substantial continuous noise from three primary sources: liquid cooling chillers, internal air handling units (AHUs), and Power Conversion System (PCS) inverter cooling fans.

A typical 5 MWh energy storage enclosure produces an acoustic sound pressure level between 75 dBA and 85 dBA measured at a distance of 1 metre during full-capacity operational cycling. When multiple containers and central inverters operate simultaneously, cumulative sound power adds logarithmically. The sound pressure level at a distance $r$ from an acoustic source can be calculated using the hemispherical free-field propagation equation:

$$L_p = L_w - 20 \log_{10}(r) - 8$$

where $L_p$ is the sound pressure level at the receiver (dBA), $L_w$ is the total sound power level of the source (dBA), and $r$ is the radial distance in metres. If residential properties border the plot boundary where local bylaws cap nocturnal noise at 40 dBA to 45 dBA, substantial buffer distances or engineered acoustic mitigation are mandatory. Sound attenuation barriers, variable-speed low-noise EC fans, and directional orientation of HVAC exhausts away from sensitive receptors should be incorporated directly into the preliminary layout.

Civil Site Layout, Access Roads, and Emergency Logistics

Logistics planning determines whether heavy machinery and emergency response services can navigate the site during construction and operation. Standard heavy-haul transport vehicles delivering 40-foot containers require wide approach corridors, stable road sub-bases, and generous turning geometry.

Internal access roads must maintain a minimum clear width of 6.0 metres (20 feet) to accommodate two-way transit or wide-chassis prime movers. The road sub-base must be engineered to support gross vehicle weights (GVW) up to 60 tonnes and mobile crane axle loads up to 12 tonnes per axle during transformer and container rigging operations. Road turning radiuses should provide an inner radius of not less than 8.0 metres and an outer radius of at least 14.0 metres to prevent heavy trailers from cutting into soft verges or striking above-ground electrical conduits.

Emergency access under NFPA 1 and local fire codes requires dedicated all-weather access roads reaching within 15 metres of any container door or fire department connection (FDC). For large multi-megawatt facilities, dead-end access corridors longer than 45 metres must feature an approved hammerhead turnaround or a cul-de-sac with a minimum turning diameter of 28 metres, ensuring local fire tenders can position hoses and extract personnel safely during an incident.

Worked Siting Calculation: Footprint and Fire Separation Sizing

Calculating the true surface area requirement for a utility-scale installation involves more than summing container dimensions. Engineers must incorporate fire separations, maintenance walkways, inverter pads, step-up transformers, and peripheral fire roads.

Consider an engineering calculation for a 20 MW / 80 MWh utility-scale installation utilising standard 5 MWh / 40-foot high-density containers:

1. Primary Equipment Count: The project requires $80 \text{ MWh} / 5 \text{ MWh} = 16$ energy storage containers. Pairing four containers per 5 MW PCS skid requires 4 central inverter/transformer skids.
2. Enclosure Dimensions: Each standard 40-ft ISO container measures 12.19 m (length) by 2.44 m (width), giving a base area of $29.74 \text{ m}^2$. Sixteen containers total $475.84 \text{ m}^2$ of net unit footprint.
3. Separation Geometry: Assume the AHJ permits a reduced clearance of 2.50 m between containers side-by-side based on UL 9540A testing data, with an 8.0 m wide central service lane running between two parallel rows of 8 containers.
4. Row Dimensions: Eight containers placed side-by-side with 2.5 m spacing span: $(8 \times 2.44 \text{ m}) + (7 \times 2.50 \text{ m}) = 19.52 + 17.50 = 37.02 \text{ m}$ in width. The container length is 12.19 m.
5. Total Equipment Core Area: Two rows of 8 containers, separated by an 8.0 m central lane, require a core width of 37.02 m and a core depth of: $(12.19 \text{ m} \times 2) + 8.0 \text{ m} = 32.38 \text{ m}$. Core equipment area = $37.02 \text{ m} \times 32.38 \text{ m} = 1,198.71 \text{ m}^2$.
6. Auxiliary Equipment and Perimeter Roads: Adding four PCS skids (each 6.0 m $\times$ 2.5 m) on the periphery, plus a continuous 6.0 m wide perimeter fire-access road and a 3.0 m setback to the external security boundary fence, increases overall site dimensions to 55.02 m by 50.38 m.

The resulting gross land requirement is approximately $2,772 \text{ m}^2$ (0.28 hectares or ~0.69 acres). The net container equipment footprint accounts for only 17.2% of the total fenced facility area, proving that safety clearances, access logistics, and BOP integration dominate site sizing.

Site Selection Matrix for Battery Energy Storage Projects

Evaluating potential land parcels requires weighing competing technical, spatial, and regulatory criteria. The decision table below compares four typical location typologies encountered when developing battery storage projects.

To examine containerised mechanical configurations suitable for space-constrained industrial sites, see our detailed guide on how to specify a containerised battery energy storage system.

Step-by-Step Procedure for Siting and Permitting Assessment

Developing a defensible BESS location requires executing a structured pre-construction due-diligence procedure to avoid unexpected capital expenditures or project abandonment during municipal review.

1. Perform Desktop Grid Hosting Capacity Screening: Engage the local transmission or distribution system operator (TSO/DSO) to confirm POI queue positions, thermal headroom, fault level headroom, and reverse power flow permissions.
2. Conduct Land Title and Zoning Verification: Confirm that the plot allows industrial energy infrastructure or qualifies for a conditional use permit. Check for utility easements, overhead line clearances, and pipeline setbacks.
3. Execute Preliminary Geotechnical and Hydrological Studies: Drill soil test borings across the proposed footprint to identify bearing strength, bedrock depth, groundwater level, and soil corrosivity. Map 100-year and 500-year flood levels.
4. Develop Initial Equipment Layout and Clearances: Position container blocks, inverter skids, and transformer pads using baseline NFPA 855 separation distances (or supplier UL 9540A test reports). Ensure adequate radii for 40-foot flatbed haulage.
5. Perform Acoustic and Thermal Dispersion Modelling: Run environmental sound propagation models to guarantee boundary compliance with nocturnal noise regulations. Model worst-case deflagration plume and thermal heat-flux dispersal.
6. Submit Early Consultation Pack to the AHJ: Present the layout, hazard mitigation analysis (HMA), emergency operations plan, and fire suppression philosophy to local fire and planning authorities before finalising design.

Thermal Management and Environmental Exposure at the Siting Area

Microclimates directly affect the operational efficiency, auxiliary power consumption, and degradation curves of lithium-ion cells. Siting a BESS in an open, unshaded area exposed to extreme solar irradiance substantially increases chiller load, directly reducing overall round-trip efficiency (RTE).

Direct sunlight incident on container roofs and side walls elevates internal temperatures via solar heat gain. Liquid-cooled systems require efficient ambient heat rejection via external radiators. When ambient temperatures exceed 40°C, chiller efficiency drops, forcing parasitic auxiliary loads up to 5% to 8% of the total system throughput. Siting layouts should account for prevailing summer wind directions, orienting container radiator coils downwind to prevent hot exhaust air from recirculating into adjacent intake louvres. For deeper insight into thermal architectures, refer to our battery cooling systems engineering guide.
