Key takeaways
- Power conversion stages generate high-frequency pulse-width modulation harmonics that demand transformer K-factor ratings of K-4 to K-9 under IEEE C57.110.
- Fast-switching power converter electronics induce rapid voltage rise rates exceeding 1,000 V/microsecond, requiring reinforced inter-turn insulation and grounded electrostatic shields.
- Direct-current injection into transformer windings must remain below 0.5% of rated current to prevent half-cycle core saturation and catastrophic thermal runaway.
- Multi-winding split-secondary transformers (e.g., dual secondary windings with 30-degree phase shift) effectively cancel fifth and seventh harmonic currents at the primary bus.
- Specifying conversion transformers requires precise definition of ambient temperature profiles, total harmonic distortion spectra, and impedance matching to limit fault currents.
Quick answer: Power conversion is the electrical process of transforming voltage, current, and frequency between alternating current (AC) and direct current (DC) stages using semiconductor topologies and electromagnetic equipment. In grid-scale systems, reliable power conversion relies on matching power converter electronics with purpose-built isolation or step-up transformers capable of handling severe harmonic currents, high dv/dt stresses, and DC bias.
Industrial energy projects—ranging from utility-scale battery installations to solar generation and industrial motor drives—rely on efficient electrical transitions. When coupling solid-state power conversion systems to the medium-voltage grid, standard distribution transformers frequently fail due to uncalculated eddy current losses and dielectric breakdown. Understanding the electromagnetic interactions between solid-state switching topologies and magnetic cores is essential for plant reliability, operational longevity, and regulatory compliance under international connection codes.

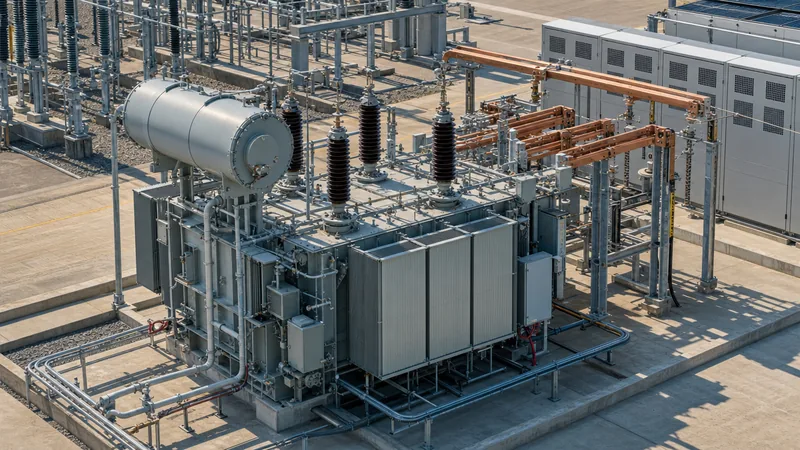

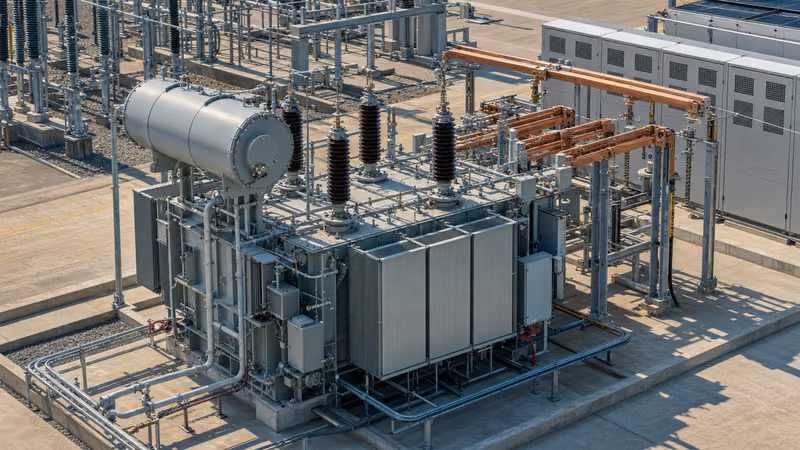

What Is Power Conversion in Modern Grid Applications?
Power conversion defines the conditioning, inversion, rectification, or transformation of electrical power between source and consumer. In renewable generation and storage, this architecture bridges variable DC or non-synchronous AC inputs with fixed-frequency utility networks governed by strict grid codes. For a broader overview of inverter-to-grid topologies, review our Power Conversion System (PCS) design guide.
The process centres on four primary topologies:
- AC-to-DC (Rectification): Converts incoming alternating current into direct current for electrochemical storage or DC distribution buses.
- DC-to-AC (Inversion): Inverts stored or generated DC energy into balanced, sinusoidal 50 Hz or 60 Hz AC power using solid-state switching arrays.
- DC-to-DC Conversion: Steps DC voltage levels up or down to balance battery rack strings or fuel cell stacks before central inversion.
- AC-to-AC Transformation: Adjusts voltage magnitudes via magnetic induction through power transformers or alters frequency via back-to-back converter stages.
Modern plants deploy high-speed power converter electronics utilizing Insulated Gate Bipolar Transistors (IGBTs) or Silicon Carbide (SiC) Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs). While these switching devices achieve conversion efficiencies above 98.5%, their pulse-width modulation (PWM) switching frequencies (typically 1.5 kHz to 10 kHz) introduce complex electrical phenomena that directly stress upstream magnetic components.
How Power Converter Electronics Impact Transformer Selection
Power converter electronics alter the voltage and current waveforms applied to transformer windings, causing elevated thermal, magnetic, and dielectric strains. Conventional distribution units designed for purely sinusoidal 50/60 Hz utility power suffer severe derating when subjected to non-sinusoidal inverter output currents.
Three distinct electrical stresses dictate conversion transformer specifications:
- Harmonic-Induced Eddy Losses: High-frequency harmonic currents circulate in winding conductors and structural steel clamps. Winding eddy current losses increase roughly with the square of the harmonic order multiplied by the square of the current amplitude (P_ec ∝ ∑ I_h^2 × h^2), as detailed in IEEE C57.110 clause 5.2. Standard units overheat rapidly under these conditions.
- Dielectric Stress from dv/dt Rise Times: Rapid switching transitions produce steep wave fronts with dv/dt values frequently exceeding 1,000 V/μs. These traveling voltage waves distribute unevenly across the initial turns of the low-voltage winding, causing premature dielectric breakdown of inter-turn insulation unless reinforced with high-temperature Nomex or Class H materials.
- Direct Current (DC) Magnetisation: Imperfect semiconductor firing angles or sensor drift can inject slight DC components into the transformer secondary. Even a minor DC current—as low as 0.2% to 0.5% of rated current—drives the magnetic core into asymmetric half-cycle saturation, multiplying excitation currents, increasing audible noise, and raising core temperatures.
Power Conversion: Sizing and Specifying Step-Up Transformers
Transformer sizing for conversion applications must account for the converter continuous output power rating, the maximum power factor range, and harmonic thermal loading. Calculating nameplate apparent power (kVA) based solely on inverter active power (kW) leads to severe thermal overload during sustained reactive power export.
To evaluate these parameters accurately, consider a utility-scale battery inverter operating under the following engineering parameters:
- Rated inverter active power (P): 2,500 kW
- Rated output voltage (V_LV): 690 V (three-phase, phase-to-phase)
- Operating power factor range: 0.85 lagging to 0.85 leading
- Converter switching frequency: 2.5 kHz
- Calculated harmonic spectrum yields a K-factor: 4.5
- Ambient design temperature: 45°C maximum
First, calculate the required continuous apparent power capacity (S) at full reactive power dispatch:
S = P / Power Factor = 2,500 kW / 0.85 = 2,941.18 kVA
Next, determine the rated fundamental low-voltage phase current (I_1):
I_1 = S / (√3 × V_LV) = 2,941,180 VA / (1.732 × 690 V) = 2,461.3 A
Under IEEE C57.110 Table 1, harmonic currents generate winding eddy-current loss factor (F_HL) increases. For a K-factor of 4.5, transformer internal winding losses rise by approximately 12% to 18% relative to sinusoidal conditions. Applying an environmental temperature de-rating factor of 0.95 (for 45°C ambient) alongside harmonic safety margins, the minimum thermal transformer rating is:
S_thermal = S / 0.95 = 2,941.18 kVA / 0.95 = 3,095.98 kVA
In standard manufacturing tiers, engineers select a 3,150 kVA rating with an electrostatic shield and an impedance voltage (%Z) between 6.5% and 8.0%. This impedance level successfully balances short-circuit current limitations against inverter control stability limits. Learn more about grid compliance and renewable interfaces in our guide on renewable grid integration engineering.
Topological Comparison: Transformer Configurations in Power Conversion
System designers must select between dedicated string step-up units, multi-winding central configurations, and integrated prefabricated substations. The table below compares the four primary transformer architectures utilized across modern conversion systems.
| Configuration Architecture | Typical Rating Range | Harmonic Cancellation Capability | Low-Voltage Input Windings | Footprint & Installation Cost | Common Application |
|---|---|---|---|---|---|
| Standard Two-Winding Step-Up | 500 kVA - 2,500 kVA | None (Requires external line filters) | 1 (LV) | Low unit cost; high cabling cost at scale | Commercial and Industrial (C&I) Storage |
| Split-Secondary (Three-Winding) | 2,000 kVA - 5,000 kVA | High (30° phase displacement cancels 5th & 7th) | 2 (Uncoupled or semi-coupled LV) | Medium; optimized footprint per MVA | Utility-scale solar and BESS |
| Multi-Pulse Hexa-Winding | 3,000 kVA - 8,000 kVA | Superior (Cancels up to 23rd harmonic) | 4 (Multiple phase shifts: 15°, 30°) | High initial cost; lowest system THD | Heavy industrial drives, large electrolysers |
| Integrated Skid Substation | 1,000 kVA - 4,000 kVA | Moderate to High (Depends on internal core) | 1 or 2 (Configured with internal RMU) | Pre-commissioned; lowest civil works cost | Fast-track utility solar-plus-storage |
For installations utilizing centralized conversion, specifying split-secondary windings (e.g., Dyn11-yd11 configurations) achieves physical flux cancellation inside the core. This approach reduces total harmonic distortion (THD) delivered to the high-voltage collector bus without requiring heavy active power filters. To evaluate skid architectures, examine our prefabricated transformer substations.
Factory Acceptance and Quality Verification for Inverter Duty Transformers
Factory Acceptance Testing (FAT) for conversion transformers requires rigorous diagnostic procedures beyond standard distribution acceptance tests. Routine tests verifying voltage ratio, winding resistance, and insulation resistance per IEC 60076-1 do not fully validate performance under non-sinusoidal excitation.
Factory quality inspection teams must enforce the following verification sequence:
- Extended No-Load Loss and Excitation Test: Measure core losses under elevated fundamental voltages (105% and 110% rated voltage per IEC 60076-1 clause 11.5) to confirm that the magnetic core operates safely below the flux saturation threshold (typically below 1.7 Tesla for grain-oriented silicon steel).
- Harmonic Loss Evaluation: Conduct load loss measurements at fundamental frequency, then mathematically extrapolate stray and eddy current losses across the project harmonic spectrum according to IEEE C57.110 calculations.
- Induced AC Voltage and Partial Discharge (PD) Testing: Apply induced overvoltage testing with simultaneous partial discharge monitoring. Acceptance criteria must mandate PD levels below 10 pC at 1.5 times rated phase-to-ground voltage to confirm inter-turn insulation resilience against high dv/dt surges.
- Frequency Response Analysis (FRA): Perform sweep frequency response analysis per IEC 60076-18 to establish a structural baseline. This verifies that heavy high-current busbars have not mechanically shifted during coil pressing and clamping. For testing best practices, refer to our guide on power transformer testing procedures.
- Insulation System Verification: Measure capacitance and dissipation factor (Tan Delta) across windings and between the grounded copper electrostatic shield and core frame to confirm shielding integrity.
Thermal Management and Environmental Containment
Thermal management dictates the service life of conversion transformers. Because winding eddy losses concentrate non-uniformly in the top sections of the coils, hot-spot temperatures rise substantially higher than average winding temperature rises calculated via standard resistance changes. For large-scale utility layouts, detailed siting rules are covered in our utility-scale energy storage guide.
Specifiers must select between fluid-filled and dry-type topologies based on site parameters:
Liquid-Immersed Transformers: For outdoor utility-scale installations, ester fluids (natural or synthetic per IEC 62770) or high-grade mineral oils (IEC 60296) are standard. Synthetic esters feature fire points above 300°C (K-class fluids), making them ideal when siting oil-immersed transformers in close proximity to battery enclosures. Advanced cooling configurations (ONAN/ONAF) handle solar and storage duty cycles where ambient summer peaks coincide with peak power export.
Cast Resin Dry-Type Transformers: For indoor substations, offshore platforms, or mining infrastructure where liquid containment presents unacceptable fire risks, cast resin units insulated to Class F (155°C) or Class H (180°C) thermal ratings are required. Coils cast under solid vacuum prevent moisture penetration and resist micro-cracking caused by cyclic thermal expansion during rapid charge-to-discharge load reversals.
Next steps: specifying and sourcing
Procuring reliable transformers for high-demand power conversion systems requires precise technical documentation during the initial RFQ stage. Prepare your single-line diagrams, inverter operational profiles, ambient temperature ranges, and harmonic spectrum tables up to the 50th order. Specifying parameters such as electrostatic shielding, minimum short-circuit impedance, and K-factor derating ensures proper factory manufacturing. Explore our oil-immersed transformers or custom power transformers, and connect directly with our application engineering team via our contact page or submit technical schedules through the quotation inquiry portal for prompt engineering review.
Frequently asked questions
What is the primary role of a transformer in a power conversion system?
The primary role is matching converter voltage to the utility grid while providing galvanic isolation. It steps up low-voltage inverter outputs (such as 690 V or 800 V) to medium-voltage collector levels (such as 11 kV, 22 kV, or 33 kV) and blocks dangerous DC components from entering the wider grid.
Why do power converter electronics require K-factor rated transformers?
Power converter electronics generate non-sinusoidal currents rich in harmonics that dramatically increase winding eddy currents and stray losses. A K-factor rated transformer incorporates transposed conductors, increased magnetic core cross-sections, and enhanced cooling ducts designed specifically to dissipate these high-frequency thermal stresses safely.
How does dv/dt stress damage conversion transformers?
Rapid voltage rise rates (dv/dt) from high-speed semiconductor switching generate steep traveling voltage waves that distribute unevenly across the winding turns. This concentrates severe electrical stress on the first few entrance turns of the coil, degrading insulation dielectric strength and leading to turn-to-turn flashovers over time.
What is the function of an electrostatic shield in an inverter transformer?
An electrostatic shield is a grounded, non-magnetic conductive barrier placed between the primary and secondary windings. It shunts common-mode capacitive high-frequency electrical noise and high dv/dt transients straight to earth, preventing switching noise from coupling into the medium-voltage grid.
What level of DC current injection can a conversion transformer tolerate?
Standard power conversion transformers can generally tolerate no more than 0.2% to 0.5% of their rated fundamental current as pure DC bias. Exceeding this threshold forces the core steel into half-cycle magnetic saturation, causing severe core heating, vibration, excessive magnetising current, and potential protective tripping.
