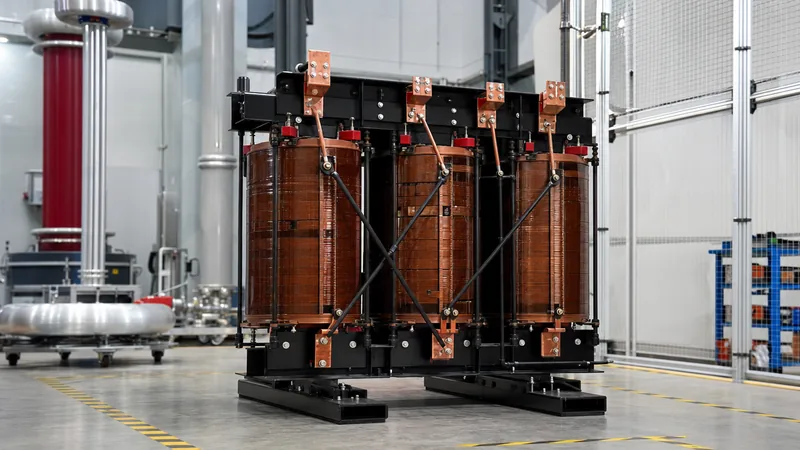

Single to 3 Phase Transformer: Engineering & Sizing Guide

Quick answer: A passive single to 3 phase transformer cannot generate three-phase power directly from a single-phase line; it alters voltage magnitude, not electrical phase angles. To produce balanced 120-degree three-phase power from a single-phase supply, industrial facilities combine an active phase conversion device (digital solid-state or rotary) with a matched dry-type or oil-immersed step-up transformer.

Industrial plant managers and EPC contractors frequently encounter remote installations, rural grid connections, or municipal commercial properties where the local utility provides only a single-phase or split-phase low-voltage drop. Modern industrial machinery—such as computer numerical control (CNC) machining centres, large chillers, hydraulic presses, and multi-motor processing lines—strictly requires symmetrical three-phase AC power. Integrating a single-phase transformer directly into these loads without addressing phase displacement causes severe thermal trip-outs, erratic control electronics, or complete motor lock-up. Successfully powering three-phase plant equipment from a single-phase supply demands an engineered topology that couples precise phase generation with appropriate voltage transformation.

Can a Transformer Convert Single-Phase to Three-Phase Power Directly?

A conventional, passive electromagnetic transformer cannot convert single-phase alternating current into three-phase alternating current because it cannot generate phase displacement. Faraday’s law of induction governs transformer operation, meaning the secondary winding output maintains the identical temporal frequency and phase angle as the magnetic flux induced by the primary winding. In a standard three-phase AC distribution system, three distinct sinusoidal voltage waveforms are separated by precisely 120 electrical degrees ($2\pi / 3$ radians). A single-phase AC source provides only one alternating sinusoidal vector. Introducing multiple secondary windings onto a single magnetic core merely yields in-phase or 180-degree out-of-phase voltages, never the required 120-degree phase displacement.

Misunderstandings frequently arise around specialised magnetic connections such as the Scott-T or open-delta configurations. As outlined in IEEE C57.12.00 Table 5, a Scott-T connection can transform a two-phase orthogonal (90-degree) supply into a three-phase (120-degree) system, or vice versa; however, it still mandates two distinct phase vectors at its input terminals. An open-delta bank requires at least two ungrounded phases of a three-phase utility feed to operate. Consequently, when an electrical engineer specifies a single to 3 phase transformer, the installation physically incorporates a phase-generating mechanism working in tandem with a magnetic transformer. Engineers who need to alter both phase number and system voltage must understand how transformers interact with upstream converters in a complete power conversion architecture, as detailed in our guide to step up step down transformer dynamics.

System Architectures for Single to 3 Phase Transformer Topologies

To supply three-phase machinery from a single-phase utility connection, engineers select from three primary engineering topologies depending on power factor, starting torque, and harmonic distortion limits.

Each architecture integrates a single to 3 phase transformer system differently:

• Rotary Phase Converter with Downstream Step-Up Transformer: This electromechanical architecture uses a single-phase line to drive a specially wound, idler induction motor. The idler motor acts as a rotating transformer/generator, producing the third electrical phase via the back-electromotive force (BEMF) across its auxiliary windings. Because rotary converters typically output voltages equal to their input (e.g., 230V single-phase in yields 230V three-phase out), a downstream step-up transformer is installed to elevate the supply to 400V or 480V for standard industrial equipment. While mechanically robust and capable of high locked-rotor motor starting currents, voltage balance fluctuates between 2% and 5% as loading changes.
• Digital Solid-State Phase Converter with Dry-Type Transformer: This configuration employs an insulated-gate bipolar transistor (IGBT) power electronics stage. The incoming single-phase AC is rectified to a smooth direct-current (DC) bus and then synthesised by an inverter stage into a software-regulated, pristine three-phase sine wave with exact 120-degree displacement. A dry-type isolation or step-up transformer is placed either at the input or output stage to match grid voltage and provide galvanic isolation. This system delivers voltage balance within 1% across 0% to 100% load profiles, complying strictly with IEEE 519 harmonic standards.
• Static Capacitor-Autotransformer Converters: The simplest and least resilient method uses run and start capacitors to shift current through an auxiliary winding by roughly 90 degrees. These systems are tuned to a singular, fixed motor load and fail to maintain balance if the motor throttles or idles. They are unsuitable for multi-load industrial automation lines.

Engineering a 220v Single Phase to 3 Phase Transformer System

A 220v single phase to 3 phase transformer system is the most common requirement for light industrial facilities seeking to run 380V, 400V, or 480V equipment from a standard 220V residential or commercial feeder. In international and North American distribution grids, a 220V or 240V supply is delivered as a two-wire single-phase or three-wire split-phase service. Standard industrial machinery, however, expects 400V (IEC) or 480V (ANSI) line-to-line three-phase power. Sizing and deploying a 220v single phase to 3 phase transformer requires specific attention to winding configuration, neutral earthing, and upstream feeder currents.

When stepping up from 220V single-phase to higher three-phase voltages, the designer can place the transformer on the single-phase input side or the three-phase output side:

• Output-Side Transformation (220V 1-Phase → 220V 3-Phase Converter → 480V Delta-Wye Transformer): The phase converter operates at 220V, producing a low-voltage three-phase output. A delta-wye isolation transformer subsequently steps the voltage from 220V up to 480Y/277V or 400Y/230V. This arrangement allows the transformer secondary to provide a solid, grounded neutral for control circuits and 277V/230V auxiliary loads, avoiding floating neutral hazards. For detailed winding choices in these setups, review our technical guide on 480 volt transformer configurations.
• Input-Side Transformation (220V 1-Phase → 480V 1-Phase Transformer → 480V 3-Phase Digital Converter): A single-phase step-up transformer elevates the 220V utility feed directly to 480V single-phase, which then feeds a high-voltage digital converter. This approach reduces the current rating needed for the downstream converter, minimising conductor cross-sectional area and thermal losses in the converter switches.

Sizing Calculation: Single-Phase Input Current vs Three-Phase Output

A single to three-phase conversion calculation must account for the conservation of energy: single-phase input current is substantially higher than the three-phase output current due to the absence of the $\sqrt{3}$ phase factor on the single-phase side. Neglecting this differential is the single most common cause of nuisance breaker tripping and undersized utility drops in industrial conversion projects.

Consider an engineering plant installing a 22 kW three-phase hydraulic unit operating at 400V, 50 Hz, powered by a 230V single-phase utility service.

1. Determine the Three-Phase Apparent Power Requirement ($S_3$):
   Assume the motor has a full-load efficiency ($\eta_m$) of 91% (0.91) and a full-load power factor ($PF$) of 0.86.
   $$\text{Active Power } P_{in} = \frac{P_{shaft}}{\eta_m} = \frac{22\text{ kW}}{0.91} = 24.18\text{ kW}$$
   $$\text{Apparent Power } S_3 = \frac{P_{in}}{PF} = \frac{24.18\text{ kW}}{0.86} = 28.12\text{ kVA}$$
2. Calculate the Three-Phase Full-Load Current ($I_3$):
   $$I_3 = \frac{S_3 \times 1000}{\sqrt{3} \times V_{LL}} = \frac{28,120}{\sqrt{3} \times 400} = 40.59\text{ A}$$
3. Calculate Single-Phase Apparent Power Demand ($S_1$):
   Account for the combined electrical efficiency of the phase-converting unit and transformer system ($\eta_{sys}$), typically 93% (0.93):
   $$S_1 = \frac{S_3}{\eta_{sys}} = \frac{28.12\text{ kVA}}{0.93} = 30.24\text{ kVA}$$
4. Calculate Single-Phase Input Current ($I_1$):
   $$I_1 = \frac{S_1 \times 1000}{V_{1-phase}} = \frac{30,240}{230} = 131.48\text{ A}$$
5. Apply Safety Margins and Overcurrent Protection (NEC Article 455.6 / IEC 60364):
   The continuous conductor rating must not be less than 125% of the full-load input current:
   $$I_{cable} = 131.48\text{ A} \times 1.25 = 164.35\text{ A}$$

The single-phase feeder conductors and upstream circuit breaker must be sized for at least 175A to handle the 131.5A continuous run current and the severe inrush drawn during transformer core magnetisation and converter capacitor charging. Where motors demand high starting torque, refer to the sizing methods outlined in our analysis of 208 step up to 240 delta installations.

Comparison Table: Phase Conversion and Transformer Technologies

Selecting the optimal equipment combination requires evaluating voltage balance, harmonic injection, and motor starting performance across industrial metrics.

Per IEC 60034-26, a voltage unbalance factor (VUF) exceeding 1% requires derating of standard three-phase electric motors. A 3% voltage unbalance creates up to an 18% to 25% temperature rise in the motor windings due to counter-rotating negative sequence magnetic fields. For multi-load facilities, a digital converter paired with a dedicated dry-type transformer is the only approach that maintains precise voltage balance without risking premature motor failure.

Specification and Commissioning Checklist for Industrial Installations

Engineers specifying a single to 3 phase transformer installation must establish clear electromagnetic and thermal boundaries during the request for quotation (RFQ) process. Use this factory-floor checklist to avoid common field failures:

1. Core Impedance (%Z) and Inrush Matching: Specify a transformer impedance (%Z) between 4.0% and 5.5% per IEC 60076-1. Lower impedance produces excessive inrush that trips single-phase upstream thermal-magnetic breakers, while higher impedance causes unacceptable secondary voltage sag during high-torque motor starting.
2. K-Factor and Harmonic Withstand: If the phase conversion uses active rectifier electronics, specify a dry-type transformer with a minimum rating of K-4 or K-13 per ANSI/IEEE C57.110. This ensures the magnetic core and copper windings handle non-sinusoidal eddy-current losses without thermal degradation.
3. Winding Temperature Rise: Demand Class 220 insulation with a conservative 115°C or 80°C temperature rise over a 40°C ambient (IEC 60076-11). The extra thermal overhead accommodates the continuous harmonic currents generated by solid-state conversion.
4. Galvanic Isolation and Secondary Grounding: Ensure the transformer uses a Delta primary and Wye secondary (Dyn11 vector group). This creates a separately derived system under NFPA 70 Article 250, allowing the installation of an independent grounding electrode conductor to neutral (X0), eliminating stray common-mode noise.
5. Converter Sequencing Controls: Verify that the control philosophy interlocks the transformer energisation sequence. To prevent core saturation and DC magnetisation, the phase converter must fully establish its stable AC output before the downstream step-up transformer primary is switched into the circuit.

Next steps: specifying and sourcing

Successfully executing a single to three-phase conversion requires accurate load profiles, including total connected kVA, largest single motor starting current, and ambient site conditions. Our engineering team designs and manufactures standard and custom dry-type transformers and oil-immersed distribution transformers engineered to integrate smoothly with rotary and solid-state phase converters across 5 kVA to 31,500 kVA capacities. All equipment is factory-tested to IEC 60076 and IEEE C57 standards to verify low losses, exact impedance, and harmonic resilience. Submit your single-line diagrams, voltage requirements, and continuous current parameters through our transformer quotation page or speak with an application engineer via our contact page for tailored project guidance.
