Key takeaways
- Stepping up 208V to 240V delta resolves undervoltage issues on imported or legacy 240V three-phase machinery connected to standard 208Y/120V commercial grids.
- Engineers can choose between an isolation transformer (providing galvanic isolation and independent grounding) or a buck-boost autotransformer configuration that only transforms 13.3% of the total load kVA.
- A 240V delta secondary requires careful grounding design: options include an ungrounded delta with ground fault monitoring (NEC 250.21) or a corner-grounded delta (NEC 250.26).
- Operating a standard 240V to 208V step-down transformer in reverse feed requires derating or factory verification to handle core flux saturation and elevated magnetising inrush current.
- Transformer impedance typically ranges between 3.0% and 5.5% for dry-type LV units, directly affecting voltage regulation and downstream prospective short-circuit currents.

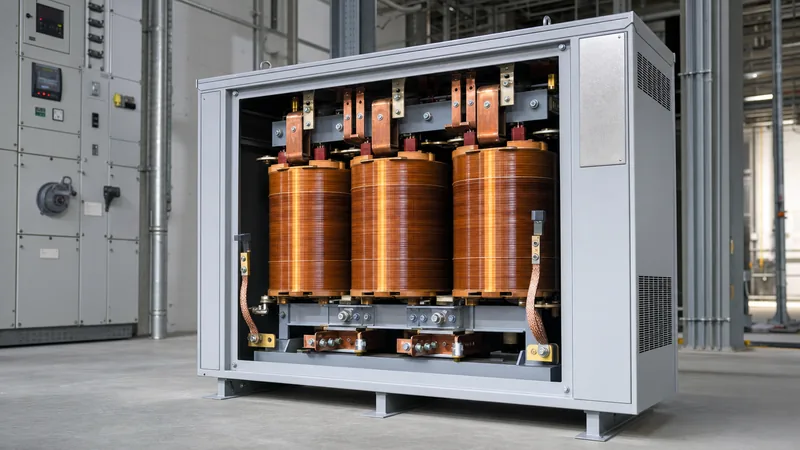

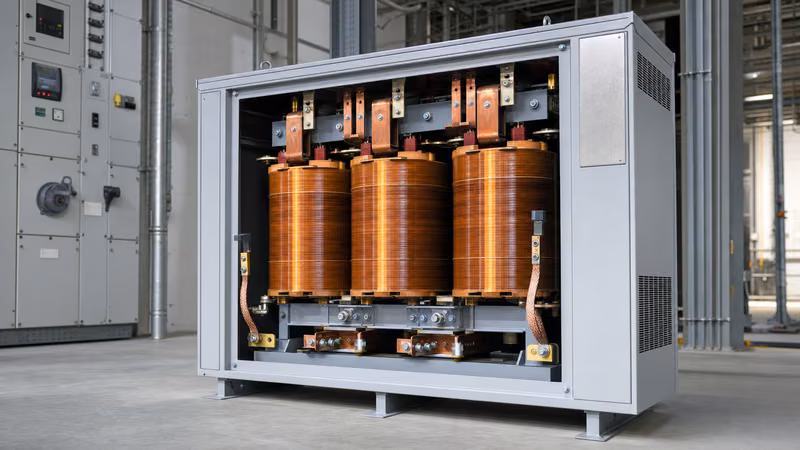

Quick answer: A 208 step up to 240 delta transformer converts a standard commercial three-phase 208V supply (typically 208Y/120V) to a 240V three-wire delta output to power heavy industrial equipment, CNC machinery, chillers, and imported motors. Sizing requires accounting for full load currents, system grounding topology, and whether to deploy an isolation transformer or a cost-effective buck-boost autotransformer arrangement.
In North American commercial facilities, the prevailing three-phase low-voltage service is 208Y/120V. However, many industrial machine tools, resistive heating loads, and older process equipment are rated for 240V delta. Running 240V-rated motors continuously at 208V results in a 13.3% voltage deficit. According to NEMA MG 1 guidelines, operating an induction motor at more than 10% below nominal voltage increases winding thermal stress, elevates full load current by approximately 15%, and degrades starting torque by nearly 25%. Selecting the right step-up transformer bridges this interface reliably while maintaining regulatory compliance.
Why Convert 208V to 240V Delta: System Topologies and Machine Demands
Converting 208V to 240V delta is necessary whenever three-phase equipment rated strictly for 240V delta is installed in a building fed by a 208Y/120V network. While modern dual-rated equipment (marked 208-240V) operates across this span, dedicated 240V machinery suffers operational failure, nuisance tripping, and excessive heat build-up when connected directly to 208V.
A dedicated 208 240 transformer re-establishes the nominal design voltage of 240V line-to-line. The 240V delta configuration provides three phase conductors (A, B, C) separated by 240V between each phase. Unlike a wye system, a pure three-phase delta system does not supply a line-to-neutral voltage unless a high-leg arrangement is established. When selecting a step up transformer 208 to 240, engineers must determine whether downstream control circuits require a separate 120V neutral supply or if an internal control power transformer (CPT) within the machine handles single-phase control logic.
Isolation Transformer vs Buck-Boost Autotransformer Configurations
Specifying an engineering solution for a 208 step up to 240 delta application involves evaluating two distinct electrical topologies: standard two-winding isolation transformers and buck-boost autotransformers.
A two-winding 208 240 volt transformer provides complete galvanic isolation between the 208V primary and 240V secondary. The primary winding is commonly wound as delta or wye, while the secondary is configured as delta. Galvanic isolation prevents common-mode electrical noise transfer, mitigates harmonic circulation, and creates a separately derived system under NFPA 70 (NEC) Article 250.30. This design allows custom secondary grounding schemes and is ideal for sensitive equipment or installations requiring clean isolation.
Conversely, a buck-boost autotransformer does not isolate the primary from the secondary. Instead, four low-voltage windings are interconnected to inject 32V in series with each 208V phase conductor (208V + 32V = 240V). Because the autotransformer only handles the boost voltage (32V out of 240V, or 13.3% of the total power), the physical transformer frame size is substantially smaller. For instance, a 10 kVA physical autotransformer bank can serve a 75 kVA load. However, autotransformers cannot establish a new neutral, cannot alter grounding schemes, and pass utility-side transients straight through to the load.
Electrical Sizing and Current Calculations for 208V to 240V Step-Up
Accurate electrical sizing of a 208 step up to 240 delta transformer requires calculating primary and secondary full load amperes (FLA) to select correct conductor cross-sections, switchgear ratings, and overcurrent protective devices (OCPD).
Consider a practical engineering example where a manufacturing cell contains three CNC machines with a combined peak operating load of 60 kVA at 240V, three-phase, 60 Hz. The standard nominal rating selected from manufacturer ranges is a 75 kVA dry-type unit to provide a safety margin for continuous duty per NEC Article 215.
To calculate the primary full load current at 208V:
Iprimary = S / (Vprimary × √3) = 75,000 VA / (208 V × 1.732) = 208.2 A
To calculate the secondary full load current at 240V delta:
Isecondary = S / (Vsecondary × √3) = 75,000 VA / (240 V × 1.732) = 180.4 A
Because the primary side operates at a lower voltage, the primary input conductors and upstream protection must be sized to handle significantly higher currents than the secondary output. Under NEC Article 450.3(B), primary-only overcurrent protection can be sized up to 125% of rated primary current (or the next standard breaker size up), yielding a minimum breaker rating of 208.2 A × 1.25 = 260.25 A, which resolves to a 300 A circuit breaker. Conductor ampacity must comply with local installation guidelines such as those detailed in our guide on industrial power system installation.
Technical Comparison: 208V Step Up to 240V Delta Ratings and Specs
The following engineering decision matrix compares typical performance metrics, full load currents, and physical parameters across standard low-voltage dry-type ratings manufactured to IEEE C57.12.01 and UL 1561 specifications.
| Nominal Rating (kVA) | Primary Current at 208V (A) | Secondary Current at 240V (A) | Impedance (%Z at 75°C) | Average No-Load Loss (W) | Full Load Loss (W) | Recommended Minimum Primary Breaker (A) |
|---|---|---|---|---|---|---|
| 15 | 41.6 | 36.1 | 3.0 - 4.5 | 85 | 540 | 60 |
| 30 | 83.3 | 72.2 | 3.0 - 5.0 | 145 | 1,050 | 110 |
| 45 | 124.9 | 108.3 | 3.5 - 5.0 | 210 | 1,480 | 175 |
| 75 | 208.2 | 180.4 | 4.0 - 5.5 | 310 | 2,250 | 300 |
| 112.5 | 312.3 | 270.6 | 4.5 - 6.0 | 420 | 3,100 | 400 |
| 150 | 416.4 | 360.8 | 4.5 - 6.5 | 540 | 4,050 | 600 |
All units represented above are ventilated Class 220 insulation systems with a 150°C or optional 115°C winding temperature rise, operating at 60 Hz or 50 Hz. Low-loss silicon steel cores ensure full compliance with US DOE 2016 efficiency standards (10 CFR Part 431) and Canadian NRCAN regulations.
Grounding and Protection of 240V Delta Secondary Systems
Grounding a 240V delta secondary requires adherence to strict electrical codes because a balanced three-phase delta system possesses no natural star point or neutral conductor.
When deploying a 208 step up to 240 delta isolation unit, the engineering team must select one of two primary grounding methods permitted under NFPA 70 / NEC Article 250:
- Ungrounded Delta System: In an ungrounded secondary network, no phase conductor is intentionally connected to earth. Under NEC 250.21, ungrounded delta systems operating at 240V must incorporate ground detection sensing equipment (such as visual detection lamps or an electronic insulation monitor). The primary advantage is operational continuity: an accidental single phase-to-ground fault will not trip the feeder breaker, allowing industrial processes to continue while triggering an alarm.
- Corner-Grounded Delta System: Under NEC 250.26, one corner of the delta secondary winding (typically phase B) is deliberately bonded to the equipment grounding conductor and the grounding electrode system. This stabilises the system phase-to-earth voltages (phases A and C measure 240V to ground, while phase B measures 0V). The grounded phase conductor must be clearly identified with white or grey marking, must not have an overcurrent trip unit placed in series unless it disconnects all phases simultaneously, and must be treated with appropriate safety measures during maintenance.
Reverse Feeding: Can You Use a 240v to 208v Transformer in Reverse?
A standard 240v to 208v transformer can theoretically be back-fed in reverse to act as a step-up unit, but this approach introduces significant engineering and operational risks if not vetted by the factory.
Standard step-down units feature primary windings designed to handle core magnetisation. When back-feeding a 240v to 208v step down transformer by energising the 208V secondary windings, the initial magnetising inrush current can spike to 15 to 20 times the rated full load current—substantially higher than when energized from the high-voltage side. This severe inrush frequently causes nuisance tripping of upstream circuit breakers unless an instantaneous trip unit with high magnetic pickup is installed.
Furthermore, standard distribution units have built-in winding turns-ratio compensation (typically 2.5% to 5%) to offset internal impedance voltage drops under load. When energized in reverse, this compensation subtracts from rather than adds to the output voltage, resulting in a secondary voltage lower than 240V under full load. If back-feeding a 240 to 208 transformer 3 phase unit, always verify core saturation limits, calculate expected secondary voltage under load, and consult standard procedures outlined in factory and field testing guides.
Procurement and Factory Acceptance Testing Checklist
Before issuing a purchase order for a custom or standard 208 step up to 240 delta transformer, procurement engineers should verify that the technical schedule complies with IEEE C57.12.91 or IEC 60076-1 clause 5.4.
Ensure your Request for Quotation (RFQ) specifies the following design points:
- Winding Material: Electrolytic copper or high-conductivity aluminium windings with vacuum pressure impregnation (VPI) or cast resin encapsulation for harsh environments.
- Tap Configuration: Full-capacity taps on the primary winding (typically two 2.5% taps above and two 2.5% taps below nominal, designated 2 × +2.5% / 2 × -2.5% FCAN/FCBN) to compensate for site-specific grid voltage fluctuations.
- Thermal Rise: 115°C or 80°C rise over 40°C ambient (Class 220 insulation), which provides prolonged operational life and greater overload resilience compared to standard 150°C rise units.
- Enclosure Rating: NEMA 1 or NEMA 2 drip-proof indoor enclosures, or NEMA 3R / IP54 weather-resistant enclosures for outdoor or washdown installations.
- Factory Routine Tests: Winding resistance, voltage ratio, phase relationship, no-load loss and excitation current, load loss and impedance voltage, and applied/induced potential dielectric tests.
Next steps: specifying and sourcing
To select the optimum transformer for your facility, compile your site parameters including available input voltage tolerance, peak continuous load in kVA, preferred winding material, enclosure NEMA rating, and downstream grounding preferences. Our engineering team designs and manufactures high-efficiency dry-type transformers and liquid-cooled oil-immersed transformers fully compliant with IEEE, ANSI, and IEC standards. Submit your single-line diagram and load schedule through our request a quote page or speak with our application specialists via the contact page to receive a detailed technical proposal and factory quotation.
Frequently asked questions
Can you step up 208V to 240V using an autotransformer?
Yes, a buck-boost autotransformer can step up 208V to 240V delta efficiently by injecting 32V in series with each phase. This design requires a significantly smaller physical core than an isolation transformer, but it provides no electrical isolation or independent grounding point.
What happens if you run 240V equipment directly on 208V?
Operating dedicated 240V equipment at 208V causes a 13.3% voltage drop, which increases motor operating temperature, raises line current by roughly 15%, and cuts starting torque by nearly 25%. This chronic undervoltage leads to motor stalling, control relay chattering, and premature equipment failure.
How is a 240V delta secondary grounded?
A 240V delta secondary is typically installed as an ungrounded system with continuous ground fault detection indicators (NEC 250.21) or as a corner-grounded delta system where one phase conductor is deliberately grounded (NEC 250.26) to stabilise phase voltages to earth.
Can I reverse feed a 240V to 208V step-down transformer?
You can back-feed a 240V to 208V transformer, but inrush current will be substantially higher than in forward feed, often tripping upstream circuit breakers. Additionally, factory turns-ratio compensation will result in an output voltage lower than 240V under heavy load.
Does a 208 to 240 delta transformer provide a neutral wire?
A standard three-wire 240V delta secondary does not provide a neutral conductor. If downstream 120V single-phase loads must be powered, you need either an auxiliary 240-120V control transformer or a transformer with a centre-tapped 240/120V high-leg delta configuration.
