Key takeaways
- An electrical outlet transformer converts mains supply voltage to match connected load equipment while providing voltage conversion, auxiliary control power, or galvanic isolation.
- Selecting between an autotransformer and a double-wound isolation transformer depends on whether common-mode noise suppression and earth isolation are required by regional electrical codes.
- Continuous loads served by an outlet transformer must not exceed 80% of its rated nameplate capacity under standard NEC Article 210 and IEC 60364 installation rules.
- Operating a 60 Hz designed magnetic core on a 50 Hz mains receptacle increases core magnetic flux density by 20%, generating excessive excitation losses and risk of thermal breakdown.
- Inrush currents on small outlet transformers typically reach 8 to 14 times rated full-load current, requiring primary branch protection using time-delay fuses or Type D/K circuit breakers.
Quick answer: An electrical outlet transformer is a compact dry-type voltage conversion or isolation transformer designed to step utility receptacle voltages up or down (such as 230V to 120V or 480V to 120V) or provide galvanic isolation for auxiliary equipment, control panels, and portable industrial tools. It ensures voltage compatibility, protects sensitive electronics from line harmonics, and maintains safety compliance under IEC and NEC standards.
In industrial and commercial facilities, mismatched voltages between mains distribution networks and operating machinery present constant operational challenges. Whether commissioning imported European production machinery on North American power grids, providing clean auxiliary power within switchgear enclosures, or mitigating common-mode electrical noise on automation lines, engineers rely on specialised transformers tailored for localized receptacle and circuit integration. Choosing the correct unit requires an understanding of magnetic circuit design, thermal continuous ratings, and protective earthing architectures.
What Is an Electrical Outlet Transformer? Working Principles and Topologies
An electrical outlet transformer is an electromagnetic device engineered to adapt mains supply voltage at the receptacle level to the specific voltage, earthing, and isolation requirements of downstream equipment. The underlying operating principle relies on Faraday's law of electromagnetic induction, transferring electrical energy between magnetic circuits through mutual induction or conductive tapping.
Outlet-connected and receptacle-feeding transformers fall into two fundamental winding topologies:
- Galvanic Isolation Transformers: Constructed with electrically isolated primary and secondary windings wound around a shared silicon steel core. These units provide total physical separation between the utility grid and the output, preventing DC path conduction, mitigating ground loops, and dramatically attenuating line-borne voltage transients. Detailed core characteristics can be explored in our transformer core guide.
- Autotransformers: Designed using a single continuous winding where the primary and secondary circuits share common turns. While autotransformers deliver exceptional efficiency, reduced physical footprint, and lower procurement costs for simple voltage shifts, they do not offer electrical isolation between the source receptacle and the load.
Engineers must evaluate both efficiency and safety topologies when specifying an outlet transformer for facility operations. Where simple voltage conversion is the primary goal without safety isolation mandates, autotransformers offer higher short-circuit capacity in a smaller enclosure. However, when powering medical equipment, sensitive testing instrumentation, or wet-environment tools, double-wound isolation topologies governed by IEC 61558-2-4 or UL 1561 are strictly required.
Primary Applications in Industrial Panels and Facility Networks
An electrical outlet transformer serves as the primary voltage bridge across industrial facilities, automated control cabinets, and commercial infrastructures. The most frequent implementation involves stepping regional grid voltages up or down to support imported machinery or local convenience circuits, as detailed in our guide on step down transformer 220V to 110V systems.
Industrial engineering environments deploy outlet transformers across several designated roles:

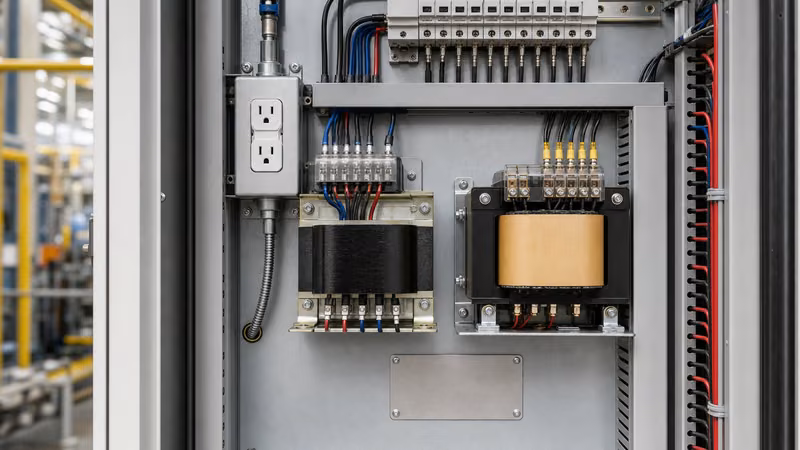

- Control Cabinet Convenience Receptacles: Industrial machinery enclosures conforming to NFPA 79 or UL 508A require auxiliary 120V single-phase outlets for diagnostic programming laptops, calibration tools, and local work lighting. When the main line feeder is 480V or 400V three-phase, a dedicated step-down transformer feeds the internal outlet circuit.
- Substation and Switchgear Auxiliary Power: Medium-voltage switchgear installations and prefabricated substations utilise low-voltage auxiliary transformers to power monitoring relays, space heaters, and local service outlets from the station bus, linking closely with high-level transmission transformer infrastructures.
- Exported Equipment Commissioning: Original equipment manufacturers (OEMs) utilise outlet transformers to operate foreign-specification systems without redesigning internal power supplies, stepping 100V, 110V, 120V, 208V, 230V, or 240V systems interchangeably.
- Noise-Sensitive Test Benches: Laboratories use shielded, medical-grade isolation units plugged into wall receptacles to decouple high-frequency switched-mode power supply (SMPS) hash and electromagnetic interference (EMI) from precision measurement probes.
Engineering Sizing and Load Calculation Methodology
Calculating the correct apparent power rating in volt-amperes (VA) or kilovolt-amperes (kVA) ensures an electrical outlet transformer avoids thermal overload while managing inrush transient states. Sizing must account for total continuous load, peak inrush current of inductive loads, power factor, and code-mandated safety margins.
To size a single-phase unit accurately, apply the fundamental power equation:
$$\text{kVA} = \frac{V \times I}{1000}$$
Where $V$ is the secondary output nominal voltage and $I$ is the maximum operating current in amperes. For comprehensive calculations on larger distribution systems, engineers frequently consult a specialised transformer sizing calculator.
To avoid nuisance tripping and long-term insulation degradation, apply the following systematic calculation workflow:
- Determine Total Operating Current: Sum the continuous nameplate load currents of all connected devices.
- Apply the Continuous Load Safety Factor: In accordance with NEC Article 210.20(A) and IEC 60364, circuits operating continuously for three hours or more must not exceed 80% of the transformer's rated capacity. Multiply the calculated steady-state kVA by 1.25.
- Assess Inrush Current Multipliers: Inductive loads such as electric motors, solenoids, or magnetic contactors exhibit initial inrush currents between 6 to 10 times their continuous run amperage. The short-term voltage regulation of the transformer must maintain output voltage above 90% of nominal during motor startup.
- Verify Frequency Compatibility: If converting between 60 Hz and 50 Hz jurisdictions, check core saturation thresholds. Operating a 60 Hz transformer on a 50 Hz mains receptacle causes magnetic flux density ($B_{\text{max}}$) to rise by 20% according to the core equation $B_{\text{max}} = \frac{V}{4.44 \cdot f \cdot N \cdot A_c}$, resulting in excessive no-load excitation current and potential overheating unless input voltage is derated accordingly.
Technical Comparison: Isolation vs Autotransformer Configurations
Choosing between an isolation transformer and an autotransformer configuration directly impacts physical dimensions, operating efficiency, fault-current withstand, and operator safety. The following comparative matrix outlines the engineering trade-offs when selecting an electrical outlet transformer for facility operations.
| Performance Parameter | Galvanic Isolation Design | Autotransformer Design | Applicable Engineering Standard |
|---|---|---|---|
| Electrical Separation | Complete physical galvanic break; secondary earth derived locally | None; common conductive neutral between input and output | IEC 61558-2-4 / UL 1561 |
| Common-Mode Noise Attenuation | High (> 60 dB with electrostatic Faraday shield) | Low to negligible | IEEE 519 / CISPR 11 |
| Full-Load Efficiency | 92% – 96% at low kVA ratings | 97% – 99% across equivalent loads | EN 50588-1 |
| Physical Size and Weight | Baseline (100%) | 30% – 50% lighter and more compact | NEMA standards |
| Short-Circuit Impedance (%Z) | 3.0% to 5.5% typical | 1.0% to 2.5% (higher fault current pass-through) | IEEE C57.12.01 |
| Phase/Voltage Conversion | Flexible (step-up, step-down, split-phase derivation) | Step-up or step-down without neutral transformation | NEC Article 450 |
| Relative Unit Cost | Moderate to High | Economical (approximately 40% lower) | Industry Benchmark |
As indicated in the table, isolation units are mandatory where equipment safety standards dictate an independently derived zero-potential reference point. Conversely, an autotransformer provides a cost-effective, space-saving choice for basic industrial voltage adaptation where direct grid reference does not compromise safety or compliance.
Installation, Earthing, and Overcurrent Protection Standards
Installing an electrical outlet transformer safely requires strict adherence to overcurrent protection sizing, thermal dissipation guidelines, and protective conductor bonding per IEC 60364 or NEC Article 450. Improper wiring risks creating floating neutral potentials, chassis shock hazards, and nuisance protective tripping during energisation.
Follow this standardized engineering procedure during commissioning:
- Mounting and Physical Clearance: Position the transformer in a well-ventilated location providing at least 150 mm of unobstructed airflow around louvred enclosures. Verify ambient operating temperatures remain within the standard -20°C to +40°C boundary.
- Primary Overcurrent Protection Integration: Size the primary circuit breaker or fuse to withstand energisation inrush, which routinely reaches 10 to 14 times full-load current ($I_{\text{fl}}$) for 10 to 20 milliseconds. Utilise motor-rated fuses or Type D/K curve miniature circuit breakers (MCBs) rated up to 125%–250% of rated primary current in accordance with NEC Table 450.3(B).
- Secondary Overcurrent Protection: Protect secondary outlet receptacles with branch-rated circuit breakers sized at no more than 125% of rated secondary continuous current to protect branch wiring conductors against sustained overloads.
- Protective Earth (PE) Bonding: On isolation units, establish an earthed secondary neutral conductor by bonding the secondary neutral terminal directly to the enclosure frame and facility grounding electrode system (forming a Separately Derived System per NEC 250.30). On autotransformers, maintain continuous bonding through the supply earthing conductor; never disconnect the supply neutral.
- Residual Current Protection: Integrate a 30 mA residual current device (RCD) or ground-fault circuit-interrupter (GFCI) downstream of the secondary winding on all convenience outlets exposed to personnel access or moist operational environments.
For modular industrial panels, engineers can cross-reference protective layout designs against specifications documented in our small transformer guide and detailed 120 to 240 transformer guide.
Common Operational Failure Modes and Diagnostic Procedures
Diagnosing field operational anomalies in an outlet transformer requires identifying the core physical mechanisms behind magnetic, thermal, and dielectric degradation. Addressing these symptoms early prevents equipment damage, unexpected downtime, and safety hazards.
The most frequent failure modes encountered in commercial and industrial settings include:
- Nuisance Tripping on Initial Energisation: High remanent magnetic flux in grain-oriented silicon steel cores can push the core into saturation during energisation, generating instantaneous inrush current spikes. If branch circuit breakers feature standard residential Type B or C trip curves, replace them with time-delay or Type D industrial curves designed for magnetic inrush.
- Excessive Acoustic Humming and Vibration: Magnetostriction causes structural laminations to expand and contract at twice the supply frequency (100 Hz or 120 Hz). Loose core clamping bolts, degraded varnish impregnation, or harmonic distortion from non-linear loads (such as variable frequency drives or rectifiers) amplify vibration. Measure total harmonic distortion (THD) and verify mechanical torque values on core framing bolts.
- Thermal Overheating at Rated Load: Operating transformers in high ambient temperatures (>40°C) or feeding high-harmonic current loads introduces eddy-current losses in windings. If non-linear loads exceed 30% of total load capacity, select a transformer with an appropriate K-factor rating (K-4, K-9, or K-13).
- Secondary Voltage Sag: Under load, excessive voltage drop across the secondary output typically indicates undersized primary conductor gauge, poor supply transformer impedance regulation, or an overextended secondary branch circuit. Verify that line drop does not exceed 3% under steady-state rated load.
Next steps: specifying and sourcing
When specifying an electrical outlet transformer for new installations, control panels, or infrastructure upgrades, supply complete engineering details to ensure precise manufacturing and compliance. Provide primary and secondary operating voltages, total continuous volt-amperes (VA/kVA), supply frequency (50 Hz, 60 Hz, or dual), enclosure protection rating (IP20 to IP66 / NEMA 1 to 4X), and required isolation class. Explore our range of low-voltage dry-type equipment on our dry-type transformer page or review integration options with our HV/LV switchgear solutions. To submit custom engineering requirements or request technical datasheets, visit our quote page to connect directly with our engineering team.
Frequently asked questions
What is the difference between an electrical outlet transformer and an adapter?
An electrical outlet transformer physically alters voltage levels through magnetic induction across copper or aluminium windings. An adapter merely reshapes mechanical plug prongs to fit foreign wall sockets without modifying voltage, which can cause immediate electrical damage if the connected device is not rated for the supply voltage.
Can I plug a 110V American appliance into a 230V outlet using an autotransformer?
Yes, a step-down autotransformer can safely convert 230V to 110V for domestic and commercial appliances, provided the load does not require galvanic isolation. Ensure the transformer kVA rating exceeds the connected appliance's continuous wattage by at least 25% to account for operating safety margins.
Why does my outlet transformer buzz when operating?
Acoustic buzzing originates from magnetostriction, the natural physical expansion and contraction of core steel laminations in response to alternating magnetic fields. Excessive noise indicates loose mechanical clamping bolts, high voltage harmonic distortion, or operational overloading near core magnetic saturation.
What happens if a 60 Hz transformer is connected to a 50 Hz outlet?
Operating a 60 Hz transformer on a 50 Hz network increases core magnetic flux density by approximately 20%. This causes higher excitation current, increased core iron losses, and severe thermal heating unless the applied input voltage is proportionally derated by 17%.
Do electrical outlet transformers provide surge protection?
Standard autotransformers provide virtually no surge protection against line transients. Double-wound isolation outlet transformers equipped with grounded electrostatic Faraday shielding provide significant common-mode transient attenuation, though secondary surge protective devices (SPDs) are still recommended for critical electronic hardware.
How do I calculate the correct fuse rating for an electrical outlet transformer?
Calculate primary full-load current ($I_{\text{fl}} = \text{VA} / V_{\text{pri}}$) and multiply by 1.25 to 2.5 depending on code allowances under NEC 450.3(B) or IEC 60947. Always select a time-delay fuse or slow-blow circuit breaker capable of absorbing 10 to 14 times rated current during initial energisation.
