Key takeaways
- A step up transformer increases alternating voltage while reducing current inversely proportional to the turns ratio (Np/Ns < 1).
- A step down transformer decreases alternating voltage while increasing current inversely proportional to the turns ratio (Np/Ns > 1).
- Both transformer configurations operate on Faraday law of mutual induction and obey conservation of energy, maintaining apparent power (kVA) parity minus internal core and copper losses.
- Transmitting electrical power at stepped-up voltages drastically cuts I²R line losses over long distances, making step-up units essential at generation nodes.
- Factory acceptance testing for both types requires ratio verification according to IEC 60076-1 clause 10.3, ensuring turns ratio deviation stays within ±0.5% of specified nameplate values.

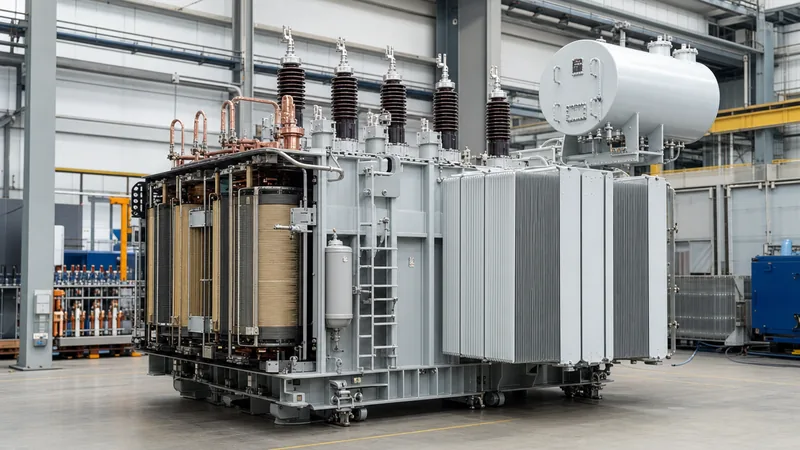

Quick answer: A step up step down transformer refers to electromagnetic devices configured either to elevate generation voltages for low-loss transmission or reduce high transmission voltages to safe, usable utilisation levels. Both rely on mutual electromagnetic induction across laminated magnetic cores, trading voltage against current to conserve total apparent power in kilovolt-amperes (kVA).
In electrical power engineering, alternating current (AC) networks depend entirely on the ability to alter voltage levels dynamically. Generators, renewable energy plants, transmission grids, and industrial end-users each operate at vastly different optimal voltage bands. Whether stepping up generation output at 0.69 kV or 11 kV to 110 kV for bulk transmission, or stepping down distribution voltages at 33 kV or 13.8 kV to 400 V for motor control centres, understanding the mechanical construction, operational characteristics, and selection criteria of a step up step down transformer setup is fundamental to specifying reliable electrical infrastructure.
What does a step up transformer step up?
A step up transformer steps up alternating voltage from a lower primary value to a higher secondary value, concurrently stepping down alternating current by the exact inverse proportion. The step up transformer meaning stems directly from Faraday's law of electromagnetic induction: when an alternating current flows through the primary winding, it creates a continuously changing magnetic flux within the transformer's silicon-steel core, inducing an electromotive force (EMF) across the secondary winding.
To explain step up transformer mechanics mathematically, the relationship between primary and secondary voltage depends on the turns ratio:
Vp / Vs = Np / Ns = Is / Ip
Where Vp and Vs represent primary and secondary voltages, Np and Ns represent the number of turns on each winding, and Ip and Is represent primary and secondary currents. In any step-up unit, the primary winding possesses fewer turns of thicker conductor cross-section to accommodate high primary current, whereas the secondary winding features a greater number of turns of thinner conductor wire to deliver high voltage at reduced current.
Typical field installations deploy step-up units directly downstream of utility-scale power sources. In renewable energy projects, such as solar photovoltaic parks and wind farms, inverters or wind turbines output electricity at 400 V to 690 V. Connecting this generation to the regional utility interconnect requires an electric step up through equipment engineered for grid integration of renewable energy sources, elevating line voltage to 33 kV, 66 kV, or 110 kV to prevent excessive conductor thermal loading.
How do step down transformers work?
Step down transformers work by converting a high-voltage, low-current primary input into a low-voltage, high-current secondary output across a laminated magnetic core. The basic step down transformer definition describes a passive magnetic machine where the primary winding has more turns than the secondary winding (Np > Ns), forcing the induced secondary voltage to scale down proportionally.
When medium-voltage (MV) or high-voltage (HV) current passes through the primary coils, it establishes an alternating magnetic flux density (typically 1.6 to 1.75 Tesla in cold-rolled grain-oriented steel laminations). This magnetic flux links both windings through the low-reluctance magnetic core circuit. Because the secondary coil contains fewer turns, it intercepts this flux over fewer loops, producing a lower induced potential difference in accordance with IEC 60076-1 clause 5.4.
Unlike the step-up variant, the secondary conductors of a step-down unit must carry significantly heavier currents. Consequently, transformer engineers design the secondary windings with heavy copper or aluminium busbars or continuously transposed conductors (CTC) to withstand elevated thermal stress and severe electrodynamic forces during through-fault conditions. Industrial installations frequently feed these lower voltages into switchboards or unit substation engineering arrangements to energise plant machinery and auxiliary distribution boards safely.
Step up vs step down transformer: key technical differences
The core difference between step up and step down transformer designs lies in their turns ratio, conductor sizing, insulation coordination, and transient overvoltage profiles. While theoretically a standard distribution transformer can be back-fed (energised from the low-voltage side to step voltage up), purposeful engineering designs separate dedicated step-up units from conventional step-down units to account for flux leakage, inrush currents, and tap positioning.
Review the comparative parameters between both configurations in the engineering decision matrix below:
| Design Parameter | Step-Up Transformer | Step-Down Transformer | Engineering Significance |
|---|---|---|---|
| Turns Ratio (Np : Ns) | Np < Ns (Turns ratio < 1.0) | Np > Ns (Turns ratio > 1.0) | Governs primary-to-secondary voltage transformation. |
| Input / Output Current | High input current / Low output current | Low input current / High output current | Determines winding conductor cross-sectional area and thermal limits. |
| Winding Wire Gauge | Primary: Heavy conductor; Secondary: Fine conductor | Primary: Fine conductor; Secondary: Heavy conductor | Dictates I²R copper loss distribution and mechanical bracing needs. |
| Tap Changer Location | Usually on HV winding (secondary side) | Usually on HV winding (primary side) | Placed on higher voltage winding due to lower current handling requirements. |
| Primary Application | Power generating stations, solar/wind farms | Substations, commercial buildings, industrial motor feeds | Dictates Basic Insulation Level (BIL) and short-circuit withstand. |
| Core Inrush Peak | 8–12× rated current when LV energised | 5–8× rated current under conventional HV energisation | Requires precise protective relay curve coordination to prevent tripping. |
When selecting between equipment categories, plant engineers must account for tap-changer placement. Placing off-circuit or on-load tap changers on the high-voltage winding allows the mechanism to handle smaller switching currents, extending contact life and reducing physical tank volume. More details on tap arrangement mechanics can be found in our load tap changer engineering guide.
Worked engineering calculation: turns ratio, current, and I²R losses
Understanding the difference between step up and down transformer operations is best demonstrated through a practical calculation of voltage transformation, full-load current, and transmission conductor loss reduction. Consider a 2,500 kVA solar generation facility generating power at 400 V line-to-line three-phase, transmitting electricity over a distance of 5 km to a 33 kV regional substation bus.
Step 1: Calculate full-load primary current at 400 V (Low Voltage side):
Ip = S / (√3 × Vp) = 2,500,000 VA / (1.732 × 400 V) = 3,608.5 A
Step 2: Calculate secondary voltage and current through a 400 V to 33,000 V step-up unit:
Turns Ratio (a) = Vp / Vs = 400 / 33,000 = 0.01212
Is = Ip × a = 3,608.5 A × 0.01212 = 43.74 A
Step 3: Evaluate line losses during transmission:
Assume a three-phase aluminium transmission line with a total loop resistance of 1.2 Ω across the 5 km run. Calculating Joule thermal losses (P_loss = 3 × I² × R) highlights why stepping up voltage is critical:
- Without step-up (transmitting at 400 V): P_loss = 3 × (3,608.5 A)² × 1.2 Ω = 46,876,467 W (46.88 MW) — physically impossible, as losses exceed total plant capacity.
- With step-up to 33 kV: P_loss = 3 × (43.74 A)² × 1.2 Ω = 6,887 W (6.89 kW) — representing merely 0.27% of total generated capacity.
At the receiving grid substation, a complementary 33 kV to 400 V step-down transformer reverses this process, stepping current back up to supply industrial plant machinery safely while maintaining network stability.
What are step down transformers used for?
Step down transformers are used for reducing utility distribution voltages to standard consumer and commercial utilisation levels, isolating electrical networks, and protecting downstream equipment from excessive electrical stresses. Transmission grids carry power at hundreds of kilovolts; step-down equipment forms the bridge between these regional grid networks and practical industrial operations.
Common practical deployments include:
- Heavy Industrial Motor Control: Stepping down 11 kV or 6.6 kV feeder circuits to 400 V or 690 V to feed variable frequency drives (VFDs), motor control centres (MCCs), and continuous smelting or milling equipment.
- Data Centre Power Distribution: Taking medium-voltage utility feeds (such as 13.8 kV or 22 kV) down to 415 V / 240 V, where dry-type step-down units feed uninterrupted power supplies (UPS). Refer to our guidance on transformers for data centers for reliability protocols.
- Substation Auxiliary Services: Delivering 110 V or 230 V single-phase supplies from main MV busbars to power switchgear spring-charging motors, protection relays, ventilation fans, and SCADA monitoring panels.
- Renewable Energy Facility Auxiliaries: Stepping down internal collector grid voltage to run tracking systems, inverter cooling loops, and site security automation.
Specifying step up and step down transformers: factory testing and procurement checklist
Specifying a step up step down transformer requires strict adherence to design, testing, and environmental parameters to avoid operational failure under prolonged cyclic loading. Engineers preparing a Request for Quotation (RFQ) must establish clear criteria before manufacturing begins.
Use the following technical checklist to define transformer specifications:
- Rated Capacity & Duty Cycle: State nominal base rating in kVA or MVA, required cooling class (ONAN, ONAF, AN, or AF), and ambient temperature extremes according to IEC 60076-2 thermal rise thresholds.
- Vector Group & Phase Displacement: Specify connection geometry (e.g., Dyn11, YNd11, or YNyn0). Step-up generator transformers commonly demand delta-connected low-voltage windings to suppress zero-sequence third harmonics.
- Impedance Voltage (%Z): Define short-circuit impedance percentage per IEEE C57.12.00 Table 5. Step-down units feeding high-fault-level networks frequently specify 5% to 7% impedance to limit downstream short-circuit ratings for switchgear.
- Insulation and BIL Levels: Define rated power-frequency withstand voltage and Basic Lightning Impulse Insulation Level (BIL) per IEC 60076-3 for both HV and LV terminals.
- Factory Acceptance Testing (FAT): Mandate routine tests, including turns ratio verification across all tap positions (tolerance within ±0.5%), winding resistance measurement, no-load loss and exciting current at 100% and 110% rated voltage, and full-load impedance loss tests.
Special attention must be paid during acceptance testing to guarantee that winding hot spots do not exceed design thresholds under full-load operation, as outlined in our power transformer testing reference guide.
Next steps: specifying and sourcing
Sourcing an engineered step up step down transformer requires accurate single-line diagrams, short-circuit current calculations, and exact primary/secondary operating voltages. Whether your capital project demands custom power transformer units for grid interconnects, robust oil-immersed transformer packages for harsh environments, or high-efficiency dry-type transformer systems for indoor substations, defining precise technical specifications upfront avoids costly design revisions. Submit your electrical load schedules, ambient site parameters, and delivery timelines via our transformer quotation page or speak with our application engineering team directly on our contact page to receive a fully dimensioned technical proposal.
Frequently asked questions
how does a step up transformer work
A step up transformer works via electromagnetic induction, using a primary winding with fewer turns and a secondary winding with more turns around a common magnetic core. Alternating current in the primary coil induces a proportional, higher-voltage alternating EMF across the secondary coil while decreasing current output.
how do step down transformers work
Step down transformers work by passing alternating current through a primary winding with many turns, creating magnetic flux that induces a lower voltage in a secondary winding with fewer turns. The resulting secondary circuit delivers a decreased voltage alongside an inversely increased current capacity.
what does a step down transformer do
A step down transformer converts high-voltage, low-current power from transmission or distribution networks into lower, safe voltage levels suitable for industrial equipment, commercial facilities, and residential appliances. It simultaneously isolates electrical circuits and maintains overall power conservation minus internal losses.
what does a step up transformer step up
A step up transformer steps up alternating electrical voltage to a significantly higher potential difference. Because total apparent power remains constant minus system losses, increasing the voltage simultaneously steps down the circuit current, minimising resistive heat losses across long-distance overhead and underground power transmission lines.
what are step down transformers used for
Step down transformers are used for scaling utility voltages down to 400 V, 480 V, or 230 V utilisation bands, supplying industrial motor control centres, driving commercial HVAC plants, and feeding building switchboards. They are also installed in utility substations to transition bulk transmission lines into urban distribution circuits.
