480 Volt Transformer Guide: Sizing, 3-Phase Specs & Design

Quick answer: A 480 volt transformer is an electrical distribution transformer engineered to either step down medium-voltage utility power to a 480V utilisation level, or step down 480V to lower secondary voltages such as 230V, 240V, or 208Y/120V for plant equipment. Most commonly configured as a three-phase unit, it serves heavy commercial and industrial power distribution systems.

Industrial facilities, commercial complexes, and manufacturing plants depend heavily on 480V distribution infrastructure to operate heavy motor loads, compressors, and heating elements efficiently while minimising conductor copper cross-sections. When designing an electrical distribution network, selecting the correct 480 volt transformer requires a clear understanding of winding topologies, thermal class ratings, voltage conversion ratios, and short-circuit impedance. Whether deploying a facility-wide unit or integrating imported European or Asian machinery, engineering teams must evaluate specific electrical parameters to ensure system reliability and regulatory compliance.

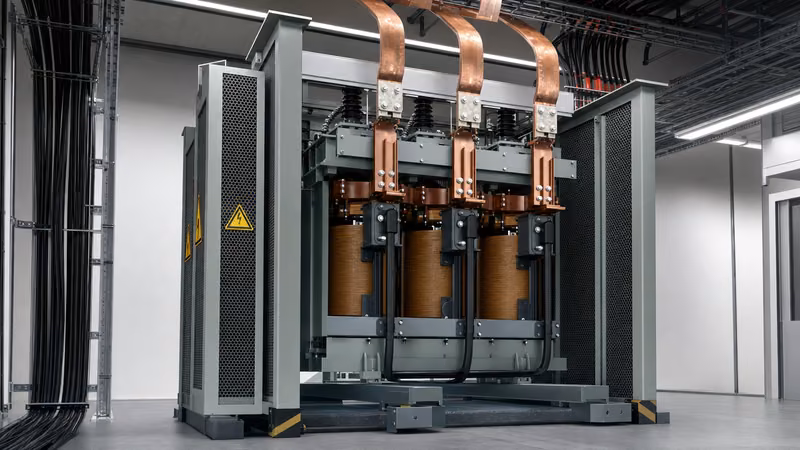

Core Function and Topologies of the 480 Volt Transformer

A 480 volt transformer functions by transferring alternating-current electrical energy between primary and secondary windings through electromagnetic induction, operating at a nominal line-to-line potential of 480V on either its primary or secondary side.

In standard North American industrial practice, medium-voltage distribution circuits—such as 13.8 kV, 12.47 kV, or 4.16 kV—are stepped down to 480V to supply motor control centres (MCCs), variable frequency drives (VFDs), and heavy machinery. Conversely, auxiliary subsystems often require a local step-down transformer to deliver 208Y/120V for convenience receptacles and office circuits, or 230V three-phase for process equipment. For broader background on dual-direction voltage conversion topologies, consult our guide on step up and step down transformers.

The two dominant winding configurations for 480V distribution are:

• 480Y/277V Wye (Star): Features a centre neutral point. Line-to-line voltage is 480V, while line-to-neutral voltage provides 277V. This topology is the industry benchmark for commercial lighting panels and general plant power distribution because the solidly grounded neutral stabilises line-to-ground potentials and facilitates ground-fault detection per IEEE C57.12.00 clause 5.10.
• 480V Delta: A three-wire, three-phase system without an inherent neutral conductor. Delta connections are widely used where the transformer feeds purely three-phase inductive loads, such as large pump motors, or where isolation from ground-fault propagation upstream is mandatory. Delta secondaries can be left ungrounded (with insulation monitoring) or corner-grounded.

3 Phase Transformer 480V System Architectures and Grounding

System grounding in a 3 phase transformer 480v network dictates transient overvoltage performance, short-circuit current availability, and personnel safety.

When specifying a 3 phase transformer 480v configuration, electrical consultants must choose between solidly grounded, low-resistance grounded (LRG), high-resistance grounded (HRG), or ungrounded topologies. In process plants where unscheduled outages cause severe financial losses, HRG systems are commonly applied to 480V wye secondaries. A neutral grounding resistor (NGR) limits ground-fault currents to 5 A or 10 A, allowing the plant to maintain operations under a single line-to-ground fault while locating the defective circuit.

Engineers deploying transformers in industrial facilities should note the vector group orientation. A Delta-Wye configuration (such as Dyn1 or Dyn11 under IEC 60076-1, or standard 30-degree angular displacement under IEEE C57.12.00 Table 5) traps the third harmonic (180 Hz) and its multiples within the delta primary. This prevents circulating triplen harmonic currents from transferring back into the utility grid, a vital characteristic when integrating large numbers of non-linear six-pulse and twelve-pulse motor drives within modern industrial power system installations.

Sizing and Full-Load Calculations for a 480 Step Down Transformer

Sizing a 480 step down transformer involves calculating the aggregate connected apparent power in kilovolt-amperes (kVA) and applying appropriate continuous-load demand factors under national electrical codes.

To calculate the full-load current (FLA) on a three-phase system, engineers apply the standard apparent power relationship:

I_FLA = S_kVA / (√3 × V_LL)

Where S_kVA represents the transformer rated apparent power in kVA, and V_LL represents the line-to-line voltage in kilovolts (kV). For a 480 step down transformer operating at 480V line-to-line (0.48 kV), the constant divisor is approximately 0.8314. Therefore:

I_{FLA (480V)} = S_kVA / 0.8314

Consider a practical engineering sizing example for an industrial machining shop:

1. Determine Total Load: The facility operates continuous motor loads totalling 180 kVA, resistive heating of 45 kVA, and auxiliary lighting of 25 kVA. The raw total connected load is 250 kVA.
2. Apply Code Demand Factors: Under National Electrical Code (NEC/NFPA 70) Article 215, continuous loads operating for three hours or more require a 125% rating factor. Applying this factor to the continuous motor load (180 × 1.25 = 225 kVA) yields an adjusted design load of 295 kVA (225 + 45 + 25).
3. Standard KVA Selection: The calculated 295 kVA exceeds standard 225 kVA ratings, requiring the selection of a 300 kVA or 500 kVA standard commercial rating. Selecting 300 kVA leaves minimal margin (1.7%) for inrush or expansion; thus, specifying a 500 kVA unit provides necessary headroom and reduces winding operating temperature.
4. Calculate Primary and Secondary Currents: For a 500 kVA unit stepping down 480V to 208Y/120V:
   • Primary FLA (480V) = 500 / (√3 × 0.48) = 601.4 A.
   • Secondary FLA (208V) = 500 / (√3 × 0.208) = 1,387.9 A.
5. Short-Circuit Sizing: With a typical transformer impedance (%Z) of 5.75%, the maximum symmetrical short-circuit current available at the secondary terminals is: I_sc = I_FLA / (%Z / 100) = 1,387.9 / 0.0575 = 24,137 A (24.14 kA). Downstream switchboards must be rated for at least this interrupting capacity.

Deploying a 480V to 230V Transformer for Industrial Machinery

A 480v to 230v transformer resolves voltage incompatibility between North American 480V distribution grids and imported industrial plant equipment engineered for nominal 220V, 230V, or 240V three-phase systems.

Precision machine tools, computer numerical control (CNC) mills, packaging lines, and robotics imported from Europe or Asia are frequently designed to operate on 230V or 400V 50/60 Hz power supplies. Supplying 480V directly will result in immediate dielectric breakdown of insulation and catastrophic failure of internal variable-speed drives. Deploying a dedicated 480v to 230v transformer allows the imported machinery to receive its exact nameplate voltage.

When specifying a 480v to 230v 3 phase transformer, engineers must verify whether the machine requires a neutral conductor. Most European CNC machinery requires a neutral reference for internal 230V single-phase control circuits, instrumentation, and human-machine interface (HMI) screens. In this scenario, a 480V Delta primary to 230Y/133V Wye secondary transformer is required. If the equipment incorporates purely three-phase drive systems, a Delta-Delta (480V Delta to 230V Delta) arrangement can be specified. Tap changers (typically ±2 × 2.5% off-circuit taps) must be included on the high-voltage winding to compensate for facility feeder voltage drops.

Technical Comparison: 480V Transformer Types and Enclosure Ratings

Selecting between dry-type and liquid-immersed transformers depends primarily on indoor versus outdoor siting, environmental contaminants, and fire safety protocols.

Dry-type transformers, including vacuum pressure impregnated (VPI) and cast resin (dry-type) units, are the standard choice for indoor electrical rooms because they eliminate flammable insulating fluids and environmental spill risks. Liquid-immersed transformers, which utilise mineral oil or less-flammable natural ester fluids, provide superior thermal performance and life expectancy for outdoor pad-mounted or substation installations. For integrated modular installations, reference our engineering guide on unit substations.

The following engineering comparison details performance parameters for 480V transformers across different structural designs:

Factory Acceptance Testing for a 480 Volt Transformer

Factory acceptance testing for a 480 volt transformer confirms dielectric integrity, ratio accuracy, and core loss performance against factory guaranteed values prior to dispatch.

Routine factory testing must strictly comply with IEEE C57.12.90 or IEC 60076-1 procedures. Rigorous testing prevents premature field failures and verifies that the transformer will withstand short-circuit stresses and line surges. For detailed testing methodologies, refer to our comprehensive article on power transformer testing procedures.

Before signing off on an inspection test plan (ITP) for a 480V unit, quality assurance engineers must verify the following routine tests:

1. Voltage Ratio and Phase Displacement: Verifies the turns ratio across all off-circuit tap positions. Tolerances must remain within ±0.5% of nameplate ratings per IEEE C57.12.00 clause 9.1.
2. Winding Resistance Measurement: Measured across all phases using a micro-ohmmeter to calculate accurate I²R losses and confirm the absence of loose internal braze connections.
3. Insulation Resistance and Polarisation Index (PI): Performed using a 1,000V or 2,500V DC megohmmeter between windings and from windings to ground. A minimum 10-minute to 1-minute PI ratio greater than 2.0 indicates an uncontaminated dielectric core.
4. No-Load Losses and Excitation Current: Evaluates core steel quality and construction assembly at 100% rated voltage. High no-load currents indicate core laminar damage or defective inter-laminar insulation.
5. Impedance and Load Loss: Conducted by short-circuiting the secondary winding and applying rated current to the primary. Confirms that percentage impedance (%Z) aligns with specifications for short-circuit current calculations.
6. Applied and Induced Overvoltage Withstand: Proves dielectric strength across turn-to-turn, layer-to-layer, and phase-to-ground insulation under elevated frequency and high-potential stress.

Next steps: specifying and sourcing

Procuring the optimal transformer begins with drafting an accurate Request for Quotation (RFQ) containing exact primary and secondary voltages, connection vector groups, kVA rating, impedance range, and operating environment constraints. For indoor industrial applications, consider our engineered dry-type transformers, or evaluate our heavy-duty oil-immersed transformers for outdoor substation installations. Our manufacturing team builds units conforming strictly to IEEE, ANSI, and IEC standards, delivering tailored thermal and electrical profiles for complex industrial facilities. Contact our engineering sales specialists directly through our transformer quotation portal to submit your single-line diagram and load schedule for rapid review.
