Distributed Energy Generation Market: Transformer & Grid Guide

Quick answer: The distributed energy generation market encompasses decentralised electricity production assets—such as commercial solar PV, battery storage, and small wind—connected directly to local distribution networks. Integrating these assets requires heavy-duty distribution transformers, switchgear, and protection relays capable of handling bidirectional active and reactive power flows, inverter-induced harmonics, and rapid thermal cycling without premature dielectric breakdown.

Historically, electrical networks were engineered for unidirectional power flows originating at large, centralised thermal or hydroelectric generating stations and terminating at passive consumer loads. The global distributed energy generation market has inverted this paradigm. Substation engineers, EPC contractors, and network operators face steep technical demands as distribution feeders transform into active generating networks. Sizing and selecting electrical balance-of-plant apparatus—principally step-up transformers and medium-voltage switchgear—now dictates whether a distributed installation achieves seamless grid compliance or suffers chronic downtime from thermal derating and protection trips.

Successfully navigating system design requires a rigorous grasp of equipment-level dynamics. As detailed in our comprehensive guide to the grid integration of renewable energy sources, electrical assets deployed in decentralised generation must maintain voltage stability, control fault-level contributions, and withstand severe duty cycles over operational lifespans exceeding thirty years.

Key Drivers Expanding the Distributed Generation Market

Decarbonisation mandates, grid defection risks, and rapid commercial adoption of onsite solar photovoltaic (PV) and battery energy storage systems (BESS) represent the primary catalysts accelerating the distributed generation market. Industrial facilities and municipal microgrids increasingly commission co-located generation to bypass transmission congestion charges, avoid utility peak demand tariffs, and secure backup power resiliency.

Regulatory frameworks across North America, Europe, and Asia-Pacific have shifted interconnection obligations onto equipment performance. Standards such as IEEE 1547-2018 (Standard for Interconnection and Interoperability of Distributed Energy Resources) and Europe's EN 50549-1 mandate that distributed assets actively provide grid-supportive functions. These functions include:

• Active voltage regulation via dynamic reactive power injection or absorption (volt-var control).
• Frequency ride-through capability during bulk system anomalies to prevent cascading feeder trips.
• Fault ride-through (FRT) and fast reactive current injection during short-circuit events per IEEE 1547-2018 clause 6.
• Anti-islanding disconnection within 2.0 seconds of utility grid isolation to protect line workers and balance-of-plant assets.

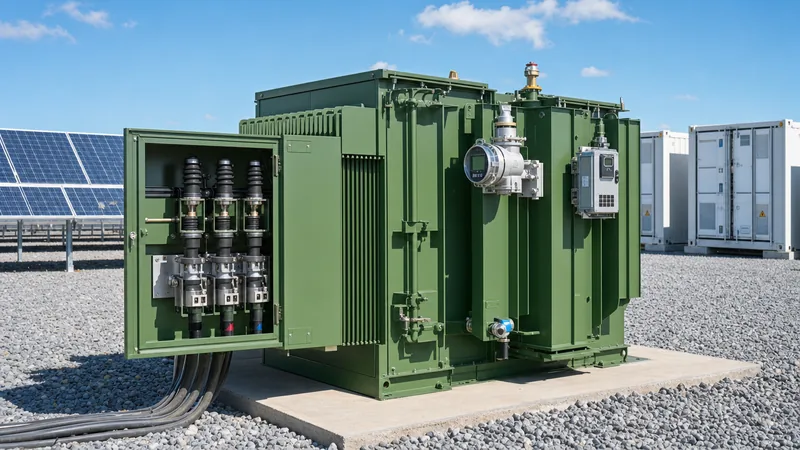

These operating modes place unique thermal and mechanical stresses on the intermediate step-up transformers that interface generation inverters with the utility grid. To understand the wider architecture of such installations, review our overview of distributed energy resources and their physical interconnection typologies.

Transformer Engineering Challenges in the Distributed Energy Generation Market

Equipment deployed within the distributed energy generation market faces operating environments radically different from traditional baseload distribution. Standard commercial transformers designed exclusively to EN 50588-1 or IEEE C57.12.00 assume linear, sinusoidal 50 Hz or 60 Hz load profiles with steady thermal equilibrium. When deployed at the output of multi-megawatt inverter stations, standard units frequently suffer premature insulation aging, localized hotspot formation, and oil degradation.

The principal engineering challenges include:

• Bidirectional Thermal Cycling: Commercial solar assets produce maximum active power at solar noon and zero power overnight. This severe daily cycling induces thermal expansion and contraction across winding paper, insulating fluids, and gasket seals, accelerating moisture migration and dissolved gas generation.
• Inverter-Generated Harmonics: Pulse-width modulated (PWM) power conversion systems inject high-frequency harmonic currents. Per IEEE C57.110, harmonic currents dramatically increase winding eddy current losses (proportional to frequency squared) and structural stray load losses, requiring transformers with elevated K-factor ratings (typically K-4 minimum, often K-9 or K-13).
• DC Bias and Core Saturation: Slight DC offsets produced by power electronics can enter transformer low-voltage windings. A DC current bias as small as 0.1% to 0.3% of rated current pushes the magnetic core into asymmetric half-cycle saturation, resulting in elevated audible noise, excessive core losses, and increased excitation currents.
• High-Frequency Transient Overvoltages: Fast-switching semiconductor topologies (such as silicon carbide MOSFETs or IGBTs) produce high dv/dt voltage transients. Transformers must incorporate electrostatic shielding between primary and secondary windings to attenuate high-frequency capacitive coupling.

Worked Engineering Sizing Calculation for a Distributed Generation Substation

Correctly sizing a medium-voltage step-up transformer for a distributed solar-plus-storage installation requires factoring in total inverter apparent power, operational power factor limits, temperature derating, and harmonic loading.

Consider an actual project configuration within the distributed energy generation market:

• Generation asset: 2,500 kW direct-current (DC) solar array connected to 2,000 kW alternating-current (AC) central inverters.
• Co-located battery storage: 1,000 kW / 2,000 kWh BESS connected through a dedicated bi-directional inverter.
• Maximum simultaneous export to the utility grid: Limited by interconnection agreement to 2,500 kW at the point of common coupling (PCC).
• Grid power factor (PF) requirement: 0.95 leading to 0.95 lagging at full export (per IEEE 1547 clause 5.2).
• System harmonic profile: Harmonic current distortion yields a calculated transformer harmonic factor (F_HL) of 1.18 per IEEE C57.110.
• Ambient design temperature: 45 °C maximum site temperature (standard ratings assume 40 °C ambient per IEC 60076-1 clause 5.4).

Step 1: Calculate the required apparent power ($S$) based on active power ($P$) and worst-case power factor:

$$S = \frac{P}{\cos \phi} = \frac{2500 \text{ kW}}{0.95} = 2631.58 \text{ kVA}$$

Step 2: Apply the ambient temperature derating factor. Per IEC 60076-2, for an ambient temperature exceeding standard baseline (40 °C) by 5 °C, an oil-immersed transformer with Class A insulation (65 °C average winding temperature rise) requires a 1% derate per degree above 40 °C:

$$k_{\text{temp}} = 1.0 - (0.01 \times 5) = 0.95$$

Step 3: Account for harmonic loading losses. The harmonic derating factor ($k_{\text{harm}}$) based on $F_{\text{HL}} = 1.18$ and typical eddy-current loss ratio ($P_{\text{EC-R}} = 0.15$) is determined via IEEE C57.110 formula:

$$I_{\text{max}} (\text{pu}) = \sqrt{\frac{1 + P_{\text{EC-R}}}{1 + F_{\text{HL}} \times P_{\text{EC-R}}}} = \sqrt{\frac{1 + 0.15}{1 + (1.18 \times 0.15)}} = \sqrt{\frac{1.15}{1.177}} = \sqrt{0.977} \approx 0.988$$

Step 4: Establish the minimum continuous nameplate transformer kVA rating ($S_{\text{rated}}$):

$$S_{\text{rated}} = \frac{S}{k_{\text{temp}} \times I_{\text{max}}} = \frac{2631.58}{0.95 \times 0.988} = \frac{2631.58}{0.9386} = 2803.7 \text{ kVA}$$

Conclusion: The EPC contractor must select a standard preferred nominal rating of 3,000 kVA (or 3,150 kVA per European R10 series) to prevent insulation degradation and provide thermal margin during simultaneous peak generation and high ambient conditions.

Selecting Transformer Typologies in the Distributed Energy Generation Market

Selecting the optimal transformer topology in the distributed energy generation market depends on environmental constraints, fire safety codes, environmental containment rules, and total ownership costs. The engineering comparison below evaluates the three primary medium-voltage transformer types utilised across commercial and utility-scale distributed generation sites.

For installations adjacent to combustible structures or public access zones, engineers commonly specify pad-mounted transformers filled with high-fire-point natural ester fluid (per ASTM D6871), or alternatively opt for cast-resin units installed within ventilated metallic enclosures. In utility-scale solar and BESS parks, turnkey prefabricated compact substations—which integrate the medium-voltage ring main unit (RMU), step-up transformer, and low-voltage protection panel into a single factory-tested enclosure—substantially reduce onsite civil commissioning hours.

Voltage Regulation and Reverse Power Flow Mitigation

Reverse power flow from distributed generation into radial distribution feeders inevitably causes voltage rise along the feeder length. Under traditional consumption regimes, the sending-end voltage at the substation bus is highest, gradually dropping toward the feeder tail due to line impedance ($R + jX$). When distributed generation assets inject substantial real power ($P$) and reactive power ($Q$), the voltage drop across the line impedance is expressed by the approximate voltage change formula:

$$\Delta V \approx \frac{P \cdot R + Q \cdot X}{V_n}$$

When generation exceeds local demand, $P$ becomes negative relative to the substation, causing $\Delta V$ to become negative—meaning line voltage rises toward the point of common coupling. If unmitigated, feeder voltages exceed statutory supply limits (such as ANSI C84.1 Range A limits of $\pm 5\%$ nominal voltage).

To maintain voltage compliance without curtailing renewable generation, utility-scale distributed generation transformers require sophisticated voltage control mechanisms:

1. On-Load Tap Changers (OLTC): Integrating motor-driven tap changers on the high-voltage winding allows the transformer to adjust turns ratios under load, compensating for feeder voltage swings. Consult our technical engineering guide to load tap changers for sizing vacuum-type tap mechanisms.
2. Inverter Volt-Var Control: Configuring local inverter control loops to absorb reactive power (operate at a lagging power factor) mitigates the $P \cdot R$ voltage rise by creating a counteracting $-Q \cdot X$ drop.
3. Impedance Specification: Specifying transformer percent impedance (%Z) precisely balances short-circuit current limitations against internal voltage drops. Standard units specify 5.75% to 6.5% impedance per IEEE C57.12.10, preventing excessive voltage variation under rapid load swings.

Vector Group Selection and Earthing Configurations

Selecting the correct winding configuration and earthing arrangement is a pivotal protection decision in the distributed energy generation market. Utilities enforce strict vector group specifications to control zero-sequence current pathways, manage ground-fault overvoltages (GFOV), and prevent sensitive directional ground overcurrent relays (ANSI 67N) from false tripping.

The two most common vector groups specified for interconnection transformers are:

• Dyn11 (Delta Primary, Wye Secondary with Neutral, 30° Lead): The delta connection on the medium-voltage side acts as a zero-sequence open circuit. It prevents triplen harmonic currents (3rd, 9th, 15th) from flowing into the utility distribution network and confines zero-sequence fault currents to the local generation side. However, during an islanded fault condition on an ungrounded medium-voltage circuit, a delta primary can subject healthy phases to severe neutral displacement and overvoltage up to $\sqrt{3}$ times normal phase-to-ground voltage.
• YNd11 (Wye-Grounded Primary, Delta Secondary): Commonly mandated by transmission and distribution network service providers when the distributed plant must provide a grounding bank for the utility medium-voltage feeder. The grounded-wye primary holds healthy phase voltages stable during single line-to-ground faults. The disadvantage is that the transformer acts as a ground source for external network faults, exposing the generation facility to through-fault currents from faults elsewhere on the feeder.

Specifying engineers must align transformer winding vector groups with local utility interconnect guidelines. Detailed earthing calculations, earth grid potential rise, and step/touch voltage coordination should follow procedures detailed in our guide to grounding grid design.

RFQ Specification Checklist for Distributed Generation Interconnection

Procuring transformers and switchgear for the distributed generation market requires transmitting an unambiguous, comprehensive technical specification sheet to prospective manufacturers. Omissions in initial tenders regularly cause post-award redesigns, project delays, and factory change orders.

Ensure your Request for Quotation (RFQ) package contains the following technical parameters:

1. Rated Capacity & Overload Profile: Base kVA (ONAN/KNAN) and maximum forced-air rating (ONAF/KNAF); 24-hour generation load profile including ambient site temperature extremes (e.g., -25 °C to +50 °C).
2. System Voltages & Tappings: Nominal primary and secondary voltages, insulation class, Basic Impulse Level (BIL) per IEEE C57.98 or IEC 60076-3; tap changer configuration (De-energised Tap Changer $\pm 2 \times 2.5\%$ or OLTC with 16 to 33 steps).
3. Vector Group & Grounding: Vector designation (e.g., Dyn11, YNd11, or YNyn0); neutral terminal rating (full-rated 100% continuous current vs reduced).
4. Harmonic & Thermal Limits: Harmonic spectrum breakdown through the 50th order; specified K-factor (minimum K-4) and calculated harmonic loss factor ($F_{\text{HL}}$); average winding rise limit (55 °C or 65 °C).
5. Impedance & Loss Capitalisation: Guaranteed short-circuit impedance percentage (%Z) with manufacturing tolerance (per IEC 60076-1 clause 10, typically $\pm 7.5\%$ to $\pm 10\%$); evaluated no-load ($A$-factor, $/kW) and load loss ($B$-factor, $/kW) capitalisation figures.
6. Dielectric Liquid & Environmental Protection: Mineral oil (IEC 60296) or biodegradable synthetic/natural ester fluid (IEC 62770); C5-M marine/corrosive paint finish for coastal PV installations.
7. Protection & Accessories: Dial-type thermometer with alarm/trip contacts, magnetic liquid level gauge, pressure relief device (PRD) with visual flag and trip switches, and multi-function Buchholz relay.

Next steps: specifying and sourcing

Deploying reliable balance-of-plant assets in the competitive distributed energy generation market demands robust manufacturing standards, tight impedance control, and verified thermal resilience. Our manufacturing facility designs and builds high-efficiency oil-immersed transformers, pad-mounted substations, and integrated compact substations tailored to complex renewable interconnects. Whether you are engineering a commercial rooftop PV installation, an industrial microgrid, or a multi-megawatt utility battery project, our engineering department provides comprehensive thermal simulations, vector-group matching, and full factory acceptance testing. Send your single-line diagrams, load profiles, and interconnection specifications to our team via our transformer quotation portal or contact our technical sales desk directly to review project lead times.
