Key takeaways
- Current transformer testing confirms turns ratio, winding polarity, excitation knee-point, and insulation integrity prior to energisation.
- The 10% knee-point voltage rule under IEC 61869-2 identifies core saturation limits to prevent protective relays from misoperating during through-faults.
- A secondary circuit must never be opened while primary current flows, as open-circuit voltages can exceed 2.5 kV, posing lethal electric shock hazards.
- Instrument transformer burdens must account for total secondary circuit loop impedance, including relay input impedance and terminal lead resistance.
- Demagnetisation is mandatory after secondary direct-current resistance measurements to clear remanent flux that distorts transient response.
Quick answer: Current transformer testing is a sequence of electrical diagnostic procedures—including insulation resistance, winding resistance, voltage ratio, polarity, and magnetisation curve verification—used to confirm that instrument transformers reproduce primary network currents accurately without premature core saturation or insulation breakdown.
In electrical substations and industrial switchgear, current transformers (CTs) serve as the primary sensing interface for protective relays, revenue meters, and control systems. Because protective equipment relies on linear secondary scaling during system short circuits, errors in ratio or uncontrolled magnetic saturation can lead to catastrophic breaker failures or false tripping. Whether performing commissioning on new switchgear or conducting routine maintenance on existing installations, systematic verification ensures that CT assets conform precisely to their design accuracy class and thermal ratings. Understanding these testing protocols is essential alongside routine power transformer testing and broader substation testing procedures.

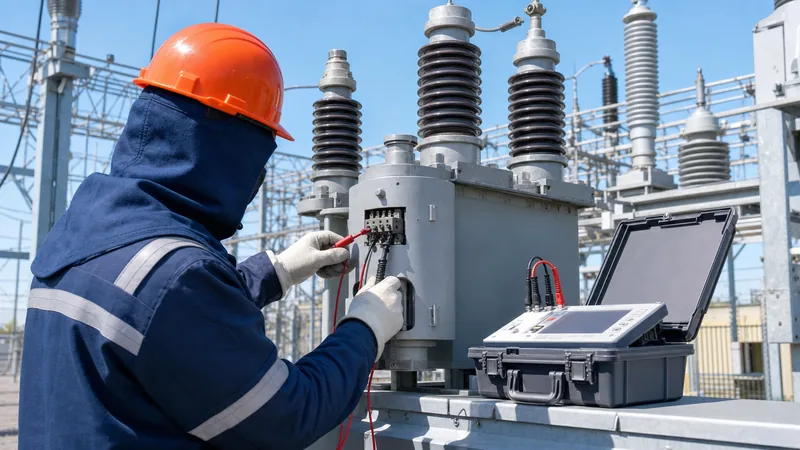

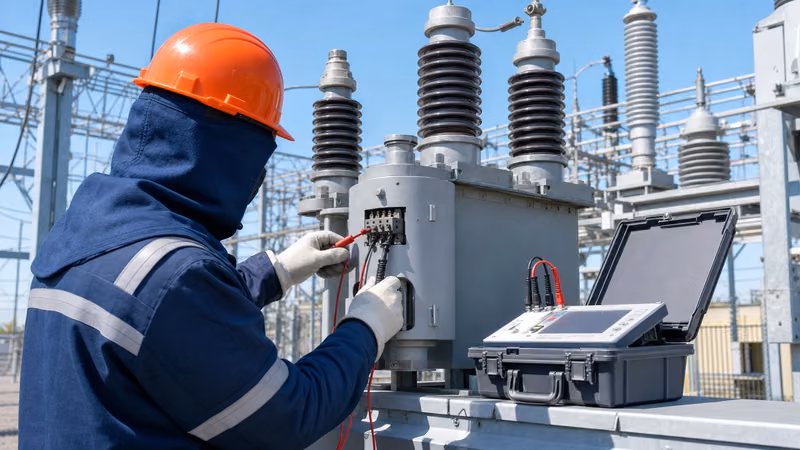

Core Objectives of Current Transformer Testing in Substations
Current transformer testing verifies that an instrument transformer maintains its specified accuracy class, withstands operating dielectric stresses, and behaves predictably under severe overcurrent conditions. Testing confirms that mechanical handling, transport vibrations, or factory assembly errors have not degraded the core-and-coil assembly or secondary terminal insulation.
Engineers evaluate CTs under two international benchmark standards: IEC 61869-2 (which supersedes IEC 60044-1 for inductive current transformers) and IEEE C57.13. These standards distinguish sharply between protective cores and metering cores:
- Metering cores: Designed to maintain tight accuracy (such as Class 0.2 or 0.5) near rated current, yet saturate deliberately at low overcurrent levels (indicated by an instrument security factor, FS ≤ 5 or FS ≤ 10) to protect downstream digital meters from fault currents.
- Protection cores: Engineered with substantial magnetic cross-sections to prevent saturation during asymmetric fault currents up to 20 or 30 times rated nominal current (specified by accuracy limit classes such as 5P20 or IEEE Class C800).
Confirming that these distinct cores have not been cross-wired to incorrect terminal blocks is one of the most critical objectives during pre-commissioning in modern transformer protection schemes.
Standard Procedures for Field CT Transformer Testing
Field CT transformer testing follows a sequential protocol designed to protect both the test technician and the magnetic properties of the core under test. Performing tests in the correct order prevents direct-current saturation from distorting subsequent alternating-current measurements.
- Visual and mechanical inspection: Examine nameplate data, verify structural integrity, inspect creepage paths for oil leaks or cracks on porcelain or cast resin, and confirm that primary earthing conductors are correctly torque-tightened.
- Insulation resistance testing: Apply 1,000 V or 2,500 V DC between the primary winding and earth, 500 V or 1,000 V DC between secondary windings and earth, and 500 V DC between isolated secondary cores. Minimum acceptable insulation resistance at 20 °C is typically 1,000 MΩ for primary insulation and 50 MΩ for secondary circuits according to IEEE C57.13.1.
- Secondary winding resistance measurement: Measure the internal resistance of each secondary winding tap using a low-resistance digital ohmmeter (Kelvin four-wire bridge). Temperature-correct the readings to 75 °C to verify compliance with factory test certificates.
- Core demagnetisation: Direct-current injection from resistance testing leaves residual magnetic flux (remanence) in the iron core. Apply a smoothly variable AC test voltage to the secondary terminals, increase it until the core reaches excitation saturation, and then slowly reduce the voltage back to zero over 30 to 45 seconds.
- Polarity verification: Confirm the subtractive polarity standard (terminal P1 matching S1, or H1 matching X1) using the DC flick test (applying a 9 V battery impulse to the primary while watching secondary galvanometer deflection) or via phase-angle measurement using an automated test set.
- Current ratio and phase angle verification: Inject a known primary test current (typically 10% to 100% of rated nominal current) using a primary injection test set, measuring the resulting secondary output to verify transformation ratio and phase angle error against IEC 61869-2 Table 201 limits.
- Excitation (magnetisation) curve test: Inject an AC test voltage across the disconnected secondary winding while leaving the primary open-circuit. Record the magnetising current at progressively increasing voltage steps to plot the B-H saturation curve and extract the knee-point voltage.
Current Transformer Testing: Saturation and Knee-Point Calculation
A primary objective of current transformer testing is verifying that the knee-point voltage matches the protective relay system requirements. The knee-point represents the boundary where an increase in secondary voltage yields a disproportionate rise in excitation current, causing severe waveform distortion and current attenuation.
Under IEC 61869-2 clause 3.1.204, the rated knee-point voltage ($V_k$) is defined as the point on the excitation curve where a 10% increase in applied secondary AC voltage increases the secondary excitation current by 50%. Under IEEE C57.13, saturation for Class C transformers is identified on a log-log curve where a 45-degree tangent intersects the excitation characteristic.
Consider a practical engineering calculation for an outdoor 33 kV substation circuit breaker equipped with a 1200/5 A, Class 5P20 current transformer feeding a numeric differential relay. We must verify whether the measured knee-point voltage ($V_k$) prevents saturation during an external through-fault:
- Rated primary current ($I_{pn}$): 1,200 A
- Rated secondary current ($I_{sn}$): 5 A
- Accuracy Limit Factor ($ALF$): 20
- Maximum symmetrical fault current ($I_f$): 24,000 A ($I_f / I_{pn} = 20$)
- Secondary winding DC resistance ($R_{ct}$): 0.45 Ω at 75 °C
- Secondary lead loop resistance ($R_L$): 0.35 Ω (80 metres of 4 mm² copper conductor)
- Protective relay burden ($R_B$): 0.15 Ω
The total connected secondary burden impedance ($Z_t$) is:
$$Z_t = R_{ct} + R_L + R_B = 0.45\,\Omega + 0.35\,\Omega + 0.15\,\Omega = 0.95\,\Omega$$
The minimum required internal saturation e.m.f. ($E_k$) required to sustain the full 20-times fault current without clipping is calculated as:
$$E_k \ge ALF \times I_{sn} \times Z_t = 20 \times 5\,\text{A} \times 0.95\,\Omega = 95.0\,\text{V}$$
If the field magnetisation test yields an actual knee-point voltage of $V_k = 118.5\,\text{V}$, the core provides a safety margin of $118.5 / 95.0 = 1.24$ (24% above the minimum saturation threshold), confirming the asset will operate safely within its linear magnetic region during clearance of system faults. For broader context on field diagnostics across substation components, review our guide on how to test a transformer.
Protection vs Metering Accuracy Limits and Criteria
Acceptance criteria for current transformer testing vary substantially depending on whether the core under test is dedicated to revenue measurement or system protection. Metering units must show minimal ratio error near unit power factor, whereas protection units trade initial accuracy for high-current linearity.
The following decision and comparison table highlights standard performance criteria stipulated by IEC 61869-2 and IEEE C57.13 across standard industrial classes:
| Class Designation | Standard Reference | Application Type | Current Ratio Error at Rated Current (±%) | Phase Displacement at Rated Current (Minutes) | Knee-Point / Saturation Factor |
|---|---|---|---|---|---|
| Class 0.2S | IEC 61869-2 | Revenue metering & billing | ±0.2% (at 20% to 120% $I_n$) | ±10 min | FS ≤ 5 or FS ≤ 10 |
| Class 0.5 | IEC 61869-2 | Commercial sub-metering | ±0.5% (at 100% to 120% $I_n$) | ±30 min | FS ≤ 10 |
| 5P20 | IEC 61869-2 | Distance & differential protection | ±1.0% (at rated current) | ±60 min | ALF = 20 (≤ 5% composite error at $20 \times I_n$) |
| 10P20 | IEC 61869-2 | Overcurrent & earth-fault relays | ±3.0% (at rated current) | No limit | ALF = 20 (≤ 10% composite error at $20 \times I_n$) |
| Class C400 | IEEE C57.13 | Medium-voltage relaying | ±1.0% (up to $20 \times I_n$) | Within 100 mrad | 400 V terminal limit at 100 A secondary |
| Class C800 | IEEE C57.13 | High-voltage transmission relaying | ±1.0% (up to $20 \times I_n$) | Within 100 mrad | 800 V terminal limit at 100 A secondary |
When testing protection cores, secondary loop burden must be kept low. Exceeding the nameplate burden rating diminishes the effective accuracy limit factor, causing the transformer to saturate at lower fault levels than specified by design.
Critical Safety Hazards and Common Field Pitfalls
The single most dangerous hazard in current transformer testing is the inadvertent opening of a secondary winding while primary load current is flowing. When a CT secondary circuit is open-circuited, the demagnetising counter-flux produced by secondary ampere-turns collapses immediately to zero.
With no secondary demagnetising MMF (magnetomotive force) to oppose the primary current, the entire primary current acts as an intense magnetising current. This drives the core into extreme magnetic saturation twice per cycle. The rapid collapse and reversal of flux induces extremely narrow, high-voltage voltage spikes across the open secondary terminals:
$$V_{peak} = \hat{\Phi} \times \omega \times N_s$$
Peak potentials regularly exceed 2,500 V to 10,000 V depending on the turns ratio. This voltage level will puncture wiring insulation, destroy test terminal blocks, generate explosive electrical arcing, and cause fatal electric shocks to personnel. Always short-circuit the secondary terminals before disconnecting any test lead or relay wiring.
Other frequent testing errors observed during site commissioning include:
- Multiple earth points: A secondary current circuit must be grounded at exactly one physical point (typically at the first marshalling kiosk terminal strip, per IEC 61936-1). Earthing at multiple locations introduces circulating ground currents that produce false differential spill current.
- Failure to demagnetise: DC winding resistance tests magnetise the core. Failing to de-flux the core before running ratio or phase-displacement tests causes false out-of-tolerance readings and increases relay operating times.
- Reversed polarity: Installing or wiring a CT with inverted polarity reverses directional overcurrent, distance, and differential calculations, causing healthy circuits to trip instantly on normal load.
Site Commissioning and RFQ Verification Checklist
A structured site checklist ensures that all electrical and regulatory requirements are fulfilled before closing substation inspection sign-offs. Site engineers can paste these inspection points directly into inspection and test plans (ITPs) or RFQ documentation:
- Nameplate verification: Confirm primary current, secondary current, frequency (50/60 Hz), accuracy class, rated burden (VA), and thermal short-time current ($I_{th}$) match single-line diagrams.
- Dielectric clearance: Ensure insulation distances between primary terminals and adjacent earthed steel structures satisfy IEC 60076 and IEC 61936 clearances.
- Polarity marking: Physically cross-check that the primary line terminal faces the busbar side and the primary load terminal faces the line or protected apparatus side in accordance with substation drawings.
- Excitation curve benchmark: Confirm that the calculated knee-point voltage meets or exceeds the relay manufacturer's minimum specification by at least 15%.
- Single-point earthing verification: Perform a 500 V insulation test between the secondary neutral conductor and substation earth with the master earth link removed to verify no stray parallel ground paths exist.
- Secondary burden measurement: Measure the actual connected loop burden ($VA = I^2 \times Z$) to verify that total relay and cable impedance does not exceed rated nameplate capacity.
Next steps: specifying and sourcing
Specifying the correct instrument transformers requires precise coordination of primary current ranges, system fault levels, secondary burdens, and protection relay classes. When requesting quotations for replacement units or new substation bays, provide complete single-line diagrams, ambient operating conditions, short-circuit ratings ($I_{th}$ and $I_{dyn}$), and desired accuracy standards.
Our engineering team manufactures and configures factory-integrated power transformers, outdoor prefabricated substations, and medium-voltage switchgear assemblies fitted with fully certified instrument transformers. To submit project drawings or obtain factory acceptance test data, contact our engineering sales department via our quotation inquiry page or get in touch directly through our contact form.
Frequently asked questions
Why is current transformer testing necessary before commissioning?
Current transformer testing is necessary to confirm that the transformer maintains its specified accuracy class, possesses correct polarity, and will not saturate prematurely during short-circuit faults. Verification prevents protective relay misoperation and protects revenue metering systems from calibration errors.
What happens if a current transformer secondary is left open-circuit?
Leaving a current transformer secondary open-circuit during primary energisation causes primary current to act entirely as magnetising flux. This induces peak voltages across the secondary terminals between 2,500 V and 10,000 V, destroying secondary insulation and creating a severe electrocution hazard.
What is the knee-point voltage in current transformer testing?
The knee-point voltage is the saturation threshold on the excitation curve where an increase in secondary voltage by 10% causes a 50% increase in magnetising current according to IEC 61869-2. It defines the operating boundary beyond which the core saturates and fails to scale current linearly.
Why must a current transformer be demagnetised after testing?
A current transformer must be demagnetised because direct-current testing—such as winding resistance and insulation resistance measurements—leaves remanent magnetic flux inside the core. This residual flux alters the excitation characteristic, introduces ratio errors, and increases the likelihood of premature saturation during system transients.
How many ground points should a current transformer secondary circuit have?
A current transformer secondary circuit must have exactly one single ground point according to standard engineering codes. Multiple ground points introduce parallel return paths for ground currents, creating circulating stray currents that distort current measurements and cause false differential relay tripping.
