Liquid-Cooled vs Air-Cooled Energy Storage Cabinets Compared

Thermal management is the single design choice with the largest downstream effect on a battery energy storage system’s cycle life, energy density, and running cost — yet it is often decided late, after chemistry and PCS sizing are already fixed. This comparison sets out where liquid cooling earns its added complexity, and where a conventional air-cooled cabinet remains the sensible answer.

Cell temperature uniformity

Lithium battery cells degrade faster at temperature extremes, and — critically — a pack’s usable life is generally limited by its weakest cells, not its average condition. Forced-air cooling moves heat by circulating air across cell surfaces or between modules; because airflow resistance and inlet-to-outlet temperature rise both increase along the air path, cells near the air outlet typically run measurably warmer than those near the inlet, especially at high ambient temperature or high C-rate. Liquid cooling, by contrast, circulates coolant through cold plates in direct thermal contact with cells or modules, and because liquid carries far more heat per unit volume than air for a given temperature rise, the coolant loop can be designed with much smaller inlet-to-outlet delta, giving a tighter temperature spread across the whole rack.

That tighter spread is the practical reason liquid cooling is increasingly specified on larger and higher-C-rate containerised systems: it is not primarily about peak temperature, which both methods can control adequately, but about minimising the spread of temperature — and therefore the spread of degradation rate — across hundreds or thousands of cells.

Cycle-life impact

Because degradation accelerates with temperature and with temperature non-uniformity, the practical effect of better thermal uniformity is a longer point at which the pack’s weakest-cell capacity falls below the system’s usable threshold, even where the average cell would have supported more cycles. This effect compounds with duty cycle: a system running one shallow cycle per day in a mild climate sees far less benefit from liquid cooling’s uniformity advantage than a system running multiple deep cycles per day in a hot climate, where hot-spot cells under forced air can fall meaningfully behind the pack average over a multi-year service life.

Energy density

Air cooling needs clear airflow paths between modules and racks, plus space for fans, ducting, and filtration, all of which consume container volume that would otherwise hold cells. Liquid cooling’s cold plates sit in direct contact with cells or modules and remove the need for that airflow clearance, so a liquid-cooled container of the same external footprint typically fits more usable energy — a meaningful factor where site space is constrained, such as urban substations or brownfield industrial sites where the footprint available for the BESS is fixed before the energy target is set.

Auxiliary power consumption

Every watt spent cooling the system is a watt not delivered to the grid or the load, so auxiliary consumption directly affects round-trip efficiency and revenue in dispatch applications. Air cooling’s fans must move a large volume of air to extract a given amount of heat, and fan power rises steeply with airflow rate. Liquid cooling’s pumps move a much smaller volume of fluid to remove the same heat, and although the loop adds a heat exchanger or small chiller, the net auxiliary draw at container scale is typically lower as a proportion of the system’s energy throughput than an equivalent air-cooled system working at the same heat load. At small scale, however, the fixed parasitic load of pumps, chillers and controls in a liquid loop can exceed what a simple HVAC unit would draw on a small cabinet, so the advantage is scale-dependent.

Noise

Fan-driven air cooling is generally the louder of the two approaches, particularly at high ambient temperature or high load when fans run at maximum speed. Liquid-cooled systems still need some fan or pump noise at the external heat exchanger, but typically at a lower and more consistent level than the variable, load-dependent fan noise of an air-cooled cabinet. This matters where a BESS sits near occupied buildings, residential boundaries, or other noise-sensitive sites subject to local noise ordinances.

Hot-climate performance

In high ambient temperature regions, air cooling’s effectiveness is constrained by the temperature of the air itself — once ambient air approaches the cells’ target operating range, forced air can no longer pull heat away efficiently, and the system may need to derate power or accept elevated cell temperatures. Liquid cooling loops paired with a chiller (rather than simple ambient-air heat rejection) can maintain effective cooling independent of ambient air temperature, which is why liquid-cooled systems are increasingly the default specification for projects in hot climates — Middle Eastern, South Asian, and similar high-ambient markets — even at moderate system sizes.

Maintenance

Air-cooled cabinets need regular filter replacement or cleaning and fan inspection, both straightforward and low-skill maintenance tasks. Liquid-cooled systems add coolant-loop maintenance: periodic coolant level and quality checks, pump inspection, and leak monitoring, which require more specific maintenance competence but are generally infrequent when the loop is well sealed. Neither approach eliminates the standard electrical and BMS inspection regime common to all BESS installations.

Cost

Liquid cooling adds coolant loop hardware — cold plates, pumps, heat exchangers or chillers, piping — that a simple HVAC-based air-cooled cabinet does not need, so upfront capital cost is typically higher for liquid cooling at a given power and energy rating. Whether that premium is worthwhile depends on the value of the cycle-life and density gains at the specific project’s scale, climate and duty cycle — the comparison table below summarises the trade-offs.

When air cooling is still the right answer

Air cooling remains a defensible, cost-effective choice for smaller commercial and industrial systems — typically in the tens to low hundreds of kWh — operating in mild-to-moderate climates with a modest cycling regime, such as a single daily peak-shaving cycle rather than multiple deep cycles. At that scale, the fixed overhead of a liquid loop’s pumps and chiller can outweigh its efficiency advantage, and the cycle-life gain from better temperature uniformity matters less because the duty is lighter to begin with. A site with straightforward maintenance access and no particular footprint constraint, in a climate that rarely pushes ambient temperature into the upper range where air cooling’s effectiveness drops off, is well served by a conventional air-cooled cabinet.

Coolant selection and safety

Where liquid cooling is specified, the coolant itself matters: most containerised BESS use a dielectric or glycol-water mixture circulated through sealed cold plates that never contact the cells directly, so coolant leakage risk is managed through plate design and periodic leak-detection sensors rather than by accepting any direct contact with live cell surfaces. A specification should confirm the coolant type, its freeze protection margin for cold-climate sites, and whether leak detection is integrated into the BMS/EMS alarm scheme so a slow leak is caught long before it affects thermal performance. Some designs use immersion cooling, submerging cells directly in a dielectric fluid, which pushes temperature uniformity further still but remains a less common, higher-cost approach outside specialist high-performance applications.

Retrofitting and mixed strategies

A system is not always purely one or the other: some containerised designs use air cooling for the PCS and power electronics compartment, where component tolerances are less temperature-sensitive, while reserving liquid cooling for the battery racks themselves, balancing cost against the areas where thermal uniformity matters most. Retrofitting an existing air-cooled installation to liquid cooling is rarely practical once cells are installed, since cold plates are typically integrated into the module or rack structure at the point of manufacture — this makes the cooling method a decision to fix at initial specification rather than one to revisit once the system is delivered.

Summary

Liquid cooling wins on temperature uniformity, cycle-life protection, energy density, and hot-climate reliability, at the cost of added upfront capital and coolant-loop maintenance. Air cooling remains the right answer for smaller C&I systems in mild climates with modest cycling, where simplicity and lower cost matter more than the marginal cycle-life gain. The right choice is set by scale, climate and duty cycle together, not by cooling method in isolation — see the companion guide on specifying a containerised BESS for how thermal management fits into the wider system specification. Review MARS’s liquid-cooled ESS containers and energy storage systems for both cooling options.

How MARS can help

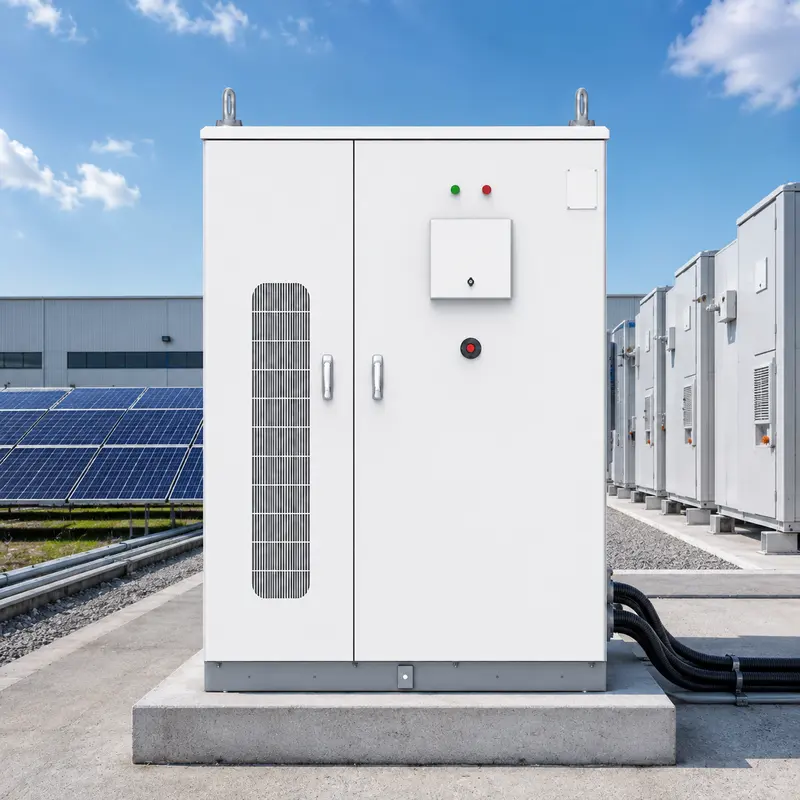

MARS manufactures outdoor battery energy storage cabinets from 40-372 kWh and containerised systems from 500 kWh to 10 MWh, offered in both air-cooled and liquid-cooled configurations, with thermal management selected to match project scale, climate and duty cycle. To discuss which cooling approach fits a specific site, contact MARS or request a quote.
