Key takeaways
- A prismatic battery encloses layered or wound electrode assemblies inside a rigid welded aluminium or steel casing, achieving volumetric packing efficiencies exceeding 80% in containerised racks.
- Mechanical compression between 3 kN and 12 kN per cell stack is mandatory to mitigate cyclic electrode delamination caused by intercalation-induced volumetric expansion.
- Integrated burst discs engineered to rupture at 0.4 MPa to 0.8 MPa prevent catastrophic casing rupture during uncontrolled internal gas generation.
- Large-format prismatic lithium cells ranging from 280 Ah to 320 Ah reduce system-level serial-parallel interconnect counts by up to 90% compared to cylindrical 21700 implementations.
- Thermal management systems must address anisotropic thermal conductivity, where heat dissipates through the cell thickness at roughly 1 to 1.5 W/(m·K) compared to 20 to 30 W/(m·K) along the electrode planes.
Quick answer: A prismatic battery is a lithium-based cell encapsulated within a rigid rectangular metallic can, designed to optimise packing efficiency, structural integrity, and thermal coupling in stationary and motive energy storage systems. Compared to cylindrical and pouch geometries, the rectangular profile maximises volumetric utilisation within modules while simplifying busbar assembly and thermal interface management.
In utility-scale and industrial battery energy storage systems (BESS), the cell format directly dictates balance-of-plant costs, module assembly complexity, and lifetime degradation rates. While cylindrical cells dominated early electric vehicle platforms and flexible pouch cells served consumer electronics, the large-capacity prismatic cell has become the baseline standard for megawatt-hour stationary power grids. Selecting the right cell requires evaluating structural mechanics, terminal connection integrity, venting behavior under thermal runaway, and mechanical compression requirements over the service life of the pack.

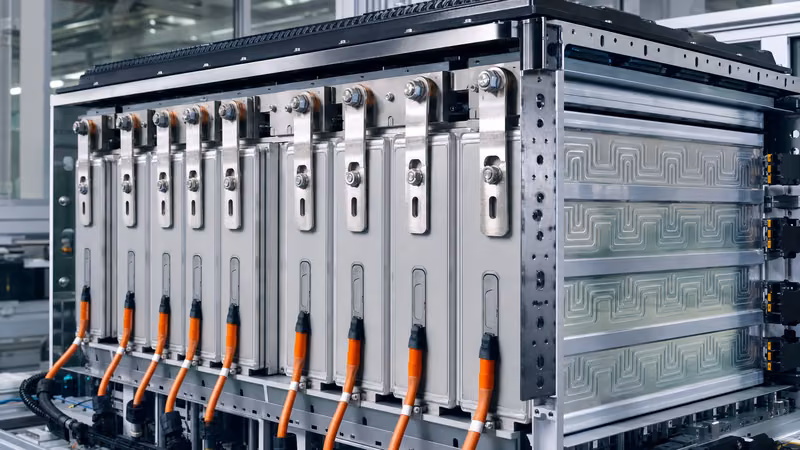

Anatomy and Construction of the Prismatic Cell Lithium Battery
A prismatic cell lithium battery consists of stacked or flat-wound electrode sheets sealed inside a laser-welded aluminium alloy housing. Unlike cylindrical cells that wrap continuous anode, separator, and cathode strips into a tight jelly roll, modern prismatic cells predominantly use a Z-fold stacking topology or flattened winding cores. Stacking provides superior current distribution across the electrode surface, lowering internal impedance and eliminating the mechanical stress concentrations typical of tight cylindrical bends.
The rigid container, typically fabricated from 3003-series aluminium with a wall thickness between 0.8 mm and 1.5 mm, features a top cover plate that houses the negative and positive terminals, an electrolyte injection port, and a safety vent. Terminals are isolated from the lid using ethylene propylene diene monomer (EPDM) or polyphenylene sulfide (PPS) insulating rings. Internal current collectors, manufactured from copper for the negative terminal and aluminium for the positive terminal, are ultrasonic-welded or laser-welded directly to the electrode foil tabs. For engineers sizing multi-megawatt systems, reviewing our comprehensive battery cell engineering selection guide clarifies how internal core geometry affects long-term cyclic capacity retention.
Mechanical Compression and Swelling Management
Mechanical compression is a vital operating parameter for maintaining internal contact pressure across electrode layers throughout cyclic operation. Lithium-ion intercalation and de-intercalation cause the electrode material to undergo continuous volumetric expansion and contraction. Over thousands of operational cycles, microscopic electrode swelling generates cumulative mechanical strain. Unconstrained cells exhibit delamination between the active material and the metal current collectors, accelerating capacity fade and increasing internal equivalent series resistance (ESR).
To guarantee target cycle life, battery modules utilise structural endplates linked by steel tie-rods or high-tensile side bands to exert a continuous compressive preload. Module designers must account for two distinct mechanical expansion phenomena: reversible breathing expansion during charge/discharge (roughly 1.5% to 2.5% strain), and irreversible swelling caused by solid electrolyte interphase (SEI) layer growth over calendar life (accumulating an additional 4% to 8% dimensional increase along the cell thickness).
Consider an engineering calculation for a 52-cell series string of standard 280 Ah cells (nominal thickness 72 mm per cell, width 174 mm, height 207 mm):
- Calculate the nominal stack length: 52 cells × 72 mm = 3,744 mm (excluding inter-cell insulation pads).
- Calculate the active surface area per cell face: 0.174 m × 0.207 m = 0.0360 m².
- Apply the cell manufacturer's recommended beginning-of-life (BOL) surface pressure of 0.3 MPa: Required clamping force = 0.30 × 10⁶ N/m² × 0.0360 m² = 10,800 N (10.8 kN).
- Evaluate end-of-life (EOL) pressure limits: As irreversible expansion accumulates, if the clamping frame is completely rigid, structural pressure can surpass 1.2 MPa (43.2 kN), which risks crushing separator pores and triggering internal micro-short circuits.
Consequently, compliant silicone foam or aerogel insulation sheets (1.0 mm to 2.0 mm thickness) must be interleaved between individual cells to absorb cyclic breathing while maintaining clamping pressure within the 0.2 MPa to 0.6 MPa operating window over the full 15-to-20-year system lifecycle. Incorporating reliable cell-level telemetry is paramount, as detailed in our battery monitoring system guide.
Comparison: Prismatic vs Cylindrical vs Pouch Cell Formats
Selecting the optimal cell format demands a multidimensional technical trade-off between energy density, thermal handling, safety venting, and structural complexity. Prismatic cells maximise volumetric pack efficiency by eliminating the empty triangular interstitial voids inherent to cylindrical cell bundles. The following decision matrix provides technical parameters across common industrial cell architectures under IEC 62619 standards.
| Engineering Metric | Large Prismatic Cell (LFP) | Cylindrical Cell (21700 / 4680) | Pouch Cell (NMC / LFP) |
|---|---|---|---|
| Nominal Capacity Range | 100 Ah to 320 Ah | 4.5 Ah to 25 Ah | 30 Ah to 100 Ah |
| Volumetric Pack Efficiency | 75% to 85% | 50% to 65% | 70% to 80% |
| Internal Impedance (AC 1 kHz) | ≤ 0.25 mΩ | 10 mΩ to 15 mΩ | 0.5 mΩ to 1.0 mΩ |
| Case Structural Rigidity | High (Aluminium, 0.8–1.5 mm) | Very High (Nickel-plated steel) | Low (Aluminium-laminated film) |
| Thermal Dissipation Geometry | Large flat prismatic faces | Curved radial shell | Large flat pouch surfaces |
| Interconnection Count (for 1 MWh) | Approx. 1,000 to 1,200 cells | Approx. 60,000 to 75,000 cells | Approx. 3,000 to 5,000 cells |
| Failure Venting Directionality | Controlled (Top bursting vent) | Axial (Positive terminal vent) | Uncontrolled (Edge seal rupture) |
| External Clamping Needed? | Yes (Mandatory 0.2–0.6 MPa) | No (Self-contained) | Yes (Uniform stack pressure) |
While cylindrical cells exhibit superior mechanical containment against internal hydrostatic pressure, the sheer quantity of electrical connections required for multi-megawatt systems introduces higher statistical failure rates across wire bonds or spot welds. The prismatic battery configuration significantly consolidates parts counts, reducing labour and testing during string commissioning.
Thermal Characteristics and Cooling System Design
A prismatic battery exhibits pronounced anisotropic thermal conductivity due to its multi-layered construction. Thermal energy travels through the aluminium and copper foil planes at 20 to 30 W/(m·K), whereas heat transfer perpendicular to the layers—through the separator and active chemical coating—drops to approximately 1.0 to 1.5 W/(m·K). System designers must account for this spatial variation when positioning thermal interface materials (TIM).
In high-capacity utility installations, bottom-plate or side-plate liquid cooling constitutes the benchmark practice. Direct conductive heat transfer via an extruded aluminium cold plate circulating a 50/50 water-glycol mixture extracts heat generated during aggressive charging profiles. For deep-dive cooling calculations and flow balance modeling, see our dedicated battery cooling engineering guide. To avoid local internal hot spots, the temperature delta (ΔT) across any single prismatic cell must not exceed 3 °C under peak C-rate discharge, as non-uniform thermal distribution drives uneven current sharing and accelerates local degradation within the electrode stack.
BMS Architecture and Active vs Passive Balancing for Large Cells
Battery management systems (BMS) for prismatic strings must handle low internal impedance and massive amp-hour capacities. In a 280 Ah or 314 Ah cell, a slight state-of-charge (SOC) deviation represents significant unmanaged energy. Traditional passive balancing circuits, which burn off excess charge through bypass resistors at currents between 50 mA and 200 mA, require excessive runtimes to equalise divergent cells in large stationary strings. Detailed balancing circuits and topology calculations are examined in our lithium ion cell balancing guide.
For energy storage systems utilising the LiFePO4 battery management system topology, the open-circuit voltage (OCV) profile presents an engineering challenge: the voltage curve is exceptionally flat between 20% and 80% SOC. A 5 mV voltage measurement deviation can correspond to an SOC discrepancy of over 15%. Voltage monitoring integrated circuits (ICs) must maintain an accuracy rating of ±1.5 mV across an operating temperature range of -40 °C to +85 °C. Furthermore, when integrating strings into multi-rack architectures exceeding 1,000 V DC, high-voltage galvanic isolation compliant with IEC 60664-1 must be maintained between local cell supervision circuits (CSC) and the central rack control unit.
Specification and Factory Inspection Checklist for Prismatic Cells
Procuring prismatic cells for grid-tied BESS containers requires stringent quality verification beyond nominal datasheets. Engineers should incorporate the following formal criteria into factory acceptance testing (FAT) and supplier RFQ documentation:
- Dimensional tolerances: Verify cell thickness, width, and height using calibrated coordinate measuring machines (CMM) under specified nominal preload clamping. Tolerance must not exceed ±0.5 mm on height and width, and ±0.3 mm on uncompressed thickness.
- Internal AC impedance (1 kHz): Test 100% of incoming cells at 25 °C ± 2 °C; variance within any delivery lot must remain within ±5% of batch mean value to avoid circulation currents in parallel groups.
- Weld seam integrity: Perform non-destructive helium mass spectrometry leak detection on the top lid seam weld, terminal pole seals, and vent assembly; leakage rate must be below 1.0 × 10⁻⁷ Pa·m³/s.
- Safety vent rupture pressure: Sample burst tests on safety vent discs must verify actuation within the specified tolerance band (e.g., 0.55 MPa ± 0.05 MPa) in accordance with UL 1642 and IEC 62619 standards.
- Electrode alignment (X-ray CT inspection): Inspect overhang margins of anode over cathode sheets; overhang must measure ≥ 1.0 mm along all borders to prevent edge dendrite formation during low-temperature charging.
- Insulation resistance: Cell terminals to external metallic case insulation resistance must measure > 100 MΩ under a 1,000 V DC test voltage.
Next steps: specifying and sourcing
When specifying a prismatic battery system for commercial, industrial, or utility-scale grid applications, an accurate definition of thermal duty cycles, structural compression systems, and high-voltage string limits ensures long-term operational success. Specify required C-rates, cycle life targets at given depths of discharge (DOD), and DC bus operating limits in your initial tender documents. Review our utility-scale energy storage systems and pre-engineered liquid-cooled ESS containers to align your project requirements with factory-tested platform standards. Contact our technical team through our quotation inquiry page or discuss project sizing directly via the engineering contact page.
Frequently asked questions
What is the lifespan of a prismatic battery?
A prismatic lithium iron phosphate (LFP) battery typically delivers 4,000 to 8,000 full equivalent cycles at 80% depth of discharge before reaching 70% of its initial capacity. This translates to an operational service life of 12 to 20 years under controlled thermal conditions between 20 °C and 30 °C.
Why do prismatic cells require mechanical compression?
Prismatic cells expand and contract during charge and discharge cycles as lithium ions intercalate into the electrodes. Clamping cells under 0.2 MPa to 0.6 MPa prevents delamination of electrode layers, sustains internal physical contact, prevents accelerated impedance growth, and prevents premature capacity loss.
What is the difference between a prismatic battery and a cylindrical battery?
A prismatic battery encloses stacked or flat-wound electrodes in a rectangular aluminium casing, offering superior volumetric packaging efficiency and higher unit capacities (50 Ah to 320 Ah). A cylindrical battery uses tightly wound jelly rolls inside cylindrical steel cans, offering greater internal pressure tolerance but requiring more individual cell connections per pack.
How does a prismatic cell handle internal gas buildup?
Prismatic cells feature a laser-etched aluminium burst vent on the top lid engineered to rupture between 0.4 MPa and 0.8 MPa. If overcharging, internal short circuits, or thermal runaway generate combustible gases, the vent ruptures directionally to exhaust gas safely before catastrophic can explosion occurs.
Can prismatic cells be mounted in any orientation?
Prismatic cells should primarily be mounted upright with terminal posts facing upwards to prevent electrolyte dry-out on the upper electrode regions and ensure proper operation of the safety vent. Some manufacturers permit mounting on the long side edge, but upside-down orientation is strictly prohibited.
