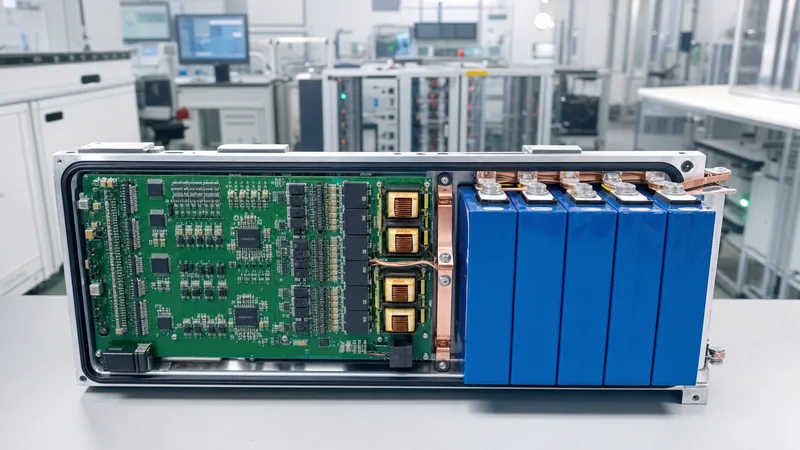

Lithium Ion Cell Balancing: BMS Engineering Design Guide

Quick answer: Lithium ion cell balancing is the electronic management process of equalising State of Charge (SOC) and individual cell voltages across series-connected strings, preventing premature inverter cut-off, thermal degradation, and usable capacity loss.

Multi-cell battery packs rely on strings of series-connected electrochemical cells to reach standard industrial operating voltages, ranging from 48 V telecom systems to 1500 V utility-scale energy storage systems (BESS). However, microscopic variations introduced during manufacturing, paired with thermal gradients across battery enclosures, cause individual cells to diverge in internal resistance ($R_i$), self-discharge rate, and coulombic efficiency over repeated charge-discharge cycling.

Without a dedicated lithium ion battery balancer, the total usable energy of the battery string degrades rapidly to match the performance of its weakest cell. Modern installations deploy specialised hardware and control firmware inside the battery management system (BMS) to preserve pack longevity and operational reliability. For complete system integration contexts, consult our Lithium BMS Guide and review foundational monitoring parameters in the Battery Monitoring System Guide.

Why cell balancing is essential in lithium ion batteries

Cell balancing is essential because series-connected cells carry identical string currents while differing slightly in individual electrical capacities and self-discharge rates. During charging, the cell with the lowest capacity or highest state of charge reaches the upper cut-off voltage first, triggering a High Voltage Cut-off (HVD) across the entire rack before adjacent cells reach saturation. Conversely, during discharge, that same cell collapses to the Low Voltage Cut-off (LVD) threshold prematurely, leaving substantial energy trapped in neighbouring cells.

The fundamental constraint governing any series string is expressed as:

Q_pack = min(Q₁, Q₂, ..., Q_n)

Where Q represents available cell charge. Over hundreds of cycles, minor self-discharge deltas compound. A self-discharge difference as slight as 0.5% per month will accumulate into a 6% capacity deficit within a single year if left uncorrected.

Furthermore, safety standards such as IEC 62619 clause 8.2 mandate cell operating limits to avoid lithium plating during overcharge and copper dissolution during over-discharge. Unequal cell states push unmonitored cells outside safe operating envelopes, accelerating electrolyte breakdown and increasing thermal runaway risks. Effective battery cell balancing ensures that every series element operates safely inside its validated electro-thermal boundaries.

Passive vs active lithium ion battery balancer architectures

A lithium ion battery balancer equalises cell conditions using either passive dissipation or active charge redistribution. Passive topologies strip charge from higher-voltage cells by converting electrical energy into heat via shunt resistors, whereas an active battery balancer shuttles energy from higher-potential cells to lower-potential cells or into the wider pack via inductive, capacitive, or DC-DC converter circuits.

The choice between passive and active balancing depends on cell capacity, allowable thermal rise, duty cycle, and system cost targets:

While passive balancing remains dominant due to low part counts, high-capacity utility projects featuring 280 Ah or 314 Ah prismatic cells increasingly adopt active schemes to resolve large Ampere-hour mismatches without imposing excessive thermal loads on internal BMS printed circuit boards.

Passive cell balancing circuit design and thermal dissipation calculations

Passive cell balancing lithium ion battery circuits use a discrete metal-oxide-semiconductor field-effect transistor (MOSFET) to switch a bypass resistor parallel to each cell terminal. The current drawn through this circuit bypasses the cell during charging, effectively slowing its charge rate relative to the rest of the string.

The bypass balancing current ($I_{bal}$) is governed by Ohm's Law:

I_bal = (V_cell - V_{FET_drop}) / R_shunt

Worked Calculation: Consider an industrial rack utilising 280 Ah lithium iron phosphate (LFP) prismatic cells. At top of charge, $V_{cell} = 3.45\text{ V}$. If the designer selects an internal bypass resistor $R_{shunt} = 39\ \Omega$ and a MOSFET with negligible on-resistance ($R_{DS(on)} < 50\text{ m}\Omega$):

I_bal = 3.45\text{ V} / 39\ \Omega = 0.0885\text{ A} (88.5\text{ mA})

The power dissipated as heat on the BMS printed circuit board per active balancing channel is:

P_diss = (3.45\text{ V}) × 0.0885\text{ A} = 0.305\text{ W}

In a standard 16-cell series module where 8 cells simultaneously engage bypass balancing, the circuit board dissipates:

P_total = 8 × 0.305\text{ W} = 2.44\text{ W}

Now assess recovery time for a 2% state-of-charge mismatch in a 280 Ah cell. The charge difference represents:

\Delta Q = 280\text{ Ah} × 0.02 = 5.6\text{ Ah}

To discharge this 5.6 Ah deficit with an 88.5 mA passive shunt, the required active balancing duration is:

t = 5.6\text{ Ah} / 0.0885\text{ A} \approx 63.3\text{ hours}

This calculation proves why passive balancing is effective solely for compensating baseline self-discharge variations over continuous floating or long operational windows. For larger step adjustments or dynamic duty cycles, higher current or active topologies are necessary. For deeper insights into SOC profiling, explore our Battery SOC Engineering Guide.

Active battery balancer topologies and energy transfer methods

An active battery balancer transfers electrical charge bidirectionally between system nodes rather than burning energy off as waste heat. Industrial implementations rely on three primary circuit topologies: switched capacitor, multi-winding transformer, and bi-directional buck-boost flyback converters.

Switched capacitor designs cycle energy between adjacent cells using high-frequency MOSFET networks and low-ESR ceramic capacitors. Energy naturally flows down the voltage gradient. While simple and reliable, switched capacitor circuits experience reduced balancing currents when cell voltage differentials ($\Delta V$) shrink below 20 mV, limiting their effectiveness in the flat voltage curve characteristic of LFP cells. For chemistry nuances, review the LiFePO4 Battery Management System Guide.

Transformer-based and isolated buck-boost topologies resolve this limitation by implementing active cell-to-pack or pack-to-cell transfer. A central transformer takes energy from the total series pack (e.g., 51.2 V or 768 V) and injects a regulated 2 A to 5 A current specifically into the lowest-voltage cell, independent of adjacent cell potentials. This architecture ensures high-speed recovery even when adjacent cells sit at nearly identical operating voltages.

Charge balancing algorithms and trigger strategies for LFP chemistry

The execution of charge balancing must be governed by algorithmic conditions tied directly to cell electrochemistry rather than raw instantaneous terminal voltages. In LFP chemistry, terminal voltage remains essentially flat between 20% and 80% SOC, where a 5 mV difference might reflect internal resistance variations or dynamic loading rather than an actual mismatch in stored chemical energy.

To prevent destructive "hunting" and false balancing, industrial BMS architectures execute balancing algorithms according to this structured procedure:

1. Rest qualification: Validate that pack charge/discharge current is below $C/50$ for a minimum relaxation period (typically 15 to 30 minutes) if resting Open Circuit Voltage (OCV) balancing is employed.
2. Voltage threshold activation: For dynamic li ion cell balancing during charge, suppress balancing until individual cell voltages exceed 3.40 V (for LFP), entering the upper exponential knee where voltage accurately tracks SOC.
3. Delta threshold evaluation: Measure maximum differential ($\Delta V = V_{max} - V_{min}$). Initiate balancing only when $\Delta V$ exceeds a programmable deadband, typically set between 15 mV and 30 mV, to prevent unnecessary switching cycles.
4. Thermal threshold interlocking: Measure balancing resistor and cell surface temperature sensors. If balancing bank temperature exceeds 65°C, derate or shut down bypass FETs in accordance with IEC 62619 thermal safety rules.
5. Cut-off condition check: Terminate balancing immediately when charging stops, when $\Delta V$ drops below 10 mV, or when the pack current reverses to discharge.

Factory testing and acceptance checklist for BMS balancing circuits

Factory Acceptance Testing (FAT) for battery management hardware requires explicit verification of balancing accuracy, thermal dissipation, and fail-safe protections before rack assembly. Field failures frequently trace back to dry-soldered shunt resistors or blown switching FETs that go undetected by basic communication polling.

Engineers specifying BMS racks should require the following quality control protocols during production testing:

• Channel current validation: Apply an external precision power supply across each balance channel to verify that passive bypass current matches design parameters within ±3% at 3.65 V nominal input.
• Thermal imaging inspection: Run all balancing channels simultaneously at 100% duty cycle for 60 minutes within an environmental test chamber set to 40°C. Confirm PCB traces and adjacent sense lines do not exceed thermal class limits (typically <85°C on FR4 substrates).
• Open-wire and short-circuit fault injection: Disconnect cell voltage sensing leads sequentially. The BMS must register an open-wire alarm within 100 ms and immediately inhibit balancing on that channel to prevent over-discharging the cell.
• Balancing FET failure detection: Verify firmware detects shorted bypass FETs. A permanently shorted FET will steadily drain a single cell to zero volts, causing permanent damage and fire risk.
• Isolation resistance verification: Perform dielectric withstand testing between balance control circuitry and chassis ground in line with UL 1973 requirements, confirming insulation resistance exceeds 100 M$\Omega$ at 1000 V DC.

Next steps: specifying and sourcing

When specifying energy storage racks or containerised battery systems, balancing performance determines long-term degradation rates and warranty viability. Engineering RFQs should specify maximum balancing current, balancing trigger thresholds, target chemistry, and maximum allowable rack-level thermal deltas (≤3°C).

To evaluate pre-engineered utility and commercial battery storage options incorporating active or passive thermal-monitored balancing systems, explore our factory solutions for an energy storage system or review high-capacity deployments featuring a liquid-cooled ESS container. Contact our engineering team directly via our quote submission page with your single-line diagram and duty cycle requirements for technical sizing and factory quotation.
