Key takeaways
- A commercial li ion battery system relies on precise battery management system (BMS) integration to balance cell voltages within a strict 5 mV window.
- Lithium iron phosphate (LFP) cells provide superior thermal runaway resistance at 270 °C compared to nickel manganese cobalt (NMC) chemistries at 210 °C.
- The rated capacity of li ion battery installations derates across operational lifespan due to solid electrolyte interphase (SEI) growth and cyclic degradation.
- BESS design standards such as IEC 62619 clause 8.2 and NFPA 855 mandate multi-tier thermal run-away protection, gas detection, and cell-level voltage monitoring.
- Correct system configuration requires string-level voltage window matching to inverter maximum power point tracking limits to avoid operational clipping.
Quick answer: A li ion battery is an electrochemical energy storage technology that shuttles lithium ions between positive and negative electrodes during charge and discharge cycles. In commercial and utility installations, individual cells are combined into modules and high-voltage racks controlled by a digital Battery Management System (BMS) to deliver round-trip efficiencies exceeding 88% to 95%.

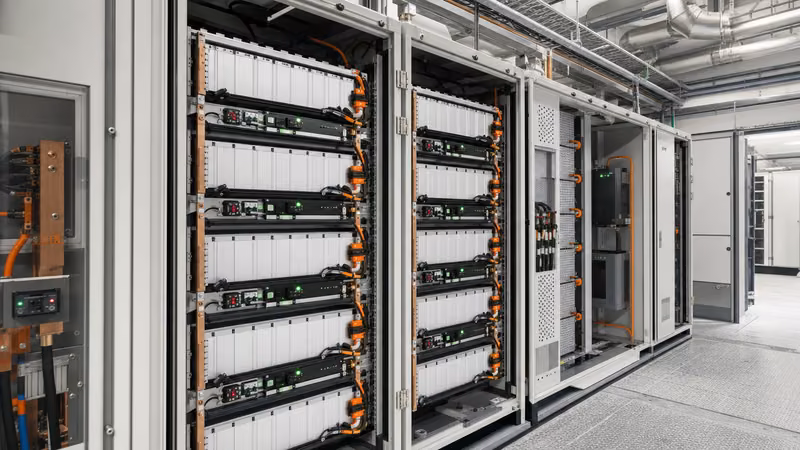

For electrical engineers, system integrators, and EPC contractors, specifying a large-scale energy storage setup demands a deep understanding of cell electrochemistry, thermal behavior, degradation mechanics, and supervisory electronics. Industrial battery energy storage systems (BESS) require far more engineering discipline than standard low-voltage DC banks. The interplay between cell format, rack architecture, switchgear integration, and supervisory controls dictates overall safety, capital expenditure, and asset lifespan.
Whether deploying stationary storage for grid balancing, peak shaving, or microgrid resilience, engineers must design around strict electrical limits defined by international standards such as IEC 62619, UL 1973, and NFPA 855. Selecting the right battery cell engineering specifications and understanding how control units monitor individual cells prevents premature degradation and hazardous failure modes.
How a Li Ion Battery Operates: Chemistry and Cell Architecture
A li ion lithium battery stores electrical energy chemically via an intercalation mechanism, moving lithium ions (Li+) from a transition metal cathode across a non-aqueous electrolyte and porous polyolefin separator to an intercalated graphite or silicon-graphite anode during charging.
The fundamental building block of any energy storage system is the individual lithium ion cell. These cells are mass-produced in three physical formats: cylindrical (such as 21700 or 4680 formats), prismatic aluminum-cased units, and pouch configurations. Utility and industrial BESS systems predominantly utilize prismatic formats ranging from 280 Ah to 314 Ah capacity due to their mechanical rigidity, volumetric packing efficiency, and straightforward integration with liquid-cooled cold plates.
In industrial systems, two primary chemistries dominate the market:
- Lithium Iron Phosphate (LFP / LiFePO4): Operates at a nominal potential of 3.2 V per cell. It features an olivine crystal structure that resists oxygen release during internal short circuits, yielding high thermal stability with onset runaway temperatures typically above 270 °C. It provides 6,000 to 10,000 equivalent full cycles at 80% Depth of Discharge (DoD).
- Nickel Manganese Cobalt (NMC / LiNiMnCoO2): Operates at a nominal potential of 3.6 to 3.7 V per cell. Its layered oxide matrix offers superior gravimetric energy density (220 to 280 Wh/kg versus LFP at 150 to 180 Wh/kg), making it common in space-constrained sites, though it possesses a lower runaway onset threshold near 210 °C. Detailed comparisons can be explored in our guide on LFP vs NMC commercial BESS chemistry.
Evaluating Battery Capacity Lithium Ion and Degradation Dynamics
The nominal capacity of li ion battery cells represents the total electrical charge an individual unit or integrated rack can deliver under standardized laboratory conditions—typically discharged at a 0.5C rate at 25 °C down to the manufacturer's end-of-discharge cut-off voltage.
Engineers must distinguish between nominal rated capacity, nameplate usable capacity, and end-of-life (EOL) capacity. The battery capacity lithium ion metrics degrade along two distinct vectors:
- Calendar Aging: Continuous parasitic side-reactions, including the progressive thickening of the Solid Electrolyte Interphase (SEI) layer on the graphite anode, consume active cyclable lithium even when the storage system sits idle at float charge. Calendar degradation accelerates exponentially as cell temperatures exceed 30 °C or resting state of charge (SoC) remains sustained above 90%.
- Cycle Aging: Mechanical micro-cracking of active cathode particles occurs due to lattice expansion and contraction during continuous lithium insertion and extraction. Solid electrolyte degradation and lithium plating occur under rapid charging conditions, particularly below 10 °C.
To guarantee target performance over a 10-to-20-year project timeline, consulting engineers must incorporate capacity augmentation strategies or overbuild the initial nameplate rating. A system sized to deliver 2.0 MWh at Year 10 with an expected 2.0% annual capacity loss requires an initial installation capable of delivering roughly 2.45 MWh, factoring in depth-of-discharge limits and balance-of-plant auxiliary consumption.
Engineering Comparison: Commercial Li Ion Battery Chemistries
Selecting the optimal lithium ion cell battery chemistry involves balancing safety limits, thermal characteristics, physical footprint, and capital expense per cycle.
The table below compares the primary electrochemical specifications of commercial-grade cells deployed in grid-scale and industrial applications:
| Engineering Parameter | LFP (Lithium Iron Phosphate) | NMC (Nickel Manganese Cobalt) | LTO (Lithium Titanate) |
|---|---|---|---|
| Nominal Cell Voltage (V) | 3.20 V | 3.65 V | 2.30 V |
| Operating Voltage Window (V) | 2.50 V – 3.65 V | 2.80 V – 4.25 V | 1.50 V – 2.85 V |
| Gravimetric Energy Density (Wh/kg) | 150 – 180 Wh/kg | 220 – 275 Wh/kg | 80 – 110 Wh/kg |
| Volumetric Energy Density (Wh/L) | 300 – 400 Wh/L | 550 – 700 Wh/L | 170 – 240 Wh/L |
| Thermal Runaway Onset (°C) | 270 °C | 210 °C | Exceeds 300 °C |
| Cycle Life (80% DoD, 25 °C) | 6,000 – 10,000 cycles | 2,500 – 4,500 cycles | 20,000 – 30,000 cycles |
| Round-Trip Efficiency (RTE, %) | 92% – 95% | 94% – 96% | 86% – 90% |
| Typical Discharge C-Rate Rating | 0.5C – 1.0C continuous | 1.0C – 3.0C continuous | 5.0C – 10.0C continuous |
While NMC remains common in weight-critical electric transport, stationary energy storage overwhelmingly favors LFP. The non-combustible nature of its phosphate chemistry under internal cell short conditions satisfies local fire codes such as NFPA 855 without demanding excessive physical boundary setbacks from switchgear structures and transformers.
BMS Architecture and Safety Standards for a Li Ion Battery
A high-voltage li ion battery requires an integrated Battery Management System (BMS) to maintain operational safety, cell longevity, and functional compliance with IEC 62619 clause 8.2 and UL 1973. Without continuous cell-level monitoring, slight variations in manufacturing tolerances or thermal gradients across a rack lead to dangerous over-voltage charging or deep-discharge states.
Industrial BMS architecture is deployed in a three-tier hierarchical configuration:
- Tier 1: Battery Electronics Unit / Slave Unit: Direct-mount printed circuit board assemblies attached to the module busbars. These monitor every lithium ion cell for individual voltage (typically ±1 mV accuracy) and multiple temperature sensing points via NTC thermistors placed on the cell terminals and mid-casing.
- Tier 2: Rack Management Unit / High-Voltage Box: Aggregates string-level data from the module slave units, tracks string direct-current via Hall-effect sensors or precision shunts, measures total string DC voltage, and actuates the positive/negative DC contactors, pyrofuses, and pre-charge circuits. Read more about rack control mechanics in our guide on the battery control module architecture.
- Tier 3: System Master BMS / Energy Management System (EMS): Interfaces with the local facility SCADA or microgrid controller via Modbus TCP, DNP3, or IEC 61850. It computes overall system State of Charge (SoC), State of Health (SoH), dynamic charge/discharge current limits (CCL/DCL), and coordinates with the battery monitoring system to ensure safe operating envelopes.
Active and passive balancing circuits within the Tier 1 BMS maintain individual cell balance. Passive balancing shunts excess charge through surface-mount bleed resistors (dissipating 50 to 200 mA as heat), while active systems shuttle energy from higher-voltage cells to lower-voltage cells using inductive or capacitive switching circuits.
Industrial Sizing Calculation: Designing a 1 MW / 2 MWh Battery String
Determining the correct lithium ion capacity for a utility or industrial installation requires calculating the series-parallel arrangement of cells to match the DC bus voltage envelope of the selected Power Conversion System (PCS).
Consider an engineering specification requiring a 1,000 kW (1.0 MW) active power rating with a 2-hour discharge duration (2,000 kWh usable AC delivery at the step-up transformer LV terminal). The project parameters are:
- Selected cell: Prismatic LFP, 3.2 V nominal, 304 Ah rated capacity, operating range 2.80 V to 3.65 V.
- Inverter (PCS) DC voltage operating window: 600 VDC to 900 VDC; nominal operating point: 750 VDC.
- System Round-Trip Efficiency (PCS + Transformer + Auxiliaries): 88% overall (92% for DC battery system alone).
- Depth of Discharge (DoD) limit: 90% (operating between 5% and 95% SoC).
- Target lifetime: 10 years, with a calculated EOL retention of 75% capacity.
Step 1: Series Cell Count for Voltage Matching
To match the nominal DC input of the inverter (750 VDC):
Number of series cells ($N_s$) = 750 V / 3.2 V = 234.3 cells.
We select 240 cells in series (240S) across 15 modules of 16 cells each.
Verify operating range: Minimum string voltage = 240 × 2.80 V = 672 VDC; Maximum string voltage = 240 × 3.65 V = 876 VDC. Both values fall within the inverter's 600 V to 900 V MPPT window.
Step 2: String Energy Calculation
Nominal string voltage = 240 × 3.2 V = 768 V.
Nominal capacity of one string (1P) using 304 Ah cells = 768 V × 304 Ah = 233.47 kWh gross energy.
Step 3: Required Nameplate Energy for EOL Guarantee
Target net usable AC energy delivered at EOL: 2,000 kWh.
Required usable DC energy at Year 10 (accounting for 96% inverter efficiency) = 2,000 kWh / 0.96 = 2,083.3 kWh.
Factoring in 90% DoD: Total installed DC capacity at EOL = 2,083.3 kWh / 0.90 = 2,314.8 kWh.
Factoring in 75% EOL retention to compensate for degradation over 10 years: Initial BOL (Beginning of Life) DC capacity required = 2,314.8 kWh / 0.75 = 3,086.4 kWh.
Step 4: Parallel String Configuration
Number of parallel strings ($N_p$) = 3,086.4 kWh / 233.47 kWh per string = 13.22 strings.
Rounding up to ensure compliance gives 14 parallel strings (14P).
Total installed BOL gross capacity = 14 × 233.47 kWh = 3,268.5 kWh (3.27 MWh). This architecture provides complete reliability over the 10-year operating horizon.
Factory Acceptance Testing and Commissioning Checklist
Before an industrial lithium battery original assembly is energized on-site, rigorous Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT) protocols must verify compliance with IEC 62619, IEEE 2800, and local utility interconnect criteria.
Project engineers should incorporate the following checklist into procurement specifications:
- Insulation Resistance and Dielectric Withstand: Measure insulation resistance between positive/negative DC poles and the chassis ground using a 1,000 V or 1,500 V megohmmeter per IEC 60364-6. Minimum acceptable value is 1,000 Ω/V (typically >100 MΩ on factory-built racks).
- BMS Telemetry and Communication Verification: Verify that analog front-end (AFE) chips report all 240 series cell voltages correctly. Introduce simulated sensor dropouts to confirm that communication loss trips the rack Master Contactor within 100 milliseconds.
- Contact Resistance of Inter-Module Busbars: Perform micro-ohmmeter (DLRO) testing on all bolted copper/aluminum joint connections. Resistance must fall below 15 micro-ohms per connection to avoid localized thermal runaway during high-rate discharge.
- Thermal Management Commissioning: For liquid-cooled systems, verify ethylene glycol-water flow rates, loop pressure (typically 1.5 to 2.5 bar), and leak detection sensors under maximum operating pump speed. For air-cooled units, verify HVAC differential pressure and uniform distribution across all rack faces.
- Emergency Stop and Fire Suppression Interlocks: Validate hardware hardwired trip loops connecting aerosol or clean-agent fire suppression systems, deflagration venting panels, and gas detectors (measuring CO, H2, and VOC concentrations per UL 9540A) directly to the main DC breaker shunt trip.
Next Steps: Specifying and Sourcing
Procuring a dependable li ion battery energy storage installation requires transparent coordination between mechanical, electrical, and control engineering disciplines. When preparing a Request for Quotation (RFQ), EPCs and developers should provide the target site profile, including point of common coupling (PCC) voltage, daily cycling profile (C-rate and DoD requirements), ambient thermal extremes, and seismic criteria.
Explore our integrated energy storage system solutions and turnkey liquid-cooled ESS containers engineered to international standards. For comprehensive project quotes, customized battery rack schematics, and containerized substation integration support, contact our power engineering team through our dedicated engineering contact page or submit a direct RFQ via our substation quote form.
Frequently asked questions
What is the primary difference between LFP and NMC li ion battery chemistries?
Lithium Iron Phosphate (LFP) delivers superior thermal stability with an onset runaway threshold above 270 °C and an extended cycle life of 6,000 to 10,000 cycles at a lower energy density. Nickel Manganese Cobalt (NMC) provides higher volumetric and gravimetric energy density but exhibits lower thermal runaway onset near 210 °C.
How is the capacity of li ion battery calculated for stationary installations?
Battery capacity is determined by multiplying the nominal cell amp-hour (Ah) rating by the number of parallel cells and the nominal system DC voltage. System sizing must factor in depth-of-discharge limits, round-trip efficiency of the power conversion system, and anticipated multi-year calendar and cycle degradation.
What causes capacity fade in a commercial lithium ion cell?
Capacity fade is caused by calendar aging and cyclic aging. Parasitic chemical reactions build up the solid electrolyte interphase (SEI) layer on the graphite anode, consuming active lithium, while continuous mechanical expansion and contraction fracture cathode materials, leading to internal impedance growth.
Why is cell balancing required in high-voltage li ion battery racks?
Cell balancing prevents individual cells from hitting low-voltage or high-voltage cut-off thresholds before the rest of the string. Without balancing, manufacturing variations and temperature gradients cause string capacity underutilization and risk over-charging individual cells into thermal runaway.
Which international safety standards govern commercial li ion battery installations?
Commercial and grid installations are governed by IEC 62619 for industrial cell and system safety, UL 1973 for stationary energy storage batteries, UL 9540A for thermal runaway fire propagation testing, and NFPA 855 for stationary energy storage system installation and fire protection.
