What Does BESS Mean? Battery Storage Engineering Guide

Quick answer: BESS stands for Battery Energy Storage System. It is an electro-chemical installation that captures electrical energy from generation sources or the utility grid, stores it within rechargeable battery modules, and discharges it via bidirectional power conversion systems when grid support or site power is required.

Understanding what does BESS mean is essential for plant engineers, utility asset managers, and electrical contractors facing intermittent renewable penetration and peak demand tariffs. In heavy commercial and utility applications, a modern storage facility functions as a dynamically dispatchable generation and load asset, responding to frequency shifts and voltage excursions within milliseconds.

What does BESS mean? Core acronym and functional definition

The precise definition of BESS denotes an integrated power-engineering assembly rather than a simple collection of accumulator cells. The real BESS meaning encompasses five interdependent layers: electrochemical battery cells assembled into modules and series strings (racks), a multi-tiered battery management system (BMS), a bidirectional power conversion system (PCS), a supervisory energy management system (EMS), and balance-of-plant auxiliary safety infrastructure.

Standardised under IEC 62933-1 (Electrical Energy Storage Systems), a BESS is classified by its rated continuous power (expressed in kilowatts or megawatts) and its duration at nominal discharge (expressed in kilowatt-hours or megawatt-hours). Unlike conventional standby generator sets that convert mechanical fossil fuel energy into alternating current (AC) with notable startup latency, an operational storage plant operates continuously across four electrical quadrants, absorbing real power ($P$) and reactive power ($Q$) or injecting them into the distribution bus with response times often below 20 milliseconds.

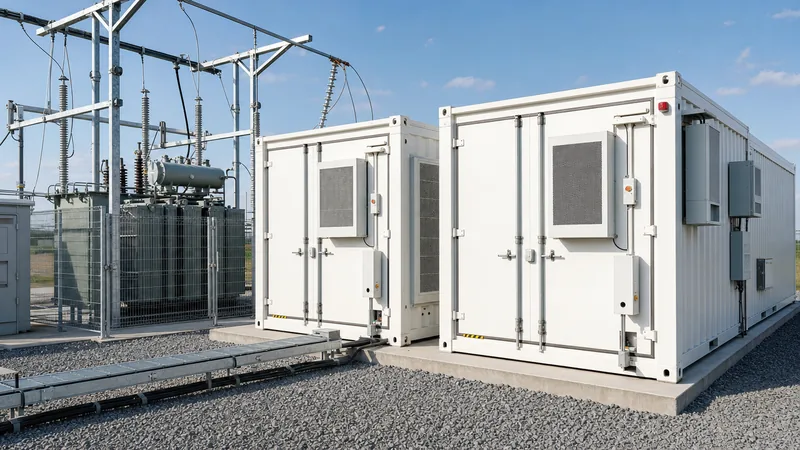

Core architecture of a commercial and utility-scale BESS plant

A grid-tied BESS plant relies on physical and digital integration across low-voltage DC, low-voltage AC, and medium-voltage grid interconnects. Each subsystem must adhere to stringent thermal, electrical, and structural design standards:

• Electrochemical energy core: Modern utility and industrial systems predominantly employ lithium iron phosphate (LFP vs NMC battery chemistry) due to its high thermal runaway threshold (approximating 270°C) and operational cycle endurance exceeding 6,000 cycles at 80% Depth of Discharge (DoD).
• Battery management system (BMS): Operates as a three-tier monitoring topology (Cell Supervisory Circuit → Rack Management Unit → System Master BMS) evaluating individual cell voltages, temperatures, State of Charge (SoC), and State of Health (SoH) per IEC 62619 standards.
• Power conversion system (PCS): A bidirectional inverter utilising insulated-gate bipolar transistors (IGBT) or silicon carbide (SiC) semiconductors to rectify AC grid power into controlled DC for charging, and invert stored DC back into grid-compliant AC.
• Thermal and fire containment enclosures: Outdoor installations require custom environmental enclosures. Engineers specify battery enclosure engineering features such as IP55 or NEMA 3R ingress protection, dedicated liquid-cooling loops, integrated gas detection (CO, H₂), and water-mist or clean-agent fire suppression adhering to NFPA 855 clause 4.3.
• Transformer and MV switchgear skid: Steps up the typical 400 V to 690 V PCS output to local distribution voltages, such as 11 kV, 22 kV, or 33 kV, isolating the plant via vacuum circuit breakers and protective relaying.

How an industrial BESS interacts with the electrical grid

An energy storage plant functions as a flexible grid balancing asset through distinct operational modes dictated by local automated controllers or utility SCADA signals. In high-demand manufacturing facilities, industrial operators implement commercial energy storage systems primarily for demand-charge management and peak-shaving.

At utility scale, installations provide dynamic primary frequency response (FFR/FCR). When grid frequency drops below nominal limits (e.g., 49.8 Hz in a 50 Hz grid or 59.8 Hz in a 60 Hz grid), the inverter automatically increases active power discharge within 200 milliseconds to arrest grid decline, per IEEE 2800-2022 interconnect requirements. Conversely, during periods of solar or wind over-generation, the system acts as a variable load, charging the battery bank to eliminate curtailment and mitigate negative spot-market pricing.

Engineering sizing calculation: Worked industrial peak-shaving example

Sizing an operational storage system requires calculating real usable energy by factoring in round-trip efficiency, degradation allowances, and depth of discharge limits rather than using gross cell ratings.

Design Scenario: An industrial facility must shave a 1,200 kW peak load for an unbroken duration of 2 hours ($t = 2.0\text{ h}$). The facility operates on a 400 V bus, stepping up to a 10 kV distribution loop.

• Required deliverable peak power ($P_{\text{req}}$): $1,200\text{ kW}$
• Target continuous discharge duration ($t$): $2\text{ hours}$
• Required usable output energy ($E_{\text{usable}}$): $1,200\text{ kW} \times 2.0\text{ h} = 2,400\text{ kWh}$
• System round-trip AC-to-AC efficiency ($\eta_{\text{RTE}}$): $88\%$ ($0.88$)
• Allowable operational Depth of Discharge ($\text{DoD}$): $90\%$ ($0.90$)
• Ten-year capacity retention factor ($F_{\text{degrad}}$): $80\%$ ($0.80$)
• Auxiliary parasitic consumption factor ($F_{\text{aux}}$ for HVAC and control): $3.5\%$ ($0.035$)

The gross DC installed storage capacity ($E_{\text{gross}}$) is calculated using the following formula:

$$E_{\text{gross}} = \frac{E_{\text{usable}}}{\text{DoD} \times F_{\text{degrad}} \times \eta_{\text{discharge}}} \times (1 + F_{\text{aux}})$$

Assuming one-way discharge inverter/transformer efficiency ($\eta_{\text{discharge}}$) of $94\%$ ($0.94$):

$$E_{\text{gross}} = \frac{2,400\text{ kWh}}{0.90 \times 0.80 \times 0.94} \times 1.035 = \frac{2,400}{0.6768} \times 1.035 = 3,546.1 \times 1.035 \approx 3,670\text{ kWh}$$

The plant engineer must procure a system with a nominal battery rack nameplate rating of at least 3,670 kWh (3.67 MWh) paired with a minimum 1,300 kVA PCS to reliably deliver 1,200 kW continuously for two hours at year 10.

BESS subsystem technical specification matrix

When preparing procurement specifications or reviewing bids from equipment vendors, engineers must evaluate equipment across standard mechanical, electrical, and thermal parameters.

Site acceptance testing and commissioning procedure

Commissioning an industrial or utility storage installation requires systematic energisation and validation according to IEC 62933-5-2. Electrical contractors must execute the following structured sequence:

1. Cold insulation and continuity checks: Verify insulation resistance across DC busbars (minimum 1,000 MΩ at 1,000 V DC testing voltage) and execute torque-marking audits on all high-current bolting interfaces.
2. BMS communication validation: Confirm Modbus TCP/IP or CANbus telemetry between module battery monitoring units and the central master controller, establishing that cell voltage variance remains below ±10 mV under open-circuit conditions.
3. Auxiliary infrastructure pre-commissioning: Energise thermal management chillers, verifying coolant flow rates, zero pressure drops along distribution manifolds, and complete interlocking with dry fire suppression controllers.
4. Step-up transformer and PCS phase matching: Energise the medium-voltage skid from the utility side; verify correct phase rotation (A-B-C) and synchronisation tolerances prior to closing the main incoming breaker.
5. Full-load charge and discharge thermal run: Subject the plant to a 100% Depth of Discharge continuous cycle at rated C-rate, performing thermographic imaging on busbars, switchgear stabs, and inverter terminations to verify zero thermal anomalies (ΔT < 10 K).
6. Emergency shutdown (ESD) verification: Trigger intentional trip simulations (gas detection, door interlocking, high-temperature limit) to verify that the main DC contactors open in under 50 milliseconds.

Next steps: specifying and sourcing

When specifying a complete storage installation, project teams must supply detailed operational parameters to the manufacturer. This includes the required continuous power rating (MW), nominal discharge duration (hours), target point of common coupling (PCC) voltage, and local climate extremes. Explore engineered energy storage systems and modular liquid-cooled ESS containers configured with matched MV step-up skids. To discuss site layouts, single-line diagrams, or request tailored factory pricing, contact our application engineering team through our quotation inquiry page.
