Key takeaways
- AC-coupled energy storage systems offer superior operational flexibility and retrofit feasibility for utility-scale solar farms compared to DC-coupled architectures.
- Integrating a 4-hour battery energy storage system allows solar operators to recapture up to 92% of peak generation clipped by inverter loading ratios exceeding 1.30.
- Thermal runway mitigation requires cell-level compliance with IEC 62619 clause 8.2 and unit-level fire propagation testing according to UL 9540A.
- Liquid-cooled lithium iron phosphate (LFP) enclosures maintain internal temperature variations within 2.5 degrees Celsius, extending asset service life beyond 6,000 cycles.
- Medium-voltage skid integration must adhere to IEEE 1547-2018 grid interconnection parameters, specifically concerning low-voltage ride-through and reactive power compensation.
Quick answer: Energy storage systems integrated into utility-scale solar farms capture clipped generation, smooth output intermittency, and provide ancillary grid services. Modern configurations utilise lithium iron phosphate (LFP) chemistry connected via dedicated medium-voltage skid substations to transform variable DC renewable generation into dispatchable electricity storage assets.

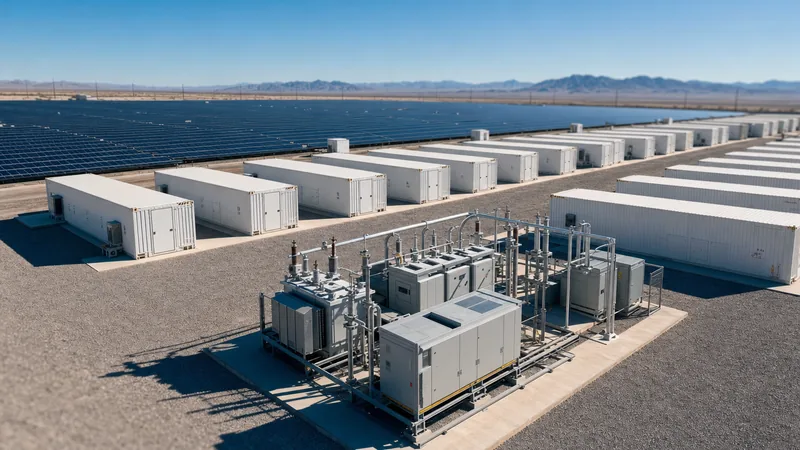

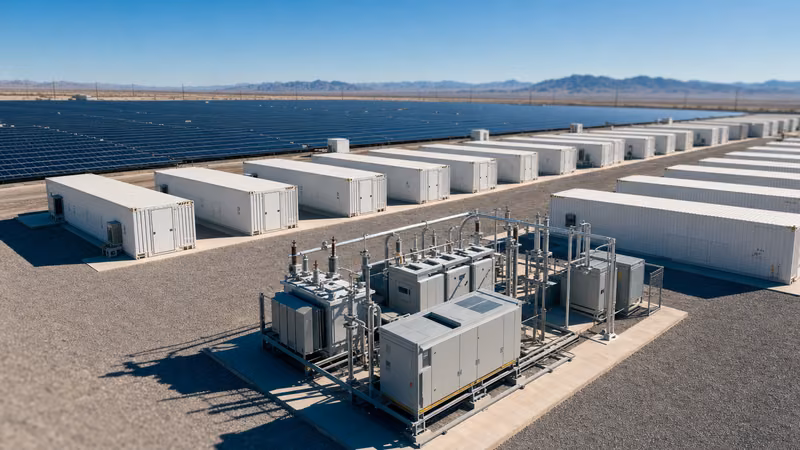

Integrating utility-scale photovoltaic (PV) plants with energy storage systems has shifted from an emerging capability to an engineering necessity. As developer grid interconnection agreements face stricter curtailment limits and dynamic capacity tariffs, co-located battery assets resolve the fundamental mismatch between midday solar generation peaks and evening consumer demand curves. Successfully engineering these hybrid facilities requires balancing high-voltage DC battery racks, bi-directional power conversion systems (PCS), step-up transformers, and medium-voltage switchgear under rigorous safety frameworks.
Coupling Topologies for Solar Farm Electrical Energy Storage Systems
Choosing between AC-coupled and DC-coupled architectures dictates the electrical efficiency, control complexity, and operational lifespan of electrical energy storage systems on solar sites.
In a DC-coupled topology, the battery racks share a common DC bus with the solar PV strings via a bi-directional DC-DC converter before connecting to a central inverter. This approach reduces equipment footprint by eliminating an additional inverter skid and capitalises on higher round-trip efficiency during midday charging, because solar electrons pass directly from the PV array into each energy storage device without undergoing DC-to-AC and AC-to-DC conversion steps.
Conversely, AC-coupled power storage systems connect the battery container to its own dedicated bidirectional inverter and medium-voltage transformer skid, completely decoupled from the solar inverter array on the DC side. While AC coupling introduces an additional round-trip conversion loss of approximately 1.5% to 3.0%, it provides independent dispatch capability, simpler protection coordination under IEC 60255 standards, and far greater flexibility for brownfield retrofits. Detailed topological trade-offs are evaluated in our utility scale energy storage engineering guide.
| Evaluation Metric | DC-Coupled Architecture | AC-Coupled Architecture |
|---|---|---|
| Solar-to-Battery Efficiency (%) | 96.5% - 98.0% | 94.0% - 95.5% |
| Retrofit Suitability | Complex; requires matched DC bus voltages | Straightforward; ties directly to MV AC collection |
| Inverter Redundancy | Shared vulnerability with PV central inverter | Independent PCS operation per skid |
| Control System Complexity | High (combined MPPT and battery dispatch) | Moderate (standard SCADA and EMS interfaces) |
| CAPEX Skid Footprint | Lower (fewer inverter foundations) | Higher (dedicated inverter/transformer skid) |
Sizing Energy Storage Systems: Solar Clipping Recapture Calculation
Sizing battery energy power storage requires matching usable storage capacity with the clipped energy generated by a solar farm operating at an inverter loading ratio (ILR) greater than 1.0.
Consider a utility-scale solar generation plant with a rated DC capacity of 70 MWp and an AC export interconnection limit of 50 MWac, yielding an ILR of 1.40. During peak summer irradiance, the DC array output exceeds the 50 MW inverter ceiling for 4.5 hours each day, producing a clipped power profile that peaks at 18 MW above the inverter threshold.
The engineering sizing calculation proceeds through four technical stages:
- Calculate Clipped Energy Area: Integrating the clipped generation curve over time yields total wasted energy:
E_clip = 0.5 × (Duration × Peak_Clip) = 0.5 × (4.5 hours × 18 MW) = 40.5 MWh/day. - Factor System Losses and Inverter Efficiency: Applying an end-to-end round-trip efficiency (RTE) of 86% across the battery racks, PCS, and step-up transformer requires rated input capacity adjustment:
E_nameplate = E_clip / (RTE × Depth_of_Discharge) = 40.5 MWh / (0.86 × 0.90) = 52.26 MWh. - Incorporate End-of-Life (EOL) Degradation: Sizing for a 15-year operational life with an annual capacity fade rate of 1.8% dictates an end-of-life retention factor of 73%. The required beginning-of-life (BOL) capacity is:
E_BOL = 52.26 MWh / 0.73 = 71.59 MWh. - Determine Power Rating: The inverter and PCS skid must absorb the maximum clipped peak rate:
P_rated = 18 MW.
Consequently, the plant requires an 18 MW / 72 MWh battery system (a 4-hour discharge duration system). Detailed conversion skid engineering for this capacity profile is examined in our guide on power conversion system design.
Renewable Energy Storage Technology: Battery Cell Selection and Safety Standards
Lithium iron phosphate has emerged as the definitive renewable energy storage technology for utility installations due to its chemical stability, structural integrity, and resistance to thermal runaway.
Compared to nickel manganese cobalt (NMC) chemistries, LFP exhibits an exothermic decomposition onset temperature exceeding 270 degrees Celsius, compared to 210 degrees Celsius for NMC. Our comparative analysis of LFP vs NMC battery chemistries underscores why grid-scale assets uniformly specify prismatic LFP cells housed in heavy-gauge steel enclosures. Factory qualification must comply strictly with IEC 62619 clause 8.2 for internal short-circuit propagation and cell thermal runaway protection.
At the enclosure system level, fire mitigation is governed by NFPA 855 (2023 edition) and verified via UL 9540A testing methodologies. UL 9540A large-scale fire tests verify that runaway originating in a single cell module cannot propagate to neighbouring modules within the rack, nor breach the external enclosure walls. Containerised systems implement gas detection arrays sensing hydrogen (H2) and carbon monoxide (CO) off-gassing at levels as low as 10 ppm, triggering automatic clean-agent suppression and rapid emergency deflagration venting before explosive atmospheres can form.
Thermal Management and Enclosure Engineering for Utility Installations
Effective thermal management preserves battery cell lifespan, limits cell-to-cell state of charge divergence, and prevents premature cycling degradation in field environments.
Industrial energy storage systems operate across wide ambient temperature swings, from sub-zero winters to extreme solar field desert climates reaching 50 degrees Celsius. Maintaining cell core operating temperatures between 20 and 25 degrees Celsius is critical. While forced-air cooling systems were historically standard, liquid cooling systems have superseded them on modern utility sites. Liquid cooling plates integrated directly beneath the battery modules circulate a 50/50 water-glycol mix, delivering three times the heat capacity of air cooling while consuming 40% less parasitic station service power.
Liquid cooling maintains the maximum temperature difference between any two cells within an entire 5 MWh container to less than 2.5 degrees Celsius. In contrast, air-cooled containers often experience thermal gradients of 7 to 10 degrees Celsius across racks, leading to uneven cell internal resistance, accelerated ageing of peripheral modules, and degraded system capacity. For a deeper examination of hydraulic loops and fluid flow balancing, see our battery cooling engineering guide.
Interconnection Architecture and Medium-Voltage Integration
Interconnecting energy storage assets into the utility grid involves stepping low-voltage AC inverter outputs up to collection feeder voltages ranging from 11 kV to 34.5 kV.
Each PCS block converts high-voltage DC (typically 1,000 VDC to 1,500 VDC) into 3-phase low-voltage AC (typically 600 VAC to 690 VAC). This low-voltage supply is directly routed to an adjacent integrated transformer substation. The transformer must be specifically rated for inverter duty under IEEE C57.159, accounting for severe harmonic currents (THDi under 3%), DC bias voltages, and continuous fast-ramping bi-directional power flows that standard distribution transformers cannot sustain.
Medium-voltage switchgear protects the interconnection feeder, incorporating vacuum circuit breakers (VCB) with digital micro-processor relays compliant with IEC 60255. Interconnection schemes must satisfy IEEE 1547-2018 clause 5 requirements for distributed energy resources, providing autonomous frequency-droop response (typically a 3% to 5% droop setting), voltage regulation through dynamic reactive power support (power factor adjustment between 0.85 lagging and 0.85 leading), and low-voltage ride-through (LVRT) capabilities during grid transmission disturbances.
Inspection and Commissioning Procedure for Energy Storage Assets
Commissioning power storage systems requires a rigorous step-by-step verification protocol to confirm electrical insulation, communications latency, and emergency shutdown mechanisms.
- Pre-Energisation Insulation Testing: Measure the insulation resistance of all DC feeder cables and rack isolation switches using a 2,500 V megohmmeter in accordance with IEC 60364-6. Verify that insulation resistance to ground exceeds 50 megaohms across all poles.
- BMS and Thermal Loop Dry Run: Power the battery management system (BMS) logic controllers via uninterruptible power supply (UPS). Verify telemetry communication across all CAN/Modbus lines, check liquid-cooling circuit pressure (operating at approximately 0.2 to 0.35 MPa), and test all motorized coolant control valves.
- Safety Interlock and E-Stop Validation: Trip the primary containerised Emergency Stop (E-Stop). Confirm immediate mechanical tripping of the DC high-voltage disconnect contactors within 100 milliseconds, de-energisation of the PCS gate-drive power supplies, and transmission of a trip signal to the upstream medium-voltage breaker.
- Cold and Hot Inverter Energisation: Energise the medium-voltage step-up transformer from the grid side to verify phase angle sync and no-load losses. Progress to synchronising the bidirectional PCS in no-load mode, checking phase sequence under IEC 61850 protocol.
- Full-Capacity Cycle Testing: Perform three consecutive 100% depth-of-discharge charge and discharge cycles at the rated C-rate. Verify that auxiliary power consumption remains within design tolerances and that no single cell temperature exceeds the manufacturer threshold of 35 degrees Celsius during continuous operation.
Next steps: specifying and sourcing
When specifying energy storage systems for utility-scale solar projects, prepare a detailed tender package that includes your single-line diagram, target DC-to-AC ratio, ambient site temperature profiles, and applicable grid interconnection codes. Sourcing high-specification equipment early streamlines engineering approvals and ensures compliance with grid-interconnection milestones. Explore our pre-engineered liquid-cooled energy storage containers and fully integrated transformer substations designed for seamless deployment. Contact our technical application engineering team directly via our quotation inquiry portal to request comprehensive sizing calculations, single-line designs, and factory acceptance test specifications for your upcoming renewable deployment.
Frequently asked questions
What is the typical lifespan of utility-scale energy storage systems?
Utility-scale energy storage systems utilising lithium iron phosphate (LFP) chemistry typically offer a design lifespan of 15 to 20 years. Operating at one full cycle per day with liquid thermal cooling, modern cells achieve 6,000 to 8,000 cycles before degrading to 70% of their initial capacity.
Why is LFP preferred over NMC for solar energy storage systems?
Lithium iron phosphate (LFP) is preferred over NMC due to its superior thermal stability, non-combustible chemical structure, and lower raw material costs. LFP resists thermal runaway up to 270 degrees Celsius and delivers double the operational cycle life of comparable NMC formulations.
What is the difference between AC-coupled and DC-coupled energy storage?
DC-coupled systems connect the battery storage and solar arrays to the same DC bus before a shared inverter, providing higher round-trip efficiency for midday charging. AC-coupled systems feature independent inverters for solar and batteries, connecting at the medium-voltage AC bus, which allows simpler control and easier brownfield retrofits.
What international safety standards govern utility battery installations?
Key safety standards include IEC 62619 for industrial lithium battery safety, UL 9540A for evaluating thermal runaway fire propagation, and NFPA 855 for stationary energy storage system installation. Grid interconnection compliance is typically evaluated against IEEE 1547 and IEC 62933 requirements.
How does liquid cooling improve power storage systems performance?
Liquid cooling circulates coolant plates directly across battery modules, maintaining cell-to-cell thermal variations below 2.5 degrees Celsius across the entire pack. This uniform temperature distribution reduces parasitic auxiliary power draw by up to 40% and significantly slows cell degradation compared to forced-air cooling.
