Key takeaways
- Commercial energy storage systems mitigate demand charges by discharging during peak utility tariff intervals, typically delivering simple paybacks within 4 to 7 years.
- Lithium iron phosphate (LFP) chemistry dominates commercial installations due to its 6,000-cycle lifespan at 90% depth of discharge and thermal runaway onset temperature above 270 degrees Celsius.
- Liquid cooling restricts internal cell-to-cell thermal variance to within 2.5 degrees Celsius, reducing auxiliary parasitic consumption by up to 35% compared with conventional forced-air HVAC systems.
- Grid interconnect compliance demands compliance with IEEE 1547-2018 for anti-islanding and voltage ride-through, alongside UL 9540 and NFPA 855 spatial separation mandates.
- Designing battery power conversion systems (PCS) requires matching 15-minute load step rates to inverter response times, which operate under 20 milliseconds for four-quadrant active and reactive power injection.
Quick answer: Commercial energy storage refers to behind-the-meter or front-of-the-meter electrochemical battery systems (typically 50 kW to 2 MW output) designed to reduce peak demand charges, optimize onsite solar generation, provide emergency back-up power, and support grid stability.
Industrial plants, commercial complexes, and municipal facilities face escalating demand charges, peak-tariff structures, and power quality challenges. Implementing commercial energy storage enables facility managers and system designers to decouple power consumption from grid volatility. Integrating high-performance commercial energy storage systems provides immediate peak shaving, power factor correction, and seamless emergency back-up. This engineering guide outlines system sizing, system integration topologies, thermal regulation, safety codes, and cost considerations for specification teams evaluating commercial battery storage.

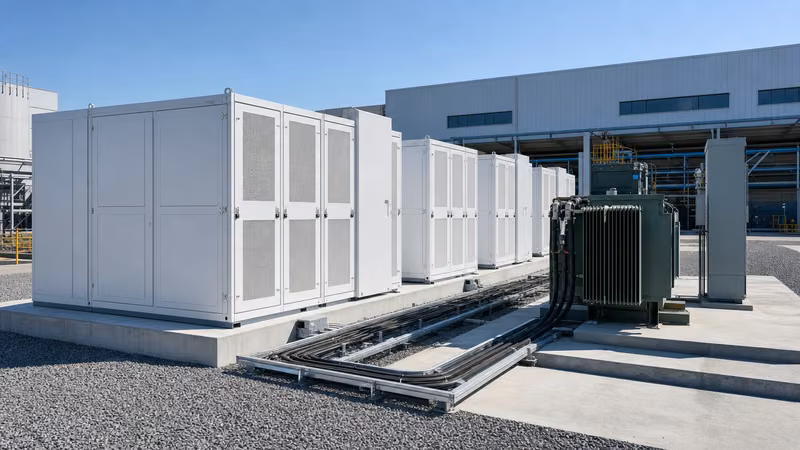

Architecture of Commercial Energy Storage Systems
Commercial energy storage architectures dictate how electrical power converts, routes, and coordinates between the utility grid, renewable generation assets, electrochemical batteries, and facility loads. The primary engineering decision hinges on selecting either an AC-coupled or DC-coupled power flow configuration.
In an AC-coupled topology, the energy storage system and the solar photovoltaic (PV) array communicate through separate, dedicated inverters connected to the primary low-voltage distribution switchboard (typically 400 V, 480 V, or 690 V, 3-phase). This topology provides superior design flexibility for existing facilities retrofitting a commercial solar battery storage system onto an established distribution network. System engineers can size the battery power conversion system (PCS) independently of existing solar generation assets without disturbing existing warranties or inverter arrangements.
DC-coupled commercial energy storage systems integrate both the battery racks and the solar array onto a shared DC bus feeding a central multi-port inverter. By eliminating intermediate DC-AC-DC conversion cycles, a DC-coupled architecture improves round-trip efficiency (RTE) by 2.0% to 3.5%. However, DC-coupled systems require coordinated battery charge controllers, precise maximum power point tracking (MPPT) logic, and specialized DC isolation switchgear, as detailed in our guide to electrical switchgear. For multi-megawatt industrial power storage, AC-coupling remains the industry standard because it isolates fault currents and simplifies maintenance across individual functional blocks.
Lithium Iron Phosphate vs Alternative Cell Chemistries
Lithium iron phosphate (LFP, LiFePO4) represents over 90% of commercial battery storage systems due to its robust safety profile, chemical stability, and cycle longevity compared to nickel manganese cobalt (NMC) alternatives.
From a chemical standpoint, the phospho-olivine crystal structure of LFP contains strong covalent P-O bonds that remain stable up to approximately 270°C. In contrast, layered NMC formulations begin exothermic oxygen release between 210°C and 230°C, significantly increasing the probability of cascading thermal runaway. Under cyclic industrial demands, prismatic LFP cells rated at 280 Ah or 314 Ah regularly achieve 6,000 to 8,000 full equivalent cycles at 0.5C charge/discharge rates before degrading to 70% of initial capacity, assuming mean cell temperatures are held between 20°C and 25°C.
Sodium-ion (Na-ion) chemistry is emerging for industrial energy storage systems, offering lower bill-of-materials costs and excellent low-temperature performance down to -30°C without auxiliary pre-heating. However, lower volumetric energy density (140 to 160 Wh/L for commercial Na-ion versus 220 to 260 Wh/L for LFP) demands larger cabinet footprints, making LFP the undisputed choice where installation square footage carries real estate value.
Worked Peak Shaving Sizing Calculation for Commercial Energy Storage
Sizing commercial energy storage solutions requires analyzing 15-minute interval interval power data to clip transient consumption peaks without undersizing the inverter or exhausting usable kilowatt-hours.
Consider a light manufacturing facility with a 15-minute integrated peak demand profile over a rolling billing cycle. The operational inputs are as follows:
- Maximum baseline peak demand: 850 kW
- Target utility billing threshold: 550 kW
- Peak duration above target: 2.5 hours continuous
- Battery round-trip efficiency (RTE): 87.5% (0.875)
- Allowable depth of discharge (DoD): 90.0% (0.90)
- System degradation design margin: 15.0% over 10-year design life (Factor = 0.85)
First, calculate the required continuous active power discharge ($P_{batt}$):
$$P_{batt} = 850\text{ kW} - 550\text{ kW} = 300\text{ kW}$$
Second, calculate the net energy required delivered to the bus ($E_{net}$):
$$E_{net} = 300\text{ kW} \times 2.5\text{ hours} = 750\text{ kWh}$$
Third, apply depth of discharge, round-trip conversion losses, and lifetime degradation factors to derive the required gross nameplate battery capacity ($E_{gross}$):
$$E_{gross} = \frac{E_{net}}{\text{DoD} \times \text{RTE} \times \text{Aging Factor}} = \frac{750}{0.90 \times 0.875 \times 0.85} = \frac{750}{0.6694} = 1,120.4\text{ kWh}$$
Based on standard modular rack configurations, the engineering team specifies a standard 1,150 kWh to 1,250 kWh nominal battery energy storage system paired with a 350 kVA four-quadrant inverter to ensure headroom for power factor correction, matching recommendations in our battery storage engineering guide.
Thermal Management: Liquid-Cooled vs Air-Cooled Industrial Systems
Liquid cooling provides superior thermal uniformity and lower auxiliary power losses compared to forced-air HVAC cooling in commercial energy storage systems.
Electrochemical cells degrade non-linearly when subjected to internal temperature differentials exceeding 3.0°C. Uneven heating leads to divergent internal impedances across parallel-connected cells, accelerating capacity mismatch and forcing the battery management system (BMS) to derate the overall pack prematurely. The engineering comparison below highlights key criteria when choosing between air-cooled and liquid-cooled systems:
| Engineering Metric | Forced-Air Cooling Architecture | Closed-Loop Liquid Cooling Architecture |
|---|---|---|
| Cell-to-Cell Temperature Delta | ±3.5°C to ±6.0°C | ≤ ±2.0°C to ±2.5°C |
| Auxiliary Power Consumption (Parasitic) | 12% to 18% of system throughput | 5% to 8% of system throughput |
| Footprint Density (kWh/m²) | 110 – 140 kWh/m² | 190 – 260 kWh/m² |
| Acoustic Noise Level at 1 Metre | 72 – 80 dBA (high-velocity blowers) | 58 – 65 dBA (variable-speed pumps) |
| Cycle Life Extension at 0.5C / 1.0C | Baseline standard | +18% to +24% additional cycles |
| Coolant Medium | Ambient air via R410A / R32 split system | Inhibited Water-Glycol (50/50 mix) |
For high-cycling commercial solar energy storage, specify cold-plate liquid cooling to protect capital investment and reduce lifetime operating expenditures. Detailed thermal analysis is available in our technical review of liquid-cooled vs air-cooled storage configurations.
Safety, Fire Suppression, and Grid Compliance Standards
Commercial energy storage installations require multi-tier safety layers and strict adherence to international safety, construction, and grid-connection codes to prevent thermal runaway propagation and protect physical property.
Primary structural and fire performance standards include:
- UL 9540 / UL 9540A: Mandates cell-, module-, unit-, and installation-level fire testing to determine heat release rates, flammable gas generation, and deflagration risks without relies exclusively on active suppression.
- NFPA 855: Sets physical separation distances (minimum 0.9 metres or 3 feet between individual units and from perimeter walls), limits maximum grouping energy to 50 kWh for residential and 600 kWh for non-dedicated commercial enclosures, and defines dedicated exhaust ventilation rates per NFPA 69.
- IEC 62619 / IEC 62933-5-2: Clause 8.2 specifies electrical fault mitigation, cell-level overcharge/over-discharge containment, and propagation barrier requirements for industrial battery systems.
- IEEE 1547-2018: Table 11 defines reactive power injection, anti-islanding detection within 2.0 seconds, and ride-through boundaries for grid-interactive commercial solar battery installations.
Active fire suppression relies on hybrid approaches: clean agents such as FK-5-1-12 suppress primary flaming combustion inside the enclosure, backed by dry-pipe internal sprinkler systems capable of delivering 0.3 gpm/ft² (12.2 L/min/m²) continuous water delivery to cool adjacent modules and arrest thermal propagation.
Commercial Battery Backup and Microgrid Integration
Commercial battery backup systems guarantee operational continuity by transitioning from grid-parallel operation to an isolated islanded state in less than 20 milliseconds during utility interruptions.
When grid parameters deviate beyond permissible ranges, an automated static transfer switch (STS) or motorized circuit breaker disconnects the utility feed. The commercial BESS switches its inverter control scheme from grid-following (current source) to grid-forming (voltage source). In grid-forming mode, the PCS provides virtual inertia, synthetic frequency stabilization, and phase angle references, ensuring sensitive electronic loads, computer numerical control (CNC) equipment, and cleanroom air handlers operate without disruption.
Synchronizing commercial solar battery storage systems within a microgrid network requires real-time droop control or an advanced microgrid controller, as discussed in our microgrid engineering guide. The controller dynamically throttles PV output during low-demand periods to avoid overcharging the battery, while dispatching auxiliary generation sets to maintain state of charge (SoC) margins during sustained grid failure.
Factory Acceptance Testing and Commissioning Procedure
- Visual, Mechanical, and Insulation Inspection: Inspect enclosure IP/NEMA ratings, bolt torque markings on busbars per manufacturer tolerances, and complete DC megohmmeter insulation resistance tests (exceeding 1,000 VDC at >100 MΩ) across battery strings to earth ground.
- Battery Management System (BMS) Calibration: Verify high/low cell voltage trip settings (≤2.5 V low cut-off, ≥3.65 V high cut-off for LFP), thermal probe calibration across every module, and standard serial/Modbus-TCP communications to the main site SCADA.
- Static and Dynamic Thermal Management Validation: Pressure-test the liquid-cooling loop at 1.5 times the operating pressure for 30 minutes, confirm chiller/pump sequencing, and ensure leak detection relays trigger PCS shut-down.
- PCS Functional and Protection Relay Testing: Perform open-circuit phase checks, verify IEEE 1547 compliant trip points for under/over-voltage (ANSI 27/59) and under/over-frequency (ANSI 81U/81O), and simulate external emergency stop (EPO) disconnects.
- Full Charge/Discharge Performance Verification: Run a baseline 0.5C capacity test to measure delivered kWh against rated nameplate values, evaluate DC-to-AC round-trip efficiency, and record thermal gradient profiles under maximum load step conditions.
Engineering teams preparing technical tenders can reference our procedure for how to specify a containerised BESS to align procurement specifications with these validation stages.
Next steps: specifying and sourcing
To secure a tailored engineering proposal for commercial energy storage, engineering teams should compile their baseline electrical data: peak demand profile (15-minute interval CSV format), point-of-interconnection nominal voltage, prospective fault current, onsite renewable capacity, and targeted operational strategies (peak shaving, time-of-use arbitrage, or back-up resilience). Explore our dedicated commercial energy storage systems and specialized liquid-cooled ESS containers to review technical specifications. For custom system integration, integrated substations, or switchgear packages, submit your project single-line diagrams via our quote request page to receive a factory-direct technical submittal and cost analysis from our design team.
Frequently asked questions
What is the typical lifespan of a commercial energy storage system?
A high-grade commercial energy storage system using lithium iron phosphate (LFP) cells typically delivers 6,000 to 8,000 full cycles at 0.5C discharge rates. In standard commercial peak-shaving applications completing one full cycle per day, this equals an operational service life of 15 to 20 years before the battery reaches its 70% end-of-life capacity threshold.
How much physical space does an industrial battery storage system require?
Physical footprint depends on cooling design and capacity. Modern liquid-cooled commercial battery cabinets require approximately 1.0 to 1.3 square metres per 200 kWh of energy storage. A 1 MWh to 2 MWh containerised BESS typically occupies a standard 20-foot ISO container footprint (6.1 m × 2.4 m), excluding external NFPA 855 clearance clearances.
Can commercial battery storage eliminate demand charges entirely?
Commercial battery storage cannot completely eliminate demand charges, but it can reduce them by 50% to 80%. Complete elimination requires oversized inverters and large battery capacities to absorb every unexpected load transient, which usually reduces overall project return on investment compared to an optimized peak-clipping strategy.
What is the difference between power rating and energy capacity in commercial BESS?
Power rating, measured in kilowatts (kW) or megavolt-amperes (kVA), describes the maximum instantaneous rate at which the system inverter can charge or discharge. Energy capacity, measured in kilowatt-hours (kWh) or megawatt-hours (MWh), represents the total stored electrical volume available over time. A 500 kW / 1,000 kWh system delivers 500 kW continuously for 2 hours.
Is liquid cooling necessary for all commercial solar storage systems?
Liquid cooling is not strictly mandatory for low-rate cycling (0.2C or lower) in mild climates, but it is highly recommended for commercial solar battery storage systems operating at 0.5C or higher. Liquid cooling maintains cell temperatures within a tight 2.5°C delta, extending operational life by up to 24% and significantly reducing auxiliary power draw compared to forced-air HVAC units.
