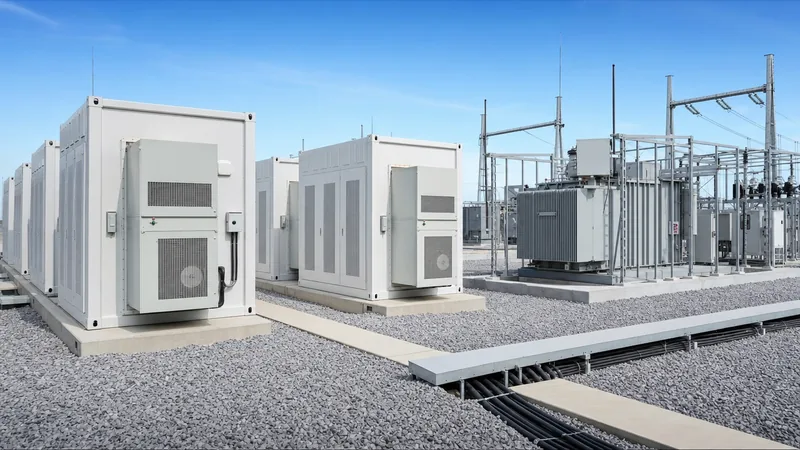

Stationary Storage Battery Systems: Engineering Guide

Quick answer: Stationary storage battery systems are fixed electrochemical installations designed to store electrical energy from the grid or generation sources and discharge it during demand peaks, outages, or high-tariff intervals. Built primarily around lithium iron phosphate (LFP) chemistry, these systems integrate battery modules, a battery management system (BMS), a power conversion system (PCS), and dedicated thermal regulation inside fire-rated enclosures.

As industrial facilities and distribution networks face rising demand charges, grid congestion, and stringent carbon reduction mandates, stationary storage battery systems have transitioned from experimental assets into core balance-of-plant infrastructure. Unlike mobile energy units or uninterruptible power supplies intended solely for short-run ride-through, modern stationary installations operate as continuous power-balancing nodes. They support behind-the-meter industrial peak shaving, microgrid voltage stabilisation, and front-of-the-meter renewable integration. Specifying these assets requires electrical and structural engineers to evaluate complex tradeoffs among electrochemical degradation, enclosure thermal dynamics, conversion topology, and rigorous fire safety standards.

System Architecture of Stationary Storage Battery Systems

The baseline architecture of stationary storage battery systems is hierarchically structured from the electrochemical cell up to the medium-voltage point of common coupling (PCC). At the lowest tier, individual prismatic cells are joined via laser-welded copper or nickel-plated aluminium busbars to form series-parallel modules, which are then stacked into vertical racks operating between 700 V DC and 1500 V DC.

A three-tiered battery management system governs system state: the cell management unit (CMU) captures real-time voltage and surface temperature; the rack management unit (RMU) executes string-level passive or active balancing; and the master BMS arbitrates communication across racks, calculating high-voltage DC protection boundaries and state-of-charge (SoC) metrics. For detailed enclosure and cabinet layout practices, consult our guide on battery enclosure engineering and selection. The direct-current bus routes through DC switchgear fitted with high-speed DC disconnects, pyrofuses, and contactors to the inverter stage. At this point, bidirectional power conversion systems transform DC battery energy into low-voltage three-phase alternating current, typically stepped up via an adjacent dry-type or oil-immersed transformer to distribution levels between 11 kV and 33 kV.

Electrochemical Chemistries in Stationary Battery Storage

Selection of cell chemistry determines the operational life, footprint, thermal risk profile, and levelised cost of storage (LCOS) for any stationary battery storage asset. While early utility deployments utilised nickel-manganese-cobalt (NMC) formulations to maximise volumetric energy density, modern utility and commercial applications almost universally favour lithium iron phosphate (LiFePO4 or LFP).

LFP exhibits an intrinsic thermal runaway threshold exceeding 270°C, compared to roughly 210°C for NMC, significantly lowering the risk of self-sustaining fire propagating across adjacent cells. Furthermore, LFP delivers between 6,000 and 8,000 cycles at 80% depth of discharge (DoD) under 0.5C operation, making it ideal for daily multi-cycle industrial duty. For a comprehensive technical comparison of energy density and cycle stability across chemistries, read our review of LFP vs NMC battery chemistry for commercial systems. Alternative chemistries such as sodium-ion (Na-ion) and vanadium redox flow batteries (VRFB) are gaining traction for long-duration applications exceeding six hours, yet LFP maintains dominance due to mature supply chains, automated manufacturing tolerances, and standardized rack packaging.

Electrical Integration and Power Conversion in Stationary Battery Systems

Stationary battery systems interface with commercial or industrial switchgear through bidirectional power conversion systems that provide four-quadrant active and reactive power control. The inverter topology dictates dynamic grid-forming or grid-following capabilities, short-circuit contribution, and total harmonic distortion (THD).

Modern designs utilize central or distributed string inverter architectures. Centralised topologies route all DC racks through a consolidated combiner to a high-capacity multi-megawatt PCS, offering lower initial capital cost per kVA but higher risk of mismatch losses if individual racks age unevenly. In contrast, string architectures pair each DC rack or pair of racks with a dedicated inverter module, enabling fine-grained maximum power point control and isolated maintenance without taking down the entire facility. For an exhaustive analysis of inverter sizing, DC bus voltage selection, and AC filtering, review our guide to power conversion system engineering design. The AC output from the PCS passes through an isolation breaker, power factor correction filtering, and lightning surge arrestors compliant with IEC 61643-11 before energising the transformer primary windings.

Worked Sizing Calculation for Stationary Energy Storage Systems

Accurately sizing stationary energy storage systems requires engineers to account for depth-of-discharge limits, round-trip efficiency, inverter conversion losses, parasitic cooling consumption, and end-of-life (EOL) degradation margins. Sizing purely based on nameplate requirements leads to premature failure to deliver required contract capacity.

Consider an industrial manufacturing facility requiring peak shaving with the following design parameters:

• Required net peak reduction: 400 kW
• Target discharge duration: 2.5 hours
• Required usable energy: 400 kW × 2.5 h = 1,000 kWh (1.0 MWh AC delivered)
• PCS AC-to-DC conversion efficiency: 96.5% (discharge)
• Battery DC discharge efficiency: 95.0%
• Operational Depth of Discharge (DoD): 85% (10% to 95% SoC envelope)
• Auxiliary load consumption (pumps, HVAC, controls): 4% of delivered energy
• Target operating life: 10 years at 1 cycle/day; calendar/cycle capacity fade allowance (EOL target): 75% remaining capacity

The calculation sequence proceeds as follows:

1. Calculate net required DC discharge energy at beginning of life (BOL):
   E_DC,usable = (E_AC,net × (1 + Aux)) / (η_PCS × η_DC)
   E_DC,usable = (1,000 kWh × 1.04) / (0.965 × 0.950) = 1,040 / 0.9168 = 1,134.4 kWh
2. Factor in Depth of Discharge (DoD) constraint:
   E_DC,operating = E_DC,usable / DoD = 1,134.4 kWh / 0.85 = 1,334.6 kWh
3. Account for End-of-Life degradation factor (75% retained capacity):
   E_{nameplate,BOL} = E_DC,operating / 0.75 = 1,334.6 kWh / 0.75 = 1,779.5 kWh

To guarantee a delivered AC output of 400 kW for 2.5 hours across a 10-year operating horizon without mid-life augmentation, the facility must specify a stationary storage battery system with a nominal nameplate capacity of not less than 1,780 kWh DC paired with a PCS rated for at least 420 kVA to accommodate auxiliary loads and reactive current demands.

Safety Standards, Fire Mitigation, and NFPA 855 Compliance

Mitigating thermal runaway risk in stationary energy storage systems requires adherence to internationally recognized fire protection, mechanical containment, and gas exhaust codes. Failure to engineer containment at the cell, module, and enclosure levels introduces severe regulatory, insurance, and life-safety liabilities.

Design compliance centres on four interrelated standards:

• UL 9540A: Standard Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems. Data from cell, module, unit, and installation-level testing dictates permissible rack spacing and confirms whether thermal events cascade across adjacent enclosures.
• NFPA 855: Standard for the Installation of Stationary Energy Storage Systems. Clause 4.3 mandates maximum grouping of 50 kWh for residential and 600 kWh for commercial/industrial indoor modular units, requiring a minimum clearance of 0.9 metres (3 feet) between groupings unless full-scale UL 9540A test data proves non-propagation.
• IEC 62933-5-2: Electrical energy storage (EES) systems — safety requirements for grid-integrated EES systems in chemical, mechanical, electrical, and thermal failure modes.
• NFPA 68 / NFPA 69: Standards governing deflagration venting and explosion prevention systems. Stationary enclosures must integrate mechanical exhaust capable of detecting off-gassing (carbon monoxide, hydrogen, and volatile organic compounds) at parts-per-million concentrations, venting flammable atmospheres before they reach lower flammability limits (LFL).

Technical Comparison: Liquid-Cooled vs Air-Cooled Stationary Battery Systems

Thermal management directly governs the lifespan, charge acceptance rate, and safety envelope of stationary battery storage enclosures. The industry has broadly shifted from conventional direct-expansion air-cooling toward liquid-cooled cold plate architectures, as compared below.

Maintaining a cell-to-cell thermal delta below 3°C prevents internal impedance imbalances across cells wired in series. In air-cooled racks, cells located near exhaust outlets run hotter, causing them to degrade up to 20% faster than those at the intake face, triggering premature string-level BMS shutdowns.

Factory Acceptance Testing and Commissioning Checklist

Rigorous Factory Acceptance Testing (FAT) and site commissioning prevent costly field retrofits and assure insurance underwriters of installation integrity. Engineers should follow a structured verification sequence prior to energisation.

1. Visual, Mechanical, and Busbar Inspection: Inspect all power terminals using calibrated torque wrenches according to manufacturer specifications; apply torque seal marking. Verify galvanic isolation and check that internal busbars maintain required creepage and clearance distances per IEC 61439-1.
2. Insulation Resistance and Dielectric Withstand: Measure insulation resistance on all isolated DC strings and AC circuits using a 1,000 V or 2,500 V DC megohmmeter (minimum reading 100 MΩ). Execute high-potential (Hi-Pot) dielectric testing according to IEC 62477-1.
3. BMS Telemetry and Protection Validation: Force artificial sensor faults to confirm instantaneous tripping of string contactors under simulated overvoltage, undervoltage, high cell temperature, and low-temperature charge lockout states.
4. Coolant Loop Hydrostatic and Leak Testing: Pressure-test all liquid distribution lines to 1.5 times nominal operating pressure for a minimum duration of two hours to confirm zero pressure decay.
5. Full-Power Charge and Discharge Cycles: Run continuous 0.5C or 1.0C charge/discharge cycles against a load bank. Log thermal camera imaging of all electrical terminations and verify inverter round-trip efficiency, harmonic distortion, and auxiliary power consumption.

Next steps: specifying and sourcing

Specifying stationary storage battery systems requires complete clarity on load profile data, cycling schedules, ambient environmental conditions, and utility interconnection requirements. When drafting your project technical requirements or request for quotation (RFQ), include target discharge duration, preferred cell chemistry, fault level contribution limitations, and required ingress protection ratings. Our engineering department designs and manufactures fully integrated containerised solutions, ranging from factory-assembled energy storage systems to high-density liquid-cooled ESS containers with built-in thermal management and fire mitigation. To discuss sizing parameters, technical specifications, or bespoke factory testing for your upcoming deployment, submit your project details directly via our quote request page.
