Renewable Energy Storage: Engineering & Sizing Guide

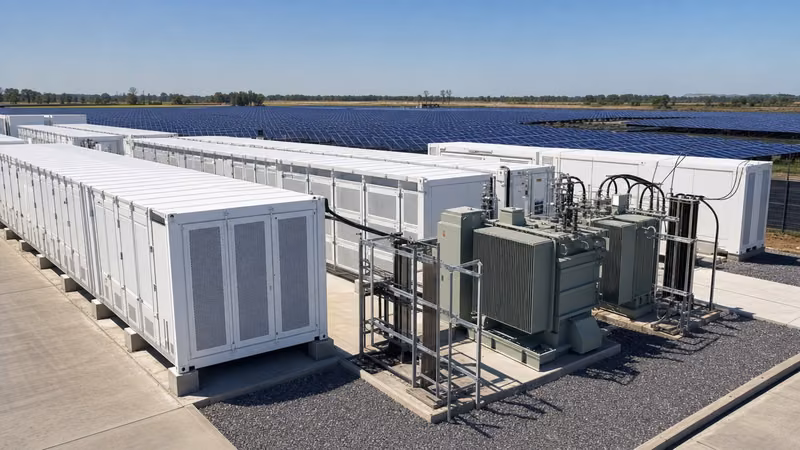

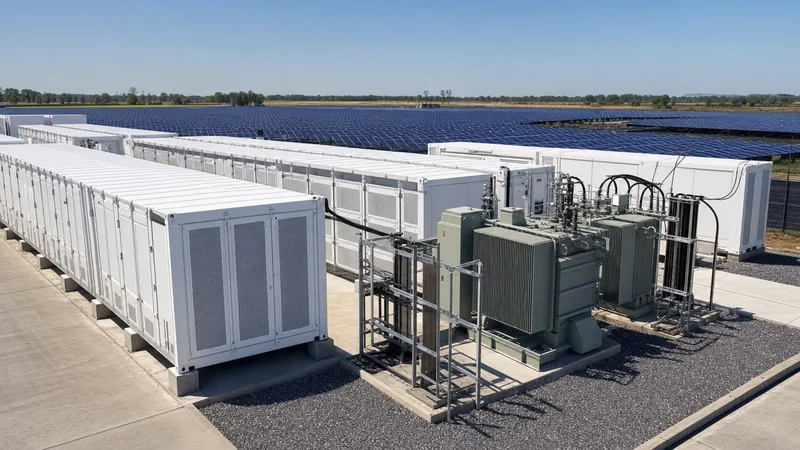

Quick answer: Renewable energy storage encompasses electrochemical, mechanical, thermal, and chemical technologies configured to capture surplus electricity generated by wind and solar assets for controlled dispatch into the power grid. Lithium iron phosphate battery energy storage systems (BESS) represent the standard technology for utility and commercial microgrids, delivering over 85% round-trip efficiency with millisecond-level response times.

As intermittent renewable generation increases across distribution networks, renewable energy storage provides essential operational stability by decoupling instantaneous energy generation from load consumption. Storing energy during peak production periods prevents economic curtailment and alleviates transmission congestion. Implementing modern electric power storage enables asset owners to provide critical grid-support services, including frequency regulation, voltage support, and peak shaving, transforming non-dispatchable generation into predictable, dispatchable power assets.

Types of energy storage systems for renewable power

Stationary renewable energy storage technologies are categorised into electrochemical, mechanical, electrical, and thermal architectures based on energy density, response speed, and operational duration.

Selecting among diverse energy storage technologies requires evaluating asset capital expenditure against round-trip efficiency (RTE), response latency, and cycle life. For most solar and microgrid applications under 8 hours of discharge duration, electrochemical systems offer the highest technical performance and operational flexibility. Mechanical systems such as pumped-storage hydropower and compressed air energy storage (CAES) suit bulk grid balancing beyond 10 hours, while electrostatic double-layer capacitors manage sub-second transients.

For commercial facilities and solar microgrids, the mature safety profile and high thermal stability of lithium iron phosphate make it the standard electrochemical architecture. Further details on cell-level chemistries are detailed in our guide to LFP vs NMC battery characteristics.

Renewable energy storage sizing calculation

Sizing a renewable energy storage system requires balancing the daily energy deficit against nominal battery capacity, depth of discharge, auxiliary loads, and degradation over the target asset life.

Consider a 2.0 MW grid-tied commercial solar array where the asset owner must store surplus midday energy to discharge a continuous 1.0 MW load for 4 hours during the evening peak (4.0 MWh net delivered energy). The storage facility uses an LFP battery chemistry coupled with a bidirectional power conversion system (PCS) operating at a maximum depth of discharge (DoD) of 80% to achieve a 10-year operating lifespan with a target end-of-life (EoL) capacity retention factor of 75%.

The calculation sequence determines the nameplate battery rack capacity (C_nameplate) using the following parameters:

• Net delivered energy requirement (E_net): 4,000 kWh
• PCS and MV transformer round-trip conversion efficiency (η_pcs): 96%
• Battery DC round-trip efficiency (η_dc): 92% (Combined system RTE = 0.96 * 0.92 = 88.32%)
• Operational Depth of Discharge (DoD): 80% (0.80)
• End-of-Life capacity retention margin (F_eol): 75% (0.75)
• Auxiliary HVAC and auxiliary power loss allowance (F_aux): 4% overhead (1.04)

Calculate the required beginning-of-life (BoL) usable energy delivered at the DC bus: E_dc = E_net / η_pcs = 4,000 kWh / 0.96 = 4,166.7 kWh. Incorporating the battery DC round-trip efficiency yields a gross energy requirement of: E_gross = 4,166.7 kWh / 0.92 = 4,529 kWh.

Next, account for DoD, auxiliary loads, and end-of-life battery degradation using the sizing equation:

C_nameplate = (E_gross * F_aux) / (DoD * F_eol)

C_nameplate = (4,529 kWh * 1.04) / (0.80 * 0.75) = 4,710.16 kWh / 0.60 = 7,850.3 kWh (7.85 MWh)

Therefore, to guarantee a net 4.0 MWh dispatch after 10 years of cyclic operation, the engineer must specify an electrical energy storage system with a nameplate DC rating of not less than 7.85 MWh paired with a 1.0 MW continuous-rated bidirectional inverter skid.

Renewable energy storage solutions: Architecture and grid coupling

Modern renewable energy storage solutions are engineered using either AC-coupled or DC-coupled power conversion configurations depending on project topology and operational priorities.

In a DC-coupled topology, solar photovoltaic (PV) arrays and battery racks connect to a common DC bus via DC-to-DC converters before feeding a central bidirectional inverter. This architecture eliminates redundant DC-AC-DC conversion cycles, lifting overall round-trip conversion efficiency by 2% to 4%. DC coupling is best suited for new utility-scale solar-plus-storage projects focused primarily on energy arbitrage and clipping recapture.

Conversely, an AC-coupled configuration connects the battery system and renewable generators to a shared AC busbar through dedicated inverters. AC coupling provides complete operational independence for each subsystem, streamlining the integration of renewable power storage into existing commercial substations, industrial plants, and wind generation feeds. Sizing guidelines for these inverter systems can be reviewed in our power conversion system engineering guide.

Both topologies require strict compliance with IEEE 1547-2018 and IEC 62933-2-1 for grid connection, mandating automated primary frequency response (governor emulation), active power curtailment, and reactive power injection (Volt-VAR control). Comprehensive design considerations for interconnecting these plants are outlined in our guide on grid integration of renewable energy sources.

Thermal management and safety in electrical energy storage systems

Thermal management in clean energy storage installations directly governs cell cycle life, round-trip efficiency, and fire safety under high charge-discharge C-rates.

Lithium-ion cells degrade rapidly when operated outside their optimal temperature band of 15 to 35 degrees Celsius. When cell temperatures exceed 55 degrees Celsius, degradation acceleration occurs alongside risk of solid electrolyte interphase (SEI) decomposition, which can trigger thermal runaway. Liquid cooling has replaced forced-air cooling in modern high-density containerised energy storage systems. Liquid-glycol circulation cold plates positioned between cell modules maintain intra-pack thermal variance within 3 degrees Celsius, reducing auxiliary HVAC consumption by up to 30%.

Safety engineering mandates strict compliance with NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and cell-to-module propagation testing in accordance with UL 9540A. Key safety elements include:

• Explosion venting: Deflagration relief panels engineered in compliance with NFPA 68 to discharge internal overpressures safely away from access corridors.
• Off-gas detection: Early-stage monitoring of carbon monoxide (CO) and hydrogen (H2) evolution using multi-gas aspiration sniffers before thermal runaway occurs.
• Automated fire suppression: Clean-agent gas systems (such as FK-5-1-12) coupled with direct-to-rack water deluge injection pipes in accordance with IEC 62933-5-2 clause 6.4.
• Thermal isolation barriers: High-temperature ceramic or aerogel barriers placed between adjacent 3.2 V battery cells to prevent thermal runaway propagation.

For more details on sizing and safety standards for industrial battery configurations, refer to our battery storage engineering guide.

Commissioning and factory acceptance testing procedure

Commissioning renewable energy storage systems requires a systematic multi-stage validation process to confirm electrical safety, protection coordination, and control system responsiveness.

1. Visual and mechanical inspection: Verify busbar torque marks, terminal bolt torques according to manufacturer specifications, enclosure IP ratings, and ground continuity (resistance to earth must be under 0.5 ohms per IEEE 142).
2. DC insulation resistance and Hi-Pot testing: Perform insulation testing on isolated DC battery racks at 1,000 V DC or 2,500 V DC in line with IEC 62933-5-1, confirming minimum insulation resistance exceeding 100 megaohms.
3. Battery management system (BMS) dry-contact check: Inject test signals to verify BMS protection thresholds for overvoltage, undervoltage, cell over-temperature, and contactor weld-detection interlocks.
4. Power conversion system (PCS) pre-commissioning: Energise the auxiliary LV supply, confirm phase rotation at the AC circuit breaker, and perform closed-loop communications testing between the PCS, BMS, and supervisory control and data acquisition (SCADA) systems.
5. Transformer and switchgear verification: Conduct insulation resistance and winding ratio tests on the medium-voltage skid step-up transformer per IEC 60076-1 clause 10 before connecting to the distribution grid.
6. Charge-discharge performance and capacity testing: Execute three continuous charge-discharge cycles at the rated C-rate to establish baseline DC capacity, round-trip efficiency, and thermal stability under continuous operational load.
7. Grid compliance and trip verification: Simulate loss-of-mains (anti-islanding), Volt-VAR dynamic response, and emergency stop (E-stop) trip sequences to ensure complete system de-energisation within 100 ms.

Next steps: specifying and sourcing

When preparing an RFQ for utility or industrial renewable energy storage installations, project engineers should compile comprehensive site parameters. Provide nominal generation capacity, grid interconnection voltage (e.g. 11 kV, 22 kV, or 33 kV), required continuous discharge duration, and ambient temperature extremes. Review our factory-integrated energy storage system platforms, pre-engineered liquid-cooled ESS containers, and MV skid transformer substations to identify matching equipment. To submit your single-line diagrams and performance specifications for an engineered proposal, visit our request a quote page or speak directly with our engineering team through the contact page.
