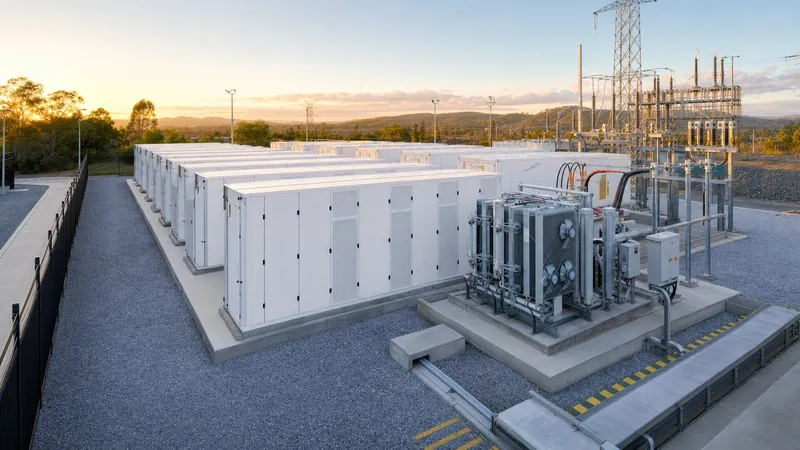

Large Scale Battery Energy Storage: Sizing & System Design Guide

Quick answer: Large scale battery energy storage refers to multi-megawatt systems connected directly to transmission or distribution networks to provide frequency regulation, capacity firming, and renewable peak shifting. Built primarily using lithium iron phosphate (LFP) cells, these installations integrate battery racks, bidirectional power conversion systems, liquid thermal management, and medium-voltage step-up transformers to deliver dispatchable power at grid scale.

Integrating intermittent renewable generation from solar photovoltaics and wind turbines demands high-capacity, sub-second balancing assets on the transmission network. Large scale battery energy storage operates as the primary stabilising mechanism for regional networks, absorbing excess midday generation and discharging during peak evening demand profiles. Modern utility installations have moved away from bespoke building enclosures toward modular, 20-foot and 40-foot containerised blocks engineered to interface seamlessly with high-voltage substations.

For consulting engineers, engineering, procurement, and construction (EPC) contractors, and utility operators, designing these assets requires rigorous thermal modelling, short-circuit calculations, and adherence to grid interconnection codes. To review foundational concepts, consult our overview on utility scale energy storage engineering. This guide examines the system architecture, electrical balance of plant, degradation management, and testing criteria required to specify and commission bankable utility-scale installations.

System Architecture for Large Scale Energy Storage Systems

A large scale energy storage system comprises four tightly integrated functional layers: the electrochemical direct current (DC) block, the bidirectional alternating current (AC) power conversion system, the balance of plant (BOP), and the station-level supervisory control and data acquisition (SCADA) network.

At the electrochemical core, prismatic battery cells are joined via laser-welded copper or aluminium busbars into modules, which are stacked vertically into high-voltage racks. A standard utility-scale rack typically operates between 1,000 V DC and 1,500 V DC nominal voltage to minimise ohmic losses across internal cabling. Each rack incorporates a dedicated battery rack management unit (RMB) that monitors cell voltages, terminal temperatures, and state-of-charge (SOC) metrics, reporting upwards to a central controller as detailed in our guide to battery monitoring system design.

The bidirectional conversion of power is executed by the power conversion system (PCS), which synchronises the DC battery bus with the local distribution voltage. To explore inverter topologies and sizing ratios, refer to our comprehensive article on power conversion system engineering. The output from the low-voltage side of the inverters (typically 600 V to 690 V AC) is routed through dry-type or oil-filled step-up transformers housed within an integrated skid, raising the voltage to medium-voltage collector levels such as 22 kV, 33 kV, or 34.5 kV prior to transmission interconnection.

Grid Energy Storage Batteries: Chemistry and Degradation Dynamics

Grid energy storage batteries rely predominantly on lithium iron phosphate (LiFePO4 or LFP) chemistry due to its superior safety margin, volumetric thermal stability, and low degradation rate compared to high-nickel alternatives.

LFP chemistry features an olivine crystal structure that exhibits negligible oxygen release during extreme abuse conditions. The thermal runaway onset temperature for commercial LFP cells sits between 250 °C and 270 °C, whereas nickel manganese cobalt (NMC) formulations can experience self-sustaining exotherms below 180 °C. For long-term infrastructure assets designed for a 15- to 20-year operational horizon, LFP provides a highly predictable degradation trajectory driven by solid electrolyte interphase (SEI) layer growth.

Cell degradation in large energy storage systems is governed by two distinct components: calendar ageing and cyclic ageing. Calendar degradation occurs continuously regardless of throughput, driven primarily by ambient temperature and average SOC maintenance levels. Storing cells at sustained states above 80% SOC at elevated temperatures (above 35 °C) accelerates electrolyte consumption. Cyclic degradation, conversely, correlates with charge/discharge C-rates, operational depth of discharge (DOD), and dynamic mechanical stress inside the active electrode particles during lithium-ion intercalation.

Modern 314 Ah utility cells are rated for 8,000 to 10,000 cycles to 70% state of health (SOH) under controlled factory test conditions (0.5C charge/discharge, 25 °C ± 2 °C, 100% DOD). However, field environments present dynamic dispatch schedules involving rapid frequency response bursts combined with sustained 4-hour energy shifting, requiring engineers to oversize DC blocks to account for capacity fade over time.

Worked Engineering Sizing: 20 MW / 80 MWh Utility Facility

Sizing large scale battery storage systems requires reconciling nameplate grid interconnection requirements with round-trip efficiency losses, temperature de-rating, and end-of-life (EOL) capacity retention limits.

Consider a grid-tied utility project requiring an active power delivery of 20 MW at the point of common coupling (PCC) for a continuous duration of 4 hours, equivalent to 80 MWh of usable AC energy at Year 15. The design assumes modern 3.2 V, 314 Ah prismatic LFP cells and liquid-cooled modular containers.

Step 1: Calculate AC-to-DC System Losses
Ohmic losses across the medium-voltage transformer, intermediate cabling, filters, and inverter switching stages create a combined AC-DC-AC round-trip efficiency (RTE) penalty. Assuming a transformer efficiency of 98.8%, an inverter efficiency of 98.5%, and auxiliary consumption (pumps, fans, controllers) averaging 2.5% of throughput, the one-way discharge efficiency (DC battery terminals to PCC) is approximately:

$$\eta_{discharge} = 0.988 \times 0.985 \times (1 - 0.025) = 0.9488 \ (94.88\%)$$

To guarantee 80 MWh of usable AC energy at the PCC:

$$E_{DC,BOL\ usable} = \frac{80\text{ MWh}}{0.9488} = 84.32\text{ MWh}$$

Step 2: Degradation and Operational Window Allowance
To extend cell longevity, the operational state-of-charge envelope is constrained between 5% and 95% (90% usable window). The guaranteed contract term is 15 years, targeting 70% SOH retention at EOL. The required beginning-of-life (BOL) installed DC energy capacity is therefore:

$$E_{DC,BOL\ installed} = \frac{84.32\text{ MWh}}{0.90 \times 0.70} = 133.84\text{ MWh}$$

Step 3: Cell and Rack Sizing
Using a 3.2 V, 314 Ah cell (nominal energy = 1,004.8 Wh):
Each standard rack comprises 416 cells in series (416S1P), yielding a nominal rack voltage of 1,331.2 V and an energy rating of 418.0 kWh.
The total number of racks required is:

$$N_{racks} = \frac{133,840\text{ kWh}}{418.0\text{ kWh/rack}} \approx 320.2 \rightarrow 320\text{ racks}$$

Step 4: PCS and Power Rating Sizing
IEEE 2800-2022 clause 5 requires utility-scale inverters to supply continuous reactive power between 0.95 leading and 0.95 lagging at full active power output. To achieve 20 MW active power output under full reactive power demand, the minimum apparent power rating of the inverter fleet is:

$$S_{inverter} = \frac{20\text{ MW}}{0.95} = 21.05\text{ MVA}$$

Standard practice deploys six central inverter skids rated at 3.52 MVA each, providing 21.12 MVA total capacity, paired with step-up MV transformers feeding a 33 kV collector bus.

Thermal Management in Large Scale Battery Storage Systems

Liquid cooling is the industry standard thermal management approach for large scale power storage, outperforming legacy air-cooled designs in temperature uniformity and auxiliary energy efficiency.

Lithium-ion cell lifespan degrades exponentially when operating outside the optimal temperature band of 20 °C to 30 °C. Furthermore, when temperature variance across a single series string exceeds 3 °C to 5 °C, individual cell internal resistances diverge, accelerating capacity mismatch and forcing the BMS to throttle charge and discharge cycles prematurely. Thermal system fundamentals are examined in depth within our battery cooling engineering guide.

Liquid cooling plates are positioned directly beneath or between the prismatic cell faces. Heat generated internally is conducted through thermally conductive phase-change pads into extruded aluminium chill plates. Variable-speed circulation pumps modulate the flow rate of the 50/50 water-ethylene glycol mixture, directing heat to external fan-coil heat exchangers or integrated chillers. This compact mechanical layout enables manufacturers to package double the energy capacity into a standardised 20-foot shipping container footprint.

Safety and Fire Protection Standards: NFPA 855 and UL 9540A

Compliance with NFPA 855 and the successful completion of UL 9540A testing are mandatory prerequisites for permitting and insuring grid level battery storage installations.

NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) imposes stringent spatial separation rules to prevent cascading thermal failure between modular units. Section 4.3 dictates a minimum separation distance of 3.0 metres (10 feet) between individual outdoor containerised enclosures and adjacent structures, property boundaries, or exposed transformer substations. This separation distance can only be reduced if the equipment passes full-scale fire testing under UL 9540A (Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems).

UL 9540A evaluates fire propagation across four hierarchical tiers: the individual cell level, the module level, the entire rack level, and the complete enclosure level. During testing, an intentional thermal runaway is induced via flexible electrical resistance heaters or nail penetration until the cell vents flammable pyrolysis gases (principally hydrogen, carbon monoxide, methane, and ethylene). To achieve certification, the enclosure must demonstrate:

• No propagation of thermal runaway from the target rack to adjacent racks within the container.
• No flaming external to the container envelope.
• Effective concentration of deflagration venting in compliance with NFPA 68 and NFPA 69, directing overpressure blasts upward away from personnel routes.
• Gas detection mechanisms that trigger automatic isolation, venting dampers, and total-flooding clean agent fire suppression (e.g., Novec 1230 or FK-5-1-12) prior to explosive gas concentrations reaching 25% of the Lower Flammability Limit (LFL).

Grid Interconnection and Factory Acceptance Checklist

A comprehensive Factory Acceptance Test (FAT) and Site Acceptance Test (SAT) regime ensures that utility scale energy storage systems comply with strict grid interconnection codes before energisation.

1. Insulation and Dielectric Withstand Verification: Test DC positive and negative poles to ground using a 2,500 V DC megohmmeter in accordance with IEC 62933-5-2. Verify insulation resistance exceeds 100 MΩ across all ungrounded segments.
2. BMS Telemetry and Isolation Loop Integrity: Confirm individual cell voltage sensing accuracy within ± 2 mV and temperature sensor fidelity within ± 1 °C. Validate high-voltage interlock loop (HVIL) response by simulating contactor disconnects under 100% full-load condition within 10 milliseconds.
3. Thermal Fluid Loop Pressure and Leakage Tests: Hydrostatically pressurise the closed liquid cooling loops to 1.5 times the maximum rated operating pressure (typically 4.0 to 6.0 bar) for a minimum hold duration of 60 minutes with zero observable pressure drop.
4. Harmonic Distortion and Power Quality Profiling: Verify total harmonic current distortion (THDi) remains below 3.0% at full rated output power at the low-voltage terminal, satisfying IEEE 519-2022 limits.
5. Frequency-Watt and Voltage-Var Response Time: Inject simulated grid frequency anomalies (+0.2 Hz / -0.2 Hz) via secondary relay test sets to confirm primary frequency response activation within 150 milliseconds, complying with IEEE 2800-2022 dynamic performance criteria.
6. Emergency Power Off (EPO) and Gas Abatement Logic: Verify that local and remote EPO triggers trip both the medium-voltage vacuum circuit breaker and DC contactors concurrently while asserting ventilation interlocks.

Next steps: specifying and sourcing

When specifying equipment for a utility-scale deployment, engineering teams must supply the complete site single-line diagram (SLD), point of common coupling (PCC) voltage, geotechnical load profiles, seismic criteria, and local grid code compliance parameters. Specifying factory-integrated, liquid-cooled enclosures significantly reduces balance-of-plant field assembly times and eliminates on-site DC busbar fabrication errors. Explore our modular energy storage system platforms, pre-commissioned liquid-cooled ESS containers, and custom-engineered transformer substations to evaluate mechanical and electrical configurations. For technical consultations, project budgetary sizing, or factory compliance documentation, submit your specification to our application team via our contact page or request an engineering review directly through our quotation portal.
