Quick answer: Energy storage lithium ion batteries are rechargeable electrochemical systems—primarily utilising lithium iron phosphate (LFP) or nickel manganese cobalt (NMC) chemistries—engineered to capture electricity from photovoltaic arrays or the grid and discharge it on demand. Industrial systems range from 100 kWh commercial cabinets to multi-megawatt-hour containerised installations operating between 600 V DC and 1500 V DC.

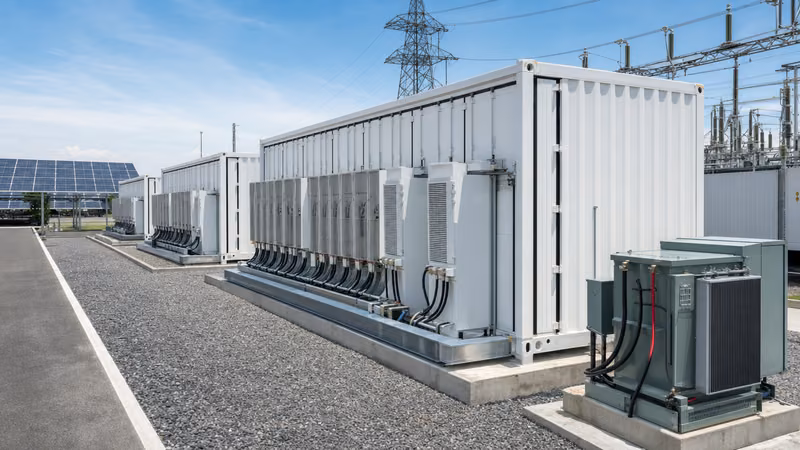

Deploying energy storage lithium ion batteries within industrial networks, solar farms, and island microgrids resolves the fundamental mismatch between intermittent photovoltaic generation and facility demand profiles. As grid operators tighten export curtailment limits and peak-demand tariffs escalate, industrial project engineers require precise methodologies for sizing cell strings, mitigating fire risks under NFPA 855 and IEC 62933-5-2, and balancing thermal loads across multi-megawatt racks. Selecting the correct topology and cell construction governs not only initial capital expenditure, but also levelised cost of storage (LCOS) across a 15-to-20-year operational horizon.

Chemistry selection: LFP vs NMC for lithium ion battery storage systems

Lithium iron phosphate (LiFePO4 or LFP) is the industry standard chemistry for stationary lithium ion battery storage systems due to its superior thermal stability and cycle life. Unlike high-energy-density chemistries such as nickel manganese cobalt (NMC) or lithium polymer variations, LFP features a stable olivine crystal structure with strong phosphorus-oxygen covalent bonds that resist oxygen release during thermal abuse up to 270 °C, as evaluated under IEC 62619 clause 8.2.

While nickel-based cells achieve volumetric energy densities exceeding 600 Wh/L—making them attractive where footprint is severely restricted—LFP delivers 160 to 185 Wh/kg, which is optimal for ground-mount containers and industrial yards. For an exhaustive chemical and financial breakdown, consult our LFP vs NMC battery commercial guide. In grid-tied applications, a standard 280 Ah or 314 Ah prismatic LFP cell provides 6,000 to 8,000 cycles at 0.5C discharge rates before reaching 70% state of health (SOH), whereas NMC equivalents typically reach end of life after 3,000 to 4,000 cycles under identical C-rates and 25 °C operating conditions.

Engineers evaluating a specialised lipo battery for solar installations should note that pouch-cell lithium polymer designs present swelling and containment challenges under sustained daily deep cycling. Heavy industrial microgrids almost universally standardise on rigid aluminium-cased prismatic LFP cells grouped in 1P52S or 1P416S module configurations to maximise physical containment integrity.

Sizing a lithium ion solar battery bank: worked engineering calculation

Sizing a lithium ion solar battery bank requires calculating the usable daily throughput while accounting for depth of discharge, inverter conversion losses, and multi-year cell degradation margins. Undersizing causes premature capacity depletion, while oversizing burdens the balance sheet with unused cell capital.

Consider an industrial manufacturing facility requiring peak shaving and backup power with the following project criteria:

• Required net energy delivery ($E_{net}$): 500 kWh AC
• Required peak discharge power ($P_{max}$): 250 kW AC (2-hour duration)
• Maximum allowable depth of discharge ($DoD$): 90% (0.90)
• Power conversion system (PCS) round-trip inverter-rectifier efficiency ($\eta_{pcs}$): 96.5% (0.965)
• Battery DC-DC round-trip efficiency ($\eta_{dc}$): 95.0% (0.950)
• End-of-life (EOL) retention factor ($SOH_{eol}$): 70% capacity remaining after 10 years (0.70)
• Operating temperature derating factor ($k_t$): 0.97

The calculation proceeds through three engineering stages:

1. Determine the required DC energy output at the start of life:
   $E_{dc,sol} = \frac{E_{net}}{\eta_{pcs}} = \frac{500\text{ kWh}}{0.965} = 518.13\text{ kWh DC}$
2. Account for electrochemical round-trip losses and DoD limits:
   $E_{installed,usable} = \frac{E_{dc,sol}}{DoD \times \eta_{dc}} = \frac{518.13\text{ kWh}}{0.90 \times 0.950} = 606.00\text{ kWh}$
3. Apply end-of-life degradation and thermal deratings:
   $E_{nominal,gross} = \frac{E_{installed,usable}}{SOH_{eol} \times k_t} = \frac{606.00\text{ kWh}}{0.70 \times 0.97} = 892.49\text{ kWh}$

To reliably deliver 500 kWh AC at the end of year 10, the project requires an installed nameplate capacity of at least 893 kWh. In practice, selecting three standard 300 kWh modular racks (900 kWh gross, 1500 V DC nominal) satisfies the requirement with a 0.84% engineering safety margin. For extended system architectures, see our detailed renewable energy storage engineering guide.

Thermal management and safety in energy storage lithium ion batteries

Thermal management systems for energy storage lithium ion batteries must restrict individual cell temperatures between 15 °C and 35 °C while limiting temperature differentials across any string to less than 3 °C. Excessive cell temperature delta accelerates differential impedance growth, causing string imbalances that trigger premature battery management system (BMS) voltage cut-offs.

Modern utility-scale installations have shifted rapidly from traditional forced-air HVAC units to direct-to-plate liquid cooling circuits. Using a 50/50 water-glycol mixture pumped through cold plates sandwiched between prismatic cells, liquid cooling provides roughly four times the heat transfer coefficient of air systems. This reduces internal fan parasitic energy consumption by up to 30% and prolongs operational life. Detailed comparisons of chillers, pipe routing, and pump heads are available in our battery cooling engineering guide.

From a life-safety standpoint, adherence to NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and UL 9540A is mandatory. Fire containment relies on a multi-tier defence structure:

• Early off-gas detection: Sub-ppm carbon monoxide (CO) and hydrogen sensors detecting volatile organic compound off-gassing 5 to 15 minutes prior to thermal runaway.
• BMS hardware protection: Tripping DC contactors under IEC 60947-3 upon detecting overvoltage (e.g., >3.65 V per LFP cell) or critical overtemperature (>55 °C).
• Active fire suppression: Aerosol or clean-agent systems (such as FK-5-1-12) coupled with direct water injection manifolds capable of flooding cell modules during catastrophic cell-to-cell propagation.
• Deflagration venting: Explosion relief panels engineered according to NFPA 68 with relief areas rated to release peak enclosure pressures below structural yield limits.

Electrical integration: coupling lithium ion batteries for solar power storage

Integrating lithium ion batteries for solar power storage is accomplished through either DC-coupled or AC-coupled electrical architectures, depending on inverter topology and grid interconnect agreements. Each approach presents trade-offs in round-trip efficiency, switchgear complexity, and operational fault behaviour.

In an AC-coupled configuration, the solar array and the lithium battery energy storage system connect to separate inverters that synchronise at an AC distribution busbar (typically 400 V, 480 V, or 690 V). This allows independent replacement or expansion of either system. System designers can size the bidirectional power conversion unit precisely to match facility load profiles without reconfiguring existing solar strings. Learn more about converter topologies and sizing in our power conversion system guide.

Conversely, DC-coupled architectures connect the solar array and battery storage behind a shared central inverter via high-voltage DC-DC buck-boost converters operating up to 1500 V DC. DC coupling eliminates one AC-DC-AC conversion stage, raising round-trip charging efficiency by 2% to 4%. However, it requires complex DC fault isolation switchgear, such as high-speed DC breakers conforming to IEC 60947-2 Annex P, capable of breaking prospective short-circuit currents from low-impedance lithium ion battery arrays exceeding 25 kA with sub-10 millisecond clearing times.

Engineering decision matrix for lithium battery solar storage

Evaluating cell formats and system enclosures determines spatial footprints, maintenance access requirements, and replacement protocols for lithium battery solar storage assets. The table below outlines concrete design criteria across three standard industrial cell implementations.

For ground-mounted solar storage exceeding 500 kWh, prismatic LFP cells housed in liquid-cooled outdoor cabinets represent the optimal balance between high cycle longevity, straightforward busbar torque verification, and structural stability under thermal cycling.

Commissioning checklist for li ion battery storage systems

Commissioning a li ion battery storage system demands rigorous multi-stage verification before energisation to prevent premature insulation failure, balance errors, or arc flash events. Commissioning engineers should execute the following sequential site acceptance procedure:

1. Enclosure mechanical and environmental inspection: Verify weatherproof ingress seal integrity, inspect deflagration panel latching torques, confirm HVAC/chiller coolant pressure levels (typically 1.5 to 2.5 bar static), and check pipework for glycol leaks.
2. Grounding and bonding verification: Measure protective earth continuity between all rack frames, module chassis, and the master station earth ring in accordance with IEEE 81, ensuring resistance remains strictly below 1.0 Ohm.
3. DC bus insulation resistance testing: Conduct megohmmeter insulation tests at 1,000 V DC or 2,500 V DC (depending on whether the system is rated for 1000 V or 1500 V nominal) between positive/negative poles and ground with all electronic BMS controllers isolated, verifying minimum resistance exceeds 100 Megaohms per IEC 62477-1.
4. Polarity and open-circuit voltage verification: Check every series string with a calibrated true-RMS digital multimeter to verify correct module polarity and confirm that total rack string open-circuit voltage matches the calculated cell sum within ±0.5%.
5. BMS communications and sensor loop check: Power up the master and slave BMS logic circuits; verify Modbus TCP/IP or CANbus polling rates, calibrate cell voltage measurement offsets (<2 mV per cell tolerance), and test all thermocouple readouts against an ambient reference.
6. Dry-contact trip and shunt trip operational checks: Simulate emergency stop (E-stop), fire alarm system activation, and HVAC thermal trip signals to confirm unlatching of main DC circuit breakers and contactors within specified timeframes (typically under 50 ms).
7. Gradual charge calibration (SOC balancing): Perform an initial conditioning charge at a conservative 0.1C rate up to 100% state of charge, holding absorption voltage to allow passive cell balancing shunts to equilibrate all cell voltages within 15 mV.

Next steps: specifying and sourcing

When preparing an inquiry or tender package for grid-scale or industrial storage, specify your project's nominal AC capacity, peak charge/discharge power, grid-connection voltage (MV or LV), daily duty cycle, and required target life in equivalent full cycles. Our engineering team designs and manufactures factory-tested, integrated energy storage system assemblies and high-efficiency liquid-cooled ESS containers rated up to 1500 V DC. These comply fully with IEC 62619, UL 9540, and NFPA 855 standards. To review system drawings, request electrical single-line diagrams, or obtain a tailored quotation, submit your project details via our request a quote page.
