Lithium Ion Battery Guide: Working Principles & Industrial Specs

Quick answer: A lithium ion battery is a rechargeable electrochemical energy storage device that converts chemical energy into electrical energy through the shuttling of lithium ions between positive and negative host electrodes. It delivers high volumetric energy density (up to 420 Wh/L in industrial LFP cells), round-trip efficiency exceeding 95%, and operating lifespans beyond 6,000 cycles at 80% depth of discharge.

In commercial and industrial grid engineering, the lithium ion battery has become the primary building block for stationary storage, frequency response, and peak shaving. Understanding its core chemistry, internal mechanical structure, and electrical performance parameters enables electrical engineers, EPC contractors, and system designers to specify the correct cell format, protective switchgear, and thermal management systems for utility-grade installations.

What is a lithium battery and what does li ion battery mean?

The term ion battery denotes an electrochemical system where active metal ions move between the host structures of two electrodes during charging and discharging, eliminating the need for metallic lithium plating. To define lithium ion battery systems accurately under IEC 62620 clause 3.1, they are secondary (rechargeable) cells where lithium ions move from the positive electrode (cathode) to the negative electrode (anode) during charge, and reversibly return during discharge through a non-aqueous liquid or polymer electrolyte.

Engineers must distinguish primary lithium batteries from secondary lithium-ion assemblies. A primary lithium battery contains metallic lithium at the anode and is non-rechargeable due to irreversible chemical reactions and dendritic short-circuit hazards during recharging. Conversely, a lithium battery is rechargeable when formulated as an intercalation or alloy compound, making it the standard technology for modern battery infrastructure. The shorthand designation liion battery or Li-ion highlights this rocking-chair mechanism, where the host lattices absorb and release lithium ions without altering the fundamental crystalline phase of the electrode host.

How does a lithium ion battery work: the electrochemical mechanism

A lithium ion battery operates through a reversible four-part electrochemical cell consisting of a cathode, an anode, a microporous polymer separator, and an organic electrolyte containing dissolved lithium salts such as lithium hexafluorophosphate (LiPF6). During charging, an external power source applies an overpotential, forcing transition metal atoms in the cathode to oxidise, liberating electrons to the external circuit while positively charged lithium ions deintercalate from the cathode crystal lattice.

These ions migrate through the electrolyte and cross the sub-micron pores of the separator, while the liberated electrons travel through the external circuit to reach the anode current collector, maintaining electrical neutrality. At the anode—typically synthetic graphite—the incoming electrons reduce the carbon host, allowing the lithium ions to intercalate into the graphene layers (forming LiC6). During discharge, the process reverses spontaneously when an electrical load connects to the terminals: lithium ions deintercalate from the graphite, migrate back through the electrolyte to the cathode, and drive electron flow across the external load to deliver work.

Maintaining stable operation requires forming a passivation layer known as the Solid Electrolyte Interphase (SEI) on the anode during initial factory formation cycling. The SEI layer allows lithium ions to pass while preventing continuous solvent reduction. Operating beyond manufacturer design parameters—such as ambient temperatures below 0°C during charging or exceeding maximum continuous current limits—causes irreversible lithium plating on the anode, permanently degrading cell capacity and risking internal short circuits under IEC 62619 abuse testing conditions.

What does a lithium ion battery look like: cell formats and industrial architecture

At the component level, an individual cell looks like either a welded metallic can or a flexible foil envelope, depending on whether it utilizes cylindrical, prismatic, or pouch packaging. In commercial energy storage systems, the prismatic format dominates due to its superior volumetric packing efficiency (often exceeding 80% at module level) and integrated burst-proof pressure relief vents. Below is an engineering overview of how individual cells are integrated into high-voltage industrial battery systems:

1. Single Cell: A sealed aluminium casing measuring roughly 174 mm (W) × 72 mm (D) × 207 mm (H) for standard 280 Ah or 314 Ah utility cells, fitted with positive and negative standard threaded laser-welded copper and aluminium terminals and a central explosion-proof vent rated for 0.4 to 0.8 MPa release pressure.
2. Battery Module: Groups of 16 to 24 prismatic cells clamped under mechanical compression (typically 3 kN to 5 kN) in a powder-coated steel chassis to prevent delamination and mechanical swelling across cycling life. The module incorporates integrated busbars, cell-level voltage and temperature monitoring harnesses, and thermal insulation barriers conforming to UL 94 V-0 flame ratings.

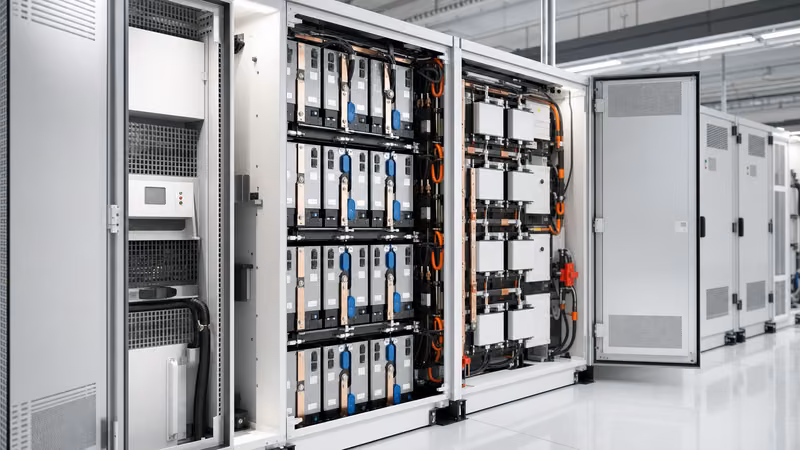

3. Battery Rack: Multiple modules wired in series within an IP20 or IP54 indoor/outdoor rack to achieve DC bus potentials between 600 V and 1,500 V, supervised by a high-voltage rack control unit containing DC contactors, high-speed fuses, and an integrated battery monitoring system guide compliant controller.
4. System Enclosure: Racks mounted inside prefabricated steel containers or liquid-cooled outdoor cabinets, complete with HVAC or hydronic chillers, aerosol or water-mist fire suppression systems, and integrated power conversion system guide equipment for grid connection.

Lithium ion battery technology: chemistry comparison and energy density

Selecting the right lithium ion battery technology for stationary energy storage requires balancing lithium battery energy density, cycle life, thermal runaway threshold, and raw material economics. Stationary applications prioritising long asset life and inherent fire safety utilise Lithium Iron Phosphate (LFP), whereas weight-critical applications historically relied on Nickel Manganese Cobalt (NMC). For a detailed technical comparison of cell degradation mechanisms between these chemistries, consult our guide on LFP vs NMC battery properties.

The power of lithium ion battery systems is governed by internal resistance (ACIR and DCIR) and maximum continuous C-rate, which determines charge and discharge velocity without inducing excessive thermal stress. The table below outlines empirical performance figures evaluated per IEC 62620 test protocols:

Thermal stability remains the primary parameter when engineering utility-scale equipment. LFP exhibits a higher thermal runaway onset temperature than high-nickel NMC variants because the covalent phosphorus-oxygen (P-O) bond in the PO4 tetrahedral lattice resists oxygen release under short-circuit and over-temperature scenarios. Maintaining uniform temperature gradients across modules is vital, often requiring advanced liquid cooling loops as detailed in our battery cooling engineering guide.

Lithium battery applications in commercial and utility power systems

Industrial lithium battery applications span distribution substation stabilization, industrial peak load curtailment, microgrid islanding, and renewable generation firming. Because a modern battery system can transition from full discharge to full charge in under 20 milliseconds, operators rely on lithium ion energy systems for primary frequency response (governor response) to counter grid inertia loss caused by retiring thermal plants.

In commercial facilities, lithium ion power assets are deployed behind-the-meter to avoid peak transmission demand tariffs. Facilities with heavy intermittent inductive loads—such as arc furnaces, stamping presses, and electric vehicle fleet chargers—install containerised energy storage combined with high-voltage switchgear to buffer grid demand spikes. Furthermore, when integrated alongside grid-tied solar arrays, stationary lithium ion battery energy enables energy time-shifting: storing surplus midday photovoltaic production and discharging during evening peak demand periods to maximise project internal rates of return.

Engineering calculation: sizing an industrial battery rack

Proper system sizing requires calculating the total cell count, nominal DC bus voltage, and usable energy capacity while accounting for Depth of Discharge (DoD) limits and round-trip electrical losses. The following calculation steps specify an industrial LFP rack designed to provide 200 kWh usable AC output over a 2-hour discharge period (0.5C rate) through a 400 V AC power conversion system.

1. System Sizing Inputs:
   • Required Usable AC Energy (E_usable_ac): 200 kWh
   • Discharge Duration (t): 2.0 hours (Discharge Power = 100 kW)
   • Maximum Operating DoD: 90% (0.90)
   • Battery Cell: Prismatic LFP, 3.2 V nominal, 280 Ah capacity (C_cell = 896 Wh nominal)
   • Inverter / PCS Efficiency (η_pcs): 96.5% (0.965)
   • DC Cable and Busbar Round-Trip Efficiency (η_dc): 98.0% (0.980)
   • End-of-Life Capacity Retention Margin (SOH_eol): 80% (0.80) to guarantee performance at Year 10
2. Required DC Energy at Beginning of Life (BOL):
   The DC energy required at the battery terminals at BOL to ensure 200 kWh usable AC at Year 10 is:
   E_dc_bol = E_usable_ac / (DoD × η_pcs × η_dc × SOH_eol)
   E_dc_bol = 200 / (0.90 × 0.965 × 0.980 × 0.80) = 200 / 0.6806 = 293.86 kWh
3. Cell Quantity and String Configuration:
   Total number of 280 Ah cells required:
   N_cells = E_dc_bol / E_cell = 293,860 Wh / 896 Wh = 327.96 cells.
   Selecting a standard modular rack architecture of 1P (single string in parallel):
   We configure a series string of 336 cells (divided into 21 modules of 16 cells in series, 16S1P per module).
4. Nominal Voltage and Storage Verification:
   V_nominal_string = 336 cells × 3.2 V = 1,075.2 V DC (fully compatible with 1,500 V DC container standards).
   Actual Installed BOL DC Capacity = 336 × 896 Wh = 301.05 kWh DC.
   Nominal discharge current at 100 kW discharge: I_dc = 100,000 W / (1,075.2 V × 0.965) = 96.38 A (operating at a conservative 0.34C continuous rating).

Factory testing and procurement standards checklist

Specifying stationary lithium ion battery systems requires verifying adherence to stringent international safety and performance standards during factory acceptance testing (FAT). System integrators must ensure manufacturers provide certified laboratory reports prior to dispatch. The following checklist highlights essential compliance benchmarks:

• IEC 62619: Mandatory safety testing for industrial secondary lithium cells and batteries, verifying cell propagation resistance, drop impact, external short-circuit response, and thermal abuse up to 130°C.
• UL 9540A: Test method for evaluating thermal runaway fire propagation in battery energy storage systems, providing critical data on flammable gas composition and heat release rates (HRR) required for local fire authority approvals.
• IEC 62477-1 / IEC 61439-1: Dielectric and mechanical withstand verification for the power electronic enclosure and low-voltage distribution boards integrated within the battery container.
• UN 38.3: Mandatory transport qualification certifying that cells and modules withstand altitude simulation, vibration, thermal cycling, and continuous mechanical shock during international logistics.
• Factory Insulation Resistance: Routine insulation resistance testing per IEC 60364-6 requiring a minimum insulation measurement of 1,000 Ω/V between the high-voltage DC string busbars and the grounded metal rack enclosure.

Next steps: specifying and sourcing

When preparing an RFQ for commercial or utility battery systems, engineers should compile project site parameters including peak megawatt demand, required discharge duration, ambient operating temperature extremes, and grid interconnection voltage. Review our turnkey energy storage system solutions and high-density liquid-cooled ESS container platforms to select the optimal mechanical and thermal topology. For projects requiring comprehensive balance-of-plant packages—including step-up transformers and HV/LV switchgear—submit your single-line diagrams directly through our engineering team via the quotation page or speak with a specialist on our contact page.
