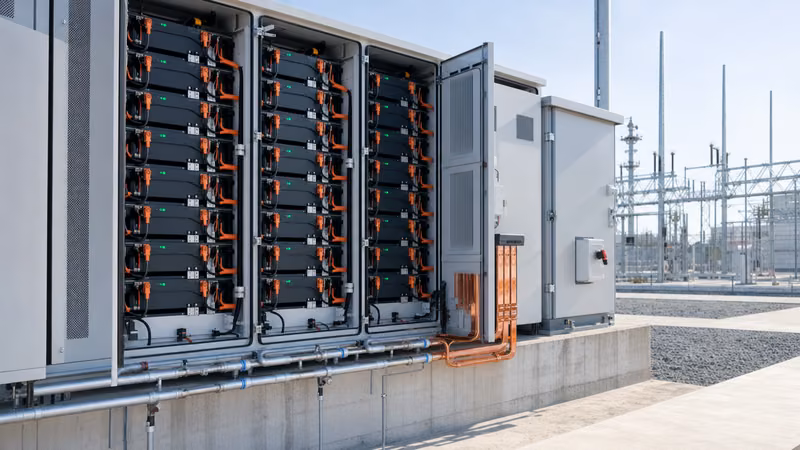

Quick answer: An aes battery (advanced energy storage battery) is an industrial-grade, high-density electrochemical storage unit engineered for demanding commercial, off-grid, and grid-support applications. Utilizing stabilized lithium iron phosphate (LFP) cell chemistry, these units deliver high cycle lives exceeding 6,000 cycles, integrated internal battery management, and rapid peak discharge capabilities tailored for seamless industrial integration.

In heavy commercial facilities, microgrids, and remote industrial networks, traditional lead-acid systems and basic stationary batteries fail to withstand severe cyclic stresses and dynamic charge-discharge profiles. Modern aes storage architectures address these constraints by combining prismatic lithium cells, robust internal communications, and rigorous thermal management inside modular enclosures. When evaluating systems for facility power factor correction, emergency backup, or solar integration, consulting a comprehensive commercial energy storage guide ensures that operational constraints match equipment capability. This guide examines the internal topology, electrical design calculations, protection schemes, and commissioning protocols essential for integrating an industrial aes battery plant.

Electrochemical Architecture: Why AES Battery Systems Rely on LFP

Commercial aes battery units almost universally employ Lithium Iron Phosphate (LiFePO4 or LFP) cell chemistry because of its intrinsic thermodynamic stability and resistance to thermal runaway. The olivine crystal structure of LFP maintains structural integrity under sustained high-rate cycling, unlike layered oxide chemistries that undergo phase transitions and release free oxygen at elevated operating temperatures. For detailed chemical comparisons across commercial applications, refer to our analysis on LFP vs NMC battery systems.

Under standard operational metrics defined by IEC 62619 clause 7.2, an LFP-based aes battery cell demonstrates an open-circuit voltage of approximately 3.2 V DC per cell, operating comfortably within a window of 2.5 V (fully depleted) to 3.65 V (fully charged). This electrochemical baseline yields notable advantages for stationary installations:

• Thermal Stability: Decomposition occurs only at temperatures above 270 degrees Celsius, eliminating spontaneous exothermic acceleration under typical field fault conditions.
• Extended Cycle Life: Retention of 80% initial capacity after 6,000 to 8,000 complete charge-discharge cycles at 0.5C continuous rate and 25 degrees Celsius ambient temperature.
• High Coulombic Efficiency: Coulombic efficiencies consistently exceed 98%, directly contributing to round-trip efficiency (RTE) figures that minimize parasitic conversion losses.
• Environmental Compliance: Fully compliant with RoHS and REACH standards, avoiding restricted heavy metals like cobalt and nickel.

Engineering Sizing Calculation for Commercial AES Storage

Sizing an aes storage installation requires reconciling continuous load profiles, target autonomy windows, dynamic depth of discharge, and environmental derating factors. Relying solely on nominal nameplate ratings risks premature system trip-outs or accelerated cell degradation due to sustained over-current conditions.

To calculate the required nameplate energy storage capacity (E_nameplate in kWh), engineers apply the standard system balance equation:

E_nameplate = (P_load × t_autonomy) / (DoD × η_inverter × η_battery × k_temp)

Where:

• P_load: Total critical continuous load (kW).
• t_autonomy: Required operational duration at full load (hours).
• DoD: Maximum allowable Depth of Discharge (typically 0.85 to 0.90 for extended lifespan).
• η_inverter: Efficiency of the bidirectional Power Conversion System (typically 0.965).
• η_battery: DC-DC electrochemical battery efficiency (typically 0.95).
• k_temp: Low-temperature capacity retention derating factor (1.0 at 25°C; 0.92 at 5°C).

Consider a practical factory installation where a commercial facility requires 250 kW of backup power for 2.0 hours at an ambient room temperature of 15 degrees Celsius (derating factor k_temp = 0.97). The selected maximum depth of discharge is 85% (0.85):

E_nameplate = (250 kW × 2.0 h) / (0.85 × 0.965 × 0.95 × 0.97) = 500 kWh / 0.7562 = 661.2 kWh

To ensure system longevity and prevent the string voltage from dipping below the low-voltage cutoff of the power conversion system, the engineering design specifies a standard factory-assembled battery bank of at least 670 kWh nominal capacity, arranged in parallel high-voltage rack strings.

Technical Comparison: Industrial AES Battery vs Conventional Storage

Selecting an energy storage technology requires a direct evaluation of physical footprint, electrical efficiency, thermal overhead, and replacement life cycle. The comparative data below outlines typical parameters observed in standard commercial utility-tied microgrids.

As demonstrated in the comparison table, deploying an aes battery array reduces the structural floor space requirement by more than 60% relative to lead-acid alternatives, while supporting higher sustained charge and discharge currents without sulfation or capacity memory effects.

BMS Integration and Communication Protocols in AES Storage

A high-capacity aes storage system relies on a multi-tier Battery Management System (BMS) to preserve cell balance, supervise thermal thresholds, and execute protective interlocks. In industrial architectures, the BMS structure divides into three primary tiers: the Slave BMS (Cell Monitoring Units), the Rack BMS (Master), and the System-Level EMS (Energy Management System) interface.

The Cell Monitoring Units measure individual cell voltages with an accuracy of ±1.5 mV and monitor module surface temperatures using high-precision NTC thermistors. If any single cell deviates by more than 30 mV during charging, the passive or active balancing circuitry shunts current away from the highest cell, preventing premature cut-offs while maintaining the entire string within optimal electrochemical limits.

Industrial plants communicate with central SCADA or building management systems through standardized protocols. The standard hardware setup utilizes dual galvanically isolated RS485 and Controller Area Network (CAN 2.0B) ports running Modbus RTU or Modbus TCP/IP. Critical status registers monitored continuously include:

• State of Charge (SoC) and State of Health (SoH) calculated via Kalman-filtering algorithms.
• String DC bus voltage, array current, and instantaneous power flow.
• Individual module minimum and maximum temperature points.
• Insulation resistance between high-voltage DC rails and chassis earth (minimum threshold: 1000 Ω/V per IEC 61851-23).
• Dry-contact discrete outputs tied directly to emergency trip loops and upstream shunt-trip breakers.

Thermal Control Strategies: Air vs Liquid Cooling for AES Battery Units

Maintaining uniform thermal distribution across all cells in an aes battery module directly dictates operating life, capacity availability, and safety. Operating prismatic cells outside the 15 to 35 degrees Celsius design envelope accelerates electrolyte breakdown and solid electrolyte interphase (SEI) growth. For deeper analysis of thermal sizing, review our battery cooling engineering guide.

While low-capacity installations under 50 kWh often leverage forced-air cooling, high-capacity utility and commercial installations rely heavily on closed-loop liquid cooling systems. The engineering differences govern both rack geometry and parasitic power consumption:

1. Thermal Dissipation Medium: Liquid systems use a non-conductive water-glycol mixture pumped through cold plates in direct contact with cell casings, achieving heat transfer coefficients up to 30 times higher than forced air.
2. Internal Temperature Delta: A closed liquid loop maintains module-to-module temperature variance within 2.5 degrees Celsius across an entire 2 MWh container, whereas forced air often allows deltas exceeding 8 degrees Celsius between inlet and exhaust louvers.
3. Parasitic Pumping Loads: Liquid cooling chillers with variable-frequency drive pumps consume approximately 40% less auxiliary energy compared to industrial HVAC units continuously cycling large air volumes against high internal static pressure.

Safety Engineering and Compliance: NFPA 855 and UL 9540A

Stationary commercial installations using high-density aes storage must comply with stringent fire safety, containment, and structural separation standards. In North America and standard-aligned international jurisdictions, project commissioning requires compliance with NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems) and UL 9540A cell-to-module thermal runaway fire testing.

To mitigate deflagration and fire hazards, containerised and cabinet-based designs incorporate physical safety barriers:

• UL 9540A Testing Evidence: Documented proof verifying that thermal runaway initiated in an intentionally overdriven cell will not propagate to adjacent cells or adjacent module enclosures.
• Deflagration Venting: Explosion relief panels engineered to NFPA 68 requirements, set to relieve cabinet internal overpressure safely away from maintenance walkways.
• Targeted Fire Suppression: Modular aerosol or clean-agent systems (such as FK-5-1-12) coupled with direct water sprinkler connections for fire department interlock per NFPA 855 clause 4.4.
• Off-Gas Early Warning Detection: Multi-gas sensors monitoring hydrogen (H2), carbon monoxide (CO), and volatile organic compounds (VOCs) to identify early off-gassing long before smoke or thermal spikes activate primary alarms.

Factory Testing and Commissioning Checklist for AES Battery Arrays

A systematic commissioning sequence ensures that the installed aes battery bank matches factory baseline test reports and integrates cleanly with distribution switchgear. Before applying DC voltage to the PCS bus, field technicians must complete and sign off the following verification stages:

1. Mechanical and Torque Verification: Confirm all busbar connections, high-voltage terminals, and earth bonding lugs are torqued to manufacturer specifications using calibrated tools, followed by application of torque seal paint.
2. Insulation Resistance (Megohmmeter) Test: Apply 1,000 V DC between the positive DC bus and chassis earth, and negative DC bus and chassis earth; confirm insulation resistance exceeds 10 MΩ per string.
3. Open-Circuit String Voltage Uniformity: Measure open-circuit voltage across each individual battery module; string-to-string voltage deviation must not exceed 0.5% prior to parallel connection.
4. BMS Telemetry and Trip Interlock Check: Simulate over-voltage, under-voltage, over-temperature, and earth fault threshold inputs to confirm the master BMS drops the high-voltage DC contactors in under 20 milliseconds.
5. Controlled Load and Capacity Discharge Test: Execute a full 0.2C discharge test down to 90% DoD to benchmark usable field capacity against the factory acceptance test (FAT) documentation.

Next steps: specifying and sourcing

When specifying an industrial aes battery system, engineers must supply clear project parameters: peak load profile (kW), target autonomy duration, grid-interconnection voltage, environmental ambient limits, and preferred communication architecture. Our technical team manufactures containerised and cabinet solutions compliant with IEC, ANSI, and UL standards. Explore our industrial energy storage system configurations and engineered liquid-cooled ESS container units. For customized engineering calculations, system single-line diagrams, or detailed production schedules, submit your technical requirements directly through our quote page.
