480V 3 Phase Power: Voltage, Sizing and Wiring Guide

Quick answer: A 480v 3 phase system is the primary industrial low-voltage distribution standard in North America, delivering 480 volts between phase conductors. Connected in a 4-wire Wye arrangement, it simultaneously delivers 277 volts line-to-neutral, efficiently powering heavy machinery alongside commercial lighting circuits from a single distribution board.

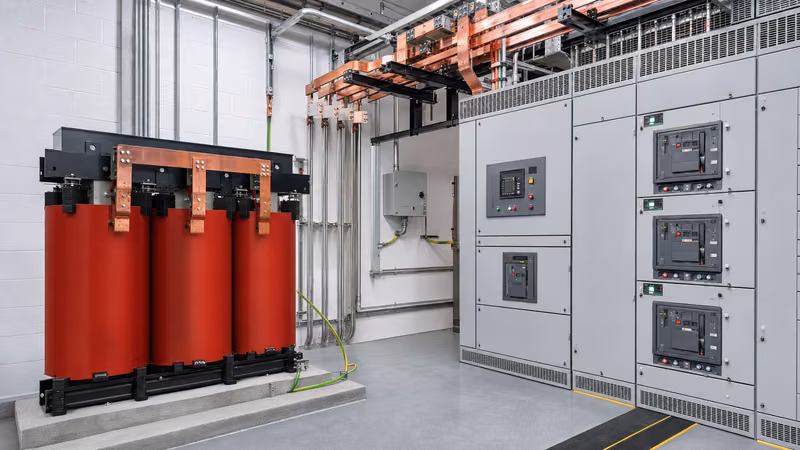

Industrial facilities, commercial complexes, and data centres rely extensively on 480 volt 3 phase architecture to reduce electrical conductor mass and minimize I²R transmission losses. Operating at more than double the voltage of standard 208V 3 phase power networks, an engineered 480V network halves conductor current for an equivalent kilowatt rating. Selecting the appropriate secondary winding configuration, managing neutral grounding, and specifying the correct transformer ratings require a strict understanding of both IEEE standards and practical field requirements.

480 3 Phase Voltage Per Leg: Wye vs Delta Topologies

A 480 3 phase voltage per leg reading depends strictly on whether the transformer secondary is wound in a Wye (Star) or Delta configuration. Measuring phase-to-phase across any two ungrounded conductors in either configuration delivers 480 volts alternating current under balanced load conditions.

In a standard 480Y/277V four-wire Wye topology, the line-to-neutral voltage on each phase leg equals 480V divided by the square root of three (1.732), yielding exactly 277.1 volts. This enables facilities to run balanced three-phase motor loads across phases A, B, and C, whilst directly feeding high-efficiency luminaire ballasts and single-phase auxiliary loads between any single leg and the neutral conductor. Conversely, a 480 three phase ungrounded or corner-grounded Delta system provides 480V line-to-line with no neutral conductor, preventing any direct single-phase low-voltage derivations without an external step-down unit.

Calculating Current and Load Capacity in 480 Volt 3 Phase Systems

Calculating line current for 480v three phase installations requires balancing total apparent power, active power, and operating power factor. Applying Ohm's law directly without accounting for the phase displacement factor leads to severe undersizing of protective trip elements and feeder conduits.

To calculate three-phase current in an alternating current system, engineers use the standard three-phase current equation:

I = P / (V × √3 × PF)

Where I is the line current in amperes, P is real power in watts, V is 480V line-to-line, and PF is the load power factor. When working with apparent power expressed in kilovolt-amperes (kVA), power factor drops out of the equation:

I = (kVA × 1000) / (480 × 1.732) = kVA × 1.2028

For example, consider a 500 kVA distribution transformer feeding a manufacturing floor. The rated secondary full-load current at nominal 480V equals:

I = 500,000 / (480 × 1.73205) = 601.4 Amperes

When sizing circuit conductors in accordance with NFPA 70 (NEC) Article 215, continuous loads operating for three hours or longer require feeder ampacity sized to at least 125% of the calculated continuous load current plus 100% of non-continuous current. Sizing such systems accurately within a broader unit substation engineering layout ensures busbars operate below thermal rise thresholds during peak demand.

Wiring Schematics and Neutral Grounding Requirements

Terminating a 480 vac three phase service requires strict compliance with IEEE 142 (the Green Book) to prevent catastrophic transient overvoltages and clear phase-to-ground faults safely. The secondary side of a step-down transformer constitutes a separately derived system, requiring a local system bonding jumper.

When implementing a solid-grounded 480Y/277V network, follow this termination sequence:

1. Connect the incoming medium-voltage cables to primary terminals H1, H2, and H3, observing proper phase sequencing.
2. Land secondary feeder conductors onto terminals X1, X2, and X3 for phase conductors, and establish X0 as the grounded neutral terminal.
3. Install a sized copper system bonding jumper between terminal X0 and the enclosure grounding busbar within the first service disconnect enclosure, in accordance with NEC Table 250.102(C)(1).
4. Bond the grounding electrode conductor from the driven ground rod array or structural steel grounding grid directly to the X0 neutral point.
5. Ensure the neutral conductor downstream of the main bonding point remains completely isolated from earth throughout all subpanels to prevent parallel return currents through equipment chassis.

In continuous process facilities where unexpected outages cause severe economic loss, high-resistance grounding (HRG) is often integrated onto the 480 3 phase secondary. By inserting a neutral grounding resistor between X0 and ground, fault current during a single line-to-ground event is typically limited to 5 amperes or less, allowing continuous plant operation whilst alerting maintenance personnel.

Step-Down and Distribution Transformer Sizing for 480V Loads

Sizing distribution transformers supplying 480V networks involves assessing ambient temperature derating, expected peak diversity factors, and non-linear harmonic distortion. Over-sizing leads to poor operational efficiency and elevated excitation losses, whereas undersizing accelerates insulation thermal degradation.

Standard three-phase transformer capacities follow standardized kVA steps: 75, 112.5, 150, 225, 300, 500, 750, 1000, 1500, 2000, and 2500 kVA. When sizing an oil-immersed transformer or a ventilated dry-type unit, verify the short-circuit impedance percentage (%Z). Typical values range from 4.5% to 5.75% for units rated between 500 kVA and 2500 kVA per IEEE C57.12.00 Table 7.

For facilities deploying high concentrations of variable frequency drives (VFDs) and switched-mode power supplies, harmonic currents distort the sinusoidal waveform. In these environments, specify a K-factor rated transformer (typically K-4, K-9, or K-13) or incorporate oversized neutral busbars (200% rating) to dissipate zero-sequence harmonic currents safely. Ensuring correct factory testing using standard protocols outlined in our transformer testing guide confirms winding losses meet specified efficiency limits before installation.

Engineering Specification and Factory Inspection Checklist

Procuring 480V medium-to-low voltage equipment requires unambiguous technical parameters in the procurement documentation to prevent delivery of undersized or non-compliant units. The following checklist outlines the essential baseline specifications required for an engineered RFQ package:

• Nominal Ratings: Primary voltage (e.g., 13.8 kV, 4.16 kV), Secondary voltage (480Y/277V or 480V Delta), continuous kVA rating, and system frequency (50 Hz or 60 Hz).
• Winding Material and Rise: Electrolytic copper or electrical-grade aluminium windings; maximum temperature rise of 65°C over 30°C ambient for liquid-immersed, or 80°C/115°C rise for ventilated dry-type units.
• Taps: Off-load tap changer providing standard full-capacity taps: two 2.5% above nominal and two 2.5% below nominal (2× +2.5%, 2× -2.5%).
• Enclosure & Cooling: NEMA 1/3R or IP54 ingress rating; standard cooling class (ONAN for liquid-filled, AN or AF for dry-type units).
• Protection Integration: Winding temperature indicators, liquid level gauges with alarm/trip dry contacts, and rapid pressure relief devices per IEEE C57.12.10.
• Short-Circuit Withstand: Certified dynamic and thermal short-circuit withstand capabilities conforming to IEEE C57.12.00 clause 7.

Adhering to strict equipment guidelines during industrial power system installation guarantees trouble-free commissioning and coordinates trip curves with downstream low-voltage motor control centres.

Next steps: specifying and sourcing

When specifying 480V 3 phase distribution equipment, compile accurate site load profiles, available primary supply short-circuit MVA, site elevation, and environmental enclosure criteria. Our engineering team designs and manufactures liquid-filled and dry-type distribution units configured precisely to your project's line-to-line and line-to-neutral demands. Explore our range of custom dry-type transformers and integrated transformer substations to match your system footprint. Submit single-line diagrams, ambient specifications, and compliance requirements directly through our request a quote portal to receive detailed dimensional drawings, performance loss data, and competitive commercial proposals.
