Power Factor Test for Transformers: Diagnostic Guide

Quick answer: A power factor test is an alternating current dielectric diagnostic technique that measures the dielectric dissipation factor of electrical insulation. By quantifying the ratio of resistive leakage current to total current, it detects bulk moisture, thermal ageing, carbon tracking, and chemical contamination in transformer windings and bushings before catastrophic failure occurs.

High-voltage equipment relies on composite dielectric insulation systems—primarily kraft paper, pressboard, and insulating liquid. Over operating decades, thermal cycles, oxygen ingress, and mechanical vibration slowly degrade these materials. The power factor test provides the most reliable non-destructive quantitative assessment of this systemic degradation. Conducting a periodic power transformer testing sequence ensures operators detect subtle insulation degradation long before partial discharge or turn-to-turn dielectric breakdown takes place.

Dielectric Loss Physics and the Transformer Power Factor

The transformer power factor quantifies the electrical efficiency of a dielectric insulation barrier under alternating electric field stress. An ideal insulation system acts as a pure capacitor: when an alternating voltage is applied, the resulting charging current leads the applied voltage by an angle of exactly 90 degrees. Under these theoretical conditions, no real power is dissipated as thermal energy within the dielectric matrix.

In practical physical apparatus, every dielectric material contains mobile charge carriers, polar water molecules, and dissolved conductive contaminants. These elements produce a resistive current component ($I_R$) that flows in phase with the applied voltage ($V$), alongside the reactive capacitive current ($I_C$). The resultant total current ($I_T$) leads the voltage by a phase angle ($\theta$) marginally less than 90 degrees. The phase difference $(90^\circ - \theta)$ is designated as the dielectric loss angle, or delta ($\delta$).

Electrical engineers express this relationship mathematically through two primary metrics defined in IEEE C57.12.90 clause 10.10 and IEC 60076-1:

• Power Factor ($\cos \theta$): Defined as the ratio of real power loss ($P$, in Watts) to apparent power ($S$, in Volt-Amperes), equivalent to $I_R / I_T$.
• Dissipation Factor ($\tan \delta$): Defined as the ratio of resistive leakage current to capacitive charging current, equivalent to $I_R / I_C$.

For low-loss liquid-filled transformers where the loss angle is very small ($\delta < 0.1\text{ radians}$), the numerical values of power factor and dissipation factor are virtually identical ($\cos \theta \approx \tan \delta$). A baseline increase in either metric signifies an elevated rate of resistive heat dissipation, indicating active chemical degradation or moisture absorption within the solid insulation matrix.

Transformer Power Factor Test Modes: UST, GST, and GST-Guard

Isolating specific insulation barriers within multi-winding transformers requires switching the measuring bridge between three standardised test configurations. Modern high-voltage dielectric test sets incorporate an internal measurement circuit that routes current through either a low-voltage measuring lead or a grounding circuit. Selecting the appropriate test configuration separates the inter-winding insulation from the winding-to-ground insulation barriers.

To evaluate a two-winding step-down substation unit, the test engineer short-circuits all terminals of each respective winding (all high-voltage terminals together, and all low-voltage terminals together) to neutralise inductive winding effects. A complete assessment requires three sequential measurements:

• HV to Ground ($C_H$): Configured in GSTg mode. High voltage is applied to the HV winding, the LV winding is connected to the guard terminal, and the tank remains grounded to measure ground insulation alone.
• HV to LV Inter-winding ($C_{HL}$): Configured in UST mode. High voltage is applied to the HV winding, current is collected through the ungrounded LV winding cable, and tank stray currents bleed directly to ground unmeasured.
• LV to Ground ($C_L$): Configured in GSTg mode. High voltage is applied to the LV winding (within its rated test limits), the HV winding is guarded, and the current returning through the tank ground is recorded.

Adhering to these segmented modes eliminates parasitic surface leakage currents across dirty porcelain skirts, allowing technicians to pinpoint whether degradation resides in the tank barrier or the winding barriers during routine transformer maintenance.

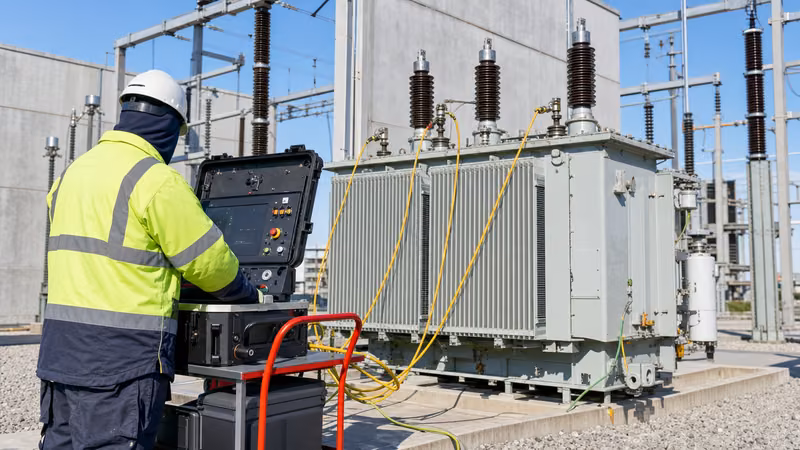

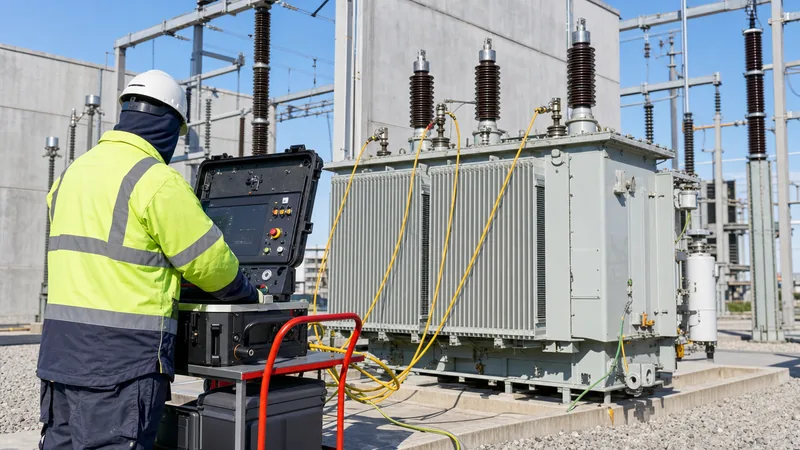

Executing a Transformer Power Factor Test: Step-by-Step Procedure

Performing an accurate transformer power factor test demands rigorous attention to safety, terminal isolation, and atmospheric baseline conditions. False anomalies frequently occur when exterior bushing surfaces accumulate surface moisture, coal dust, or industrial deposits.

1. Isolate and Verify De-energisation: Open all primary, secondary, and tertiary disconnect switches. Lock out and tag out all circuit breakers, discharge any residual capacitive charge to ground using an approved grounding stick, and verify zero voltage on all phases.
2. Disconnect External Connections: Mechanically unbolt overhead busbars, flexible jumpers, lightning arresters, and neutral grounding conductors from every terminal stud to eliminate parallel stray impedances.
3. Short-Circuit Respective Winding Terminals: Install bare copper jumpers shorting all high-voltage terminals together, and all low-voltage terminals together. Shorting eliminates winding inductance, which would otherwise introduce inductive phase errors into capacitive measurements.
4. Clean and Prepare Bushings: Thoroughly wipe down all bushing sheds using denatured alcohol or an approved non-conductive solvent. If ambient relative humidity exceeds 70%, fit conductive guard collars below the top terminal to divert exterior surface creepage currents away from the measuring circuit.
5. Establish Bridge Ground and Connections: Secure the diagnostic test set's low-impedance earth cable directly to the main transformer tank grounding pad. Connect the high-voltage test lead to the shorted HV winding and the return measuring cable to the shorted LV winding.
6. Apply Test Voltage: Gradually ramp the test set output up to the selected test voltage—typically 10 kV RMS for high-voltage windings rated 11 kV and above, or 2.5 kV for low-voltage secondary systems—and log the recorded active power ($P$), current ($I_T$), capacitance ($C$), and power factor percentage.
7. Record Dielectric Temperature: Measure and record the top oil temperature and winding temperature from installed gauges to enable thermal correction calculations.

Executing these sequential steps per how to test a transformer standards prevents equipment damage and protects field personnel from induced electrostatic shocks.

Temperature Normalisation and a Worked Engineering Calculation

Dielectric power factor measurements must always be normalised to a standard reference temperature of 20°C ($PF_{20}$). Because the electrical conductivity of insulating oil and the dipole relaxation rate of cellulose molecules increase as temperature climbs, an uncorrected power factor recorded on an operational unit at 55°C will read significantly higher than the exact same unit tested cold at 18°C.

IEEE C57.152 provides empirical temperature correction factors ($K$) based on winding temperature ($T$) for mineral-oil-immersed assemblies. The normalisation equation is:

$PF_{20} = PF_T \times K$

Consider an engineering field trial on a 40 MVA, 115 kV / 13.8 kV oil-immersed transmission transformer recently removed from service for scheduled maintenance:

• Applied Test Voltage ($V$): 10.0 kV RMS (60 Hz)
• Top Winding Oil Temperature ($T$): 42°C
• Total Measured Current ($I_T$): 3.42 mA
• Measured Real Power Loss ($P$): 0.285 W

First, calculate the measured apparent power ($S$) and uncorrected power factor ($PF_T$):

$S = V \times I_T = 10,000\text{ V} \times 0.00342\text{ A} = 34.20\text{ VA}$

$PF_T = \frac{P}{S} = \frac{0.285\text{ W}}{34.20\text{ VA}} = 0.00833\text{ or } 0.833\%$

According to IEEE C57.152 Table 4, the mineral-oil temperature correction factor for core-and-coil assemblies at 42°C is approximately $K = 0.58$ (derived from $e^{-0.0285 \cdot (42 - 20)}$). Apply the correction factor to determine the baseline at 20°C:

$PF_{20} = 0.833\% \times 0.58 = 0.483\%$

Although the raw field measurement of 0.833% exceeded the standard 0.50% threshold, the true temperature-normalised value ($0.483\%$) confirms that the bulk winding insulation remains well within acceptable commissioning tolerances for equipment in service.

Interpreting Transformer Power Factor Limits and Acceptance Criteria

Interpreting dielectric test results requires clear alignment with international thresholds published in IEEE C57.152 Table 3 and IEC 60076-3. Baseline figures vary significantly based on transformer construction, fluid type, and age.

Results exceeding 1.0% in modern large power units indicate elevated dielectric absorption, typically caused by moisture ingress through breathers or accelerated ageing of cellulose. If power factor levels climb above 2.0%, dielectric thermal runaway becomes a serious operating hazard under heavy load conditions, requiring immediate thermal oil purification or vacuum drying of the core and coil assembly.

Conversely, negative power factor readings occasionally emerge during field diagnostics. These are non-physical artefacts caused by external electrostatic induction from adjacent live switchyard buses or high surface-leakage currents flowing across dirty external insulator skirts into the measuring channel. Re-running the test using guard rings or grounding adjacent overhead spans reliably clears these induction errors.

Diagnosing Bushing and Winding Insulation Degradation

A comprehensive insulation assessment must evaluate high-voltage bushings separately from the tank winding assembly. Condenser bushings contain an internal series of capacitive aluminium foil grading layers wound around the central conductor, designed to linearise the electric field stress across the core.

Bushing evaluation relies on two targeted diagnostic procedures detailed in our transformer bushing guide:

• C1 Insulation Test (Main Core): The high-voltage test lead is clamped to the main top terminal stud, and the measuring lead connects directly to the bushing's capacitive test tap (with the grounding spring unseated). This assesses the health of the primary oil-impregnated paper (OIP) or resin-impregnated paper (RIP) condenser body. An increase in C1 capacitance exceeding 5% above the factory nameplate indicates punctured capacitive foil layers, warning of imminent catastrophic flashover.
• C2 Insulation Test (Tap Layer): Test voltage (typically limited to 500 V to 1.0 kV to avoid puncture) is applied directly to the test tap while guarding or grounding the main terminal. This evaluates the oil chamber, moisture seals, and tap insulating jacket.

When high power factors correlate with stable capacitance values across both C1 and C2, the root cause is typically diffuse chemical contamination or moisture ingress through degraded rubber gasket seals, rather than physical dielectric breakdown. If individual bushings exhibit acceptable values while the bulk $C_{HL}$ measurement remains elevated, engineers can confidently deduce that deterioration is restricted to the internal barrier board or mineral oil within the main tank.

Next steps: specifying and sourcing

Establishing strict factory acceptance criteria for dielectric dissipation factors protects capital investments over decades of utility operation. When preparing technical tenders or procurement specifications, engineering teams should explicitly mandate maximum allowable 20°C power factors—specifying no more than 0.5% for factory acceptance testing of oil-immersed units per IEEE C57.12.90.
