Lithium Ion Battery Storage Voltage: Engineering & BESS Guide

Quick answer: The recommended lithium ion battery storage voltage is 3.28 V to 3.32 V per cell for Lithium Iron Phosphate (LFP) chemistries and 3.75 V to 3.82 V per cell for Nickel Manganese Cobalt (NMC) formulations, corresponding to a 40% to 50% state of charge (SoC) under ambient conditions between 15°C and 25°C.

Maintaining an industrial battery pack at an incorrect potential during transport, warehouse dormancy, or plant commissioning permanently degrades electrochemical capacity and elevates safety risks. For engineering procurement and construction (EPC) contractors and substation asset managers deploying systems with energy storage system infrastructure, understanding cell chemistry thermodynamics during non-operational periods is essential to safeguarding capital assets before energisation.

Cell manufacturers do not dispatch cells at full capacity. Chemical degradation, passive parasitic reactions, and regulatory transport mandates dictate that both lithium iron phosphate and nickel-based energy storage assets must be stored within narrowly defined electrochemical bounds. This technical guide outlines the electrochemical rationale, string-level racking calculations, factory acceptance criteria, and dormancy maintenance protocols governing stationary energy storage voltages.

Optimal Lithium Ion Battery Storage Voltage by Chemistry

Electrochemical cells require specific potential levels to balance kinetic stability against active material degradation. When evaluating li ion battery storage voltage, engineers must differentiate between the open-circuit voltage (OCV) characteristics of lithium iron phosphate batteries and high-nickel variants such as NMC or NCA, as outlined in our analysis of LFP vs NMC battery systems.

LFP chemistry features an exceptionally flat discharge curve between 20% and 80% SoC. A single pristine LFP cell stored at 3.30 V sits comfortably around 45% SoC. Storing LFP cells below 3.20 V risks self-discharging into the lower knee where voltage drops exponentially toward 2.00 V. Conversely, holding an LFP cell above 3.40 V during extended warehousing maintains mechanical tension in the crystalline olivine lattice, accelerating calendar capacity loss.

For NMC chemistries, the relationship between OCV and SoC is linear. An NMC cell maintains a nominal potential of 3.65 V to 3.70 V and reaches 4.20 V at full charge. An idle potential of 3.80 V corresponds to approximately 45% to 50% SoC, representing the thermodynamic sweet spot where mechanical lattice stress in the layered oxide cathode is minimised and the positive electrode potential remains well below the oxidative breakdown threshold of organic carbonate solvents.

The table below provides a comprehensive comparison of voltage thresholds across primary industrial stationary cell chemistries, referenced against testing conditions defined in IEC 62620 clause 6.3:

Cell Degradation Mechanisms at Elevated and Depleted Voltages

Deviating from the designated lithium ion battery storage voltage triggers irreversible physical and chemical degradation pathways within the cell envelope. When cells are stored at 100% SoC (3.65 V for LFP, 4.20 V for NMC), continuous parasitic oxidation of the liquid electrolyte occurs at the positive electrode interface. This reaction consumes cyclable lithium ions, releasing trace gas (predominantly ethylene, carbon dioxide, and oxygen) and thickening the solid electrolyte interphase (SEI) layer on the graphite anode, permanently increasing cell internal resistance (ACIR and DCIR).

Thermal interactions compound high-voltage degradation. In a containerised BESS stored in an unconditioned laydown yard where ambient temperatures exceed 40°C, calendar degradation rates double for every 10°C rise according to Arrhenius kinetics. Storing an industrial cell at 100% SoC at 45°C for four months can induce over 5% irrecoverable capacity loss before the site is even commissioned.

Conversely, allowing cells to dwell below their critical under-voltage threshold (typically < 2.00 V for LFP and < 2.20 V for NMC) initiates anode collector foil breakdown. At low potential, the copper current collector undergoes thermodynamic oxidation:

Cu(s) → Cu⁺ + e⁻ → Cu²⁺ + 2e⁻

Dissolved copper ions migrate across the micro-porous polymer separator. When the battery is subsequently recharged, these copper ions reduce and deposit as metallic copper dendrites across the separator, creating internal micro-short circuits. This mechanism causes spontaneous catastrophic thermal failure under subsequent cyclisation, directly violating safety integrity standards set by UL 1973 clause 7 and IEC 62619 clause 8.2.

Calculating String and Container Voltage for Inactive BESS

A utility-scale BESS string voltage is calculated by aggregating the individual cell series count across modules and racks. Understanding total string and bus voltage during storage is vital for sizing DC isolation switchgear, ensuring compliance with low-voltage directives, and setting battery management system (BMS) pre-charge and sleep thresholds as detailed in our guide to battery monitoring systems.

Modern utility-scale projects deploy 1500 V DC architectures utilising 280 Ah or 314 Ah prismatic LFP cells in containerised liquid-cooled enclosures such as a liquid cooled ESS container. Consider a standard 1P416S string configuration comprising 8 series-connected modules of 1P52S:

• Series Cell Count (N): 416 cells

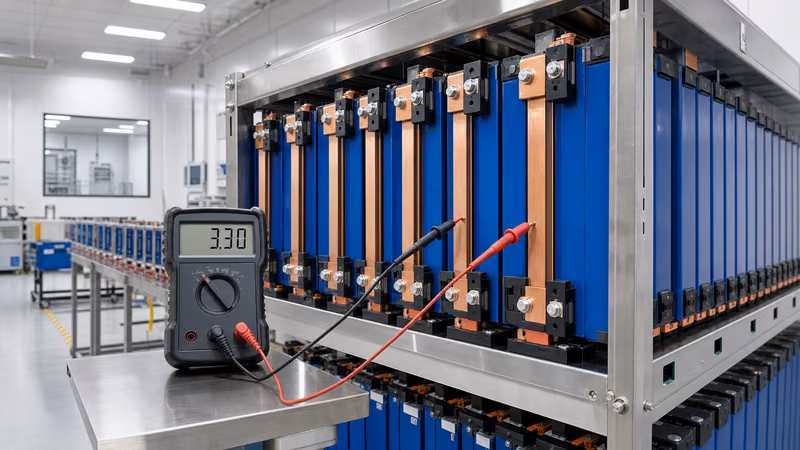

• Individual Cell Storage OCV: 3.30 V (nominal mid-point at 45% SoC)
• Individual Cell Maximum Float Voltage: 3.65 V
• Individual Cell End-of-Discharge Cutoff: 2.50 V

The inactive rack storage voltage across the main DC positive and negative isolation contactors is calculated as:

V_{string_storage} = N × V_{cell_storage} = 416 × 3.30 V = 1372.8 V DC

Compare this inactive potential to the maximum system voltage during full charge commissioning:

V_{string_max} = 416 × 3.65 V = 1518.4 V DC

And the fully discharged rack potential:

V_{string_min} = 416 × 2.50 V = 1040.0 V DC

If the delivery schedule causes the container to remain idle in a substation yard for six months without top-up charging, a monthly self-discharge of 2% reduces the stored capacity by roughly 12%. Because of the flat LFP plateau, the individual cell voltage will drop slightly from 3.30 V to approximately 3.26 V. The string storage voltage drops to:

V_{string_decayed} = 416 × 3.26 V = 1356.16 V DC

While this 16.64 V rack drop appears modest on paper, the cell has migrated down the non-linear inflection slope. If quiescent current drain from inactive BMS slave boards draws an unmonitored 1 mA continuous drain, cell degradation accelerates exponentially. Aligning the storage string potential within the input window of the power conversion system ensures the inverter can initiate black-start charging without tripping under-voltage lockout faults.

BESS Pre-Commissioning and Factory Storage Protocol

A standardised engineering protocol prevents self-discharge damage between factory acceptance testing (FAT) and commercial operation date (COD). Project managers must mandate structured storage regimens when storing multi-megawatt-hour systems for longer than 30 days:

1. Factory State of Charge Adjustment: Prior to shipping packaging, cycle all cells through one full charge-discharge cycle, terminating charging at exactly 40% to 50% SoC (3.29 V ± 0.02 V per cell for LFP; 3.78 V ± 0.02 V per cell for NMC) pursuant to UN 38.3 transport safety limits.
2. BMS Physical Isolation: Disconnect all harness balancing leads and low-voltage harness plugs between the master BMS and rack-level cell supervisory circuits (CSC). Ensure that the passive discharge leakage current through the monitoring IC pins is verified below 10 μA per channel to prevent cell imbalance during sea freight.
3. Environmental Climate Control: Maintain warehouse storage within an ambient temperature band of 15°C to 25°C, with non-condensing relative humidity below 75%. Avoid outdoor container storage without auxiliary power energisation for container HVAC systems.
4. Periodic Open Circuit Voltage Audits: Perform sample OCV measurements on 10% of modules at 60-day intervals. Record individual cell voltages using a calibrated 4.5-digit digital multimeter. If any cell drops below 3.20 V (LFP) or 3.60 V (NMC), flag the rack for maintenance charging.
5. Top-Up Reconditioning Charge: If storage duration extends beyond six months, connect an auxiliary DC power supply or energise the central PCS to cycle the strings. Recharge strings to 50% SoC at a controlled 0.1C to 0.2C rate while monitoring thermal differentials across modules. Ensure cell temperature variance stays under 3°C.

Specification Checklist for Battery Storage Voltage Management

Procurement engineers should integrate stringent voltage control clauses into EPC contracts and battery supply agreements. The following engineering checklist outlines critical requirements to paste into equipment technical specifications when issuing Requests for Proposals (RFPs) for large-scale lithium battery packs:

Next steps: specifying and sourcing

Correctly setting and maintaining the lithium ion battery storage voltage safeguards initial capital investments and preserves battery cycle life before grid interconnection. When preparing project tenders for containerised utility BESS, industrial peak-shaving systems, or commercial microgrids, specify your DC bus architecture, site laydown timelines, and climatic conditions. Our engineering team designs and manufactures utility-scale containerised energy storage, modular liquid-cooled cabinets, and distribution equipment aligned with IEC, IEEE, and UL standards. Explore our advanced energy storage systems, or submit your single-line diagram (SLD) and capacity requirements via our quotation inquiry page for a detailed technical review.
