Key takeaways
- Industrial battery packs lithium rely primarily on lithium iron phosphate (LiFePO4) prismatic cells to deliver over 6,000 cycles at 80% depth of discharge under IEC 62619 standards.
- Busbar interconnect resistance within a battery pack lithium ion must be kept under 15 micro-ohms per joint to prevent localised heating during continuous 1C discharge rates.
- A typical 51.2 V, 280 Ah lithium power pack module incorporates 16 series-connected cells, achieving a nominal energy capacity of 14.336 kWh with integrated thermal barrier sheets.
- Deploying replacement li ion batteries in existing racks requires strict cell impedance matching within 2% and identical open-circuit voltage profiles to avoid circulating balancing currents.
- Factory acceptance testing for commercial lithium packs mandates insulation resistance verification of at least 100 mega-ohms at 1,000 V DC in accordance with UL 1973 requirements.
Quick answer: Industrial battery packs lithium are modular energy storage assemblies combining electrochemical cells, an integrated battery management system (BMS), structural compression enclosures, and thermal management circuits. They convert, store, and dispatch direct current power for utility, commercial, and industrial facilities, typically operating at 48 V to 1,500 V DC nominal rack configurations.
In utility-scale substations, microgrids, and commercial peak-shaving installations, energy storage engineers require high-reliability power blocks that balance energy density, operational longevity, and absolute fire safety. While earlier mobile equipment relied on diverse chemistries, modern grid-tied infrastructure standardises around lithium iron phosphate (LiFePO4) chemistries packaged into robust rack-mountable modules. Selecting and sizing these systems involves calculating cycle degradation, designing low-impedance inter-cell connections, and configuring safety enclosures compliant with international electrical codes.
Architecture of an Industrial Battery Pack Lithium Ion

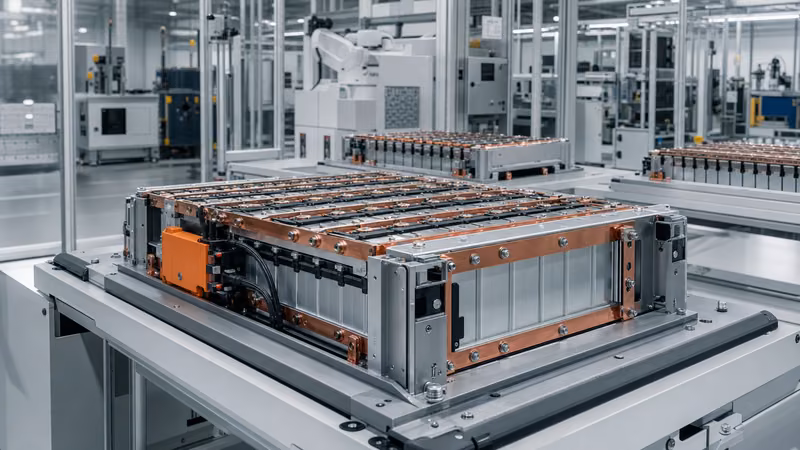

A commercial battery pack lithium ion consists of electrochemical cells arranged in series-parallel configurations, enclosed in a structural metal chassis with integrated sensing, balancing, and protection hardware. At the cell level, industrial systems standardise on LiFePO4 prismatic cells due to their mechanical rigidity, volumetric efficiency, and superior thermal dissipation compared to cylindrical form factors.
Inside each module, cells are compressed mechanically using structural endplates and tensioning straps. Cell manufacturers specify a constant compression pressure—typically between 300 kgf and 3,000 kgf (equivalent to 0.2 MPa to 0.6 MPa)—to limit electrolyte delamination and prevent internal mechanical deformation during repeated charge and discharge cycling. Busbars connecting adjacent terminals are manufactured from nickel-plated electrical-grade copper (CW004A) or laser-welded aluminium-copper bi-metal plates. These connections maintain contact resistance below 15 micro-ohms per joint to minimise joule heating under continuous full-load currents.
Every pack incorporates cell-level monitoring taps directly linked to a slave module controller within the battery monitoring system guide topology. The slave controller captures individual cell voltages with a precision of plus or minus 1 millivolt and measures multi-point surface temperatures via negative temperature coefficient (NTC) thermistors positioned along the cell bodies and main busbars.
Sizing Calculation for an Industrial Lithium Power Pack System
Designing an industrial lithium power pack requires evaluating nominal DC voltage requirements, usable capacity, continuous discharge limits, and lifetime degradation factors. The primary design objective is ensuring the system meets end-of-life (EOL) energy thresholds without oversizing capital investment.
Consider an industrial microgrid application requiring an effective daily output of 100 kWh at 400 V AC via an external inverter. The design requires an operating window of 80% Depth of Discharge (DoD), an expected round-trip efficiency (RTE) of 92%, and must maintain this net capacity after 10 years of single daily cycling with an anticipated cell capacity retention factor of 80% (EOL state of health).
The required beginning-of-life (BOL) nominal DC battery capacity is calculated through the following steps:
- Calculate required net DC energy accounting for inverter conversion efficiency (assumed at 96%): 100 kWh / 0.96 = 104.17 kWh DC.
- Factor in the operational Depth of Discharge limit (80%): 104.17 kWh / 0.80 = 130.21 kWh.
- Adjust for the 10-year degradation margin (80% EOL retention): 130.21 kWh / 0.80 = 162.76 kWh BOL nominal storage.
To build this system using industry-standard 3.2 V, 280 Ah LiFePO4 cells configured into 16S1P (51.2 V nominal, 14.336 kWh) modular units: total system voltage is set to match an energy storage inverter DC bus range of 600 V to 900 V DC. Selecting a 240S string architecture yields a nominal DC voltage of 768 V (240 cells x 3.2 V), which equals 15 series-connected 51.2 V modules per rack. The total energy per rack is 240 x 3.2 V x 280 Ah = 215.04 kWh nominal, comfortably satisfying the 162.76 kWh requirement while operating well within standard C-rate envelopes for industrial battery bank industrial systems.
Specification Standards: Battery Packs Lithium Topologies
Selecting cell topology and chemical composition determines thermal limits, space footprint, and total lifecycle expenditure. The table below outlines technical criteria comparing standard industrial battery packs lithium designs across commercial specifications.
| Engineering Parameter | Prismatic LiFePO4 (LFP) | Cylindrical LFP (e.g. 32140) | Prismatic NMC (Ternary) |
|---|---|---|---|
| Nominal Cell Voltage (V) | 3.20 | 3.20 | 3.65 - 3.70 |
| Gravimetric Density (Wh/kg) | 160 - 180 | 135 - 150 | 230 - 260 |
| Cycle Life (Cycles @ 80% DoD) | 6,000 - 8,000 | 3,500 - 4,500 | 2,000 - 3,000 |
| Thermal Runaway Temp (°C) | 270 | 270 | 210 |
| Inter-cell Compression Required | Mandatory (0.3 - 0.5 MPa) | No (Rigid Canister) | Mandatory (0.2 - 0.4 MPa) |
| Primary Governing Standard | IEC 62619 / UL 1973 | IEC 62619 / UN 38.3 | IEC 62619 / UL 9540A |
| Standard Cooling Method | Liquid Cold Plate / Forced Air | Forced Convection Air | Liquid Chilling Circuit |
As detailed in our comparative analysis of LiFePO4 vs lithium ion chemistries, LFP packs provide the chemical stability demanded by insurance underwriters and municipal fire marshals adhering to NFPA 855 regulations.
Safety and Thermal Protection under IEC 62619 and UL 1973
Thermal safety in industrial installations requires preventing cell-to-cell thermal propagation within the enclosure. IEC 62619 clause 8.2 and UL 1973 section 7 impose rigorous testing criteria where a single cell driven into forced thermal runaway must not trigger secondary ignition in adjacent cells.
To satisfy these requirements, industrial packs interleave high-performance aerogel insulation blankets or ceramic-impregnated mica sheets (1.0 mm to 2.0 mm thickness) between individual prismatic cells. These materials withstand continuous temperatures exceeding 1,000 degrees Celsius while restricting thermal conductivity below 0.022 W/(m·K). Furthermore, packs incorporate directional pressure relief exhaust vents. In the event of off-gassing, the cell vent ruptures at its calibrated pressure rating (typically 0.4 to 0.6 MPa), directing combustive gases through internal exhaust plenums rather than exposing adjoining electronics or high-voltage switchgear components.
Integration Rules for Replacement Li Ion Batteries
Integrating replacement li ion batteries into existing commercial installations requires verifying electrical compatibility, state-of-charge tracking, and physical interconnects. Sourcing field retrofits without verifying electrical parity often triggers persistent nuisance trips and string imbalances.
Follow this systematic procedure when executing module retrofits:
- Impedance matching: Measure the 1 kHz AC internal resistance of candidate replacement modules; the values must fall within plus or minus 5% of existing modules in the string to prevent asymmetric current sharing.
- State-of-charge synchronisation: Prior to rack insertion, charge or discharge replacement units until their open-circuit voltage matches the operating string voltage within 50 millivolts.
- Communication protocol translation: Verify that the replacement module slave BMS firmware aligns with the master rack BMS baud rate and CAN 2.0B / Modbus RS485 register mapping.
- Torque verification: Tighten all terminal busbar connections with a calibrated torque wrench according to the manufacturer specification (typically 8 to 12 Nm for standard metric copper hardware) and apply anti-vibration witness torque paint.
Factory Acceptance Testing for Battery Packs Lithium
Factory Acceptance Testing (FAT) for battery packs lithium validates production quality, mechanical integrity, and electrical performance before dispatch to site. Testing protocols follow rigorous international guidelines to eliminate latent manufacturing defects.
Engineers inspecting packs at the manufacturing plant should enforce the following standard quality schedule:
- Dielectric withstand test (Hi-Pot): Verify that the insulation resistance between the DC live busbars and the grounded pack chassis exceeds 100 mega-ohms at 1,000 V DC, with leakage current sustained below 2.0 mA for 60 seconds (per IEC 62619 clause 6.4).
- Continuous 1C capacity discharge: Subject the pack to a full charge-discharge cycle at rated continuous current (0.5C to 1C) inside a climate chamber held at 25 degrees Celsius, measuring total discharge watt-hours against rated nameplate figures.
- Thermal imaging inspection: Perform infrared thermography during the final 10 minutes of full-load discharge; maximum busbar joint temperature rise must not exceed 25 Kelvin above ambient.
- BMS fault-injection validation: Intentionally generate simulated over-voltage (e.g., 3.65 V on an LFP cell), under-voltage (2.50 V), and over-temperature thresholds to verify secondary hardware protection trips within 50 milliseconds.
Next steps: specifying and sourcing
Sourcing commercial and industrial lithium storage systems requires clear initial design parameters. When requesting an engineering proposal, provide your intended duty cycle, daily dispatch schedule, nominal DC bus voltage, environmental ambient extremes, and preferred communication architecture (Modbus TCP, CAN, or IEC 61850). Our engineering team fabricates tailored energy storage hardware, ranging from integrated 40 kWh commercial units up to multi-megawatt containerised plant blocks. Explore our modular energy storage system solutions or our central liquid-cooled ESS container options. Submit your technical design requirements and single-line diagrams via our direct quote page to receive a factory-direct technical submittal and cost estimation.
Frequently asked questions
What is the optimal operating temperature for battery packs lithium?
The ideal operating temperature range is between 15°C and 35°C for maximum lifespan and performance. Operating below 0°C severely restricts charging rates due to lithium plating risks, while sustained exposure above 45°C accelerates solid electrolyte interphase (SEI) degradation and capacity fade.
What is the difference between a battery module and a battery pack?
A battery module is an intermediate mechanical assembly containing a group of cells wired in series-parallel with local voltage and temperature sensors. A battery pack integrates one or multiple modules inside an enclosure complete with a master BMS, high-voltage disconnects, fuses, and thermal management systems.
Can I mix replacement li ion batteries with older cells in the same rack?
Mixing new and degraded lithium modules in series is strongly discouraged because the lowest-capacity module limits the entire string. If replacements are mandatory, ensure identical cell chemistry, balance the string to matched open-circuit voltages, and verify that the internal resistance discrepancy remains under 5%.
Which international safety standards govern industrial lithium power pack racks?
The two primary global standards are IEC 62619 for electrical, thermal, and mechanical safety in industrial environments, and UL 1973 for stationary energy storage batteries. Containerised installations additionally adhere to UL 9540 system safety standards and NFPA 855 fire protection codes.
What balancing current is required for industrial lithium battery management systems?
Industrial packs typically employ active balancing systems with 1 A to 5 A current transfer capabilities, or passive bleed balancing with 100 mA to 300 mA per channel. Active balancing is preferred for large-capacity cells (280 Ah to 314 Ah) to minimise balancing time during shallow daily micro-cycles.
