Key takeaways
- LiFePO4 prismatic cells deliver 92% to 95% module packing efficiency due to their rectangular aluminium housing, compared to roughly 70% to 80% for cylindrical formats.
- Mechanical preloading with 3,000 N to 5,000 N of uniform compressive force is mandatory to mitigate cyclic delamination caused by 3% to 5% cell swelling over the operating lifespan.
- Laser welding aluminium busbars onto copper-aluminium composite cell terminals requires pulse-shaping control to maintain penetration depth below 1.5 mm and avoid diaphragm damage.
- Standard industrial capacity points have shifted from 280 Ah to 314 Ah within the identical 71173 footprint (71 mm x 173 mm x 207 mm), raising volumetric energy density to over 380 Wh/L.
- Compliance with IEC 62619 clause 7.2 and UL 9540A requires verifying that cell-level thermal runaway cannot propagate past adjacent aerogel or mica thermal barriers.
Quick answer: LiFePO4 prismatic cells are rectangular lithium iron phosphate battery cells encased in rigid aluminium cans, engineered for stationary energy storage systems (BESS) and commercial electric mobility. They deliver nominal 3.2 V operating potential, 6,000 to 10,000 cycles at 80% depth of discharge, superior volumetric packaging efficiency over cylindrical cells, and non-propagating thermal safety under severe electrical fault conditions.
For utility-scale and commercial energy storage, cell architecture dictates thermal behaviour, installation density, and long-term project economics. Modern installations require systems to operate continuously under high charge and discharge rates while maintaining cell balance and thermal equilibrium. The prismatic form factor has largely superseded cylindrical and soft-pack pouch geometries in multi-megawatt-hour installations because it minimises electrical interconnection points and simplifies cooling plate integration. Understanding the mechanical, chemical, and electrical nuances of the prismatic battery cell ensures that system integrators, EPC contractors, and electrical engineers design battery banks capable of achieving a 15- to 20-year service life without premature degradation. For an overview of basic chemistries, review our guide to lithium iron phosphate batteries in BESS engineering.
What is a prismatic battery cell and how is it constructed?
A prismatic battery cell consists of wound or stacked electrode sheets housed inside a welded aluminium alloy casing, terminated with positive and negative terminal posts on the top lid. Unlike cylindrical cells that wind continuous strips into a spiralled core, modern large-capacity lfp cell designs often employ advanced Z-fold stacking of cathode (LiFePO4 on aluminium foil), separator (polyethylene or ceramic-coated polypropylene), and anode (graphite on copper foil) layers. This stacked architecture provides uniform current distribution, reduced internal direct-current resistance (DCIR), and uniform heat generation across the electrode area.
The cell top cover contains critical safety and electrical interfaces: laser-welded positive and negative terminal posts, an electrolyte filling port sealed by a high-pressure steel ball or laser plug, and an explosion-proof safety vent. The vent is calibrated to rupture at 0.4 MPa to 0.8 MPa, safely directionalising internal gases during an off-gas event in accordance with IEC 62619 clause 7.2. High-capacity prismatic lithium battery models use copper-aluminium composite terminal tops, preventing galvanic corrosion when connecting aluminium busbars to negative copper internal collector tabs.
Why LiFePO4 prismatic cells dominate utility and C&I energy storage
LiFePO4 prismatic cells dominate large-scale installations because their rectangular geometry achieves pack volumetric space-utilisation factors above 92%, compared to approximately 72% for cylindrical arrays. When designing multi-megawatt-hour systems, every cubic metre of container space carries economic weight, as detailed in our guide to LFP vs NMC battery chemistry for BESS. The rectangular sides of a prismatic lithium ion battery create flat, continuous contact surfaces that interface directly with aluminium liquid-cooled heat sinks, achieving thermal resistance values below 0.15 K/W.
Furthermore, interconnection reliability increases substantially. A 1 MWh container using 280 Ah prismatic li ion battery units requires approximately 1,116 cells connected in series strings. In contrast, building that capacity with 21700-type cylindrical cells requires over 65,000 individual units, multiplying wire bonds, thermal monitoring points, and potential failure modes by nearly sixty times. Fewer interconnects reduce both internal ohmic dissipation and thermal hotspots during 0.5C and 1C cycling, boosting system-level round-trip efficiency (RTE) above 88%.
Prismatic cell lithium battery mechanical design: compression and swelling management
A prismatic cell lithium battery undergoes cyclic mechanical expansion of 1.5% to 3.0% during charging and irreversible lifetime swelling of 3% to 5% due to solid electrolyte interphase (SEI) growth and cathode degradation. If unconstrained, this delaminates internal active materials from current collector foils, causing exponential increases in DCIR and premature capacity fade. Conversely, excessive mechanical constraint crushes micro-porous separators, creating micro-shorts and thermal runaway risks.

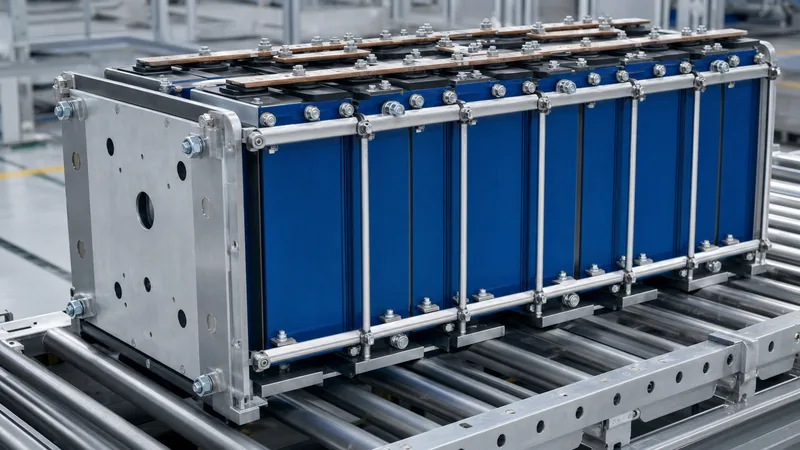

Engineering an lfp prismatic batteries pack requires controlled preloading using structural endplates, tension tie-rods, and elastomeric or aerogel buffer pads between adjacent cell faces. The target clamping pressure at beginning of life (BOL) ranges between 0.1 MPa and 0.3 MPa. Consider a standard 280 Ah cell stack calculation:
Cell face dimensions: 173 mm (width) x 207 mm (height), representing a surface area (A) of 0.0358 m².
Target initial contact pressure: P = 0.12 MPa (120,000 N/m²).
Required initial preload force per cell stack: F = P x A = 120,000 N/m² x 0.0358 m² = 4,296 N.
During cycling and aging, the expansion force escalates. The design must accommodate end-of-life (EOL) forces that can reach 12,000 N to 15,000 N per cell stack without exceeding the yield strength of the enclosure tie rods or shearing terminal busbars. For integration with container structural components, cross-reference our engineering guide on battery bank industrial systems.
Specification comparison of mainstream lifepo4 prismatic batteries
Mainstream lifepo4 prismatic batteries have consolidated around the standardized 71173 footprint (71 mm thickness, 173 mm width, 207 mm height), with energy densities steadily increasing from internal cathode chemistry enhancements and anode active material optimisation.
| Cell Capacity Rating (Ah) | Nominal Voltage (V) | Dimensions: T x W x H (mm) | Mass (kg) | AC Impedance at 1 kHz (mΩ) | Cycle Life (0.5C/0.5C, 25°C, 80% SOH) | Volumetric Energy Density (Wh/L) |
|---|---|---|---|---|---|---|
| 100 Ah | 3.2 | 48 x 173 x 132 | 2.10 | ≤ 0.50 | ≥ 4,000 | 292 |
| 280 Ah | 3.2 | 71 x 173 x 207 | 5.42 | ≤ 0.25 | ≥ 6,000 | 352 |
| 304 Ah | 3.2 | 71 x 173 x 207 | 5.49 | ≤ 0.22 | ≥ 7,000 | 382 |
| 314 Ah | 3.2 | 71 x 173 x 207 | 5.60 | ≤ 0.20 | ≥ 8,000 | 395 |
As tabulated above, switching a 20-foot BESS container from 280 Ah to 314 Ah cells increases total containerised energy from 3.44 MWh to 5.0 MWh within the same structural envelope without increasing thermal management volume. For cooling design principles applicable to these high-density enclosures, review our guide to battery cooling thermal systems.
Factory integration checklist for a prismatic battery pack
Integrating prismatic lifepo4 cells into a complete prismatic battery pack requires systematic quality controls during factory assembly to prevent thermal and mechanical faults. EPC engineers should mandate the following sequential assembly workflow:
- OCV and ACIR Grading: Measure Open Circuit Voltage (OCV) and AC internal resistance at 1 kHz; reject cells deviating by more than ±2 mV or ±0.05 mΩ from the batch median.
- Dielectric Mylar Inspection: Test the external blue polyethylene terephthalate (PET) insulation wrap with a 2.5 kV DC hi-pot tester to verify no leakage between internal electrodes and external casing.
- Aerogel / Mica Placement: Insert 1.0 mm to 2.0 mm ceramic aerogel or phlogopite mica barriers between cell faces to prevent thermal runaway propagation per UL 9540A.
- Preload Torquing: Compress the module stack using calibrated hydraulic fixtures and tighten structural tie-rods to the calculated 4.3 kN to 5.0 kN preload target.
- Laser Welding Busbars: Clean terminal posts using 1,064 nm fiber laser surface ablation, position aluminium busbars, and execute continuous wobble-laser welding under pure argon gas shielding.
- BMS Harness and Sensor Attachment: Fasten voltage sense leads and NTC thermistors, verifying temperature probes touch direct cell casing surfaces rather than external framing.
Next steps: specifying and sourcing
When specifying cells for utility or commercial energy storage projects, supply your manufacturer with your target string voltage (typically 1,000 V to 1,500 V DC), planned charge/discharge C-rate profile, ambient thermal parameters, and compliance mandates (IEC 62619, UL 1973, and UN 38.3 test reports). Our engineering team designs and manufactures utility-scale containerised solutions and liquid-cooled battery racks using top-tier cells. Explore our factory-integrated energy storage systems and modular liquid-cooled ESS containers, or submit your single-line diagram and tender parameters directly through our BESS quote request page.
Frequently asked questions
What is the difference between prismatic and cylindrical LiFePO4 cells?
Prismatic cells use a rigid rectangular casing with stacked or wound electrode sheets, while cylindrical cells use a wound roll inside a steel cylinder. Prismatic designs achieve higher volumetric energy density and require far fewer parallel connections, making them the standard choice for multi-megawatt-hour stationary battery storage.
Why do LiFePO4 prismatic cells need clamping force?
LiFePO4 prismatic cells swell by 1.5% to 5.0% during charging and over their operational lifespan due to lithium insertion and solid electrolyte interphase (SEI) layer growth. Applying an initial compressive preload between 0.1 MPa and 0.3 MPa prevents internal electrode delamination, reduces impedance growth, and extends cycle life.
What is the cycle life of an industrial LiFePO4 prismatic cell?
Industrial LiFePO4 prismatic cells typically achieve between 6,000 and 10,000 full charge-discharge cycles at 0.5C/0.5C cycling and 25 degrees Celsius before capacity degrades to 80% of nominal value. Operating at elevated temperatures above 35 degrees Celsius or maintaining high continuous C-rates reduces this service lifespan.
How are prismatic battery terminals connected in high-capacity packs?
High-capacity prismatic battery terminals are joined using continuous wave or wobble laser welding of nickel-plated copper or solid aluminium busbars. Welded joints eliminate contact resistance degradation and mechanical loosening caused by thermal expansion cycles, providing lower internal resistance than bolted connections.
What happens if a prismatic battery safety vent opens?
A ruptured safety vent indicates that internal cell pressure has reached 0.4 MPa to 0.8 MPa due to severe overcharging, extreme external heating, or an internal short circuit. The vent allows non-toxic and volatile combustible gases to escape directionally, preventing a catastrophic high-pressure rupture of the outer aluminium container.
