Key takeaways
- LiPo battery cells utilise a flexible aluminium-laminate pouch enclosure rather than a rigid metal can, yielding gravimetric energy densities up to 260 Wh/kg.
- Pouch-format lithium polymer packs experience 8% to 15% dimensional swelling over their operating lifecycle, demanding spring-loaded or elastomeric mechanical compression fixtures.
- Thermal runaway in lithium polymer cells using cobalt- or nickel-rich cathodes initiates at lower temperatures (150°C to 210°C) compared to rigid prismatic lithium iron phosphate cells.
- Ultrasonic tab welding for pouch cells requires precise amplitude and clamp force control to prevent micro-cracking at copper and aluminium current-collector interfaces.
- Industrial validation of pouch cells mandates rigorous compliance with IEC 62619 clause 7.3 for internal short-circuit resistance and UN 38.3 transport vibration tests.
Quick answer: LiPo battery cells (lithium polymer cells) are electrochemical energy storage units packaged in flexible aluminium-laminated foil enclosures rather than rigid metallic cans. They deliver high gravimetric energy density and adaptable physical dimensions, but require calibrated mechanical compression and precise thermal management to control volumetric swelling and prevent mechanical stress on internal current collectors.
In industrial energy applications, utility systems, and specialised backup power, battery selection determines overall plant reliability, safety boundaries, and lifecycle capital expenditure. While consumer electronics rely heavily on pouch packaging for slim form factors, industrial energy system designers must scrutinise the mechanical vulnerabilities, thermal dispersion profiles, and chemical stability of lipo battery cells before integrating them into stationary infrastructure. Understanding how these cells perform relative to rigid prismatic formats is essential when engineering high-availability enclosures or modular battery arrays.
Cell Architecture and Electrochemistry of LiPo Battery Cells
A lithium polymer cell is distinguished primarily by its mechanical construction: it replaces the heavy nickel-plated steel or extruded aluminium casing of cylindrical and prismatic formats with a multi-layer polymer-aluminium laminate foil. The internal electrode assembly consists of stacked or z-folded sheets of positive electrodes (typically lithium nickel manganese cobalt oxide or lithium iron phosphate), microporous separators, and negative graphite electrodes impregnated with a gelled or liquid electrolyte matrix. This construction eliminates dead volume within the enclosure, driving gravimetric energy densities between 200 Wh/kg and 260 Wh/kg for high-nickel variants.
The outer pouch material typically measures 110 µm to 150 µm in total thickness, comprising an external oriented polyamide (OPA) layer for puncture resistance, a middle aluminium barrier foil (30 µm to 40 µm) to block moisture ingress and electrolyte leakage, and an internal cast polypropylene (CPP) layer serving as the heat-sealable bonding interface. Because there is no internal mechanical pressure vessel to constrain gassing, any degradation reaction that generates volatile hydrocarbons, carbon dioxide, or carbon monoxide directly causes the pouch to distend. When designing battery packs lithium engineers must account for this flexibility by providing external structural containment to maintain uniform inter-electrode contact throughout cycling.
Engineering Comparison: LiPo Battery Cells vs Prismatic LiFePO4 Cells
Comparing cell geometries and underlying chemistries reveals critical trade-offs between space utilisation, mechanical containment needs, and operational lifespan in stationary storage systems. While lipo battery cells excel in mass-constrained applications where flexible geometries are paramount, commercial energy storage projects generally mandate the extended cyclic stability and robust shell of LiFePO4 prismatic cells. The structural differences dictate both module rack architectures and the auxiliary balance of plant required for safe operation.
| Engineering Parameter | LiPo Battery Cells (NMC Chemistry) | LiPo Battery Cells (LFP Chemistry) | Prismatic Hard-Case Cells (LFP Chemistry) |
|---|---|---|---|
| Nominal Cell Voltage | 3.60 V to 3.70 V | 3.20 V to 3.25 V | 3.20 V to 3.25 V |
| Gravimetric Energy Density | 220 – 260 Wh/kg | 140 – 170 Wh/kg | 155 – 185 Wh/kg |
| Volumetric Energy Density | 450 – 580 Wh/L | 280 – 340 Wh/L | 320 – 400 Wh/L |
| Cycle Life to 80% SOH (0.5C/1C, 25°C) | 1,200 – 2,500 cycles | 3,000 – 4,500 cycles | 6,000 – 10,000 cycles |
| Thermal Runaway Onset (Tonset) | 150°C – 175°C | 210°C – 240°C | 220°C – 270°C |
| Mechanical Casing | Flexible Aluminium Foil (120 µm) | Flexible Aluminium Foil (120 µm) | Extruded Aluminium (0.8 – 1.5 mm) |
| Integrated Safety Vent | None (Seam ruptures at 0.2 – 0.5 MPa) | None (Seam ruptures at 0.2 – 0.5 MPa) | Engineered burst disc (0.4 – 0.8 MPa) |
| External Clamping Requirement | Mandatory (0.1 – 0.3 MPa preload) | Mandatory (0.15 – 0.3 MPa preload) | Recommended (0.1 – 0.3 MPa preload) |
As outlined above, selecting between pouch and rigid form factors involves balancing energy payload against containment complexity. While soft pouch cells eliminate the dead mass of metal containers, they transfer the mechanical containment burden directly to the battery module chassis. For further evaluation of chemistry-level performance tradeoffs in energy storage systems, refer to our analysis on LFP vs NMC battery systems.

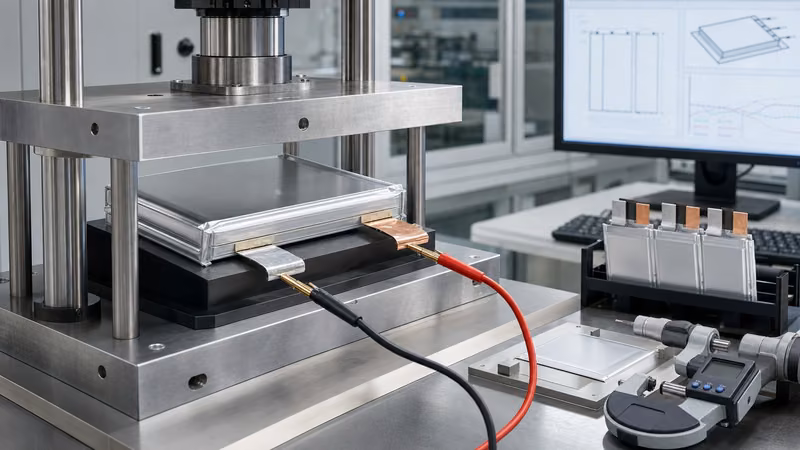

Design and Mechanical Constraints in Lithium Polymer Packs
Designing high-capacity lithium polymer packs requires rigorous mitigation of cyclic thickness expansion, mechanical fatigue on electrode tabs, and interfacial pressure distribution. Over hundreds of charge and discharge cycles, lithium intercalation causes microscopic expansion within the graphite lattice (up to 10% strain), alongside solid electrolyte interphase (SEI) growth that produces irreversible volumetric swelling. If this expansion occurs unevenly across the active area, local current density spikes develop, accelerating lithium plating at the anode edges and triggering early capacity degradation.
To counteract this, mechanical modules housing lipo battery cells must integrate spring-loaded endplates or high-density microcellular polyurethane foam compression pads (such as Poron or silicone elastomer sheets). The compression system must apply a uniform nominal contact pressure of 0.15 MPa to 0.30 MPa across the face of each cell. Furthermore, the external terminal tabs—typically consisting of bare aluminium for the cathode and nickel-plated copper for the anode—are susceptible to shear strain. When lithium polymer packs undergo vibration or thermal expansion, rigid busbar connections can snap these fragile foil leads. Designers must deploy flexible, laminated copper foil shunts joined via ultrasonic metal welding or controlled infrared laser welding rather than direct rigid bolt-down connections.
Thermal Management and Safety Standards for Industrial Integration
Thermal dissipation in pouch-style energy storage arrays presents unique thermal pathways because heat conducts anisotropically through stacked electrode layers. The thermal conductivity in the planar direction (along the length and width of the copper and aluminium current collector foils) ranges from 20 W/(m·K) to 35 W/(m·K), whereas cross-plane thermal conductivity through the separator and polymeric interfaces drops to just 0.5 W/(m·K) to 1.5 W/(m·K). Consequently, surface cooling via large cold plates pressed against the broad faces of lipo battery cells or edge cooling directly on the current-collector tabs provides significantly lower thermal resistance than ambient convection. To examine modern liquid-chilled architectures in stationary battery racks, review our guide to battery cooling infrastructure.
Stationary industrial integration of pouch cells requires strict compliance with international safety protocols. In accordance with IEC 62619 clause 7.3, cells and modules must demonstrate thermal propagation resilience: a single cell driven into thermal runaway via localized over-heating or nail penetration must not ignite or cause cascading thermal runaway in adjacent cells within the enclosure. Additionally, UL 1642 Section 13 dictates rigorous electrical abuse screening, including external short-circuit testing at 55°C, where the external resistance must not exceed 0.1 ohm, verifying that internal separator shutdown mechanisms isolate ionic transfer before catastrophic venting occurs.
Worked Calculation: Mechanical Pre-load and Pack Expansion
Calculating the mechanical retention force for a modular rack containing stacked lipo battery cells requires evaluating both beginning-of-life (BOL) clamping requirements and end-of-life (EOL) swelling dimensions. In this engineering calculation, we size an elastic compression spring stack for an industrial energy storage module consisting of 16 series-connected pouch cells.
Input Parameters:
- Active cell face area (L × W): 0.28 m × 0.16 m = 0.0448 m²
- Nominal uncompressed cell thickness (BOL): 12.0 mm
- BOL target uniform surface pressure: Pnom = 0.20 MPa (200,000 N/m²)
- Projected EOL cyclic thickness expansion: 10% (Δt = 1.2 mm per cell)
- Total pack active length at BOL: 16 cells × 12.0 mm = 192.0 mm
- Total pack expansion at EOL: 16 cells × 1.2 mm = 19.2 mm
- Maximum allowable EOL surface pressure: Pmax = 0.45 MPa (450,000 N/m²)
- Number of perimeter compression tie-rods: 4 rods (each fitted with a die spring stack)
Step 1: Calculate initial clamping force at BOL
Ftotal, BOL = Pnom × Area = 200,000 N/m² × 0.0448 m² = 8,960 N.
Clamping force per tie-rod spring stack: Frod, BOL = 8,960 N / 4 = 2,240 N.
Step 2: Calculate maximum allowable clamping force at EOL
Ftotal, EOL = Pmax × Area = 450,000 N/m² × 0.0448 m² = 20,160 N.
Maximum force per tie-rod spring stack: Frod, EOL = 20,160 N / 4 = 5,040 N.
Step 3: Determine required spring stiffness (k)
The permissible change in force (ΔF) over the total swelling stroke (Δx = 19.2 mm) per rod is:
ΔFrod = Frod, EOL - Frod, BOL = 5,040 N - 2,240 N = 2,800 N.
kspring = ΔFrod / Δx = 2,800 N / 19.2 mm = 145.83 N/mm.
Initial spring pre-compression distance: xpre = Frod, BOL / kspring = 2,240 N / 145.83 N/mm = 15.36 mm.
This calculation demonstrates that specifying four spring fixtures with a combined spring rate of approximately 583 N/mm ensures interfacial pressure remains strictly within the 0.20 MPa to 0.45 MPa operating corridor across the entire 16-cell module lifecycle.
Factory Acceptance and Quality Checklist for LiPo Cells
A structured factory acceptance testing (FAT) procedure ensures that inbound shipments of lipo battery cells satisfy physical, electrochemical, and safety benchmarks before pack assembly. Quality engineers and procurement inspectors should execute the following sequential verification protocol on sampled production lots according to ISO 2859-1 sampling plans:
- Visual and Dimensional Metrology: Inspect foil seam width against drawings (minimum 4.0 mm seal width). Measure cell thickness at nine distinct points across the active face using a constant-force dial gauge (0.05 MPa contact pressure). Check for foil wrinkling, micro-pinholes, or electrolyte residue along the heat-seal margins.
- Hermetic Seal Integrity: Perform high-vacuum mass spectrometer helium leak testing or solvent leak detection to verify seal leak rates remain below 1.0 × 10-6 mbar·L/s, preventing long-term air and moisture ingress.
- Alternating Current Internal Resistance (ACIR): Test cell impedance at 1.0 kHz using an automated 4-wire Kelvin fixture. Confirm internal resistance falls within ±5% of the manufacturing specification sheet (typically < 0.8 mΩ for 50 Ah+ units).
- Open Circuit Voltage (OCV) Stability: Measure initial OCV (recorded as OCV1). Store cells in a temperature-controlled soak room at 25°C ± 2°C for 14 days, then re-measure (OCV2). Calculate voltage drop (ΔOCV = OCV1 - OCV2); any cell exhibiting a self-discharge rate exceeding 1.5 mV/month must be rejected for internal micro-shorting risks.
- Tab Pull-Off and Weld Shear Strength: Perform destructive mechanical pull tests on sacrificial tab samples to confirm ultrasonic tab-to-current-collector weld integrity meets or exceeds 50 N shear force per tab strip.
Next steps: specifying and sourcing
When specifying battery systems for commercial, microgrid, or industrial facilities, project engineers must align energy density requirements with thermal life, enclosure footprint, and maintenance protocols. If your project demands high cycle stability and minimal containment complexity, consider engineered energy storage system platforms or containerised liquid cooled ESS containers built on robust prismatic architectures. Submit your single-line diagrams, operating duty cycle profiles, and site environmental constraints to our engineering team through our direct quote portal to receive a fully validated, standard-compliant energy storage quotation.
Frequently asked questions
What is the primary difference between a LiPo cell and a standard lithium-ion cell?
A LiPo cell uses a flexible aluminium-polymer laminate pouch rather than a rigid steel or aluminium can. It typically utilises a gelled or liquid electrolyte matrix within stacked flat electrodes, providing high gravimetric energy density at the expense of external mechanical rigidity.
Why do lipo battery cells swell during operation?
Swelling occurs due to microscopic lattice volume expansion during lithium intercalation and electrochemical gassing caused by electrolyte decomposition. Solid electrolyte interphase degradation generates gases like carbon dioxide and ethylene, causing the flexible pouch to distend if external mechanical pre-load is insufficient.
Can lithium polymer packs be used in utility-scale BESS?
While lithium polymer packs are occasionally deployed in modular or containerised systems, utility-scale projects predominantly favour rigid prismatic lithium iron phosphate cells. Prismatic formats deliver superior structural protection, integrated high-pressure burst vents, and up to three times longer cycle life under heavy cycling regimes.
What is the ideal clamping pressure for lipo battery cells in a module?
The recommended mechanical pre-load pressure across the face of a pouch cell typically ranges between 0.15 MPa and 0.30 MPa at beginning-of-life. This pressure maintains tight layer-to-layer electrode contact, suppresses lithium dendrite formation, and allows controlled expansion up to 0.45 MPa at end-of-life.
What testing standards govern commercial lipo battery cells?
Commercial pouch cells must meet IEC 62619 for industrial stationary battery safety, UL 1642 for electrical and mechanical abuse limits, and UN Section 38.3 for transport vibration, thermal cycling, and impact resistance. These standards verify thermal runaway propagation resistance and casing integrity.
