Industrial Battery Backup: Sizing, Specs & Systems Guide

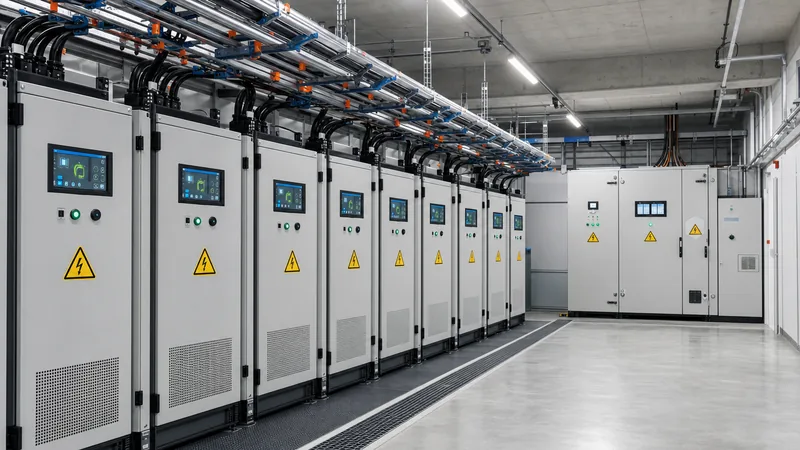

Quick answer: An industrial battery backup is an engineered, heavy-duty electrical energy storage architecture designed to supply continuous, regulated power to critical manufacturing lines, industrial control systems, and substation switchgear during mains outages or power quality events. Unlike light commercial uninterruptible power supplies, these systems feature high fault-clearing capabilities, extended autonomy, and industrial-grade DC bus topologies.

Industrial facilities cannot afford transient voltage dips, brownouts, or sustained power cuts. In continuous processing environments such as chemical refining, automated manufacturing, mining, and water treatment, a mains loss lasting merely 100 milliseconds can trip motor drives, crash programmable logic controllers (PLCs), and trigger emergency plant shutdowns running into hundreds of thousands of pounds in lost production and equipment damage. Deploying an industrial battery backup bridges the critical operational gap, either sustaining operations until backup diesel generators synchronise or carrying loads through prolonged outages.

Modern engineering approaches integrate battery storage alongside site distribution assets, matching energy storage systems with medium- and low-voltage substations. Selecting and sizing these assets demands rigorous calculation of load profiles, thermal management design, short-circuit current withstand ratings, and regulatory alignment with international electrical codes.

Industrial Battery Backup Architecture vs Commercial UPS Systems

Industrial battery backup systems differ fundamentally from standard commercial ups systems in structural ruggedness, component service life, and fault-clearing capacity. While commercial units are engineered for climate-controlled data halls and corporate facilities, an industrial-grade system operates in harsh ambient environments characterised by airborne particulate matter, extreme temperatures, and severe electrical transients.

Standard commercial units typically rely on light sheet-metal enclosures (IP20 or IP21), transformerless architectures, and internal batteries sized for 5 to 15 minutes of ride-through time. In contrast, heavy industrial systems are housed in ruggedised enclosures rated IP54 or NEMA 3R, incorporating internal or external input/output isolation transformers compliant with IEC 60076-11. These isolation transformers prevent common-mode noise propagation, provide galvanic separation, and protect sensitive downstream instrumentation from DC bus faults.

From an electrical perspective, industrial loads present severe dynamic challenges, including high inrush currents from direct-on-line (DOL) electric motors, harmonic currents produced by variable frequency drives (VFDs), and non-linear loads. While commercial ups systems frequently transfer to internal bypass when confronted with an overload exceeding 150% for several cycles, heavy-duty industrial battery banks paired with industrial inverters are engineered to clear downstream feeder faults by delivering up to 200% to 300% rated current for several seconds without dropping the DC link or transferring to an unstable bypass source.

Battery Chemistries in Industrial Battery Backup Systems

Selecting the optimal electrochemical storage medium dictates operational footprint, thermal safety, maintenance overheads, and total lifecycle expenditure. While traditional installations historically relied on flooded lead-acid or vented nickel-cadmium (NiCad) cells, modern projects overwhelmingly specify Lithium Iron Phosphate (LFP) alongside high-performance Valve-Regulated Lead-Acid (VRLA) cells.

Lithium Iron Phosphate (LiFePO4) has emerged as the benchmark chemistry for medium- and large-scale industrial storage. LFP cells exhibit exceptional thermal stability, with an onset temperature for thermal runaway exceeding 270°C, compared to roughly 210°C for Nickel Manganese Cobalt (NMC) formulations. Detailed chemistry performance benchmarks can be explored in our guide on LFP vs NMC battery properties. Furthermore, LFP technology eliminates the heavy risk of toxic acid spills or corrosive gas emissions inherent to wet cells, while delivering upwards of 4,000 to 6,000 charge-discharge cycles at 80% Depth of Discharge (DoD).

While NiCad remains an alternative for extreme sub-zero switchyards due to its freeze-resistant alkaline electrolyte, the volumetric space requirements, heavy environmental recycling penalties, and capital costs make advanced containerised battery energy storage systems the preferred solution across modern processing sites.

Step-by-Step Sizing Calculation for an Industrial Battery Backup

Sizing an industrial battery backup requires rigorous application of electrical engineering derating factors to prevent the DC bus voltage from collapsing below the inverter cut-off threshold under full load at end-of-life conditions.

The following worked example illustrates the sizing methodology for an industrial process plant demanding backup power for critical drives and control infrastructure using the IEEE 485 calculation framework adapted for LFP chemistry.

1. Define Load Profile: Design continuous load ($P_{load}$) = 250 kW at 400 V three-phase, 50 Hz. Required backup duration ($t$) = 2 hours (120 minutes). Inverter efficiency ($\eta_{inv}$) = 95% (0.95). Inverter input power:$$P_{DC} = \frac{P_{load}}{\eta_{inv}} = \frac{250\text{ kW}}{0.95} = 263.16\text{ kW}$$
2. Determine Nominal DC Bus Voltage: Nominal battery string voltage ($V_{nom}$) = 614.4 V (derived from 192 LFP cells in series at 3.2 V/cell). Minimum discharge cut-off voltage ($V_{min}$) = 537.6 V (2.8 V/cell). Average operational discharge voltage ($V_{avg}$) = 585 V.
3. Calculate Required Base Energy: Base energy capacity ($E_{base}$):$$E_{base} = P_{DC} \times t = 263.16\text{ kW} \times 2\text{ h} = 526.32\text{ kWh}$$
4. Apply Engineering Margin and Derating Factors:
   • Design Margin ($k_{dm}$): 1.10 (to account for unpredicted load growth per IEEE 485 clause 6.2.3).
   • Ageing Factor ($k_{age}$): 1.25 (preserves required 2-hour duration when the battery degrades to 80% State of Health at end-of-life).
   • Maximum Usable Depth of Discharge ($DoD$): 90% (0.90) to prevent cell over-discharge and maximise cycle endurance.
   • Temperature De-rating Factor ($k_{temp}$): 1.02 for an indoor HVAC-controlled enclosure maintained at 25°C.
5. Compute Total Nameplate Battery Storage Capacity ($E_{rated}$):$$E_{rated} = \frac{E_{base} \times k_{dm} \times k_{age} \times k_{temp}}{DoD} = \frac{526.32 \times 1.10 \times 1.25 \times 1.02}{0.90} = 820.24\text{ kWh}$$
6. Compute Required Ampere-Hour (Ah) Rating:$$C_{rated} = \frac{E_{rated} \times 1000}{V_{nom}} = \frac{820,240\text{ Wh}}{614.4\text{ V}} \approx 1335\text{ Ah}$$

Consequently, the design requires a modular rack configuration delivering a minimum of 825 kWh nameplate capacity at 614.4 V DC, often configured as five 280 Ah parallel strings. For multi-megawatt processing plants, engineers should reference our detailed sizing guides for commercial energy storage architectures and utility-scale deployments.

Safety Standards and Testing for Industrial Battery Backup Installations

Industrial battery backup systems must comply with rigorous international testing standards to guarantee operator safety, arc-flash mitigation, and thermal runaway prevention within industrial substations.

Key safety and performance standards include:

• IEC 62040-3: Specifies performance verification, environmental testing, and load-transfer dynamic response criteria for static uninterrupted power equipment. Industrial systems should meet the highest Class 1 performance classification, verifying true double-conversion independent of mains voltage and frequency variations.
• IEC 62619: Governs secondary lithium cells and batteries for industrial applications, mandating destructive fault testing including external short-circuit, impact, drop, thermal abuse, and forced internal short-circuit.
• NFPA 855: Sets safety margins for stationary energy storage systems, restricting maximum group capacities to 50 kWh for lithium configurations without separation, and requiring a minimum 3-foot (0.91 m) clearance between racks and walls unless full-scale fire testing under UL 9540A proves non-propagation.
• IEEE 1584: Dictates arc flash hazard calculation methods. High-capacity DC battery racks present severe DC arc flash hazards; battery enclosures require certified DC-rated high-speed fuses (gR/aR characteristic) capable of clearing direct short-circuit currents within 2 to 5 milliseconds.

Integration with the wider facility network also requires a robust power conversion system paired with switchgear rated to IEC 61439-2. Incorporating dedicated thermal barriers, multi-stage aspiration smoke detection, and clean-agent gaseous suppression (such as FK-5-1-12) ensures that any single-cell thermal anomaly remains isolated without risk to the host industrial facility, as detailed in our guide on emergency energy storage protocols.

Engineering Specification Checklist for Procurement

Procuring an industrial battery backup requires issuing a detailed Request for Quotation (RFQ) specification that prevents vendors from offering under-rated commercial equipment. Engineers should incorporate the following technical schedule into their tender documentation:

1. Electrical Service Ratings: Define nominal AC supply voltage, allowable steady-state voltage tolerance (typically ±10%), frequency tolerance (47 Hz to 52 Hz for 50 Hz grids), and site prospective short-circuit level (e.g., 50 kA for 1 s).
2. DC Link Architecture: Specify nominal DC voltage, maximum float charge voltage, and minimum inverter cut-off voltage. Require independent string-level isolation breakers equipped with shunt trips and auxiliary contacts.
3. Galvanic Isolation: Require copper-wound, Class H insulated internal or external bypass/isolation transformers with electrostatic shielding between primary and secondary windings to attenuate high-frequency line spikes.
4. Battery Chemistry and Enclosure: Mandate UL 1973/IEC 62619 certified LFP prismatic cells, rack-level battery management systems (BMS) with cell-level voltage and surface temperature telemetry, and minimum IP54 / NEMA 3R enclosure ratings. For outdoor setups, mandate containerised platforms like a liquid-cooled energy storage container to maintain uniform cell temperatures.
5. Environmental Conditions: State design ambient temperature envelope (-10°C to +50°C), relative humidity (up to 95% non-condensing), seismic qualification (e.g., IEEE 693 High Seismic Zone), and corrosive atmospheric exposure (ISO 12944 C3/C4 painting specification).
6. Industrial Communication Protocols: Require redundant Modbus TCP/IP, IEC 61850, or Profinet communication cards to stream system status directly to the plant Distributed Control System (DCS) or SCADA supervisory network.

Next steps: specifying and sourcing

When specifying an industrial battery backup, begin by conducting a comprehensive site audit of critical versus non-critical loads, recording harmonic profiles and motor starting transients. Compile your single-line diagrams (SLD), autonomy requirements, physical layout limits, and environmental constraints into a clear technical specification pack. Our engineering team designs and manufactures containerised and indoor LFP energy storage architectures, dry-type isolation transformers, and distribution switchgear built to IEC and IEEE standards. Visit our energy storage products or contact our technical team directly at [email protected] or through our quotation request page to review your project single-line diagram and obtain detailed dimensional drawings and pricing.
