Key takeaways
- A battery storage facility integrates electrochemical battery racks, bidirectional power conversion systems, thermal management, and medium-voltage switchgear into a coordinated utility-scale plant.
- System enclosures must maintain a minimum physical separation of 3 feet (0.91 metres) between units and 10 feet (3.05 metres) from property boundaries under NFPA 855 clause 4.4.
- Liquid cooling provides superior thermal uniformity over forced air, restricting cell temperature deltas to less than 3 degrees Celsius to mitigate accelerated battery degradation.
- Battery storage management relies on a three-tier automation hierarchy spanning cell-level battery management systems, container control units, and plant-level supervisory control and data acquisition.
- Medium-voltage step-up transformers for storage sites require electrostatic shielding and heavy cyclic load specifications compliant with IEC 60076 and IEEE C57.12.00 standards.
Quick answer: A battery storage facility is a centralised, grid-scale engineering installation designed to store electrical energy within high-capacity chemical cells and dispatch it on demand. It integrates lithium iron phosphate (LFP) battery enclosures, bidirectional power conversion systems, thermal cooling, safety interlocks, and medium-voltage step-up substations to supply capacity, frequency stability, and arbitrage services to electrical networks.
As modern utilities and private power producers displace conventional spinning reserve with variable renewable energy, designing a multi-megawatt battery energy storage facility requires a rigorous multi-disciplinary approach. Electrical engineers, EPC contractors, and project planners must balance electrochemical safety against high operational efficiency, round-trip efficiency (RTE) targets, and complex grid-interconnection codes. Integrating high-density energy blocks into a cohesive, dispatchable asset demands an understanding of electrical architectures, thermal fluid dynamics, short-circuit protection schemes, and supervisory communications.
This engineering guide examines the core physical systems, safety requirements, and control topologies necessary to specify, construct, and operate a utility-grade battery storage facility safely and economically.

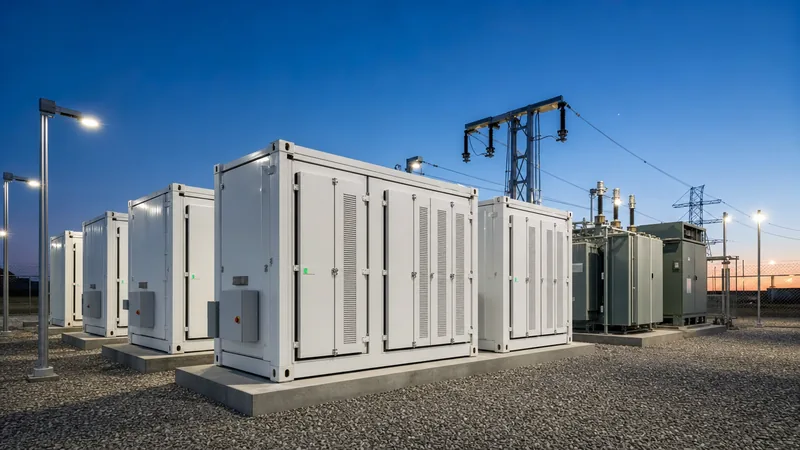

Core Architecture of a Utility-Scale Battery Storage Facility
A modern battery energy storage facility consists of modular electrochemical, electrical conversion, and network transmission blocks configured in parallel topologies. At the electrochemical level, individual lithium iron phosphate (LiFePO4 or LFP) prismatic cells are connected in series-parallel arrangements into modules, which are then stacked into high-voltage direct current (DC) racks commonly operating between 1,000 VDC and 1,500 VDC. Operating at 1,500 VDC minimises ohmic cable losses (I²R) and reduces copper busbar cross-sectional requirements across large installation footprints.
These DC racks terminate at bidirectional inverters known as a power conversion system (PCS). The PCS rectifies alternating current (AC) to DC during charging periods and inverts DC back to three-phase AC during discharge cycles. In central inverter configurations, multiple battery containers feed large, outdoor-rated central inverters ranging from 1.5 MW to 3.45 MW. Conversely, string inverter topologies mount individual 125 kW to 250 kW conversion units directly to rack sections, improving system availability and reducing the DC arc-flash zone.
From the inverter AC terminals, low-voltage power (typically 600 V to 690 V) routes directly to skid-mounted step-up transformers. These transformers elevate voltage to distribution or sub-transmission levels (11 kV, 22 kV, or 33 kV), routing power through air- or gas-insulated medium-voltage switchgear to a central collector substation. To house and protect these systems, developers rely on containerised enclosures manufactured according to rigorous physical standards, detailed further in our battery enclosure engineering guide.
Siting, Spatial Layout, and NFPA 855 Safety Standards
Spatial planning for an outdoor battery storage facility is primarily governed by fire separation mandates and thermal boundary limits stipulated in NFPA 855 (Standard for the Installation of Stationary Energy Storage Systems). NFPA 855 clause 4.4 specifies maximum allowable energy limits and spacing distances to prevent a thermal runaway event in one enclosure from propagating to adjacent equipment or site perimeter structures.
Under NFPA 855, individual modular outdoor enclosures are generally capped at 600 kWh each unless large-scale fire testing in accordance with UL 9540A proves that fire cannot spread across narrower clearances. The baseline standard mandates a minimum separation clearance of 3 feet (0.91 metres) between individual battery storage containers and a clearance of 10 feet (3.05 metres) from outer lot lines, public ways, and adjacent buildings. Where site boundaries are constrained, concrete blast walls rated for 2-hour or 4-hour fire resistance can be erected to reduce separation distances safely.
Civil and structural design must also integrate liquid retention bunds or sumps to capture hazardous fire-sprinkler run-off water containing trace hydrofluoric acid and heavy metals. For comprehensive details on ground slope, flood zoning, and soil resistivity constraints, consult our BESS siting and location engineering rules.
Thermal Management: Liquid Cooling versus Forced Air Systems
Thermal regulation directly dictates cell degradation, system availability, and round-trip efficiency inside every containerised battery storage facility. Elevated temperatures above 35 degrees Celsius accelerate solid electrolyte interphase (SEI) growth, causing premature capacity loss, while sub-zero conditions risk lithium plating during aggressive charging cycles. Thermal control strategies divide into forced-air heating, ventilation, and air conditioning (HVAC) systems and closed-loop liquid-cooling systems.
Liquid cooling has become the engineering standard for high-density 1,500 VDC containers. Liquid cooling systems route an ethylene glycol-water mixture through cold plates directly bonded to the broad faces of prismatic cells, achieving thermal transfer coefficients up to 3,000 W/(m²·K), compared to only 50 to 100 W/(m²·K) for forced convective air. Maintaining the temperature differential (delta-T) across all cells in an enclosure below 3 degrees Celsius prevents rack mismatch and eliminates premature cell balancing cut-offs during high C-rate cycling. Detailed thermal calculations can be found in our battery cooling engineering guide.
| Engineering Metric | Forced Air HVAC Cooling | Closed-Loop Liquid Cooling | Design Implication |
|---|---|---|---|
| Parasitic Auxiliary Consumption | 6% - 9% of total plant energy | 2.5% - 4.5% of total plant energy | Improves facility net revenue and RTE |
| Cell Temperature Uniformity | ±4.5 °C to ±6.0 °C delta-T | ≤ 2.5 °C delta-T | Liquid cooling extends LFP cycle life by 20-30% |
| Footprint Energy Density | ≤ 220 kWh/m² | ≥ 380 kWh/m² | Liquid cooling halves required civil acreage |
| Noise Emissions at 1 m | 72 - 80 dBA | 60 - 68 dBA | Critical for suburban acoustic zoning compliance |
| Maintenance Regimes | Filter changes, blower belt wear | Coolant loop flush (3-5 yrs), pump checks | Liquid systems require closed-circuit pressure tracking |
Integrated Battery Storage Management and Control Topology
Supervisory control across an enterprise-grade battery storage facility requires a three-tier architecture to manage safety, balance cell state-of-charge, and execute high-speed market dispatch commands. The lowest level is the Battery Management System (BMS), which operates at the module and rack tier, continuously reading cell voltages (accurate to within ±2 mV), shunt currents, and surface thermocouple points at frequencies exceeding 100 Hz. The BMS calculates real-time State of Charge (SOC), State of Health (SOH), and dynamic State of Power (SOP) operational limits.
The second tier is the Energy Management System (EMS), which resides on industrial field controllers within the local plant network. The EMS aggregates capacity vectors, communicates with the PCS over high-speed protocols such as Modbus TCP or IEC 61850, coordinates thermal chiller commands, and executes revenue-stacking algorithms such as frequency containment reserve (FCR), peak reduction, and arbitrary spot arbitrage. System health and diagnostics rely on architectures outlined in our battery monitoring system guide.
The top tier comprises the facility Supervisory Control and Data Acquisition (SCADA) network. SCADA communicates with the transmission system operator (TSO) or distribution network operator (DNO) via DNP3 or IEC 60870-5-104 protocols. Automatic active power control commands must ramp the PCS from zero to full dispatch within 150 to 500 milliseconds to comply with modern dynamic grid support requirements like IEEE 1547-2018.
Fire Detection, Deflagration Venting, and Suppression Systems
A multi-layer fire mitigation system is an indispensable engineering requirement for preventing thermal runaway propagation within a battery storage facility. Lithium-ion cell decomposition generates off-gases, including hydrogen, carbon monoxide, methane, and trace ethylene, well before surface thermal runaway manifests. Multi-gas detection sensors tuned to off-gas signatures provide early warning, tripping the container master DC contactor and initiating high-velocity exhaust purge fans.
If thermal runaway occurs, suppression systems operate in tandem with physical containment:
- Early Off-gas Detection: Electrochemical gas sensors detect hydrogen (H2) and carbon monoxide (CO) concentrations exceeding 25 ppm, opening circuit breakers before flames erupt.
- Total Flooding Gas Suppression: Novec 1230 (FK-5-1-12) or aerosol agents flood the hermetic enclosure within 10 seconds to knock down flaming combustion and cool surface enclosures.
- Water Deluge System: While gaseous agents extinguish active flames, prolonged water deluge via dry-pipe internal sprinklers (compliant with NFPA 13 and NFPA 855) is required to absorb heat from adjacent cells and eliminate reignition risks.
- Deflagration Pressure Relief: Enclosure roofs or side panels must include deflagration vents sized according to NFPA 68. These vents release internal blast overpressure safely upward at under 0.2 bar (20 kPa), preserving structural shell integrity.
Worked Engineering Example: Sizing Substation Equipment for a 10 MW / 40 MWh Facility
Substation sizing for a 10 MW / 40 MWh battery storage facility requires matching the continuous real power capacity, reactive power requirements, and auxiliary plant loads under worst-case operational ambient temperatures. The following worked calculation illustrates step-up transformer sizing and medium-voltage collector switchgear rating procedures.
Consider an installation with the following verified parameters:
- Rated Active Power Output (P): 10,000 kW (10 MW) at point of common coupling (PCC)
- Grid Interconnection Power Factor requirement: 0.90 lagging to 0.90 leading
- Facility Auxiliary In-House Load (chillers, pumps, controls, lighting): 320 kW
- Target Grid Voltage (MV Collector Bus): 33 kV, 3-phase, 50 Hz
- Inverter AC Output Terminal Voltage: 690 V
First, calculate the gross required apparent power rating (S) to deliver 10 MW at a 0.90 power factor, accounting for internal auxiliary parasitics:
Total Active Generation (P_total) = P_export + P_aux = 10,000 kW + 320 kW = 10,320 kW (10.32 MW).
Apparent Power (S) = P_total / Power Factor = 10.32 MW / 0.90 = 11.47 MVA.
Applying an engineering safety margin of 10% to account for high-ambient de-rating (40 °C ambient base) and cyclic loading stresses under IEC 60076-7, the minimum standard oil-immersed transformer capacity selected is 12.5 MVA (or two 6.3 MVA dual-secondary units).
Next, determine continuous rated medium-voltage circuit breaker current (I_MV) on the 33 kV collector busbar:
I_MV = S / (√3 × V_rated) = 12,500 kVA / (1.732 × 33 kV) = 218.7 A.
A standard 630 A or 1,250 A, 33 kV vacuum circuit breaker panel with a minimum short-circuit withstand rating of 25 kA / 3 seconds is selected to safely clear faults upstream on the utility network.
RFQ Checklist for Sourcing Equipment for a Battery Energy Storage Facility
Procurement teams and consulting engineers can use this checklist to standardise requirements before releasing requests for quotation (RFQs) for major electrical plant and container assemblies:
- Battery Containers: Confirm chemistries are certified to UL 9540 (system-level) and have completed UL 9540A testing with unit-level test reports submitted. Specify liquid-cooled IP55 or NEMA 3R outdoor enclosures with C5 anti-corrosion marine-grade painting.
- Power Conversion Systems: Mandate grid-forming (virtual synchronous machine) capability, dynamic reactive current injection during low-voltage ride-through (LVRT), and total harmonic distortion (THDi) < 3% at rated output.
- Medium-Voltage Transformers: Specify step-up units compliant with IEC 60076 or IEEE C57.12.00, configured with electrostatic copper shielding between primary and secondary windings to suppress inverter-induced common-mode high-frequency transients.
- Medium-Voltage Switchgear: Require metal-enclosed vacuum circuit breakers with internal arc classification (IAC AFLR) compliant with IEC 62271-200.
- SCADA and Communications: Require dual-redundant ring topologies supporting Modbus TCP and native IEC 61850 Goose messaging interfaces.
Next steps: specifying and sourcing
Developing a high-performance battery storage facility demands seamless hardware integration between electrochemical cell containers, bidirectional converters, and utility-grade medium-voltage substations. To configure your plant layout, calculate short-circuit limits, or prepare an engineering bill of materials, consult our engineering specialists directly. Review our factory-integrated energy storage systems, custom liquid-cooled ESS containers, and skid-mounted prefabricated transformer substations. Submit your project single-line diagram (SLD), site layout, and grid connection parameters via our quotation inquiry page or reach out through the contact page to receive a detailed technical proposal.
Frequently asked questions
What is the typical footprint of a 10 MW battery storage facility?
A 10 MW, 40 MWh battery storage facility using modern liquid-cooled 1,500 V containers requires approximately 2,000 to 3,500 square metres. This footprint includes container envelopes, bidirectional inverters, step-up transformers, collector switchgear, and mandatory NFPA 855 fire separation clearances.
Why is LFP preferred over NMC in a battery storage facility?
Lithium iron phosphate (LFP) is preferred due to its superior thermal runaway threshold of approximately 270 degrees Celsius, compared to 210 degrees Celsius for NMC. LFP cells also exhibit lower raw material toxicity, reduced degradation under full depth of discharge, and lower lifecycle cost per megawatt-hour.
What fire suppression agent is most effective for battery facilities?
Total flooding gaseous agents such as Novec 1230 extinguish open flaming combustion within seconds, but continuous water deluge is the only effective medium for thermal cooling to prevent cell-to-cell thermal propagation. Facilities therefore employ gas suppression followed by dry-pipe sprinkler deluge.
How does a battery storage management system balance individual racks?
A battery storage management system uses DC-DC buck-boost converters for active balancing or resistor shunts for passive balancing to equalize cell voltages across parallel strings. This process keeps cell voltages within a 10-millivolt tolerance, preventing string disconnects during peak dispatch.
What standards govern utility-scale battery facility safety?
Primary global standards include UL 9540 for energy storage system safety, UL 9540A for thermal runaway fire testing, NFPA 855 for stationary installation safeguards, and IEC 62933-5-2 for electrochemical energy storage system environmental and safety testing.
