Key takeaways
- Utility and commercial energy storage solutions rely primarily on lithium iron phosphate (LFP) chemistry due to its 6,000-cycle life at 80% depth of discharge and thermal stability under UL 9540A testing.
- Liquid cooling limits intra-rack cell temperature differentials to under 3°C, cutting auxiliary HVAC parasitic loads by up to 40% compared to traditional forced-air ventilation.
- AC-coupled BESS sizing must account for PCS round-trip efficiency, auxiliary power consumption, and degradation factors, requiring an initial DC oversizing ratio of 1.15 to 1.25 for multi-year nameplate delivery.
- State incentive frameworks like the CT ESS program provide upfront capacity and performance-based disbursements tied directly to dispatch availability during ISO-NE critical peak demand hours.
- Compliance with NFPA 855 and IEC 62933-5-2 dictates a minimum 3-foot (0.91 m) separation between modular battery enclosures and a 10-foot (3.05 m) clearance from property boundaries and exterior walls.
Quick answer: Industrial energy storage solutions integrate electrochemical battery racks, bidirectional power conversion systems (PCS), intelligent battery management systems (BMS), and dedicated fire suppression into a unified AC or DC-coupled architecture. These systems stabilise grid frequency, eliminate facility peak-demand charges, and provide resilient backup power when integrated with renewable assets.
Deploying grid-scale and commercial energy storage solutions requires an interdisciplinary engineering approach that bridges electrochemical safety, power electronics, medium-voltage distribution, and compliance with standards such as NFPA 855 and IEEE 1547. Selecting the right architecture involves balancing capacity degradation, thermal dissipation systems, and local utility tariff mechanics. Whether a project is designed to capitalise on regional capacity markets or to qualify for state-backed initiatives such as the ct ess program, system sizing must balance upfront capital expenditure against long-term cyclic performance.

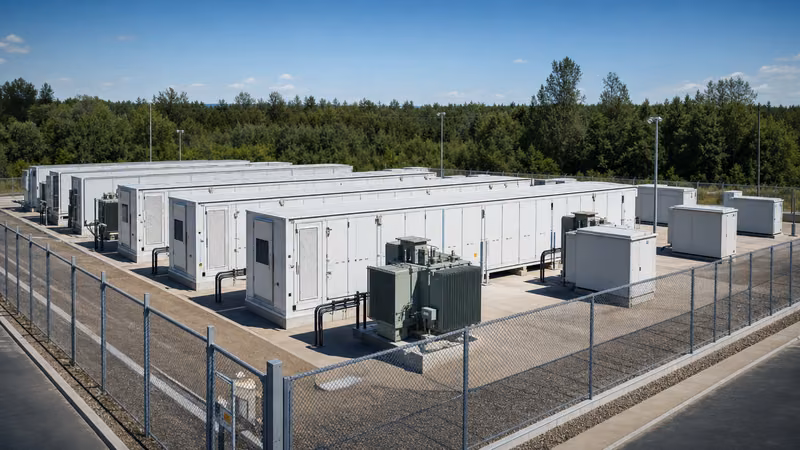

Core Architecture of Energy Storage Solutions
Modern energy storage solutions consist of three distinct functional layers: the DC electrochemical storage layer, the conversion and power distribution layer, and the balance-of-system (BOS) automation layer. At the DC tier, individual prismatic cells are connected in series-parallel configurations to form rack-mounted modules, typically operating at nominal DC bus voltages ranging from 1,000 V to 1,500 V to reduce DC cabling I²R resistive losses.
The power conversion layer interfaces the DC battery string with the facility or utility alternating-current network. Bidirectional inverters convert DC energy during discharge and rectify AC grid power during charging, operating under four-quadrant control to deliver both active (P) and reactive (Q) power. For detailed inverter sizing criteria and topology comparisons, refer to our Power Conversion System (PCS) Engineering Guide. Downstream of the inverter, a dedicated medium-voltage step-up transformer matches the system to the local distribution bus, typically stepping voltages up from 400 V or 690 V to 11 kV, 22 kV, or 33 kV. Integrated medium-voltage switchgear provides overcurrent, earth fault, and lightning surge protection compliant with IEC 62271-200 standards.
Battery Chemistry and Safety Standards in Energy Storage Solutions
Lithium iron phosphate (LiFePO4 or LFP) has become the dominant electrochemical chemistry for stationary energy storage solutions due to its high thermal runaway threshold (approximately 270°C, compared to 150°C to 210°C for nickel-manganese-cobalt formulations). For an in-depth chemical and lifecycle comparison, read our technical assessment on LFP vs NMC battery chemistries for commercial BESS.
Safety engineering across stationary storage is governed by strict international fire and life-safety codes. UL 9540 outlines the overarching system certification, while UL 9540A provides the destructive test method to evaluate fire propagation across four distinct levels: cell, module, unit, and installation. Under NFPA 855 clause 4.3, containerised installations must maintain a minimum 3-foot (0.91 m) separation between individual unit enclosures and a 10-foot (3.05 m) buffer from external exposures, lot lines, and public ways unless full-scale UL 9540A unit-level testing validates that thermal runaway cannot propagate beyond the initiating cabinet. Gas detection systems calibrated for off-gas hydrogen (H2) and carbon monoxide (CO) concentrations, coupled with clean-agent or water-mist fire suppression conforming to NFPA 69 and NFPA 15, represent the baseline specification for non-walk-in outdoor enclosures.
Engineering Sizing Calculation for Commercial Energy Storage Solutions
Sizing commercial energy storage solutions requires calculating the required usable AC capacity while accounting for inverter efficiency, cell degradation over time, auxiliary parasitics, and maximum permissible depth of discharge (DoD). Sizing an installation purely on nominal battery ratings results in premature capacity shortfalls within the early years of operation.
Consider an industrial manufacturing facility requiring peak shaving with the following parameters:
- Target discharge power ($P$): 500 kW
- Target discharge duration ($t$): 2 hours (Required AC energy delivery = 1,000 kWh)
- Maximum operational Depth of Discharge ($DoD$): 90% (0.90)
- PCS bidirectional round-trip efficiency ($\eta_{pcs}$): 96% (0.96)
- Battery cell round-trip DC efficiency ($\eta_{dc}$): 95% (0.95)
- Auxiliary cooling and control loads ($P_{aux}$): 3% total energy deduction per cycle ($\eta_{aux} = 0.97$)
- End-of-Life (EOL) degradation limit: 80% (0.80) capacity retention at year 10
The required nameplate DC capacity ($E_{nameplate}$) is calculated using the following engineering formula:
E_{nameplate} = (P × t) / (DoD × η_{pcs} × η_{dc} × η_{aux} × EOL)
Substituting the application values:
E_{nameplate} = 1,000 kWh / (0.90 × 0.96 × 0.95 × 0.97 × 0.80)
E_{nameplate} = 1,000 / 0.6369 = 1,570.1 kWh
To guarantee a 500 kW / 1,000 kWh net AC delivery at year 10 under daily 0.5C cycling, the engineering team must specify a minimum nominal nameplate storage capacity of 1,570 kWh. System integrators standardise this to an enclosure rated at roughly 1.6 MWh to accommodate integer rack combinations.
Thermal Management: Liquid Cooling vs Air Cooling Comparison
Thermal stability directly governs cycle life, electrochemical degradation rates, and the safety of modern energy storage solutions. Operating lithium cells at temperatures above 35°C accelerates solid electrolyte interphase (SEI) growth, causing premature loss of lithium inventory, while operating below 10°C drastically increases internal resistance and risks lithium plating during high-rate charging. For a complete thermal dissipation analysis, review our guide to BESS thermal management systems.
| Engineering Metric | Forced-Air Cooling Architecture | Liquid-Cooled Plate Architecture |
|---|---|---|
| Cell-to-Cell Temperature Gradient ($\Delta T$) | 5°C to 8°C across rack depth | ≤ 2.5°C to 3°C across module |
| Auxiliary Power Consumption (Parasitic Load) | 8% to 12% of total cycle throughput | 4% to 6% of total cycle throughput |
| Volumetric Energy Density | Low to Moderate (requires wide air ducts) | High (>100 kWh/m² footprint) |
| Acoustic Noise Profile | 68 to 78 dBA at 1-metre distance | ≤ 65 dBA at 1-metre distance |
| Maintenance Regimes | Monthly air filter replacements/inspections | Annual coolant glycol pH and fluid checks |
| IP Environmental Enclosure Rating | Typically IP54 or IP55 | IP67 for battery packs, IP55 overall cabinet |
Liquid cooling provides superior heat transfer coefficients, allowing energy storage solutions to handle dynamic 1C charge/discharge duty cycles without entering thermal derating. Keeping cell-to-cell thermal deviation under 3°C prevents individual cell strings from aging faster than adjacent modules, which prevents capacity mismatching across parallel-connected DC strings.
Incentives and Grid Programmes: Navigating the CT ESS Program
The commercial viability of stationary energy storage solutions is heavily influenced by capacity-market compensation structures and utility-driven performance incentives. A prominent example in the northeastern United States is the Connecticut Energy Storage Solutions initiative, widely known as the ct ess program. Overseen by the Connecticut Public Utilities Regulatory Authority (PURA) and administered jointly by the Connecticut Green Bank, Eversource, and United Illuminating (UI), this program provides substantial upfront capital incentives paired with recurring performance payments for commercial, industrial, and residential storage assets.
Under the commercial and industrial (C&I) track of the CT ESS program, system operators receive an upfront capacity incentive calculated on a per-kilowatt-hour ($/kWh) basis, capped at a defined percentage of total project costs. In exchange, the participant enrolls the BESS asset into demand-dispatch programs to support the ISO-New England grid during critical summer and winter peak events. Key technical qualifications include:
- Revenue-grade bidirectional metering meeting ANSI C12.20 standards with automated 15-minute telemetry intervals.
- OpenADR 2.0b or IEEE 2030.5 compliance embedded in the site-level Energy Management System (EMS) to accept remote utility dispatch signals.
- Minimum continuous discharge capability of 2 to 4 hours during seasonal event windows (typically between 3:00 PM and 7:00 PM on high-demand non-holiday weekdays).
- Compliance with local siting regulations and utility interconnection guidelines defined under IEEE 1547-2018 for anti-islanding and voltage ride-through capabilities. Detailed physical layout considerations are outlined in our BESS Siting and Location Engineering Guide.
By capturing upfront incentives and multi-year seasonal dispatch revenue, commercial energy storage solutions deployed under the CT ESS program frequently achieve capital payback periods under five to seven years, significantly below un-incentivised baseline projections.
Factory Acceptance and Commissioning Inspection Checklist
Commissioning utility and commercial energy storage solutions requires systematic quality verification spanning factory-floor testing, site logistics, and live energisation. EPC contractors and project engineers should implement the following phased inspection checklist to prevent field delays and protect long-term warranties:
- Factory Acceptance Testing (FAT) - DC Block: Inspect enclosure insulation resistance (Megger test at 1,000 V DC to verify >100 MΩ), confirm BMS individual cell voltage sensing accuracy (±2 mV), verify thermal sensor mapping, and test emergency stop (E-Stop) loop continuity.
- BOS Functional Validation: Pressure-test liquid cooling loops at 1.5 times nominal operating pressure for 30 minutes to confirm zero fluid leakage; verify clean agent gas pressure and automatic damper closures upon dual-stage smoke/gas detection triggers.
- Interconnection and Transformer Testing: Measure transformer winding resistance, insulation power factor, and voltage ratio across all tap positions in accordance with IEC 60076-1 clause 10.3 prior to civil mounting.
- Site Acceptance Testing (SAT) - Cold Commissioning: Inspect torque markings on all high-voltage DC busbar connections using calibrated torque tools; execute point-to-point communication audits over Modbus TCP/IP or DNP3 to ensure the EMS correctly maps every battery pack address.
- Live Grid Synchronisation: Verify correct phase rotation and voltage matching before closing the main AC vacuum circuit breaker; run step-response active power (P) and reactive power (Q) charge/discharge steps to validate inverter ramp rates and anti-islanding controls per IEEE 1547.1.
Next steps: specifying and sourcing
Specifying high-efficiency energy storage solutions requires a detailed load profile, single-line diagrams (SLD), point-of-interconnection (POI) voltage parameters, and local fire code requirements. Sourcing complete, factory-integrated architectures minimizes integration risks and simplifies site commissioning. Explore our range of containerised energy storage systems and advanced liquid-cooled ESS containers, which combine tier-one LFP chemistry, modular PCS inverters, and utility-grade step-up transformers. When you are ready to review equipment specifications or request project pricing, submit your project single-line diagram and duty cycle requirements through our online quote page to connect with our engineering team.
Frequently asked questions
What are energy storage solutions?
Energy storage solutions are integrated industrial systems comprising battery racks, power conversion systems, battery management systems, and thermal controls that store electrical energy for subsequent dispatch. They provide peak shaving, frequency regulation, and emergency backup power across commercial, industrial, and utility grids.
What is the CT ESS program?
The CT ESS program is an incentive initiative run by the Connecticut Public Utilities Regulatory Authority (PURA) and the Connecticut Green Bank. It offers upfront capacity payments and performance-based dispatches to commercial and residential energy storage systems that support grid reliability during ISO-NE peak demand events.
Why is LFP preferred over NMC in stationary energy storage solutions?
LFP chemistry is preferred for stationary storage because its chemical structure resists thermal runaway up to roughly 270°C, compared to 150°C-210°C for NMC. Furthermore, LFP delivers between 6,000 and 8,000 operational cycles at 80% depth of discharge, making it significantly more cost-effective over a 10- to 15-year service life.
How does liquid cooling improve energy storage system lifespan?
Liquid cooling keeps internal cell temperature variations within 2.5°C to 3°C across the entire container, compared to 5°C to 8°C for air-cooled systems. This uniform thermal environment prevents uneven cell aging, mitigates hot spots, and cuts parasitic HVAC consumption by up to 40%.
What clearances are required for commercial energy storage solutions under NFPA 855?
NFPA 855 clause 4.3 mandates a minimum 3-foot (0.91 m) separation between individual battery storage enclosures and a 10-foot (3.05 m) buffer from lot lines, public ways, and building walls. These distances may be reduced if unit-level UL 9540A testing demonstrates that fire cannot propagate beyond the initiating cabinet.
