Electrical Panel Board Sizing, Design & Selection Guide

Quick answer: An electrical panel board is an enclosed low-voltage distribution assembly that houses overcurrent protection devices, busbars, and switching units to divide a primary power feed into subsidiary branch circuits. Designed under standards such as IEC 61439-2 and UL 67, it controls and protects electrical infrastructure up to 1000 V AC.

In industrial plants, commercial facilities, and utility substations, the electrical panel board serves as the critical interface between primary low-voltage distribution and downstream operational loads. Whether fed from a unit substation or an upstream main distribution board, an electrical panelboard must isolate faults rapidly, prevent thermal runaway, and ensure operational safety for operating personnel.

Specifying the correct assembly requires calculating continuous current ratings, prospective short-circuit withstand values, internal separation forms, and enclosure ingress protection. Over-specifying drives up capital costs, while under-specifying exposes facilities to catastrophic thermal degradation, uncontained arc events, and costly unplanned outages.

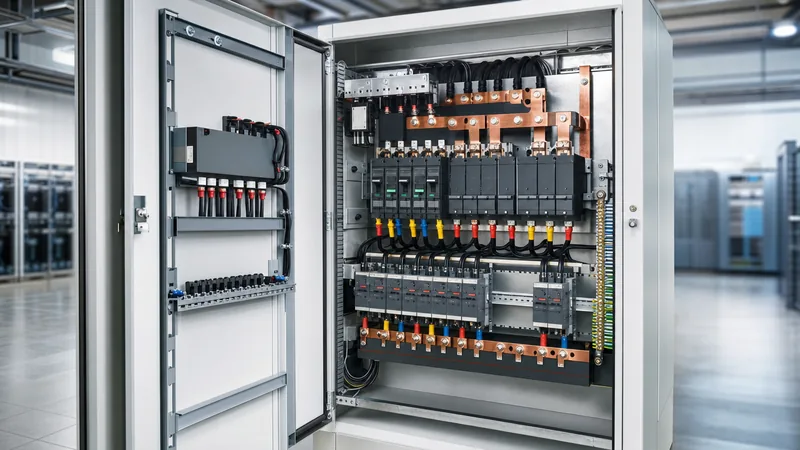

Electrical Panel Board Architecture and Core Components

An electrical panel board consists of a rigid structural enclosure, conductive copper or aluminium busbars, neutral and protective earth (PE) bars, and protective switchgear elements. The protective enclosure is fabricated from cold-rolled sheet steel or electro-galvanised sheet with thicknesses typically ranging from 1.5 mm to 2.5 mm, treated with electrostatic polyester powder coating to withstand industrial operating environments.

Inside the assembly, the horizontal and vertical busbars route three-phase power across individual branch ways. According to IEC 61439-1 clause 8.4, internal phase separation partitions protect maintenance personnel from accidental contact with live conductors. Key functional elements include:

• Main Incoming Unit: A moulded case circuit breaker (MCCB), air circuit breaker (ACB), or non-automatic isolator switch that provides total incoming isolation.
• Branch Protective Devices: Miniature circuit breakers (MCBs), MCCBs, or residual current devices (RCDs) sized to protect individual motor, lighting, or sub-feed circuits.
• Busbar System: Hard-drawn high-conductivity electrolytic copper bars (grade Cu-ETP CW004A) or treated aluminium alloys designed for specific current-carrying capacities and electrodynamic fault stress resistance.
• Neutral and Earth Terminals: Bolted copper bars providing dedicated connection points sized to prevent neutral conductor overheating caused by triplen harmonics in non-linear loads.
• Metering and Surge Protection: Multi-function digital power meters and Type 1 or Type 2 surge protective devices (SPDs) installed according to IEC 61643-11 to arrest transient overvoltages.

Standards and Compliance: IEC 61439 vs UL 67 and NEMA PB 1

The design, temperature rise testing, and fault rating of an electrical panelboard differ substantially depending on whether the project specifies International Electrotechnical Commission (IEC) or North American (UL/NEMA) standards. Understanding these distinctions avoids costly rejection during factory acceptance tests (FAT) or on-site commissioning.

Under the international standard IEC 61439-1 and IEC 61439-2, assemblies are verified through design verification tests rather than outdated type-tested concepts. The standard defines rated operational voltage (Ue), rated insulation voltage (Ui), and rated impulse withstand voltage (Uimp). Crucially, IEC 61439 specifies internal forms of separation from Form 1 (no internal partition) up to Form 4b (busbars, functional units, and terminals all isolated from each other), which directly impacts maintenance safety.

Conversely, North American installations follow UL 67 (Standard for Panelboards) and NEMA PB 1. Under UL 67, a panelboard is defined as a single panel, including buses and automatic overcurrent devices, equipped with or without switches, mounted in a cabinet or cutout box placed in or against a wall, and accessible only from the front. The National Electrical Code (NFPA 70 Article 408) dictates construction, wire-bending spaces, and short-circuit current ratings (SCCR). While IEC designs frequently employ modular DIN-rail configurations with neutral disconnect terminals, UL assemblies often utilise plug-in or bolt-on branch breakers on pre-drilled interior pan assemblies.

Electrical Panelboard Busbar Sizing and Thermal Calculations

Busbar sizing in an electrical panel board requires balancing continuous ampacity, thermal dissipation within the enclosure, and mechanical withstand against peak electromagnetic forces during a short circuit.

To calculate the required copper busbar cross-sectional area for a target current, engineers apply the thermal balance equation according to DIN 43671 or IEC 60865-1. Consider an incoming 3-phase, 800 A panel board installed in a maximum ambient temperature of 40 °C, with an allowable busbar temperature rise of 65 K (maximum busbar operating temperature of 105 °C):

Step 1: Current Rating Sizing
Using standard copper flat bar ampacity tables (Cu-ETP, skin effect coefficient neglected for small cross-sections at 50/60 Hz), a single copper bar of 60 mm × 10 mm (cross-sectional area A = 600 mm²) carries approximately 910 A in still air with a 65 K rise. Applying an enclosure de-rating factor (ke = 0.85) for an unventilated IP54 enclosure:
I_allowable = 910 A × 0.85 = 773.5 A
Because 773.5 A is less than the required 800 A, the cross-section must be increased to two bars of 40 mm × 10 mm (A = 800 mm²) or one bar of 80 mm × 10 mm (A = 800 mm²), which delivers an open-air rating of 1150 A (de-rated: 1150 A × 0.85 = 977.5 A, providing an adequate thermal safety margin).

Step 2: Electrodynamic Short-Circuit Force Calculation
During a three-phase prospective fault of 36 kA RMS (with a peak factor k = 2.2 per IEC 61439-1 Table 7, yielding a peak current Ip = 79.2 kA), the maximum electrodynamic peak force (F) per unit length between parallel phase busbars spaced at centreline distance d = 100 mm (0.1 m) is calculated via IEC 60865-1 clause 6.2:

F = (μ0 / 2π) × (√3 / 2) × (Ip² / d)
Where μ0 = 4π × 10⁻⁷ H/m.
F = (2 × 10⁻⁷) × 0.866 × ((79.2 × 10³)² / 0.1) = 1.732 × 10⁻⁷ × (6.272 × 10⁹ / 0.1) = 10,864 N/m

With busbar support insulator spacings (L) placed every 400 mm (0.4 m), the mechanical bending stress (σ) imposed on the busbar must not exceed the yield strength of CW004A copper (typically Rp0.2 ≥ 200 N/mm²), dictating rigid support bracketing across the chassis.

Panelboard vs Switchboard vs Switchgear: Selection Criteria

Selecting between an electrical panelboard, a switchboard, and low-voltage switchgear is determined by current ratings, service voltage, fault capacity, and spatial constraints. For detailed comparisons between adjacent equipment tiers, consult our guides on switchboard vs panelboard and switchgear vs switchboard.

The following engineering decision matrix provides practical selection criteria based on standard utility and industrial plant designs:

Step-by-Step Installation and Commissioning Procedure

Commissioning an electrical panel board requires structured testing to verify dielectric integrity, mechanical torque compliance, and trip functionality before energisation. Qualified technicians must follow standard electrical safety procedures, including personal protective equipment (PPE) assessments referenced in our review of what is arc flash hazards.

1. Enclosure Alignment and Wall Fixing: Secure the empty panelboard enclosure to the concrete wall or steel support frame using minimum M10 grade 8.8 expansion anchors or structural bolts. Verify plumb alignment using a spirit level to prevent mechanical binding of chassis doors and interior sub-pans.
2. Cable Dressing and Termination: Pull incoming and branch cables through gland plates fitted with correct IP-rated brass or polyamide cable glands. Strip insulation without scoring conductors, apply compression lugs using a calibrated hexagonal crimping die, and form clean bending radii conforming to NFPA 70 Table 312.6(A) or IEC 60364-5-52.
3. Torque Verification: Fasten all factory and field busbar connections and breaker terminals using a calibrated torque wrench. Apply torque seal marking lacquer across bolted joints to provide visual confirmation of inspection and alert maintenance teams to future joint movement.
4. Insulation Resistance Testing: Disconnect all surge protective devices, electronic control units, and micro-logic trip units. Apply 1000 V DC between phases, between each phase and neutral, and between all live conductors and the protective earth bar. Ensure measured insulation resistance values exceed 100 MΩ (minimum allowable threshold per IEC 60364-6 is 1.0 MΩ).
5. Mechanical and Interlock Checks: Manually cycle every breaker, rotary operating mechanism, and door interlock through the ON, OFF, and TRIP positions. Confirm that doors cannot be opened while the main disconnect is in the ON position without intentional defeat mechanism activation.
6. Dielectric Withstand Test: Conduct a high-potential test at 2.2 kV AC RMS for one minute between live parts and the earthed chassis frame in accordance with IEC 61439-1 clause 10.9, ensuring no disruptive dielectric breakdown occurs.
7. Phase Rotation and Energisation: Energise the incoming feeder from the upstream electrical switchgear. Measure line-to-line and line-to-neutral voltages with a calibrated True-RMS multimeter, confirm clockwise phase sequence using a phase-rotation meter, and energise branch circuits systematically under zero-load conditions.

Engineering RFQ and Factory Inspection Checklist

When issuing a Request for Quotation (RFQ) or executing a Factory Acceptance Test (FAT) for custom panelboards, vague specifications lead to mismatched equipment and project delays. Project engineers should include concrete parameters covering electrical, mechanical, and protection demands.

Ensure your procurement specification mandates compliance with the following factory inspection points:

• Service Voltage & System Earthing: Specify system voltage (e.g., 400 V / 230 V, 3-phase, 4-wire, 50 Hz) and network earthing configuration (TN-S, TN-C-S, or IT system).
• Fault Level Rating: State both rated short-time withstand current (Icw in kA for 1 second) and rated peak withstand current (Ipk). For UL assemblies, state required Short Circuit Current Rating (SCCR) in kA symmetrical.
• Busbar Plating & Current Density: Specify tin-plated or silver-plated high-conductivity electrolytic copper with maximum current density limits (typically ≤ 1.5 A/mm² for natural air cooling inside IP54 enclosures).
• Ingress Protection & Sheet Metal: State required IP code (e.g., IP31 for clean indoor switchrooms, higher ingress protection ratings for industrial process areas per IEC 60529) and minimum paint thickness (typically 60 to 80 microns).
• Clearance and Creepage Distances: Inspect physical clearances between bare live conductors (minimum 14 mm clearance through air and 16 mm creepage distance for 690 V rated insulation voltage per IEC 61439-1 Table 1 and Table 2).
• Spare Capacity: Require 20% to 25% fully equipped spare ways (chassis space, busbar stabs, and neutral/earth terminals) to accommodate future facility expansion without structural alterations.

Next steps: specifying and sourcing

When specifying an electrical panel board for utility, mining, commercial, or industrial applications, having complete technical schedules eliminates procurement delays. Prepare your single-line diagrams (SLD), prospective fault level calculations, enclosure IP requirements, and preferred breaker brands before initiating a quotation.

Explore our industrial-grade HV & LV switchgear solutions and integrated prefabricated transformer substations engineered to international IEC and ANSI/IEEE standards. For tailored sizing verifications, custom chassis layouts, or formal technical proposals, submit your project schedules directly through our engineering quotation portal or speak with our application engineering team via the contact page.
