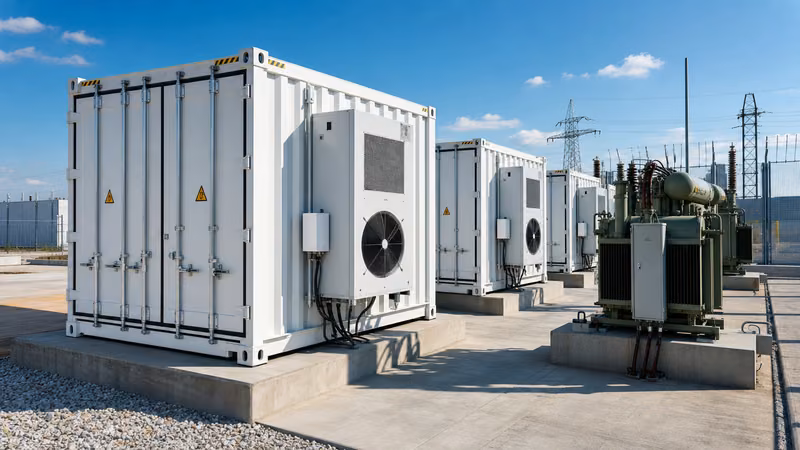

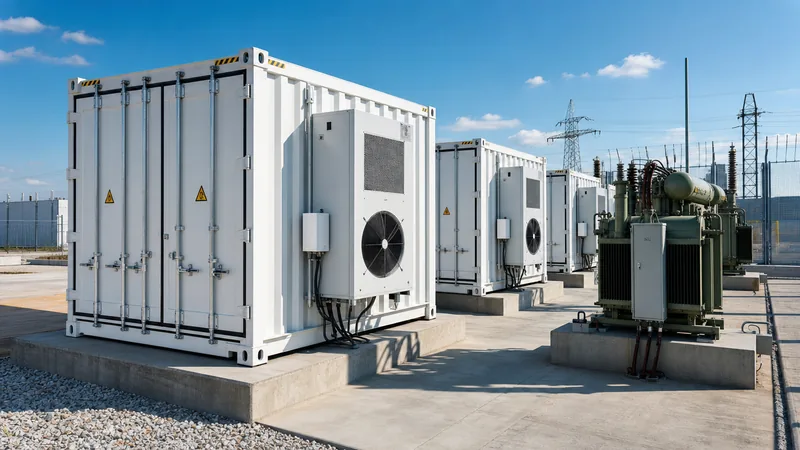

BESS Meaning: Battery Energy Storage System Engineering Guide

Quick answer: In electrical engineering, the bess meaning refers to a Battery Energy Storage System—an integrated assembly of rechargeable electrochemical batteries, bidirectional power conversion systems, thermal management, and digital controls that captures electrical energy from the grid or generation sources and discharges it on demand.

While everyday web searchers occasionally look up the bess word meaning as an informal given name or encounter queries such as bess meaning in chat (where it occasionally surfaces as informal text slang or a typo for best), the technical and industrial real bess meaning is strictly tied to grid modernization. In commercial, industrial, and utility power distribution, a BESS acts as a controllable electrical buffer. It bridges the critical operational gap between intermittent renewable generation—such as solar photovoltaic and wind farms—and dynamic consumer load profiles.

Understanding the full definition of bess requires examining how physical battery racks interface with high-voltage switchgear, power converters, and supervisory controllers. Whether deployed for peak shaving, frequency containment reserves, or off-grid resiliency, this equipment serves as the cornerstone of contemporary electrical networks.

BESS meaning: what does BESS mean in electrical engineering?

The technical bess definition specifies an electrochemical apparatus capable of absorbing electrical power, storing it internally via chemical potential energy, and releasing it as regulated AC electricity. When engineers ask what does bess mean or bess stands for, the bess acronym directly translates to Battery Energy Storage System.

According to IEC 62933-1 clause 3.1, a grid-integrated energy storage system comprises the storage medium, power conversion equipment, auxiliary equipment, and interfaces to the electrical grid. To establish a precise bess def, one must differentiate between a standalone battery cell and a complete system:

• Battery Cell and Module: The fundamental electrochemical building block (such as Lithium Iron Phosphate, or LFP), providing low-voltage direct current (DC).
• Battery Rack: Multiple modules connected in series to establish DC bus voltages typically between 800 VDC and 1500 VDC.
• Complete BESS: The fully engineered, turnkey package integrating racks, a bidirectional power conversion system (PCS), medium-voltage transformation, heating, ventilation, and air conditioning (HVAC) or liquid cooling loops, fire protection, and intelligent controls.

When searching a technical bess dictionary or engineering standard, you will find that a BESS is classified not merely by its static capacity, but by its operational speed. Unlike conventional spinning reserves (such as open-cycle gas turbines) that require minutes to synchronize, a modern BESS injects active power within 20 to 100 milliseconds of detecting a frequency excursion.

How does a battery energy storage system work?

A battery energy storage system works by managing bidirectional energy conversions between direct current (DC) electrochemical storage and alternating current (AC) grid power. The operational cycle follows two primary regimes: charge and discharge.

During the charging cycle, excess power from the grid or an on-site generation source enters the system through medium-voltage (MV) switchgear. A step-down transformer conditions the voltage to match the AC terminal rating of the inverter (typically 400 V to 690 V). The PCS operates as an active rectifier, converting three-phase AC electricity into controlled DC current to charge the battery strings. The Battery Management System (BMS) continuously monitors individual cell voltages, state of charge (SOC), and temperature to prevent overcharging.

During the discharging cycle, the process reverses. The battery strings release DC current across the central busbars. The PCS switches to inverter mode using high-speed Insulated Gate Bipolar Transistors (IGBTs) or Silicon Carbide (SiC) MOSFETs to synthesize a clean sinusoidal AC waveform. This low-voltage AC power is stepped up by an oil-immersed or dry-type transformer and delivered back to the plant switchgear or utility network, directly supporting industrial loads or mitigating regional distribution constraints.

Core subsystems of a utility or commercial BESS plant

A commercial or utility-scale bess plant is an engineered ecosystem composed of five hardware and software tiers working in synchronization. To properly bess define an installation, engineers categorize the system into the following functional layers:

1. Electrochemical Core: Battery cells organized into series strings and parallel racks. Industrial applications predominantly deploy Lithium Iron Phosphate (LFP) chemistry due to its structural stability and extended cycle life (typically 6,000 to 8,000 cycles at 80% Depth of Discharge).
2. Battery Management System (BMS): A multi-tiered architecture (cell-level slave BMS, rack-level master BMS, and system-level central BMS) enforcing safe operational limits under IEC 62619 clause 8.2. It monitors cell balance, thermal deviations, and isolation resistance. For deeper insight into monitoring architectures, consult our guide on battery monitoring system design.
3. Power Conversion System (PCS): The four-quadrant bidirectional inverter that regulates active power (P) and reactive power (Q), enabling power factor correction and rapid frequency response.
4. Energy Management System (EMS) and SCADA: The supervisory logic platform communicating via protocols such as Modbus TCP, DNP3, or IEC 61850. The EMS executes dispatch algorithms based on grid tariffs, demand thresholds, or renewable generation forecasts.
5. Balance of Plant (BOP): The physical enclosures (typically ISO shipping containers or modular outdoor walk-in cabinets), thermal management (liquid-chilled plates or direct expansion DX air conditioning), deflagration venting complying with NFPA 68, and total flooding fire extinguishing systems (such as aerosol or Novec 1230).

BESS application profiles: industrial, commercial, and grid use cases

The economic value and operational bess meaning in english jurisdictions depend on how the asset is dispatched across the electrical network. Rather than serving a single purpose, a BESS can stack multiple revenue streams and protection mechanisms.

In commercial and industrial facilities, a primary function is peak shaving. By discharging stored energy during peak tariff periods, the system lowers monthly maximum demand charges (kVA or kW billing penalties). Facilities often combine this with solar PV firming to prevent exporting discounted power to the utility grid, as detailed in our guide on commercial energy storage engineering.

For distribution networks and transmission system operators (TSOs), a BESS provides ancillary services: Fast Frequency Response (FFR), Frequency Containment Reserve (FCR), and voltage regulation through reactive power absorption or injection. In microgrids, a BESS with grid-forming inverters establishes the voltage and frequency baseline without requiring rotating diesel generation, ensuring stability during renewable energy grid integration.

Engineering sizing calculation: energy capacity, power, and C-rate

Sizing an industrial BESS requires calculating the total usable energy, taking into account depth of discharge, round-trip efficiency (RTE), and planned asset degradation. The relationship between energy, power, and duration is governed by the C-rate:

C-Rate = Discharge Current (A) / Nominal Capacity (Ah) = Continuous Power (kW) / Energy Capacity (kWh)

Consider a factory requiring a peak-shaving system to curtail 500 kW of plant demand for an uninterrupted duration of 3 hours, operating once per day.

• Target Discharge Energy (E_net): 500 kW × 3.0 h = 1,500 kWh (1.5 MWh)
• Usable State-of-Charge Window (ΔSOC): 10% to 90% SOC = 80% usable capacity
• System AC-to-AC Round-Trip Efficiency (η_RTE): 88% (0.88), accounting for PCS conversion, transformer losses, and cooling loads
• Ten-Year Degradation Factor (D): 20% degradation over design life, leaving an end-of-life (EOL) retention factor of 80% (0.80)

The gross installed DC capacity (E_gross) required at Day 1 is calculated as:

E_gross = E_net / (ΔSOC × η_RTE × EOL)

E_gross = 1,500 kWh / (0.80 × 0.88 × 0.80) = 1,500 / 0.5632 = 2,663.35 kWh

To guarantee a 500 kW, 3-hour output at year 10, the project engineer must specify an initial battery nameplate capacity of at least 2.66 MWh paired with a 500 kVA PCS (operating at a 0.19C to 0.33C discharge rate). Specifying only the net 1.5 MWh would result in performance non-compliance within the first 18 months of operation.

Technical specification comparison: containerised BESS configurations

Project engineers must match the physical and electrical topology of the BESS to site constraints, cooling demands, and utility interconnection rules. The following table contrasts standard commercial and utility containerized architectures based on IEC 62933-2-1 and IEEE 2030.2.1 performance guidelines.

Liquid cooling architectures deliver higher energy density and maintain cell-to-cell thermal differentials within ±2°C across high-ambient installations, substantially slowing cell degradation compared to forced-air circulation.

Next steps: specifying and sourcing

When preparing a request for quotation (RFQ) for an integrated energy storage installation, supply your site's peak demand load profile (15-minute interval data), available fault currents, point-of-interconnection voltage, and environmental ambient extremes. Our manufacturing facility designs and fabricates turnkey energy storage systems, including advanced liquid-cooled ESS containers and integrated HV and LV switchgear built to IEC and IEEE standards. Contact our engineering application team via our quotation inquiry page to obtain single-line diagrams, thermal dispatch models, and budget proposals tailored to your project requirements.
