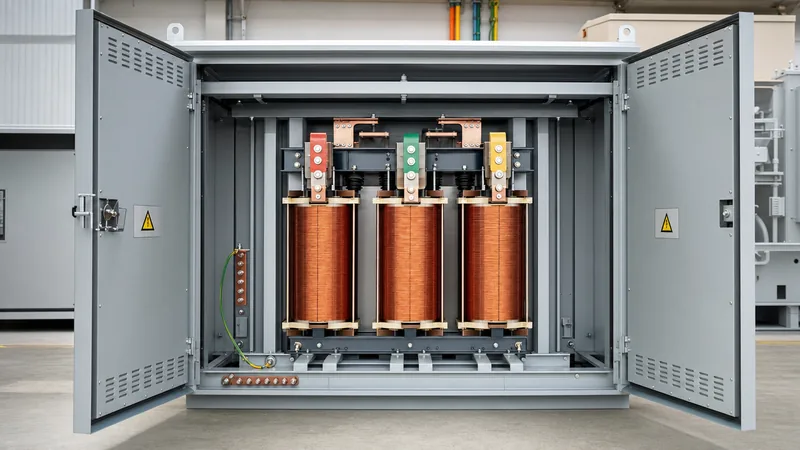

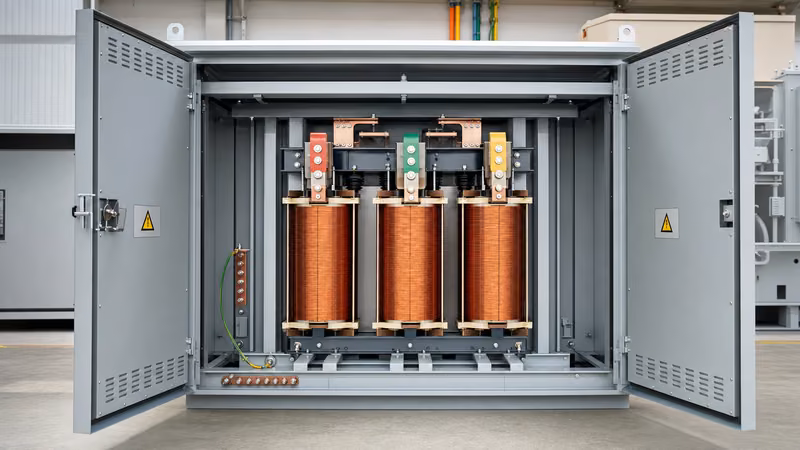

Key takeaways
- A 240V to 208V transformer steps down voltage by 13.3 percent to safely power 208V-rated equipment from nominal 240V supplies.
- Buck-boost autotransformer connections handle up to 7.5 times their physical nameplate kVA rating because only the transformation voltage difference is transformed.
- Isolation transformers are required whenever a grounded secondary neutral (208Y/120V) must be derived from an ungrounded or corner-grounded 240V delta supply.
- NEC Article 450.4 governs autotransformer overcurrent protection, mandating individual overcurrent devices on both primary and secondary windings.
- Equipment rated strictly for 208V operating on 240V draws roughly 33 percent more power and experiences accelerated thermal degradation if not corrected.
Quick answer: A 240V to 208V transformer is a low-voltage distribution unit configured to reduce a nominal 240V supply down to 208V, preventing overvoltage damage to sensitive motors, IT hardware, and commercial machinery. Depending on whether a neutral conductor is required, engineers deploy either a standard two-winding isolation transformer or an economical buck-boost autotransformer connection.
In North American commercial facilities and light-industrial plants, mismatch between 240V distribution networks and modern 208V rated loads creates persistent operating challenges. Supplying 240V directly to equipment engineered strictly for 208V increases winding temperatures, trips protective relays, and drastically shortens motor life. Applying an appropriate 240 to 208 step down transformer corrects the line potential while maintaining system compliance with IEEE C57.12.01 and NFPA 70 (NEC). For engineers selecting units across diverse plant configurations, consulting a broader low voltage transformer selection guide provides foundational context on thermal ratings and enclosure classes.
Understanding Voltage Topologies: 240V Delta vs 208Y/120V Wye
System grounding and phase topology dictate whether you need a full isolation unit or a buck autotransformer. Nominal 240V power commonly originates as a 3-phase 3-wire delta system, a corner-grounded delta, or a high-leg delta (240/120V). Conversely, 208V equipment almost universally requires a 4-wire wye configuration (208Y/120V), which yields 208V line-to-line and 120V line-to-neutral across all three phases.
A dedicated 240 to 208 transformer 3 phase design with delta primary and wye secondary windings (typically vector group Dyn1 or Dyn11 under IEC 60076-1 conventions) solves topology mismatches cleanly. Connecting a delta source to a wye secondary establishes a separately derived system under NEC 250.30, giving facility designers a stable, grounded neutral for 120V auxiliary circuits. Where plants transition higher line potentials, an alternative such as a 480V to 240V transformer or a 480V transformer selection may already form part of the upstream hierarchy, leaving the final branch balancing to sub-distribution equipment.
Autotransformer vs Isolation Transformer for 240V to 208V Conversion
Choosing between an autotransformer and an isolation unit depends on whether galvanic isolation and a derived neutral are strictly necessary. A 240v to 208v step down transformer configured as a buck-boost autotransformer only transforms the buck voltage (32V), meaning the physical core and windings only process a fraction of the total load kVA. This architecture yields lower losses, higher operating efficiency, and smaller physical dimensions.
However, autotransformers do not provide electrical isolation between primary and secondary circuits. If the incoming supply lacks a neutral, a buck-connected autotransformer cannot produce a 120V line-to-neutral voltage without creating hazardous neutral shifts. The following decision table compares both topologies across critical engineering parameters:
| Evaluation Criterion | Buck-Boost Autotransformer (32V Buck) | Two-Winding Isolation Transformer (Delta-Wye) |
|---|---|---|
| Galvanic Isolation | No | Yes (complete magnetic coupling) |
| 120V Neutral Derivation | No (cannot create neutral from 240V delta) | Yes (grounded secondary X0 terminal) |
| Physical Size & Weight | Approximately 15% to 20% of load kVA | 100% of equivalent load kVA |
| Typical Full-Load Efficiency | > 98.5% | 95.5% to 97.5% |
| Fault Current Contribution | High (low series impedance, typically < 1.5%) | Standard (impedance typically 3.5% to 5.75%) |
| Relative Capital Cost | Low (up to 60% lower unit price) | Moderate to High |
Engineers seeking granular guidance on multi-tap buck-boost configurations should consult the specialised buck and boost transformer 208 to 240 guide, which illustrates terminal connections and buck winding calculations in detail.
Sizing a Step Down Transformer 240 to 208 3 Phase: Worked Example
Accurately sizing a step down transformer 240 to 208 3 phase requires calculating the full-load current (FLA) of the equipment, accounting for motor starting or continuous duty factors per NEC 215.2. In commercial facilities, loads such as chillers, packaging lines, and server power distribution units often demand 208V 3-phase power directly from a legacy 240V plant bus.
Consider an industrial cooling package with the following engineering specifications:
- Rated Operating Voltage: 208 V, 3-phase, 60 Hz
- Total Continuous Load: 45 kVA
- Operating Power Factor: 0.88 lagging
- Determine secondary full-load current:
Isecondary = kVA / (sqrt(3) × VLL) = 45,000 / (1.732 × 208) = 124.9 A - Calculate primary line current at 240V:
Iprimary = kVA / (sqrt(3) × VLL) = 45,000 / (1.732 × 240) = 108.3 A - Size an isolation transformer:
Applying a standard 125% continuous duty multiplier under NEC 450.3 yields 45 kVA × 1.25 = 56.25 kVA. The nearest standard commercial unit is 75 kVA, which accommodates initial startup inrush without nuisance tripping. - Size an alternative buck autotransformer:
The voltage buck is 240 V - 208 V = 32 V. The transformed kVA rating of the autotransformer bank is:
kVAbuck = sqrt(3) × Vbuck × Isecondary / 1000 = 1.732 × 32 V × 124.9 A / 1000 = 6.92 kVA
Using three single-phase units connected in open-delta or wye requires units rated at roughly 2.5 kVA each, delivering significant savings in space and copper losses.
In high-density installations like server halls, high harmonic currents may alter thermal calculations; review our transformers for data centers engineering guide to address harmonic mitigation and K-factor derating factors.
Wiring Schemes and Protection for 208 240 Volt Transformer Units
Wiring a 208 240 volt transformer demands strict adherence to overcurrent protection rules and grounding paths outlined in NEC Article 450 and Article 250. When installing a delta-to-wye isolation transformer, the primary windings connect across Phase A, Phase B, and Phase C of the 240V supply without a neutral conductor. The secondary wye terminals (X1, X2, X3) deliver 208V phase-to-phase, and the neutral terminal (X0) connects to the facility grounding electrode system through a properly sized bonding jumper per NEC 250.28.
For primary overcurrent protection under NEC Table 450.3(B), transformers rated over 9 A require protective devices set at not more than 125% of the primary rated current where secondary protection is not provided. When secondary overcurrent protection is installed, primary circuit breakers can be set up to 250% of the transformer's full-load rating to withstand energisation inrush without premature tripping. Ensure secondary conductors terminate in a panelboard equipped with a main breaker sized at no more than 125% of rated secondary output current.
Special Applications: 208 3 Phase to 240 Single Phase Transformer Systems
Supplying single-phase 240V machinery from a 208V 3-phase grid requires a dedicated 208 3 phase to 240 single phase transformer or a single-phase step-up unit connected phase-to-phase. Running a 240V single-phase heater, welding station, or vehicle charger across two legs of a 208Y/120V panel delivers only 208V, causing a roughly 25% drop in resistive heating output (P = V2 / R).
Similarly, legacy facilities frequently encounter 120 208 to 120 240 transformer requirements where split-phase 120/240V distribution is needed from a commercial 208Y/120V service. In these scenarios, a two-winding isolation transformer with a center-tapped secondary is standard. The unit takes two line conductors at 208V single-phase on the primary and produces 240V across the secondary outer legs, with 120V available from either leg to the center-tapped neutral. This setup prevents unbalancing upstream three-phase feeders while supplying residential-type appliances and small utility equipment reliably.
Factory Testing and Acceptance Standards for 240V to 208V Transformers
Factory acceptance testing confirms the electrical performance, insulation integrity, and thermal rise of each unit prior to site dispatch. Dry-type low-voltage transformers built for voltage conversion must comply with IEEE C57.12.01 for general requirements and IEEE C57.12.91 for test procedures. Before releasing units for shipment, manufacturers carry out a set of mandatory routine tests:
- Winding resistance measurements: Recorded across all taps to verify balanced internal circuits per IEEE C57.12.91 clause 5.
- Voltage ratio and phase displacement: Checked to ensure turns ratios align within ±0.5% of specified nameplate voltage ratios.
- No-load losses and excitation current: Measured at 100% rated secondary voltage to determine core iron losses.
- Impedance and load loss: Verified at rated current and corrected to standard reference temperature (typically 75°C or 100°C depending on insulation class).
- Applied and induced dielectric tests: Executed to prove the integrity of primary-to-secondary and turn-to-turn insulation systems.
Frequently asked questions
Can a 240V to 208V transformer work in reverse to step up voltage?
Yes, standard two-winding isolation transformers are bidirectional and can step up 208V to 240V when wired in reverse. However, inrush currents increase significantly when energising the factory secondary winding, requiring careful sizing of the primary circuit protection.
Can I power a 208V motor directly from a 240V supply without a transformer?
No, operating a 208V-rated motor continuously on 240V represents a 15.4 percent overvoltage, exceeding the standard NEMA ±10 percent tolerance band. This mismatch causes core saturation, excessive magnetising current, overheating, and rapid insulation failure.
What is the difference between an autotransformer and an isolation transformer for 240V to 208V conversion?
An autotransformer shares a common winding between input and output, making it smaller and more efficient, but it does not provide galvanic isolation or create a secondary neutral. An isolation transformer completely separates circuits magnetically, allowing safe generation of a grounded 208Y/120V system.
How do I obtain 120V single-phase circuits from a 240V delta source?
You must install an isolation transformer with a 240V delta primary and a 208Y/120V secondary. The derived secondary neutral terminal (X0) provides three balanced 120V circuits to ground across the three phases.
Why do buck-boost transformers have a higher kVA capacity than their nameplate indicates?
Buck-boost transformers connected as autotransformers only transform the 32V differential voltage rather than the full 240V line voltage. As a result, the physical unit can pass through roughly 5 to 7.5 times its nominal two-winding rating to the connected load.
