Key takeaways
- Electric power distribution represents the final stage of electrical delivery, stepping down transmission and sub-transmission voltages (typically 11 kV to 33 kV) to utilisation levels (380 V to 480 V) via distribution substations.
- Open-loop ring topologies balance cost and reliability for industrial systems, limiting outage durations to switching times of under 15 minutes compared to sustained outages on radial circuits.
- Substation short-circuit currents dictate low-voltage switchgear ratings, where a 1,500 kVA, 415 V transformer with 6% impedance produces a prospective symmetrical fault current of 34.8 kA.
- Prefabricated compact substations built to IEC 62271-202 eliminate site-erection risks by housing medium-voltage switchgear, distribution transformers, and low-voltage distribution boards in an internal arc-tested enclosure.
- Cable sizing in power distribution design must satisfy three criteria simultaneously: continuous thermal current rating (IEC 60364-5-52), maximum permissible voltage drop (under 5%), and short-circuit thermal withstand (IEC 60909).
Quick answer: Electric power distribution is the final operational stage of an electrical power network, delivering energy from high-voltage transmission grids down to end-user equipment via intermediate medium-voltage (1 kV to 36 kV) feeders, step-down distribution transformers, and low-voltage (under 1 kV) switchgear.
In industrial facilities, utility networks, and municipal infrastructure, an electric power distribution network must maintain precise voltage tolerances, minimise technical losses, and ensure rapid protective isolation during fault conditions. Achieving these engineering objectives demands rigorous adherence to international manufacturing standards, sound topological choices, and coordinated protection between medium-voltage (MV) and low-voltage (LV) equipment. This technical guide examines the design principles, structural architectures, calculation workflows, and equipment selection criteria essential for implementing a dependable modern power distribution network.
Electric Power Distribution: Engineering Principles and Voltage Tiers
A distribution system in power system engineering operates as the bridge between bulk power transmission corridors and point-of-load electrical infrastructure. Transmission systems operate at high voltages (typically 110 kV to 765 kV) to suppress $I^2R$ resistive heating losses over extended distances. By contrast, the electric distribution tier functions at lower voltage brackets optimised for safety, insulation economy, and urban or industrial density.
Modern power distribution divides broadly into two electrical layers:
- Primary distribution: Operates at MV levels, universally rated between 3.3 kV and 36 kV (standardised under IEC 60038 at 11 kV, 22 kV, and 33 kV, or IEEE C84.1 at 12.47 kV, 13.8 kV, and 34.5 kV). Primary feeders originate from zone substations and distribute power to industrial substations, commercial campuses, and pole- or pad-mounted assets.
- Secondary distribution: Operates at three-phase utilisation voltages (such as 400/230 V per IEC standards or 480/277 V per North American standards). Step-down distribution transformers convert MV primary voltage to three-phase four-wire or single-phase three-wire LV arrangements suitable for directly energising end-use switchboards, motor control centres (MCCs), and sub-distribution panels.
System designers must isolate the utility interface point using circuit breakers or load-break switches capable of interrupting prospective short-circuit levels while maintaining appropriate Basic Insulation Levels (BIL)—typically 75 kV to 170 kV crest for 11 kV to 33 kV switchgear, in accordance with IEC 62271-1.
Topologies of an Electrical Power Distribution System
System reliability, capital expenditure, and operational flexibility depend entirely on the topological layout selected for an electrical power distribution system. Selecting the correct network configuration dictates how effectively a facility handles unplanned feeder outages, cable faults, and maintenance shutdowns.
The three predominant configurations utilised in modern utility and industrial distribution systems include:
- Radial distribution: A single feeder radiates from a central substation to downstream loads with no secondary supply route. While offering the lowest capital expenditure and simplest protection scheme (definite-time overcurrent and earth fault relays), a fault anywhere along the feeder results in a total loss of supply to all downstream consumers.
- Ring main (open-loop) distribution: Feeders loop through several load substations and return to the primary source or connect to an alternative substation bus. The loop is operated open at a designated normally open point (NOP). During an outage, operators isolate the damaged cable section via ring main unit (RMU) disconnector switches and re-close the NOP, restoring supply within minutes. For an in-depth breakdown of these two schemes, consult our guide on radial feed vs loop feed systems.
- Secondary selective (double-ended) distribution: Features two independent MV incoming sources feeding two distribution transformers connected via an LV bus-tie circuit breaker. Interlocking schemes ensure the tie breaker operates normally open, closing automatically via an automatic transfer switch (ATS) only if one incoming source drops out. This design delivers tier-3 or tier-4 reliability for continuous process plants and mission-critical infrastructure.
Power Distribution System Design: Sizing Transformers and Fault Calculations
A compliant power distribution system design requires sizing transformers and conductors against continuous operating loads, ambient derating factors, and prospective fault currents. Sizing a step-down unit substation incorrectly results in either elevated capital cost and high no-load core losses, or premature insulation degradation from excessive thermal rise.
Consider an industrial manufacturing plant with a total connected load of 1,200 kW, an operating power factor ($\cos\phi$) of 0.85 lagging, a plant diversity factor ($k_{\text{div}}$) of 0.75, and a maximum target transformer continuous loading threshold ($k_{\text{load}}$) of 80% to allow for future load growth and minimise operational losses:
1. Calculate the maximum operational apparent power ($S_{\text{max}}$):
$$S_{\text{max}} = \frac{P_{\text{conn}} \times k_{\text{div}}}{\cos\phi} = \frac{1,200\text{ kW} \times 0.75}{0.85} = 1,058.82\text{ kVA}$$
2. Calculate the required transformer nameplate capacity ($S_{\text{tx}}$):
$$S_{\text{tx}} = \frac{S_{\text{max}}}{k_{\text{load}}} = \frac{1,058.82\text{ kVA}}{0.80} = 1,323.53\text{ kVA}$$
The nearest standard transformer capacity per IEC 60076-1 Table 1 is 1,500 kVA.
3. Determine the full-load secondary current ($I_{\text{FLC}}$) at 415 V three-phase line-to-line:
$$I_{\text{FLC}} = \frac{S_{\text{tx}}}{\sqrt{3} \times V_{\text{line}}} = \frac{1,500,000\text{ VA}}{\sqrt{3} \times 415\text{ V}} = 2,087.0\text{ A}$$
4. Calculate the secondary prospective symmetrical short-circuit current ($I_{\text{sc}}$), assuming a standard transformer impedance voltage ($u_{\text{k}}$) of 6.0% and an infinite primary medium-voltage bus capacity:
$$I_{\text{sc}} = \frac{I_{\text{FLC}}}{u_{\text{k}} / 100} = \frac{2,087.0\text{ A}}{0.06} = 34,783\text{ A} \approx 34.8\text{ kA}$$
Consequently, the main low-voltage switchboard connected directly to this transformer secondary must incorporate an incoming circuit breaker and busbar system type-tested for a rated short-time withstand current ($I_{\text{cw}}$) of not less than 50 kA for 1 second, conforming to IEC 61439 low-voltage switchgear compliance standards. Engineers can review structural arrangements in our unit substation engineering guide.
Comparative Analysis of Distribution Network Architectures
Evaluating competing architectural strategies requires balancing capital expenditure against reliability indicators such as System Average Interruption Duration Index (SAIDI). The engineering decision table below compares the four primary distribution configurations deployed across utility and industrial applications.
| Distribution Topology | Relative Cost Index | Typical Outage Duration | Protection Complexity | Maintenance Flexibility | Primary Application |
|---|---|---|---|---|---|
| Simple Radial | 1.0 | Hours (cable repair required) | Low (Overcurrent / Earth Fault) | Poor (requires full system outage) | Rural networks, temporary sites, non-critical light industrial |
| Open-Loop Ring (RMU) | 1.3 – 1.5 | 5 to 15 minutes (manual/SCADA switching) | Medium (Directional relays, pilot wire) | Good (sections isolated under bypass) | Urban distribution, business parks, standard manufacturing |
| Primary Selective | 1.8 – 2.2 | Under 2 seconds (automatic MV transfer) | High (source interlocks, synchronism check) | Very Good (alternate feeder sustains load) | Hospitals, continuous chemical processing, large commercial hubs |
| Secondary Selective | 2.4 – 2.8 | Under 0.5 seconds (auto bus-tie close) | High (interlocked ACBs, reverse power) | Excellent (dual busbars, zero downtime maintenance) | Hyperscale data centres, semiconductor fabrication, critical infrastructure |
Building Power Distribution and Internal Facility Networks
Building power distribution systems translate bulk low-voltage supply into safe, segmented power paths that serve lighting, heating, ventilation, air conditioning (HVAC), elevator drives, and data equipment. The design must mitigate harmonic distortion, enforce touch-potential safety, and guarantee coordinated selective tripping across all protection stages.
Within modern multi-storey or heavy commercial installations, engineers separate distribution risers into two broad categories:
- Essential and emergency services: Sourced through automatic transfer switches coupled to standby diesel generators or commercial energy storage systems. Circuits feeding fire suppression pumps, smoke evacuation fans, and emergency egress lighting require fire-resistant mineral-insulated metal-sheathed (MIMS) cabling or circuit-integrity cables complying with BS 6387 Category CWZ.
- Non-essential infrastructure: Distributed via sandwich-type busbar trunking systems (busways) rated up to 5,000 A. Busway distribution reduces installation footprint, provides tap-off flexibility on individual floor levels, and reduces total structural load compared to massive parallel multi-core copper cable bundles.
Sub-distribution design relies on strict discriminatory protection. A downstream fault at an auxiliary distribution board must clear via its branch miniature circuit breaker (MCB) or moulded-case circuit breaker (MCCB) without destabilising upstream air circuit breakers (ACBs) in the main switchroom. Engineers model this via time-current curves (TCCs), verifying clear separation between instantaneous, short-time, and long-time pickup thresholds per IEC 60947-2.

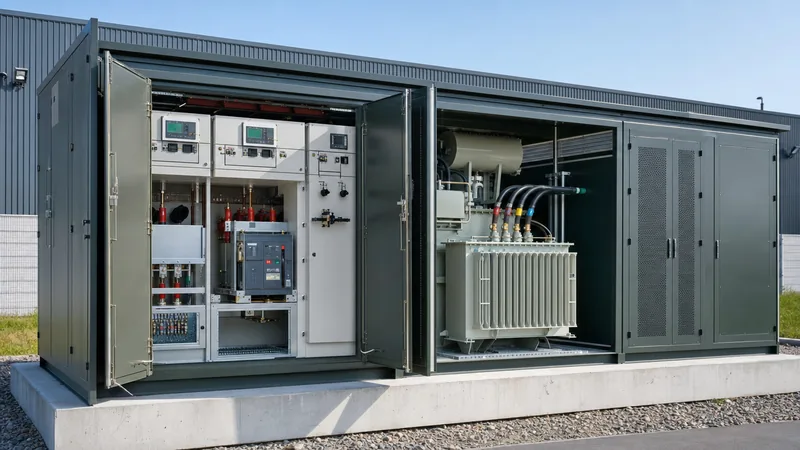

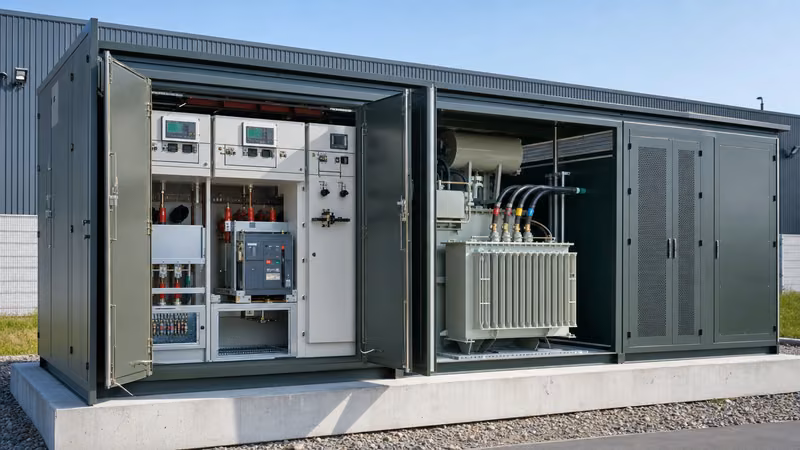

Prefabricated Substations in the Modern Power Distribution System
Prefabricated substations, engineered to IEC 62271-202, have largely replaced traditional brick-and-mortar substation buildings in municipal networks, industrial expansions, and renewable integration projects. These self-contained units integrate the medium-voltage switchgear, hermetically sealed or dry-type distribution transformer, low-voltage switchboard, and internal interconnections within a single type-tested housing.
Deploying a factory-tested prefabricated power distribution system offers three distinct engineering advantages:
- Internal arc classification (IAC): Substations tested to IAC-AB ratings (per IEC 62271-202 Annex A) safely channel explosive overpressures and superheated gases upward or downward through internal pressure-relief flaps, ensuring complete personnel safety outside the perimeter during an internal arc incident up to 20 kA for 1 second.
- Thermal performance management: Factory-designed cooling paths ensure standard distribution transformers do not exceed their nominal winding temperature rise limits (typically 65 K for liquid-immersed units per IEC 60076-2) even inside enclosed housing under high external ambient conditions (Class 10 or Class 20 thermal enclosure ratings).
- Compact footprint and simplified civil works: A 1,600 kVA prefabricated package substation occupies under 12 square metres of ground footprint, requiring only a level reinforced concrete slab with integrated cable trenches, reducing on-site civil works and commissioning schedules by over 60%. Detailed switchgear options can be reviewed in our MV switchgear engineering guide.
Next steps: specifying and sourcing
Specifying equipment for an industrial or utility electrical distribution network demands precise data alignment to avoid delivery delays or costly field modifications. When submitting inquiries for project manufacturing, supply our engineering team with your complete single-line diagram (SLD), rated primary and secondary operating voltages, system earthing method (solid, resistance, or unearthed), prospective short-circuit levels, target transformer vector group (such as Dyn11), and required enclosure ingress protection rating (typically IP54 outdoor / IP31 indoor). Browse our complete range of integrated prefabricated transformer substations and high-reliability HV and LV switchgear assemblies, or transmit your detailed technical schedules directly to our factory engineers via the custom engineering quote page for a comprehensive quotation and dimensional layout appraisal.
Frequently asked questions
What is electric power distribution?
Electric power distribution is the final stage of an electrical grid system, responsible for transferring electricity from transmission substations down to commercial, industrial, and residential end users. It steps down medium voltages (such as 11 kV to 33 kV) to safe utilisation voltages (such as 400 V or 480 V) through distribution transformers and switchgear.
What is the difference between power transmission and power distribution?
Power transmission moves bulk electricity across long distances at very high voltages (typically 110 kV to 765 kV) to minimise line losses. Power distribution operates at lower voltage thresholds (typically under 36 kV down to 400 V) over shorter geographical distances to safely deliver power directly to consumer facilities.
What is a primary distribution system in power system engineering?
A primary distribution system consists of medium-voltage circuits (operating usually between 3.3 kV and 36 kV) that feed out from bulk distribution substations to local step-down transformers. These feeders deliver three-phase power directly to large industrial sites or secondary distribution substations serving commercial and residential areas.
Why is ring main distribution preferred over radial distribution in industrial plants?
Ring main distribution is preferred because it provides an alternate supply route if a cable fault occurs. By switching normally open points within a ring main unit, operators can isolate the damaged section and re-energise affected plant areas within minutes, whereas radial configurations experience complete outages until physical repairs finish.
How do you calculate short-circuit current in an electric power distribution network?
Short-circuit current is calculated by dividing the transformer nominal full-load secondary current by its per-unit percentage impedance. For example, a 1,500 kVA transformer at 415 V with 6% impedance has a full-load current of 2,087 A, yielding a prospective symmetrical fault current of 2,087 divided by 0.06, which equals 34.8 kA.
What standards govern prefabricated electric distribution substations?
Prefabricated package substations are primarily governed by IEC 62271-202, which covers high-voltage/low-voltage prefabricated substations. This standard outlines structural integrity, enclosure thermal classes, dielectric insulation levels, internal arc classification (IAC) ratings, and earthing bonding requirements for personnel safety.
