Renewable Power Storage: Engineering Guide & Sizing

Quick answer: Renewable power storage refers to utility-scale and commercial energy storage systems—primarily lithium iron phosphate (LFP) battery systems—engineered to capture electricity generated from intermittent solar and wind resources, dispatching that energy during peak demand or grid disturbances.

Integrating variable generation into national transmission and distribution networks presents significant technical challenges. Without dedicated renewable power storage, distribution network operators (DNOs) and transmission system operators (TSOs) face severe voltage instability, frequency excursions, and mandatory generation curtailment. Modern energy storage bridges this temporal mismatch by serving as both an instantaneous dynamic load and a high-speed generator capable of sub-second active power dispatch.

Deploying a reliable grid integration of renewable energy sources requires precise sizing of both the power conversion equipment and electrochemical storage strings. This technical guide examines system architectures, real-world sizing calculations, thermal management strategies, and grid interconnection standards for engineering teams, engineering, procurement, and construction (EPC) contractors, and utility asset planners.

System Architecture for Renewable Power Storage: AC vs DC Coupling

System architecture for renewable power storage falls into two primary topologies: AC-coupled and DC-coupled systems, each offering distinct advantages depending on whether the asset is a greenfield development or a brownfield retrofit.

In a DC-coupled configuration, solar photovoltaic (PV) strings and electrochemical energy storage connect to a shared direct-current bus behind a common central inverter via bidirectional DC-DC converters. This approach eliminates one stage of power conversion, capturing otherwise clipped solar energy when DC generation exceeds inverter capacity. However, DC-coupled systems complicate fault detection, increase DC switchgear ratings, and restrict dynamic response times when responding to grid frequency anomalies.

AC-coupled systems connect the renewable generator and the storage subsystem at the medium-voltage (MV) alternating-current bus. The power conversion system (PCS) operates independently from the wind or solar inverters, permitting dedicated bidirectional control over active and reactive power (P-Q quadrant control). For utility-scale utility scale energy storage installations, AC coupling provides distinct operational advantages:

• Independent dispatch: The battery storage subsystem can charge from the local renewable generator or directly from the wider transmission grid during low-tariff pricing windows.
• Vendor interchangeability: Battery racks, DC junction boxes, and inverters can be upgraded or replaced without altering the operational profile of existing solar or wind inverters.
• Fault isolation: Internal faults within a DC battery string isolate safely through dedicated DC contactors and breakers without taking the primary generation field offline.

Battery Storage for Solar and Wind: Technical Sizing Calculation

Sizing battery storage for solar and wind requires calculating active power delivery (MW) to comply with export constraints alongside total energy capacity (MWh) to support dispatch requirements while accounting for system losses and cell degradation.

Consider an engineering scenario: A 40 MW peak solar PV farm combined with a 20 MW wind facility experiences a mandatory export limit of 45 MW at the point of common coupling (PCC), alongside a grid code requirement to smooth ramp rates to no more than 2 MW per minute over a 15-minute continuous window. Additionally, the asset owner requires a 2-hour energy shifting block of 30 MW during evening peak demand.

The mathematical sizing for the usable energy capacity (E_usable) is defined as:

E_usable = P_discharge × t_duration = 30 MW × 2.0 h = 60 MWh

To establish the required nameplate capacity (E_nameplate), electrical engineers must factor in the maximum operating depth of discharge (DoD), round-trip efficiency (RTE) across battery racks and power conversion transformers, and the 10-year end-of-life (EoL) cell degradation factor:

• Operating Depth of Discharge (DoD): 90% (0.90)
• Battery and PCS Round-Trip Efficiency (RTE): 87% (0.87)
• Auxiliary load consumption (HVAC, liquid chillers, BMS): 3% per day (factor of 0.97)
• Cell capacity retention at Year 10 (Degradation Factor, SOH): 75% (0.75)

The calculation proceeds as follows:

E_installed = E_usable / (DoD × RTE × SOH × Aux_factor)

E_installed = 60 MWh / (0.90 × 0.87 × 0.75 × 0.97) = 60 / 0.5699 = 105.28 MWh

To guarantee a 30 MW / 60 MWh dispatch at Year 10 under harsh climatic cycling, the project requires an installed nameplate capacity of at least 105.3 MWh of LFP storage paired with a 30 MW rated power conversion system.

Wind Energy Battery Storage and Dynamic Grid Compliance

Wind energy battery storage mitigates high-frequency power fluctuations, absorbs sudden generation curtailment during transmission bottlenecks, and delivers synthetic inertia to meet modern grid connection codes.

Unlike solar generation, which follows predictable daily irradiance curves interrupted primarily by cloud cover, wind turbine outputs fluctuate rapidly due to mechanical turbulence, gusting, and wind shear. Unmitigated, these swings cause high rates of change of frequency (RoCoF) on weak regional networks. Connecting a high-speed battery storage facility at the wind farm collector substation enables fast frequency response (FFR), injecting active power within 150 to 250 milliseconds when frequency drops below statutory deadbands (e.g., ±0.05 Hz per IEEE 2800-2022 clause 5.2).

The engineering workflow for implementing ramp-rate smoothing on a wind generation asset involves the following sequential control stages:

1. Measurement of aggregate active power output at the 33 kV collector bus via high-accuracy current transformers (CTs) and potential transformers (PTs) running IEC 61850 sampled values.
2. Calculation of real-time power gradient (dP/dt) within the programmable logic controller (PLC) or energy management system (EMS) every 20 milliseconds.
3. Comparison of dP/dt against the grid code limit (typically 10% of rated capacity per minute).
4. Issuance of instantaneous charge or discharge commands to the bidirectional PCS via Modbus TCP or CAN bus to absorb or inject the delta power.
5. Dynamic state-of-charge (SoC) management to keep the battery bank operating within a 40% to 60% baseline to accommodate both positive and negative wind output swings.

Selecting the Right Renewable Battery Chemistry and Thermal Design

Selecting an industrial renewable battery demands balancing energy density, thermodynamic stability, cycle life, and thermal dissipation systems under severe ambient operating profiles.

Lithium iron phosphate (LiFePO₄ or LFP) has emerged as the definitive chemistry for stationary storage, replacing nickel manganese cobalt (NMC). LFP cells exhibit superior thermal stability, with an exothermic decomposition onset temperature exceeding 270 °C compared to approximately 150 °C to 210 °C for NMC chemistries. This thermal profile drastically reduces the probability of cascading thermal runaway under internal short-circuit conditions, meeting the stringent fire safety requirements of NFPA 855 and UL 9540A testing.

The thermal management system dictates both round-trip efficiency and cell degradation rates. Modern utility deployments have shifted from forced-air convection to direct liquid cooling plates embedded between cell strings within outdoor enclosure cabinets. Liquid cooling maintains cell-to-cell temperature deltas below 2.5 °C across an entire 3.44 MWh or 5 MWh containerized block, compared to 5 °C to 8 °C deltas typical in air-cooled configurations. Controlling internal thermal variance prevents premature aging of individual cell series, eliminating string imbalance and reducing parasitic auxiliary power loads by up to 30%.

Engineering Battery Farms Renewable Energy: Substation and Interconnection

Designing battery farms renewable energy infrastructure requires careful coordination of medium-voltage switchgear, step-up transformers, fault levels, and protective relaying schemes at the point of interconnection.

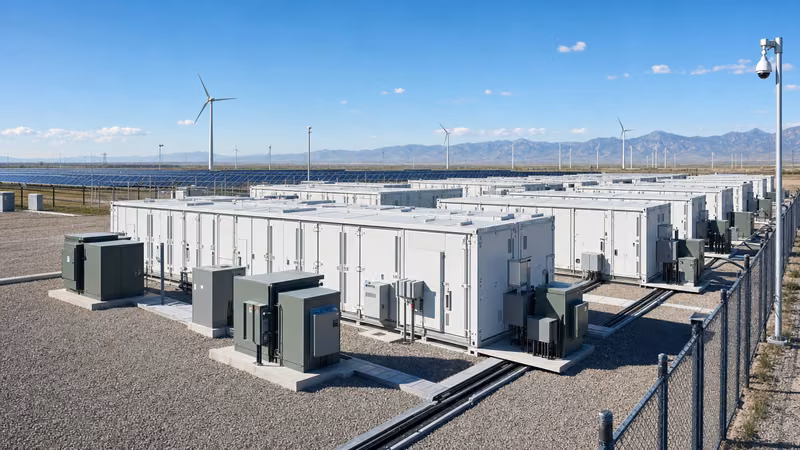

A typical utility-scale battery farm links multiple modular containerized enclosures—such as a series of liquid-cooled energy storage system containers—to a centralized step-up transformer. Each battery container typically outputs at low voltage (e.g., 690 V to 800 V AC from the inverter skid). Step-up pad-mounted or dry-type transformers elevate this potential to medium-voltage collector levels (typically 11 kV, 22 kV, or 33 kV). From the collector bus, power routes through vacuum circuit breaker switchgear before a main substation power transformer raises the voltage to transmission levels (110 kV or higher).

Short-circuit contribution represents a critical design factor. While inverter-based battery systems limit short-circuit contributions to 1.1 to 1.3 times rated full-load current (unlike synchronous generators that produce 5 to 7 times rated current), the cumulative fault current from extensive parallel arrays can disrupt legacy overcurrent relay coordination. High-speed numerical relays must incorporate directional overcurrent (ANSI 67), under-voltage (ANSI 27), and rate-of-change-of-frequency (ANSI 81R) elements configured to satisfy IEEE 1547-2018 anti-islanding parameters.

Procurement Checklist for a Renewable Energy Battery System

A procurement checklist for a renewable energy battery system ensures project tenders capture critical safety, environmental, thermal, and electrical performance criteria prior to issuing requests for quotation (RFQs).

Engineers must specify exact operational parameters rather than relying on nominal nameplate ratings. The comparison and technical specification table below defines the baseline criteria required for industrial-grade renewable power storage hardware:

Next steps: specifying and sourcing

When specifying equipment for utility-scale or industrial renewable power storage installations, preparing comprehensive tender documentation prevents costly engineering revisions. Provide your engineering team or manufacturing partner with target MW/MWh requirements, connection voltage at the point of common coupling, single-line diagrams (SLDs), local climatic extremes, and required grid support services such as synthetic inertia or black start capability.
